Gefen Composite Extender Manuel utilisateur

Composite

Extender

USER MANUAL

www.gefen.com

Technical Support:

Telephone (818) 772-9100

(800) 545-6900

Fax (818) 772-9120

Technical Support Hours:

8:00 AM to 5:00 PM Monday thru Friday.

Write To:

Gefen Inc.

c/o Customer Service

20600 Nordhoff Street

Chatsworth, CA 91311

www.gefen.com

[email protected]

Notice

Gefen Inc. reserves the right to make changes in the hardware, packaging and any

accompanying documentation without prior written notice.

Composite Extender is a trademark of Gefen Inc.

ASKING FOR ASSISTANCE

TABLE OF CONTENTS

INTRODUCTION

FEATURES

INSTALLATION INSTRUCTIONS

CAT5 WIRING DIAGRAM

WIRING DIAGRAM

SPECIFICATIONS

WARRANTY

Thank you for purchasing the Composite Extender by Gefen, Inc.

The Composite Extender allows users to extend Composite video signals beyond theA/V

rack. The Composite Extender Series can be used to extend a Composite signal to cover

the distances up to 330 feet. Industry standard Category 5e (CAT-5e) cable is used for

the extension.

HOW IT WORKS

The Composite Extender sender resides next to the TV source. With the supplied

Composite cable, the Composite Extender sender is connected to the source. The

Composite Extender receiver is then placed next to the monitor or projector. Industry

standard Category 5e (CAT-5e) cable is used to link the Composite Extender sender and

Composite Extender receiver together.

INTRODUCTION

READ THESE NOTES BEFORE INSTALLING

OR OPERATING THE COMPOSITE EXTENDER SYSTEM

• Use industry standard Category-5e (CAT-5e) cable to operate the Composite Extender

system. CAT-5e cable is preferred.

• Please connect all the cables between the source and the Composite Extender before

powering up the Composite Extender unit.

• The Composite Extender units are housed in a metal box for better RF shielding.

OPERATION NOTES

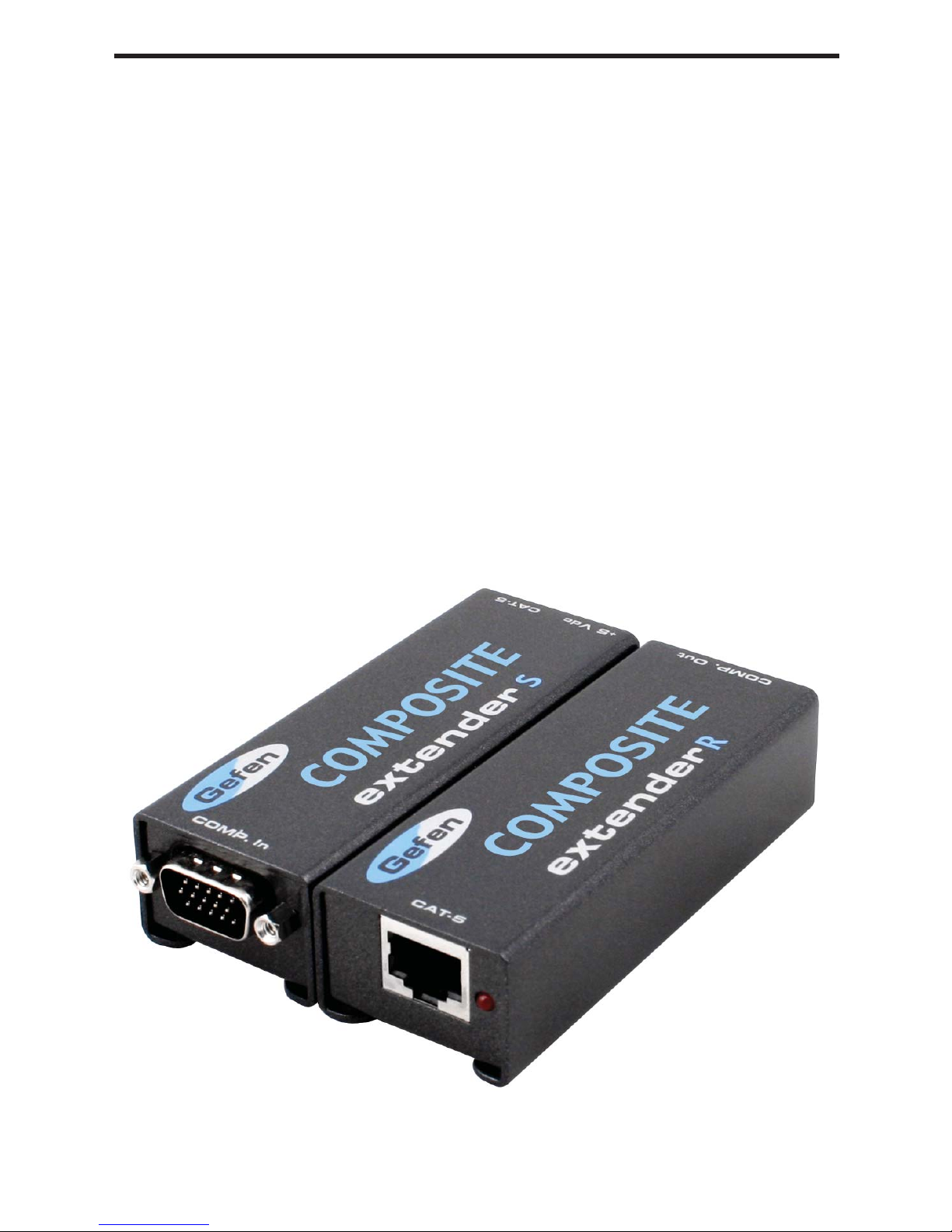

Features

• Extends Composite video up to 330 feet

• Power only required only on transmitter.

• Plug & Play installation.

• One CAT5 Cable for extension.

• No Loss of Quality.

Includes:

Composite Extender sender unit

Composite Extender receiver unit

5V DC power supply

2x VGA to Composite Cables (6 feet)

VGA F-F Adapter

User’s Manual

FEATURES

Use the included VGA to Composite Cable and VGA F-F Adapter to connect the

Composite output of your TV source to the VGAinput on the Composite

Extender Sender Unit.

Use the second VGA to Composite Cable to connect the Composite input of your

display or projector to the VGA output on the Composite Extender Receiver Unit.

Connect the CAT-5 cable between the Composite Extender sender and receiver’s

CAT-5 input.

Power on both the HDTV source and display

Plug the 5 volt power supply into the sender unit. The Composite Extender

receiver will draw power from the sender.

INSTALLATION INSTRUCTIONS

Note: Any of the 3 RCA lines can be used for video and remaining two will be for audio.

Both ends will need to be matched for the signal to be passed through correctly.

White/Orange

Orange

White/Green

Blue

White/Blue

Green

White/Brown

Brown

RJ-45 Jack RJ-45 Jack

1818

CAT5 WIRING DIAGRAM

Video Ampliﬁer Bandwidth .................................................................................. 350 MHz

Input Video Signal ......................................................................................... 1.2 Volts p-p

Video In .................................................................................................................. HD-15

Focus ............................................................................................................ 25 to 450 FT

Video out ............................................................................................................... HD-15

Link Connector ........................................................................................................ RJ-45

Power Consumption ............................................................................................... 1 Amp

Power Supply ......................................................................................................... 5V DC

Dimensions .................................................................................... 1.9”H x 1.6”W x 3.5”D

Shipping Weight ....................................................................................................... 2 lbs.

SPECIFICATIONS

Gefen Inc. warrants the equipment it manufactures to be free from defects in

material and workmanship.

If equipment fails because of such defects and Gefen Inc. is notiﬁed within one

(1) year from the date of shipment, Gefen System will, at its option, repair or replace

the equipment, provided that the equipment has not been subjected to mechanical,

electrical or other abuse or modiﬁcations.

Equipment that fails under conditions other than those covered will be repaired at the

current price of parts and labor in effect at the time of repair. Such repairs are warranted

for ninety (90) days from the day of shipment to the Buyer.

This warranty is in lieu of all other warranties expressed or implied, including without

limitation, any implied warranty or merchantability or ﬁtness for any particular purpose,

all of which are expressly disclaimed.

The information in this manual has been carefully checked and is believed to be

accurate. However, Gefen Inc. assumes no responsibility for any inaccuracies that

may be contained in this manual. In no event will Gefen Inc., be liable for direct,

indirect, special, incidental, or consequential damages resulting from any defect

or omission in this manual, even if advised of the possibility of such damages. The

technical information contained herein regarding the Composite Extender features and

speciﬁcations is subject to change without notice.

WARRANTY
