Geeetech Acrylic I3 Pro Manuel utilisateur

ShenZhenGETECHCO.

LTD

GEEETECH

Acrylic Geeetech I3 Pro 3D Printer



www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858



‐1‐

GEEETECH



www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858



‐2‐

ShenZhenGETECHCO.

LTD

The copyright of this manual belongs to the Shenzhen GETECH CO., LTD. (hereinafter

reproduced or extracted in any forms or means without the prior written consent of Geeetech by any

company and individuals.

Technical Support

If you are interested in the technology of 3 D printing, flight control and U-home, welcome to

Geeetech, we have series of made-up products, main boards, modules and a variety of peripherals

for you. Or if you are looking for relevant information or technical support, please login our forum

where you can find anything you want about open source. To know more about our new products,

please visit www.geeetech.com, we will serve you wholeheartedly.

GEEETECH



www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858



‐3‐

ShenZhenGETECHCO.

LTD

SAFTY INSTRUCTIONS

Building the printer will require a certain amount of physical dexterity, common sense and a

thorough understanding of what you are doing. We have provided detailed instructions to help you

assemble it easily, please download at geeetech.com.

However ultimately we cannot be responsible for your health and safety whilst building or

operating the printer, with that in mind be sure you are confident with what you are doing prior to

commencing with building or buying. Read the entire manual to enable you to make an informed

decision.

Building and operating involves electricity, so all necessary precautions should be taken and

adhered to, the printer runs on 12V supplied by a certified power supply, so you shouldn’t ever have

to get involved with anything over 12V but bear in mind there can still be high currents involved

and even at 12V they shouldn’t be taken lightly.

High temperatures are involved with 3D Printing, the Extrusion nozzle of the hot end can run

about 230°C, the heated bed runs 110°C and the molten plastic extruded will initially be at around

200°C, so special care and attention should be made when handling these parts of the printer during

operation.

We wouldn’t recommend leaving your printer running unattended, or at least until you are

confident to do so. We cannot be held responsible for any loss, damage, threat, hurt or other

negligent result from either building or using the printer.

ShenZhenGETECHCO.

LTD

GEEETECH

INTRODUCTION:

This Acrylic I3 Pro 3D printer is designed and manufactured by Shenzhen Getech Co., Ltd

based on the Reprap Prusa I3, Geeetech I3 features simple assembly, easy debugging and more

stable performance. The acrylic structure makes the printer much easier to operate.

PACKAGE LIST:

This list includes all the parts required to assemble your Acrylic Frame Geeetech I3 3D Printer.

After you received your package, please check if all the parts listed are included. Also make sure all

the components are in good condition and not damaged during shipping. If anything is missing

please contact with our customer service straight away, provide us the NO. , Name, and Qty.

No Name Specifications Qty Pic

1 Smooth Rod

D8*L322mm 2

2 Smooth Rod

D8*L370mm 2

3 Smooth Rod

D8*L410mm 2

4 Threaded

Rod M8*L300mm

Z-axis screw 2

5 Threaded

Rod M10*L450mm

Y-axis 2

6 M2.5

Washers M2.5 5

7 M3 Washers

M3 115

M4 Washers

M10 Washers

M10



www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858



‐4‐

GEEETECH

ShenZhenGETECHCO.

LTD

10 Nut M2.5 4

11 Nut M3 35

11A Nut M4 4

12 Nut M10 12

13 Lock nut Hex Socket nuts

M3 5

Lock nut

Hex Socket nuts

Wing nut

Square nut

Z-axis nut

M8（tin-bronze）

Spring

washer

M10

19 Screw

locking ring



www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858



‐5‐

GEEETECH

ShenZhenGETECHCO.

LTD

Bolt

Jimi headless

M3x6mm

21 Screw M2.5x12 mm 4

22 Screw M2.5x16 mm 4

23 Screw M3x8mm 4

24 Screw M3x10mm 10

25 Screw M3x12mm 15

26 Screw M3x16mm 40

27 Screw M3x20mm 30

28 Screw M3x30mm 12

29 Screw M3x35mm 5

30 Screw M3x40mm 4

31 Screw M3x50mm 1

32 Screw M4x8mm 4

33 Screw M4x12mm 5

34 Screw M4x16mm 4

35 Screw M4x25mm

Bolts countersunk head

bolt M3x16mm

Spring inner diameter

4mm,wire

diameter 0.8mm,

length 20mm

38 624ZZ Ball

bearing

624zz



www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858



‐6‐

GEEETECH

ShenZhenGETECHCO.

LTD

39 LM8UU

Linear

Bearings

LM8UU

40 LM8UU

Linear

Bearings

LM8UU(pro)

Timing Belts

L1=775(Y axis)

Timing Belts

L1=860mm(X

axis)

43 20- tooth

MXL

Aluminum

Pulleys

20 tooth d5mm

End stop

X-axis two blue

lines

End stop Y-axis two red

lines

End stop

Z-axis two black

lines

Spacer

3mm diameter

5mm length



www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858



‐7‐

GEEETECH

ShenZhenGETECHCO.

LTD

Spacer 3mm diameter

28mm length (for

the cover board of

the control board)

USB Cord

A-B

Thermometry

wire

50cm 2pin with

DuPont socket

Heating

Wire

50cm

3D Power

Cable

3*0.75 Square

mm Switch Line

Dovetail

clamp

Nylon ties

Heat sink

9*10*5mm



www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858



‐8‐

GEEETECH

ShenZhenGETECHCO.

LTD

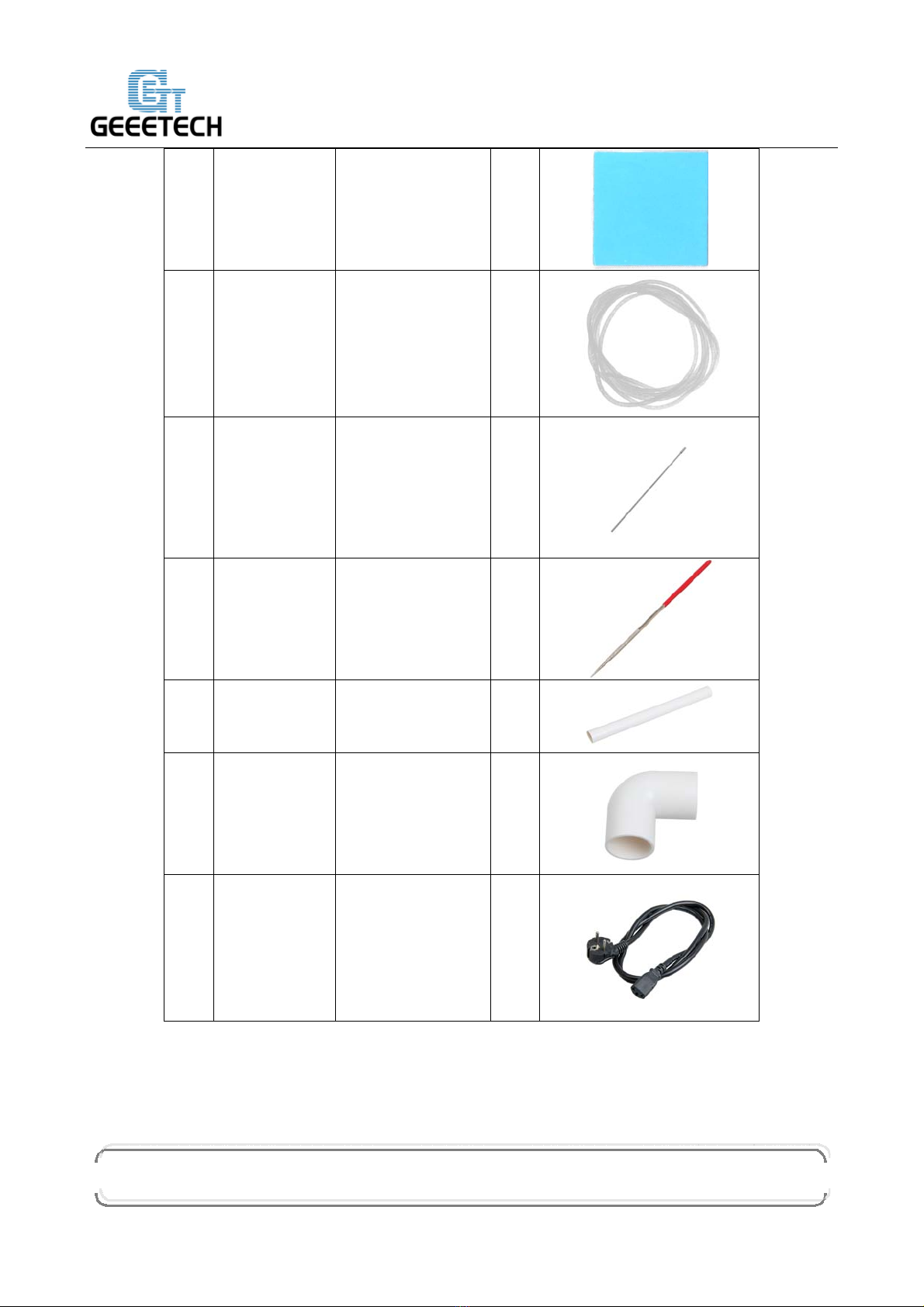

Sticker

Coil

ejector pin

Grater

60 PVC-U

plastic pipe

61 PVC-U

plastic pipe

elbow

Power Cable

Power cable and

plug

（Eu standard）



www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858



‐9‐

GEEETECH

ShenZhenGETECHCO.

LTD

DuPont cable

2Pin

Male-2PinFemale

DuPont cable

4Pin

Male-4PinFemale

300mm

5 MK8 le luminium plate6 assemb

board a1

6 earing etal plate

holder m2

elt mount

luminium plate

8 ower cable onnect board to6 PC

PSU 1

9 ouplings -8mm

6C5

0 an 0x40x15mm

7 F 4

12V



www.geeetech.comTel:+8675526584110Fax:+8675526584074‐858



‐10‐
