PS80-M
TECHNICAL SHEET
ISSUE 003
SHEET 1
MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET
UK
+44 (0) 1438 833577
US
+1 (603) 742 9181
SPECIFICATION
MEASUREMENTS
Product Dimensions
795mm (31 5/16") x 900mm (35 7/16") x 91mm (3 9/16")
Screen Sizes
65" - 110"
Maximum Weight Capacity
120Kg (265 lb)
Maximum Extension From Wall
569mm (22 3/8")
Minimum Depth From Wall
91mm (3 9/16")
Product Weight
24 Kg (53 lb)
Packaging Dimensions
TBC
Shipping Weight
TBC
Maximum Rotation
40° - Bi-directional with 75" screen - 34° with 85" - 28° with 100"
Movement Type
Manual
Mounting Patterns Supported
VESA 800, 700, 600, 500, 400, 300, 200 W x 700, 600, 500, 400, 300, 200 H
Product Options / Features
Specific B&O and Loewe mounts / adapters, Custom RAL paint finishes, Marine suitable version
Package Contents
Mechanism
Marine Suitable
Yes (Indoor)
WWW
.
FUTUREAUTOMATION
.
NET
PS80-M
TECHNICAL SHEET
ISSUE 003
SHEET 2
MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET
UK
+44 (0) 1438 833577
US
+1 (603) 742 9181
40°
75"
34°
85"
28°
100"
SCREEN ANGLES
The views below show the approximate maximum swivel angles achievable
for varying screen sizes.
WWW
.
FUTUREAUTOMATION
.
NET
PS80-M
TECHNICAL SHEET
ISSUE 003
SHEET 3
MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET
UK
+44 (0) 1438 833577
US
+1 (603) 742 9181
15 3/4"
400
31 1/2"
800
Ensure Sufficient Slack

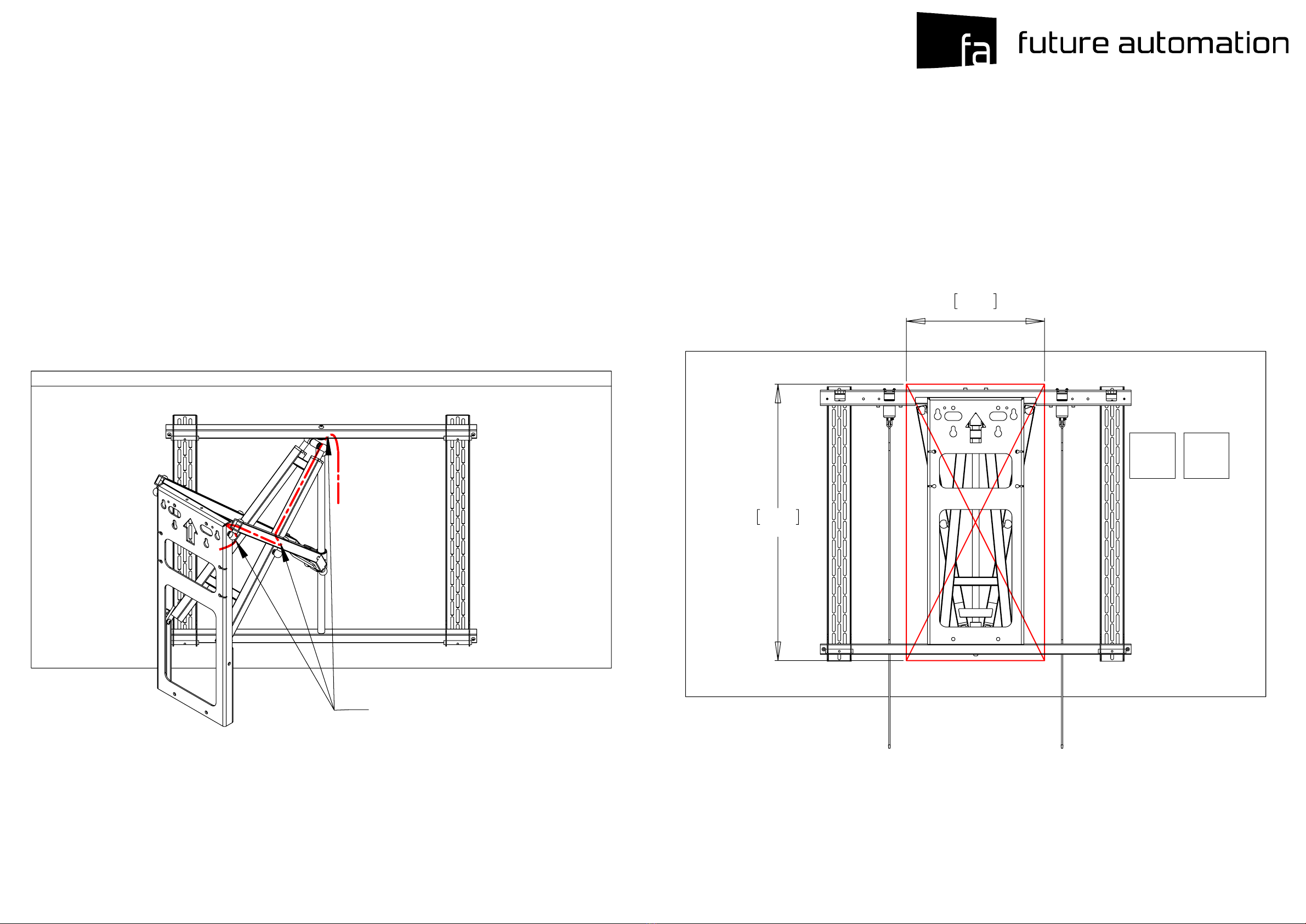

CABLE ROUTING AND SOCKET LOCATION
All cables should enter the bracket at the top of the Wall Plate, run down each of the
outer Scissor Arms and attach to the rear of the Screen Frame.
Use supplied cable ties to secure all cables to the Scissor Arms and Screen Mount.
Ensure sufficient slack is left and ensure cables do not restrict movement
Marine locking system hidden for clarity.
Wall sockets should be ideally placed as shown outside
of the bracket footprint to maximise space for cable routing
SOCKET
SOCKET
WWW
.
FUTUREAUTOMATION
.
NET
PS80-M
TECHNICAL SHEET
ISSUE 003
SHEET 4
MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET
UK
+44 (0) 1438 833577
US
+1 (603) 742 9181
31 5/16"
795
30 5/8"
778
MAX VESA
HEIGHT
32 3/8"
822
MAX VESA WIDTH
35 7/16"
900
3 9/16"
91
22 3/8"
569
GENERAL DIMENSIONS
FULL EXTENSION
CLOSED
WWW
.
FUTUREAUTOMATION
.
NET
PS80-M
TECHNICAL SHEET
ISSUE 003
SHEET 5
MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET
UK
+44 (0) 1438 833577
US
+1 (603) 742 9181
1 1/2"
38
28 1/8"
714
3 7/16"
88
6 3/16"
157
10 1/8"
257
9/16"
15
11"
279
5 1/8"
130
1 3/16"
30
3/8"
10
TYP
5 1/8"
130
7 1/16"
180
8 11/16"
220
MOUNTING DIMENSIONS
Make sure the wall that the bracket is being mounted to is secure
and strong enough to support the bracket and screen.
WWW
.
FUTUREAUTOMATION
.
NET
PS80-M
TECHNICAL SHEET
ISSUE 003
SHEET 6
MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET
UK
+44 (0) 1438 833577
US
+1 (603) 742 9181
P
Wall Sockets
Adjustable length
release pull cords need
to be accessible to
release the screen.
Adjustable buffers
DETAIL P
SCALE 1 : 1
Two spring loaded catches
engage with the wall sockets.
MARINE LOCK
Intended to enable easy servicing by pulling on two cords to
release the spring loaded catches at the top of the bracket.
The cords would be attached at the bottom back edge of
the screen before pushing the bracket back into place.
Two wall socket locations allow for uprights at VESA 200-800 width.
2 x Adjustable buffers provide stability for the bracket. These are
mounted on provided Hex Spacers
2 x 25mm Spacer
WWW
.
FUTUREAUTOMATION
.
NET
PS80-M
TECHNICAL SHEET
ISSUE 003
SHEET 7
MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET
UK
+44 (0) 1438 833577
US
+1 (603) 742 9181
VESA 400
WIDTH
SCREEN MOUNTING
The marine lock can be located in an inner or outer postion to allow
the uprights to be located at any desired bolt width pattern up to
maximum width 822mm [32.36"]. The inner and outer positions are
shown below in VESA 400 and 800 widths.
VESA 800
WIDTH
WWW
.
FUTUREAUTOMATION
.
NET
PS80-M
TECHNICAL SHEET
ISSUE 003
SHEET 8
MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET
UK
+44 (0) 1438 833577
US
+1 (603) 742 9181
MARINE CATCH CABLE ROUTING
4 x Cable Routing Bosses are provided to route the 2
marine catch cords to the outer edges of the screen
Mount boss to be secured to the wall with countersunk
fixings
(NOT PROVIDED)
Additional Cable Route Bosses Can be purchased using
order code
CRB-PS-M
No Cable Routing
Bosses used
Cables hang below
the screen
Cable Routing
Bosses used
Cables routed to
the side of screen
Cable Routing Bosses
used
Cables routed to the
top of screen
This orientation
increases pulling
power required to
release marine catch
4 x Cable Route Bosses
WWW
.
FUTUREAUTOMATION
.
NET
PS80-M
TECHNICAL SHEET
ISSUE 003
SHEET 9
MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET
UK
+44 (0) 1438 833577
US
+1 (603) 742 9181
ADDITIONAL ACCESSORIES
CABLE ROUTING BOSS KIT
4 x Cable Routing Bosses are
provided
as standard with the marine PS
brackets.
Additional
sets can be ordered with
code
CRB-PS-M
BALL & SOCKET KIT
Sets of 4 x Ball and Socket Catches to
be used with the marine PS bracket to
retain and stablise the screen edges.
Full Details refer to
BS-PS-M
Technical
Sheet
Sets of 4 x Rubber screen Posts to be
used with the marine PS bracket to
apply pressure and stabilise the
screen edges.
Full Details refer to
RP-PS-M
Technical
Sheet
RUBBER POST KIT
PS80-M Extension
INCLUDED with the
PS80-M Bracket
WWW
.
FUTUREAUTOMATION
.
NET
PS80-M
TECHNICAL SHEET
ISSUE 003
SHEET 10
MARINE INDOOR PULL & SWIVEL MANUAL SERVICE BRACKET
UK
+44 (0) 1438 833577
US
+1 (603) 742 9181
