DISTY40 / DISTY80

201.40 201.80

MANUAL

Congratulations!

On choosing this FUTECH instrument. FUTECH provides measuring instruments of

precision and quality. Contributions from professional end users enable us to offer

innovative, easy-to-use equipment.

DISTY40 / DISTY80

Distance meter

IMPORTANT!

Read the instructions for use carefully before using the instrument. Keep them in a

safe place for consultation when necessary.

Whether on or off, keep the instrument out of reach of children.

This equipment is a high quality precision instrument which must be handled with

care. Avoid shocks and vibration. After use, always replace the instrument in its carry-

ing bag. Make sure that the bag and instrument are dry; otherwise condensation may

occur in the device. Make sure that the windows are free of dirt, and clean them using

a soft cloth and a glass cleaning product only. Always use the locking device dur-

ing transportation. Regularly inspect the accuracy of the instrument, especially when

starting any major square-setting work. You have sole responsibility for the accuracy

of your work. Do not use any optical equipment such as a magnifying glass to view



the eye. Locate the laser in such a way that it is not possible for any person to look at

the laser beam (intentionally or otherwise). Under no circumstances take the instru-

ment apart, since this may expose you to powerful laser radiation. The laser is only

to be used for the projection of laser lines. Do not use the instrument in rain or near



carried out without prior notice. The manufacturer’s responsibility shall in no case

exceed the value of the costs of repair or replacement of the instrument. Respect the

environment and do NOT discard the instrument or batteries in household waste.

Take them to a recycling centre.

DISTY40 / DISTY80

11 10

MANUAL

1. Display

2. On / DIST (on / measuring)-button

3. Timer

4. Tilt-functions

5. Function-button

6. Plus-function

7. Minus-function

8. Memorybutton

9. Referencepoint

10. Beep / Units

11. Delete / Off - button

12. Laser active

13. Referencepoint in front

14. Referencepoint at the back

15. Reference point positioning bracket

16. Max. and Min.-measurement

17. Surface / Volume

18. Indirect measurement

- Single pythagoras

- Double pythagoras

- Double pynth. (half heigt)

- Tilt-function , of

19. Digital waterlevel / record number

20. Memorysymbol

21. Error-symbol

22. Timer

23. Single / continue measurement

24. Battery

25. Intermediate line 1

26. Intermediate line 2

27. Intermediate line 3

28. Summary line

Start-up

Inserting / replacing batteries

Remove battery compartment lid and attach handstrap.

Insert batteries, observing correct polarity

Close battery compartment again.

Note

Only use alkaline or rechargeable batteries

Remove the batteries before a long period of non-use to avoid the

danger of corrosion

Changing the reference point (multifunctional endpiece)

The instrument can be adapted for the following measuring situations:

 

in place. (corner of 90°)

For measurements from a corner, open the positioning bracket until it locks in place,

then push the positioning bracket lightly to the right to fold it out fully.

Menu functions

Measurements

-button (pressed long) - Press once again to change the unit of distance measure-

ment. The following units are available: m (meter), ft (feet), in (inch), ft +/ in (feet - inch

1/16)

Beep

button (press long). You can choose the beep on or off as required.

DISTY40 / DISTY80

MANUAL

Measuring with tripod

The reference must be appropriately adjusted in order to be able to take correct

measurements with a tripod. You can switch the reference by -button. The setting

can be shown on the display.

Operation

Switching on and off

Switches on the instrument and laser by using the -button. Pressing the -button

for longer switches the instrument off. The laser will be deactivated after 30 seconds

of inactivity, the device after 3 minutes.

Clear button

Pressing the -button, the last action is cancelled. While making area of volume

measurements, each single measurements can be deleted and remeasured in series.

Reference

The default reference setting is from the rear of the instument. The display will show

you .

Press the -button to change the reference point to the forefront. The display will

show you .

Press the -button again to change the reference point again to the rear. The dis-

play will show you .

The referece point can alse bo moved to the point of the positioning bracket when it

is unfolded 180°. This can be done with the -button, but only when it is unfolded.

The display shows .

Tilt-function

Fot some measuring functions the inclination of the device can be used to calculate

the result. Use the -button to activate this function.

(Available for single pythagoras, double pythagoras, double pythagoras with partial

height).

Measuring

Single distance measurement

Press to activate the laser. Press again to trigger the distance measurement.

The result is displayed immediately.

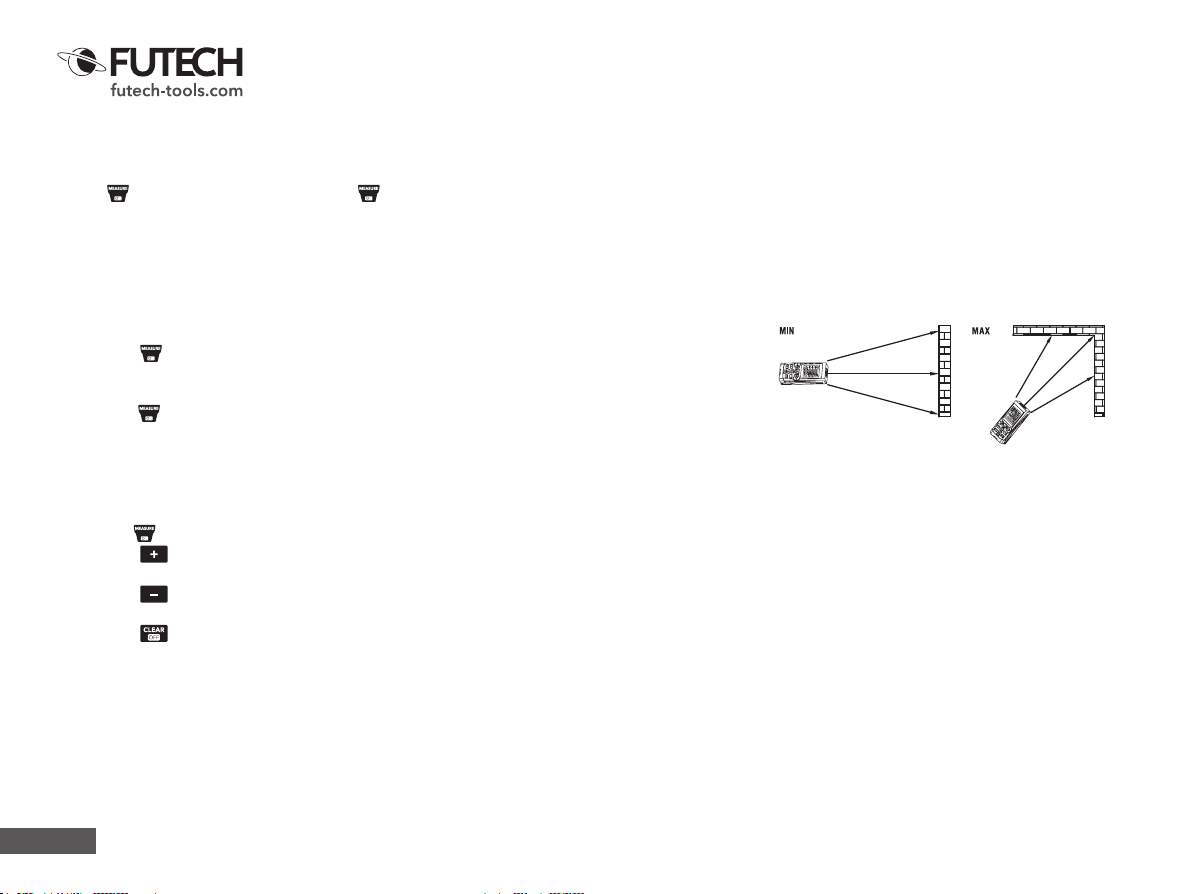

Minimum/maximum measurement

This function allows the user to measure the minimum of maximum distance from a



used to measure room diagonals (maximum values) or horizontal distances (mini-

mum values).

Press the -button and hold down this button until you hear a beep. Then slowly

sweep the laser back and forth and up and down over the desired target point (e.g.

into the corner of a room).

Press the -button to stop continuous measurement. The values for maximum and

minimum distances are shown in the display as well as the last measured value in the

summary line.

Addition / Substraction

Push the to do a distance measuring

Use the -button to add a measurement to the previous one.

This process van be repeated as required.

Use the -button to substract a measurement to the previous one.

This process van be repeated as required.

Use the -button to cancel the last step.

DISTY40 / DISTY80

MANUAL

Surface

Press once the -button. The symbol appears in the display.

Press the 

Press the -button to take the second measurement (e.g. widht).

The result is displayed in the summary line.

Volume

Press twice the -button. The symbol appears in the display.

Press the 

Press the -button to take the second measurement (e.g. widht).

Press the -button to take the third measurement (e.g. height).

The result is displayed in the summary line.

If you press after the volume measurement for a longer time, extra measured values

will appear on the display.







- volume



Tilt measurement

The tilt-sensor is activated activate by default when the device is switched on. You can

activate or deactivate the function by pushing . The number of degrees of the slope

are shown at the top of the screen.

Inderect measurement

The instrument can calculate distances using Pythagoras’ theorem.

Make sure you adhere to the prescribed sequence of measurement:

All target points must be in a horizontal or vertical plane.

 

(e.g. with the position bracket fully folded out and the instrument placed on a wall).

The minimum/maximum measurement can be used. The minimum value must be

used or measurements at right angles to the target; the maximum distance for all

the other measurements.

-

gles. Use the minimum/maximum function, as explained in “Measuring ªMinimum/

maximum measurement”.

DISTY40 / DISTY80

90°

MANUAL

• Indirect measurement - (single pythagoras)

Press the -button once, the display shows the -symbol. The laser is switched



upper point and trigger the measurement using . Then carry out the second ho-

rizontal measurement. After the measurement, the results are shown on the display.

The measured distance (slope) is shownon the top line, the measured horizontal sode

on the second link. The calculated height on the third line.

Keep in mind that the lenght ofthe horizontal line is only 100% correct when a precise

vertical measurement is performed.

• Double indirect measurement - (double pythagoras)

Press the -button twice; the display shows the -symbol. The laser is switched on.

-

per point and trigger the measurement using . Then perform the second (90°) and

third measurement. The results are now shown on the screen (from top to bottom)

distance to upper point

distance from the measured horizontal point

distance to lower point

distance between upper and lower point (height)

90°

• Double indirect measurement - (double pythagoras - partial height)

Press the -button twice; the display shows the -symbol. The laser is switched on.

per point and trigger the measurement using . Then perform the second and third

(90°) measurement. The results are now shown on the screen (from top to bottom)

 

distance to the second point

distance from the measured horizontal point

 

Storage of constants/historical storage

Press the -button short, the symbol will be displayed. The last measured value

appears on the display. The previous 99 results (measurements of calculated results)

are shown in reverse order.

The and buttons can be used for navigation.
