Fujitsu fi-5110 SERIES S500 Guide de configuration
1
fi-5110 SERIES S500SCANNER CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
fi-5110 SERIES S500 SCANNER CONSUMABLE REPLACEMENT
AND CLEANING INSTRUCTIONS
CG00002-003201Revision C
fi-5110 SERIES S500SCANNER CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
2

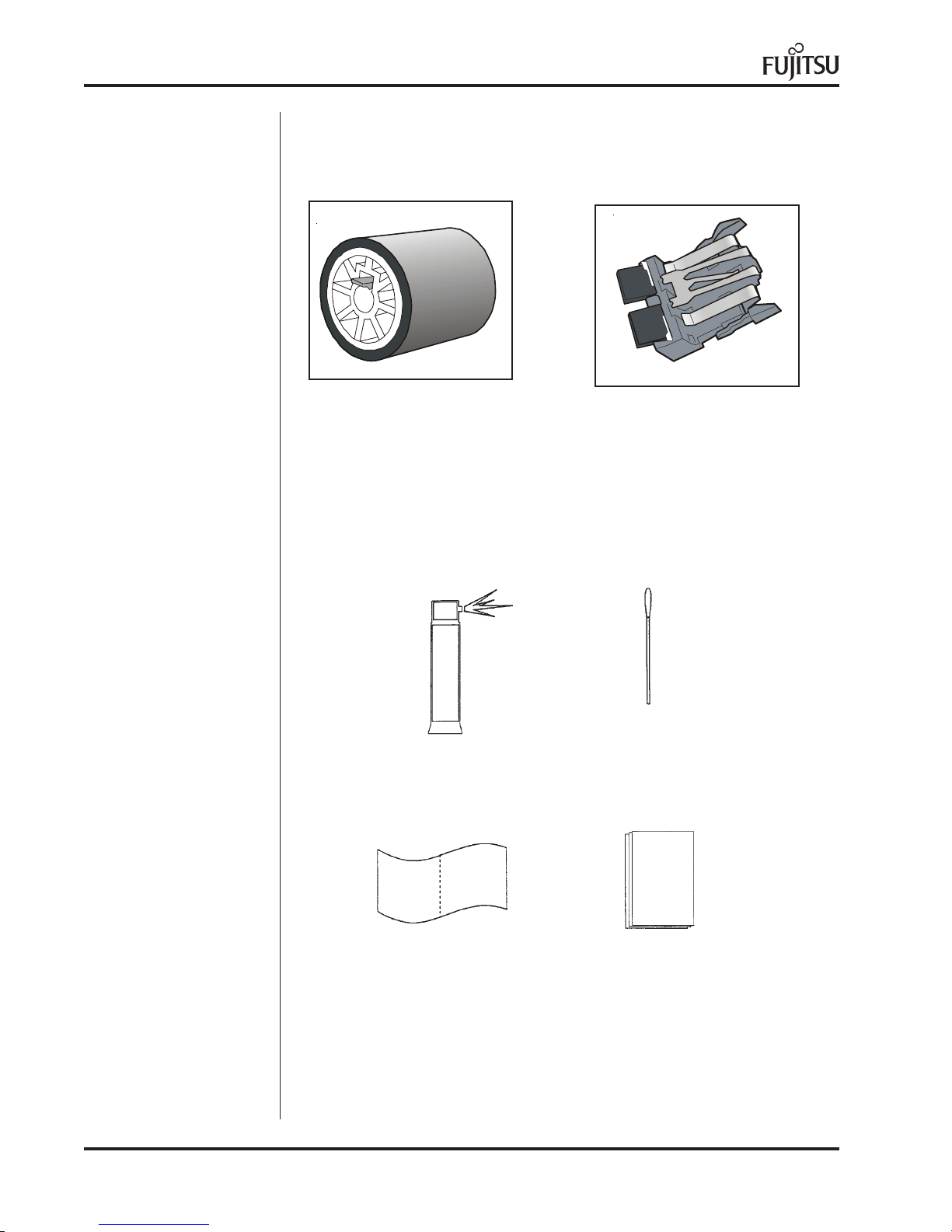

KIT CONTENTS
Cotton
Swabs
Qty 1 100 Pack
F1 Cleaner
Isopropyl Alcohol
Qty1
Cleaning Paper
Qty 1 10 pack
Lint Free
Cleaning Cloths
Qty 2 20 packs
Pick Roller
Qty1 Pad Assembly
Qty2
3
fi-5110 SERIES S500SCANNER CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

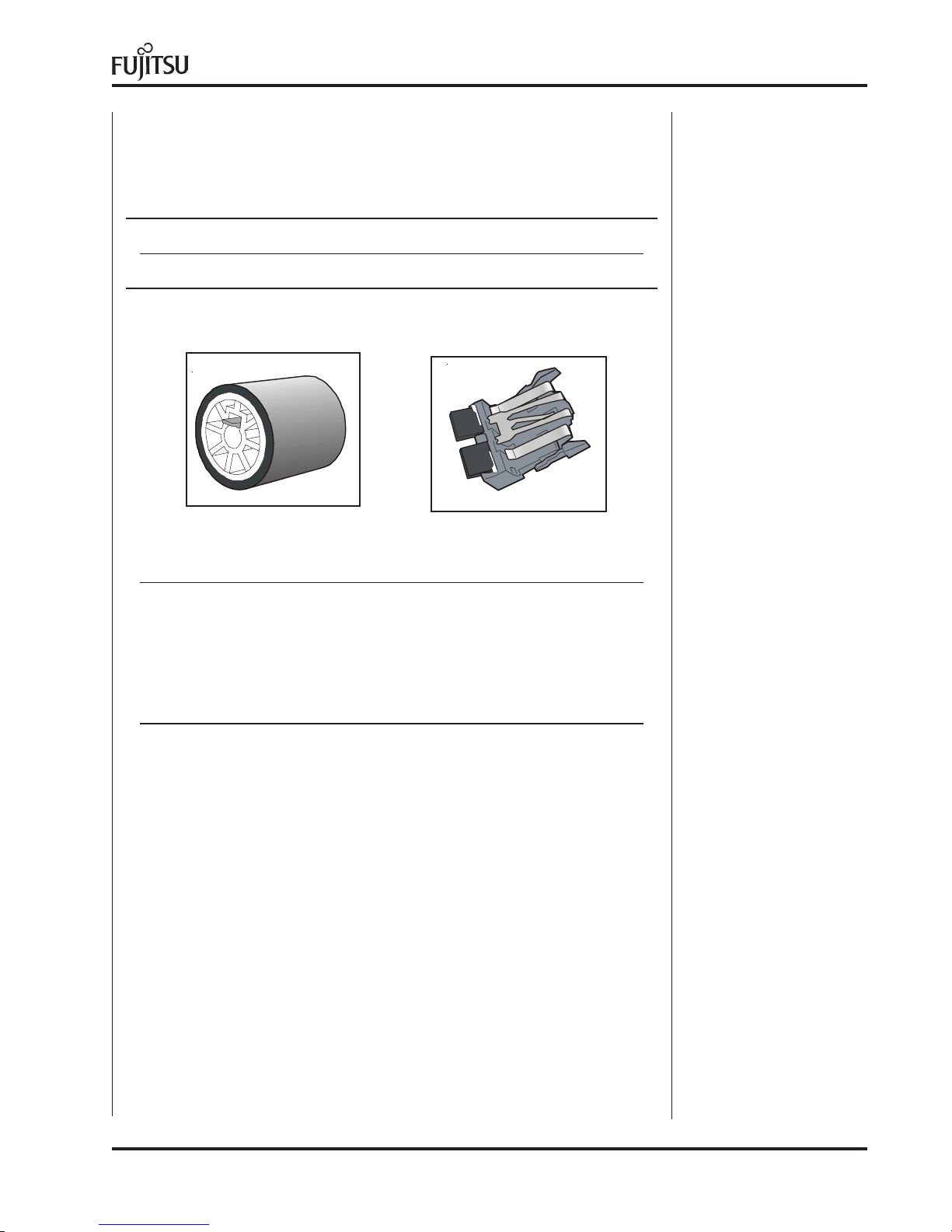

CONSUMABLES LIST
Description Qty Life Fujitsu P/N
Pick Roller 1 100,000 PA03360-0001
Pad Assembly 1 50,000 PA03360-0002
Note:
Replacement Cycles are estimated guidelines established by testing
with A4/Letter sized woodfree and wood based 17 lb paper. NCR or
Carbonless paper has chemical composition which damages the
Pad, and the Pick Roller. Cleaning of the consumables will be
required more frequently to avoid feed problems. Consumable life
will be reduced if NCR or Carbonless paper is scanned.
Pad Assembly
Pick Roller
Pick Roller Pad Assembly
fi-5110 SERIES S500SCANNER CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
4

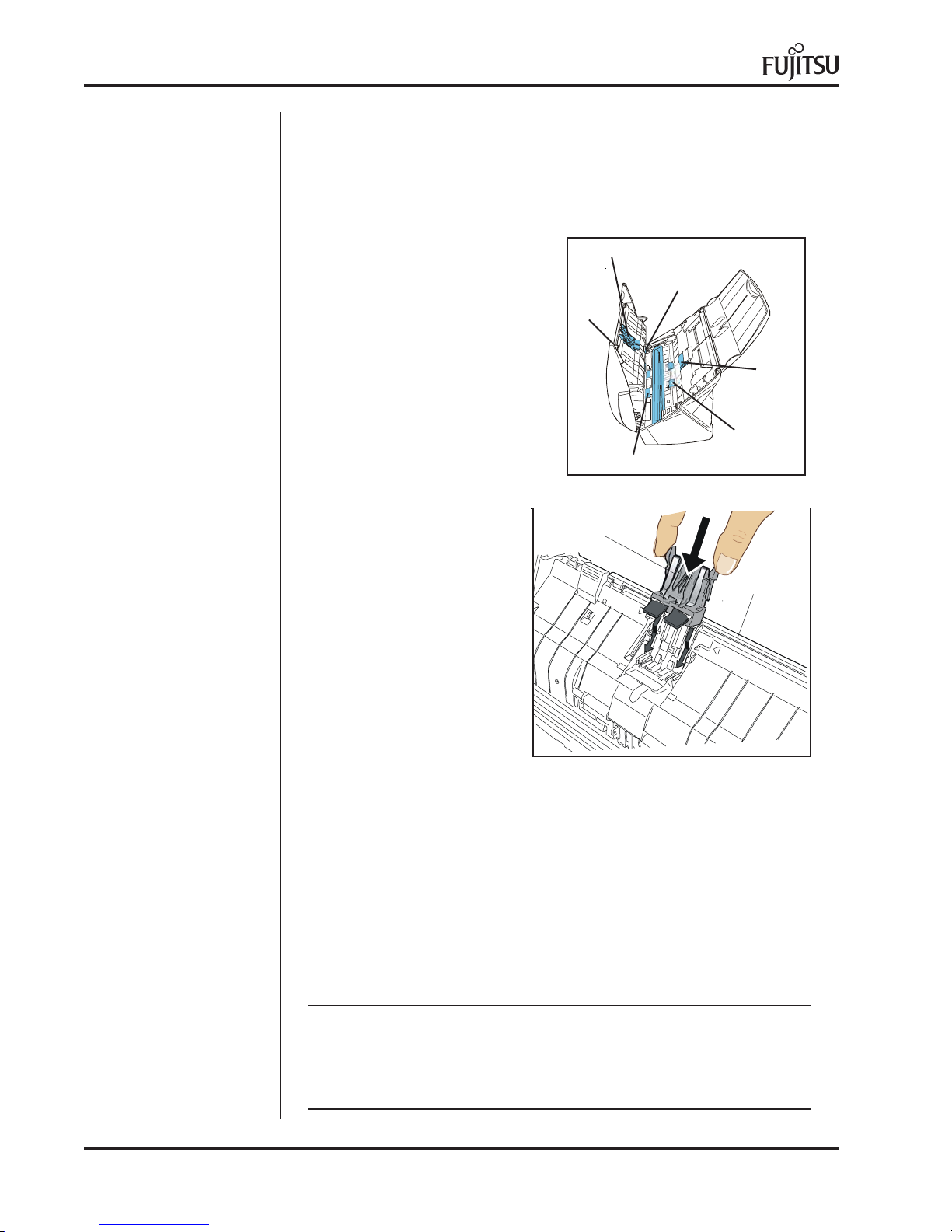

REPLACING THE PAD ASSEMBLY
• Removealldocuments
fromtheADFPaper
Chute. Open theADF
by pulling theADF
buttonforward.
• Removethe Pad
Assembly by pressing
two knobs on the top
of the pad assembly
and sliding it Up to
removeit.
• Attach the new Pad
Assembly by pressing
the two knobs on the
top of the pad
assembly and sliding
it down in the slots to
lock it in place.
A defective or improperly installed Pad Assembly can cause misspicks,
skew, or double fed documents. To replace the Pad Assembly perform
the following steps.
Note:
After replacement of any consumable reset the counter for that
consumable by following the instructions in your Operator’s Guide.
These instructions can be found under the “Replacing
Consumables” section of the Operator’s Guide.
PadASSY
A
DF cover
Pad Assy Plastic
Rollers
Pick
Roller
Feed
Rollers
(x2)
Eject Rollers (x2)
ADF
Button
5
fi-5110 SERIES S500SCANNER CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

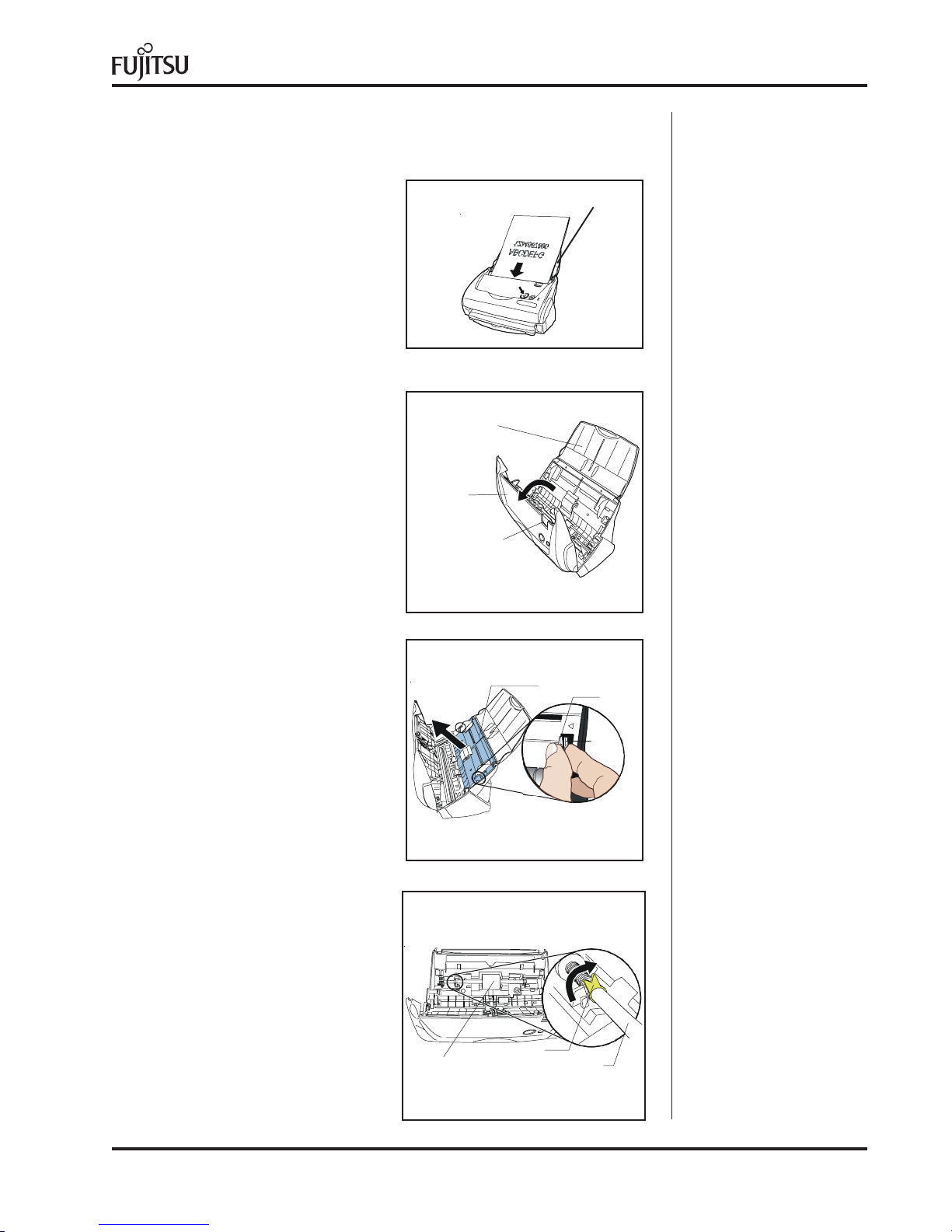

REPLACING THE PICK ROLLER
• Remove all documents from
theADFpaperchute.
• Open theADF using the
Coveropenlever.
• Pinch the Claws on the sheet
guidehandleandliftthesheet
guidetoremoveit from the
scanner. Be careful not to let
theADF close while your
fingersareinside.
• Rotate the Pick Roller
Bushing on the end of Pick
RollerShaftinthedirectionof
the arrow so the bushing is
pointingupdon’tbreakthe
plastic tabs that hold the
bushinginplace.
• Lift the Pick Roller shaft up
being careful not to let the
ADF fall closed while your
fingers are inside the ADF.
The bushing is fixed to the
scannerontheoppositeend of
the shaft and will remain in the
scanner.
ADF Paper Chute
ADF cover
Paper chute
cover
Cover open lever
Sheet guide
Claw
Handle
Pick roller shaft
Pick roller bushing
Pick roller
fi-5110 SERIES S500SCANNER CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
6

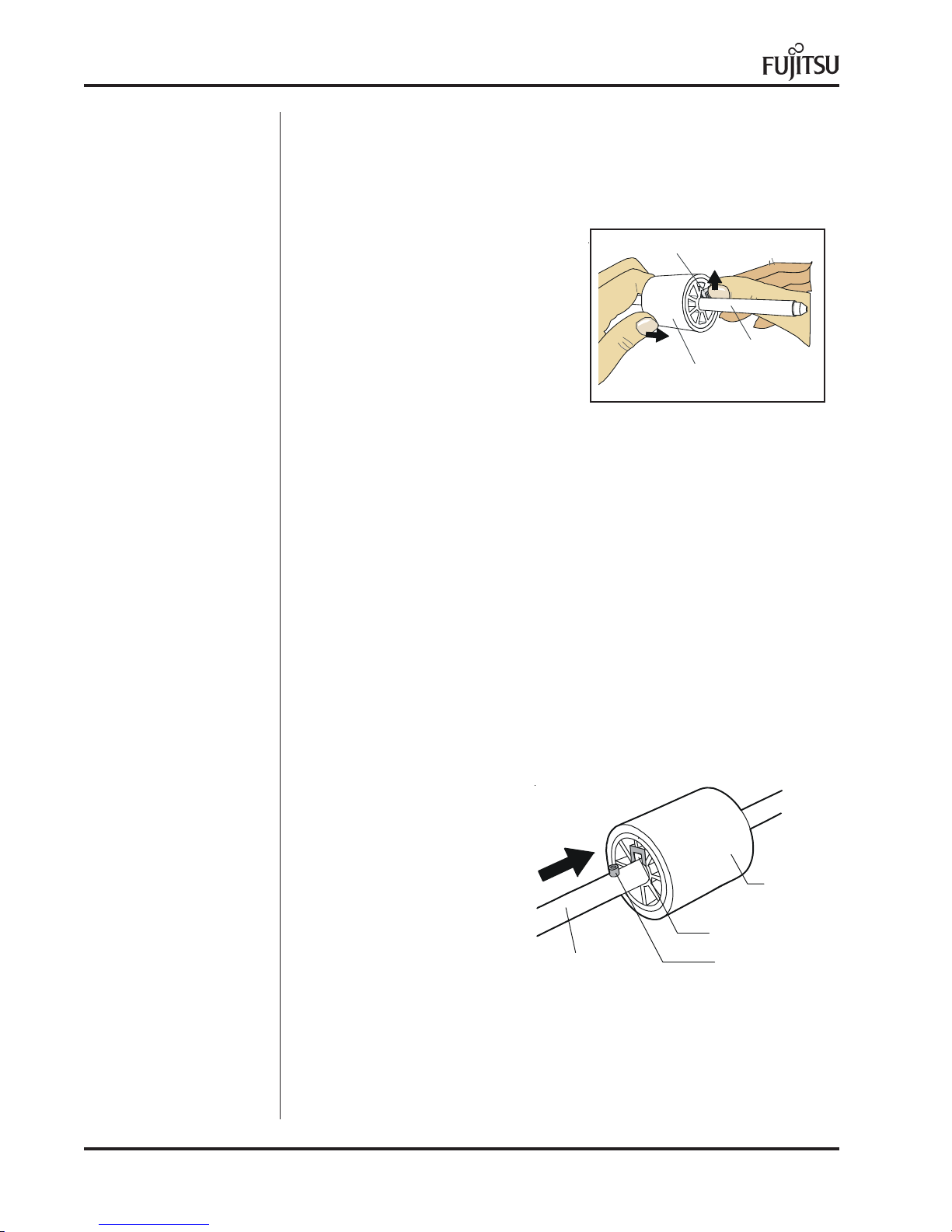

• Lift the Pick Roller Shaft out
ofthescanner.
• Lift up slightly on the Tab
shown and slide the Pick
Rolleroffoftheshaftinthe
directionofthe arrow while
the assembly is out of the
scanner.
• Attach the new Pick Roller by
sliding it on to the shaft.
Rotate the Pick Roller to
align the screw on the shaft
with the slot on the Pick
Roller. Be sure the Pick
Roller tab clicks and the Pick
Roller is locked in place on
theshaft.
• Reinstall the Pick Roller
Shaft with the new Pick
Rollerinstalledin reverse
orderusedto removethe
Pick Roller Shaft.
REPLACING THE PICK ROLLER (CONT.)
Shaft
Pick roller
Groove
Protrusion
Shaft
Pick roller
Tab
7
fi-5110 SERIES S500SCANNER CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

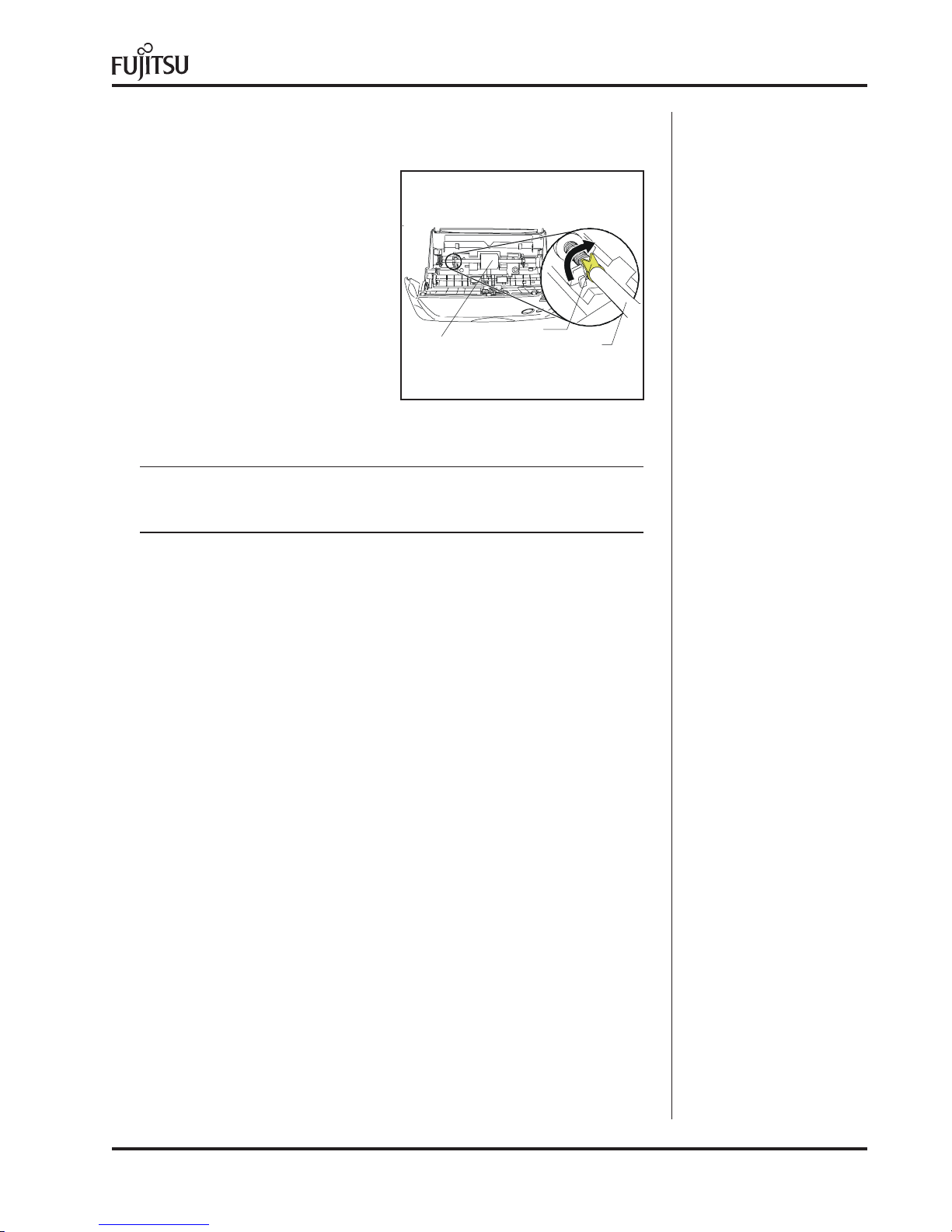

• Be sure to lock the bushing
in place on the end of the
shaft.Replacethesheet
guide by pressing on the
ends until the guide snaps in
place and is locked.
REPLACING THE PICK ROLLER (CONT.)
Note:
Be sure to reset the Pick Counter as shown in the Operator’s Guide
under Replacing Consumables section for replacing the Pick Roller.
Pick roller shaft
Pick roller bushing
Pick roller
fi-5110 SERIES S500SCANNER CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
8

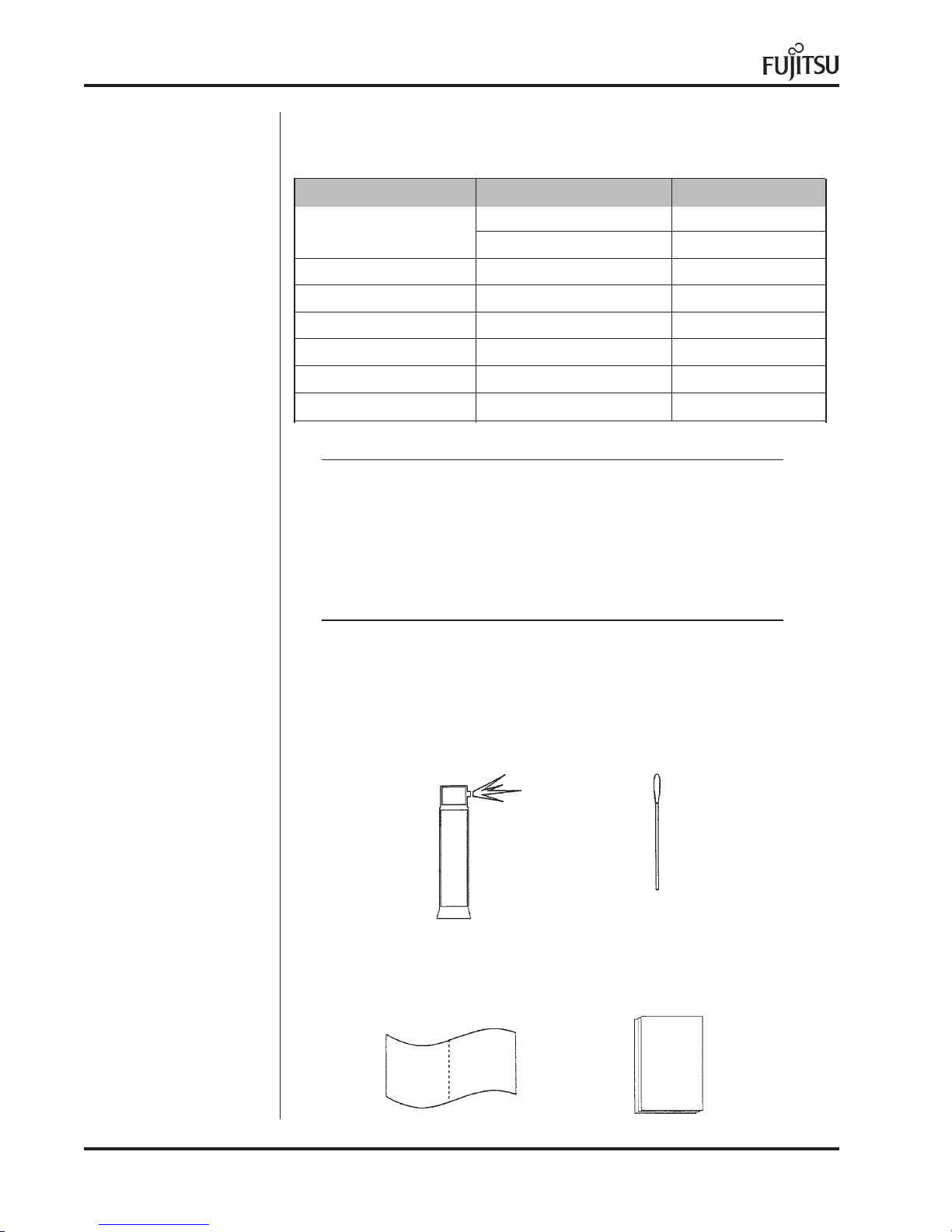

CLEANING LOCATIONS AND FREQUENCIES
Note:
The scanner will need to be cleaned every day (or possibly more than
once a day) if the following paper is scanned.
• Paper with special coating such as carbonless paper.
• Paper with large amount of printing. (Heavy toner or ink)
• Documents with toner that is not fused properly.
CLEANING MATERIALS
Cotton
Swabs
F1 Cleaner
Isopropyl Alcohol
Cleaning Paper
Lint Free
Cleaning Cloths
Location Tools Frequency
Cleaning Paper Every 1,000 Sheets
Cloth & Isopropyl Alcohol Every 5,000 Sheets
Plastic Feed Rollers Cloth & Isopropyl Alcohol Every 5,000 Sheets
Sheet Guides Cloth & Isopropyl Alcohol Every 5,000 Sheets
Eject Rollers Cloth & Isopropyl Alcohol Every 5,000 Sheets
Feed Rollers Cloth & Isopropyl Alcohol Every 5,000 Sheets
Glass Surfaces Cloth & Isopropyl Alcohol Every 5,000 Sheets
Pick Roller and Pad
9
fi-5110 SERIES S500SCANNER CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS

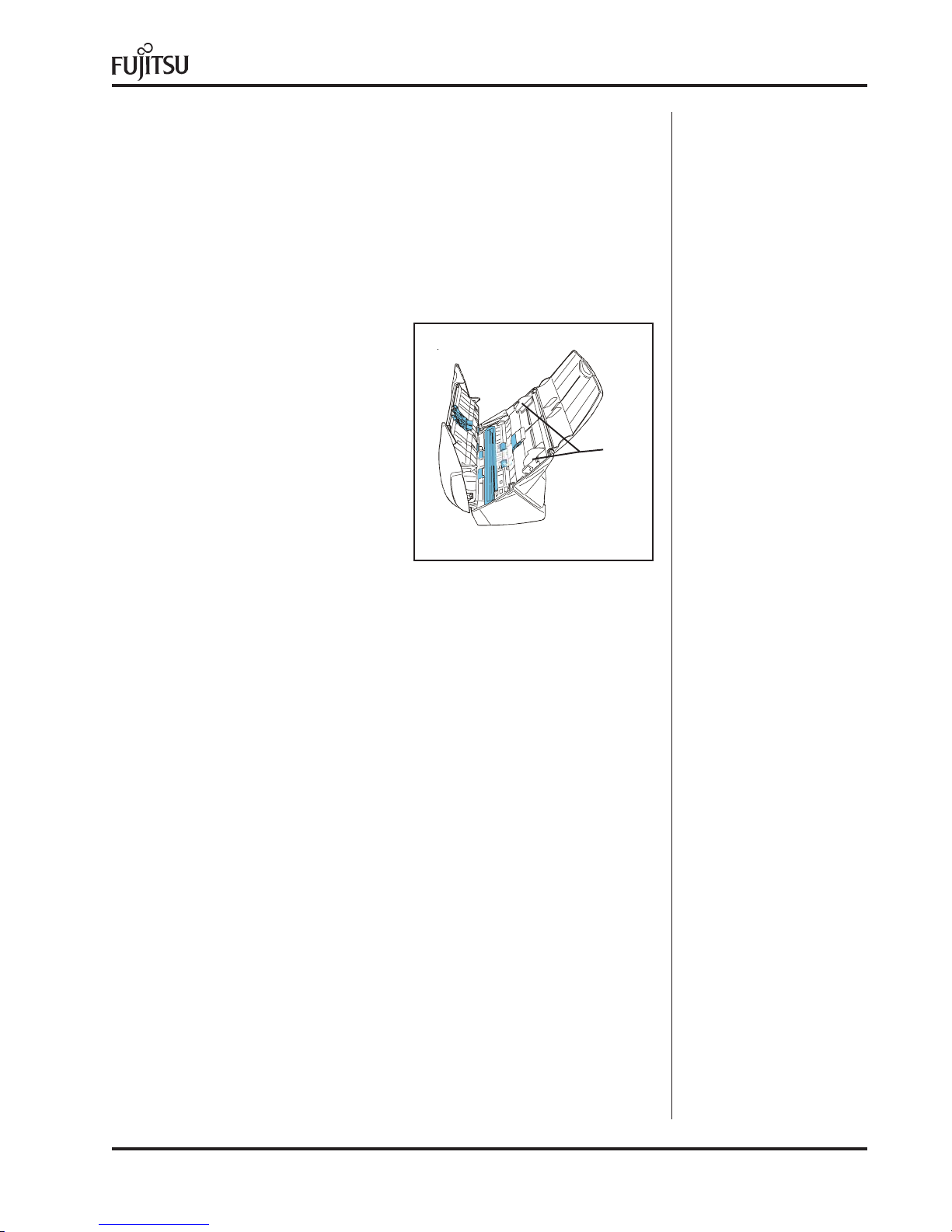

CLEANING THE ROLLERS WITH THE CLEANING PAPER
• Set the Hopper Guides to
the widest width possible.
Thecleaningpapersare designed to removeonlyloosepaperdust and ink
from the rollers. Use the cleaning paper approximately every 1,000 sheets
scanned. They are to be used in between the thorough cleanings of the
scanner. Using the cleaning paper does not take the place of the
more complete cleanings described later in this section
• SpraytheCleaningPaperlightly with F1 Cleaner and place the
Cleaningpaperagainstthe right edge oftheHopperGuide.Using the
ScanningApplication scan the cleaning paper. Do Not Save These
Images. This operation is used only to pass the cleaning paper through
the paper feed path. Check the path to see if it needs further cleaning, if
youfinddebrisin the paper pathperformthiscleaning or theCLEANING THE
ADF WITH LINT-FREE CLOTHS inthe followingsteps.
• PlacetheCleaningPaper against theLeftHopperGuideand perform the
previousstep.
Hopper
Guides
fi-5110 SERIES S500SCANNER CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
10

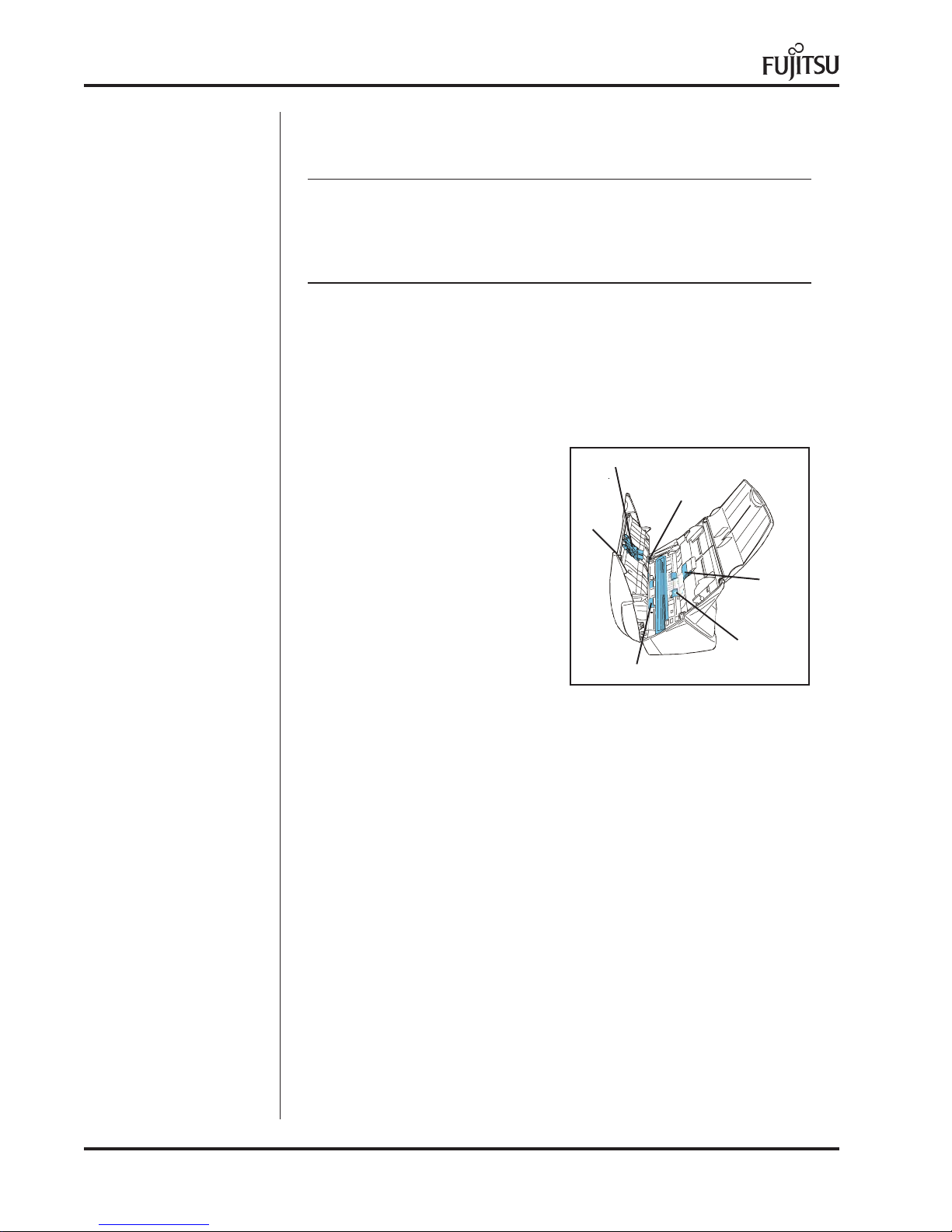

• Turn Scanner power off.
• OpentheADF cover by
pullingtheADF button.
DisconnecttheAC power
plug. Let the scanner cool for
at least 15 minutes after
operation.Thisis to prevent
burns to your skin as the
lamps will heat the surface of
the glass in the feed path.
• UseF1Cleaner(90% or
higher Isopropyl Alcohol) on
a lint free cloth and clean the
areasshownin the drawing
above.(Seefollowing steps to
cleanproperly)
• Clean the PadAssembly
using a downward stroke
with the lint free cloth
mostened lightly with F1
Cleaner (90% or higher
Isopropyl Alcohol).
CLEANING THE ADF WITH LINT-FREE CLOTHS
Note:
Theglasssurfaceinsidethe fi-5110SeriesADF becomes hotduring
scanneroperation. Beforeperformingthis cleaning disconnect theAC
adapter from the power outlet and wait at least 15 minutes for the
scanner to cool.
CLEANING THE PAD ASSEMBLY.
Pad Assy Plastic
Rollers
Pick
Roller
Feed
Rollers
(x2)
Eject Rollers (x2)
ADF
Button
