FUJITSU SEMICONDUCTOR
SUPPORT SYSTEM SS01-71080-1E
DSU-FR EMULATOR
LQFP-176P HEADER TYPE5
MB2198-703-E
OPERATION MANUAL
i
PREFACE
Thank you for purchasing the LQFP-176P*1header type5 for the DSU-FR*2emulator (model num-
ber: MB2198-703-E).
This product is a header used in the adapter unit for connecting a DSU-FR emulator (model number:
MB2198-01-E)*3to a user system that uses a Fujitsu FR family microcontroller MB91642/643/644/
F642/F644 (LQFP-176P).
This manual describes how to use the LQFP-176P header type5 for the DSU-FR emulator. Please
read the manual carefully before using this product.
Please contact the sales or support representative for details on the production and evaluation MCU
models that can be used with this product.
*1 : The package is the FPT-176P-M07 (lead pitch: 0.5mm, body size: 24.0mm ×24.0mm).
*2 : FR is an abbreviation of FUJITSU RISC CONTROLLER and is a product of Fujitsu Limited.
*3 : Referred to below as the “emulator”
■Handling and Usage Procedures
Refer to the following manuals for details on handling procedures, usage procedures, and warnings
for using the product safely.
•DSU-FR EMULATOR MB2198-01 HARDWARE MANUAL
•DSU-FR EMULATOR MB2198-700-E BGA-480P ADAPTER OPERATION MANUAL
■European RoHS compliance
Products with a -E suffix on the part number are European RoHS compliant products.
■Notice on this document
All information included in this document is current as of the date it is issued. Such information is
subject to change without any prior notice.
Please confirm the latest relevant information with the sales representatives.
■Cautions of the Products Described in this Document
The following precautions apply to the product described in this manual.
CAUTION Indicates a feature that, if not used correctly, may result in minor or moderate inju-
ries, and which may cause the customer system to malfunction.
Cuts The product contains sharp edges that are left unavoidably exposed, such as jump-
er plugs. Handle the product with due care not to get injured with such pointed parts.
Damage
When connecting the header board to the user system, correctly position the index
mark (▲) on the NQPACK mounted on the user system with the index mark (the
cut-out corner) on the header board, otherwise the emulator and user system might
be damaged.
Damage When mounting a mass production MCU, correctly position pin 1, otherwise the
mass production MCU and user system might be damaged.
ii
Copyright ©2008 FUJITSU LIMITED All rights reserved
•The contents of this document are subject to change without notice.
Customers are advised to consult with sales representatives before ordering.
•The information, such as descriptions of function and application circuit examples, in this document are presented sole-
ly for the purpose of reference to show examples of operations and uses of FUJITSU semiconductor device; FUJITSU
does not warrant proper operation of the device with respect to use based on such information. When you develop
equipment incorporating the device based on such information, you must assume any responsibility arising out of such
use of the information. FUJITSU assumes no liability for any damages whatsoever arising out of the use of the infor-
mation.
•Any information in this document, including descriptions of function and schematic diagrams, shall not be construed
as license of the use or exercise of any intellectual property right, such as patent right or copyright, or any other right
of FUJITSU or any third party or does FUJITSU warrant non-infringement of any third-party's intellectual property
right or other right by using such information. FUJITSU assumes no liability for any infringement of the intellectual
property rights or other rights of third parties which would result from the use of information contained herein.
•The products described in this document are designed, developed and manufactured as contemplated for general use,
including without limitation, ordinary industrial use, general office use, personal use, and household use, but are not
designed, developed and manufactured as contemplated (1) for use accompanying fatal risks or dangers that, unless
extremely high safety is secured, could have a serious effect to the public, and could lead directly to death, personal
injury, severe physical damage or other loss (i.e., nuclear reaction control in nuclear facility, aircraft flight control, air
traffic control, mass transport control, medical life support system, missile launch control in weapon system), or (2)
for use requiring extremely high reliability (i.e., submersible repeater and artificial satellite).
Please note that FUJITSU will not be liable against you and/or any third party for any claims or damages arising in
connection with above-mentioned uses of the products.
•Any semiconductor devices have an inherent chance of failure. You must protect against injury, damage or loss from
such failures by incorporating safety design measures into your facility and equipment such as redundancy, fire pro-
tection, and prevention of over-current levels and other abnormal operating conditions.
•Exportation/release of any products described in this document may require necessary procedures in accordance with
the regulations of the Foreign Exchange and Foreign Trade Control Law of Japan and/or US export control laws.
•The company names and brand names herein are the trademarks or registered trademarks of their respective owners.
1
1. Check Package Contents
Before starting to use the header board, check that all of the following items are present.
•LQFP-176P header type5*1: 1
•Header board attachment screws (M2 ×10mm, 0.4mm pitch) : 4
•Washers : 4
•NQPACK176SD*2: 1
•HQPACK176SD*3: 1
•Operation manual (English, this document) : 1
•Operation manual (Japanese) : 1
*1 : Referred to below as the “header board”.
The header board is equipped with a YQPACK176SD-4W (Tokyo Eletech Corporation, re-
ferred to below as the “YQPACK”).
*2 : IC socket (Tokyo Eletech Corporation, referred to below as the "NQPACK"). Includes a ded-
icated screwdriver and three guide pins. You are able to use the highly reliable
NQPACK176SD-SL adapter socket (Tokyo Eletech Corporation, sold separately) by provid-
ing screw holes for mounting the IC socket on the printed circuit board of the user system. Con-
tact Tokyo Eletech for details.
*3 : IC socket cover (Tokyo Eletech Corporation, referred to below as the “HQPACK”). Includes
four screws (M2 ×6mm, 0.4mm pitch) for attaching the HQPACK.
This product functions as an adapter unit when combined with an adapter board (available separate-
ly). Furthermore, the product functions as part of an emulator system when used with an emulator.
Contact a sales or support representative for details on the emulators and adapter boards that are com-
patible with this product.
2. Handling Precautions
The adapter unit is precision-manufactured to improve dimensional accuracy and to ensure reliable
contact. The adapter unit is therefore sensitive to mechanical shock. To ensure correct use of the
adapter unit in the proper environment, observe the following points regarding its insertion and re-
moval:
•Avoid placing stress on the NQPACK mounted on the user system while the adapter unit is
connected.
2
3. Notes on Designing
■Notes on Designing the Printed Circuit Board for the User System
If the header board is connected to a user system, the heights of parts mounted around the
header board are restricted.
When designing the printed circuit board of the user system, consider the heights of components
within the range of the header board, as shown in Figure 1, so that the components mounted on the
user system do not interfere with the header board.
Figure 1 Header board dimensions
CN1
B60 A60
CN2
B
CN3
A
B1 A1
B60 A60
B1 A1
approx.
13.2mm*
approx. 31.5mm*
52.0mm
58.0mm
55.0mm
89.0mm
* : The height differs slightly depending on how the sockets are engaged.
3
■Notes for Designing the MCU Foot Pattern
Figure 2 shows the recommended dimensions of the NQPACK footprint mounted on the printed cir-
cuit board of the user system.
The printed circuit board of the user system must be designed with due consideration given to this
footprint as well as to the mass production MCU.
For more information, contact the Tokyo Eletech Corporation.
Figure 2 Foot pattern dimensions for mounting the NQPACK
*1 : Positions of the guide pin holes (φ1.0) when mounting the NQPACK. These holes do not need to be fab-
ricated if the guide pins are not used.
*2 : Position of the hole (φ3.2) for the screw for affixing the IC socket when the NQPACK176SD-SL (Tokyo
Eletech Corporation, sold separately) is mounted instead of the NQPACK176SD. This hole does not
need to be fabricated if the NQPACK176SD-SL is not used.
0.5mm ×43= 21.5mm
0.5mm 10.0mm 0.25mm
10.0mm
φ3.2mm SL-type*2
3- φ1.0mm *1
23.1mm
Pin 1
27.1mm
2.0mm
2.0mm
4
4. Procedure for Connecting to the User System
Mount the supplied NQPACK on the user system before using the header board.
■Connection Procedure
1. To connect the header board to the user system, align the index mark (the cut-out corner) on the
header board with pin 1 on the NQPACK mounted on the user system, which is also indicated by
an index mark (▲), and insert the header into the NQPACK (See Figure 3).
As the YQPACK pins are thin and easily bent, check that the YQPACK pins are kept straight
when inserting into the NQPACK.
2. Insert the header board attachment screws, together with washers, into the four screw holes in the
top of the header board and tighten the diagonally opposite screws in turn (See Figure 4).
Use the dedicated screwdriver supplied with the NQPACK to tighten the screws equally.
Take care not to over-tighten as this may cause a bad connection.
Figure 3Index positions
NQPACK
index (▲)Header board index
(cut-out corner)
YQPACK
(Mounted on the rear surface)
Flat cable connector A
Flat cable connector B
5
Figure 4 Header board connection procedure
■Disassembly Procedure
To remove the header board, first remove the four screws and then lift the header board vertically up
and off of the NQPACK.
Header board
attachment screws
Washers
Header board
User system
YQPACK
NQPACK
6
5. Connecting to the Adapter Board
The adapter board and header board are connected by flat cables that are supplied with the adapter
board. The flat cable connector C on the adapter board is not needed in this product (see Figure 5).
■Connecting
Insert the eject lock units into the flat cable connectors on each of the boards until locked.

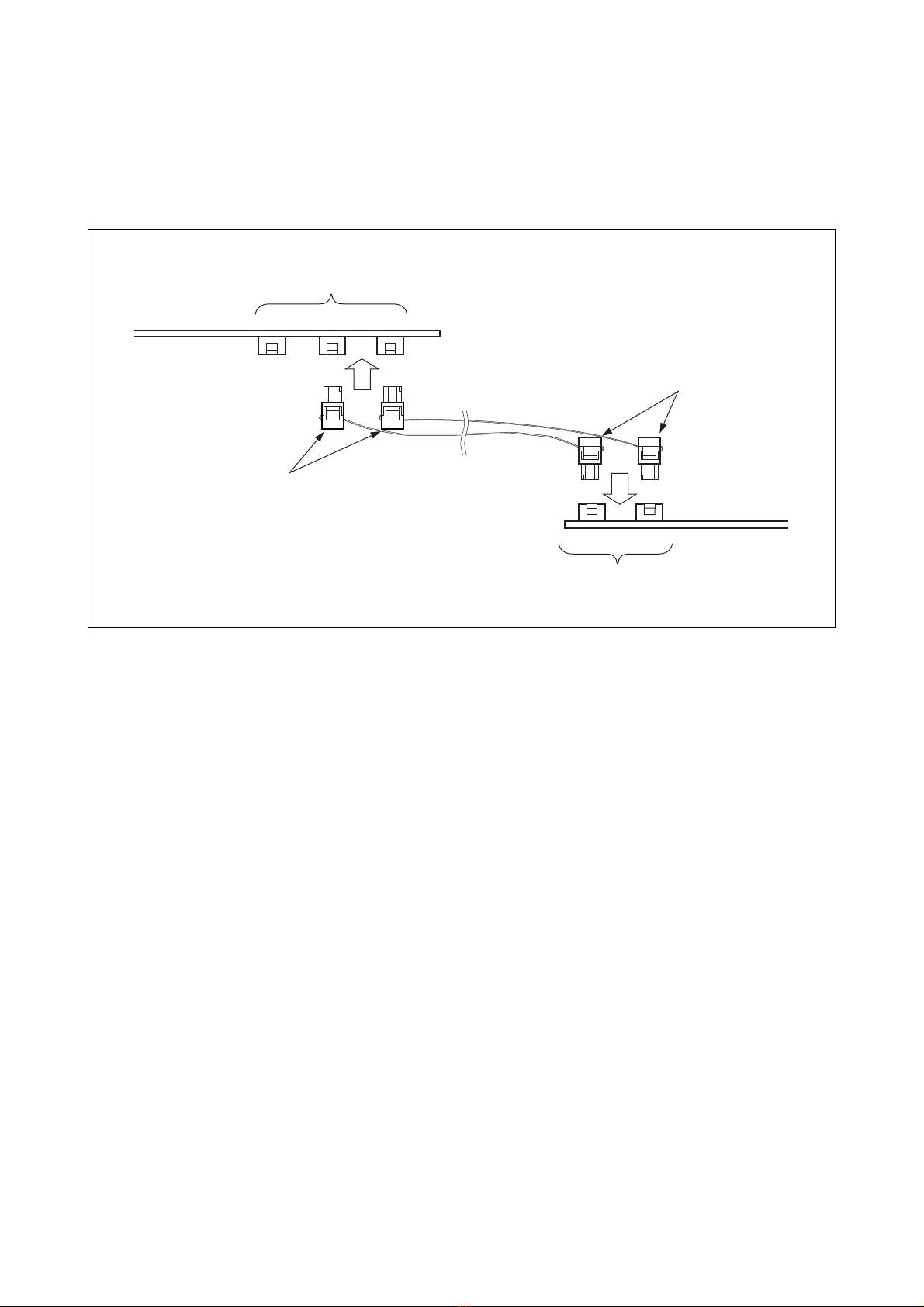

Figure 5 Connection to the adapter board
■Disconnecting
Disconnect the flat cables by releasing the locks and pulling out the eject locks of the flat cables.
ABC
AB
Flat cable connector
Adapter board
Eject lock
Eject lock
Flat cable
Flat cable connector
Header board
