FujiFilm Apeos 7580 Manuel utilisateur
November 2022 GM1669E1-1 Edition 1
FUJIFILM Business Innovation Corp.
Reference Guide
Optional Units
Apeos 7580
Apeos 6580
Apeos 5580
Preface
2
1 Preface
A guide describing the operations for optional units, such as the Finisher.
Refer
• Descriptions for the following optional products are provided in different guides.
- Offset catch tray, Simple catch tray: “Reference Guide- Main Unit”
- Wireless Network Kit, Print / scan / FAX function-related products: “Reference Guide - Operations”
- Face authentication system, IC card reader: Official site of our company
• This manual may not be edited, modified or copied in whole or part without the written consent
of the publisher.
• Some parts of this manual are subject to change without prior notice.
• The screen shots and the illustrations in this manual are used as examples. They may differ from
yours depending on the model, the software, or the OS.
In this manual, safety instructions are preceded by the symbol . Always read and follow the in-
structions before performing the required procedures.
Regarding the notations and trademarks in this document, see the “Reference Guide- Main Unit”.
Description in this manual such as feed capacity assumes C2paper (70 g/m2).
Device Components 3
2 High Capacity Feeder B1
2.1 Device Components
23 1
No. Component Function
1Remaining Volume Display You can check the remaining paper volume.
2 High Capacity Tray (Paper Tray 6) Load paper here.
3Top Cover Open this cover to clear paper jams.
Main Specifications
Item Specification
Paper size A4 , Letter (8.5 x 11") , JIS B5 , 7.25 x 10.5" (184 x 267 mm)
Paper weight (g/m2) 52 to 200
Tray capacity (sheets) 2,470
Dimensions (mm) Width 389 x Depth 610 x Height 377
Weight (kg) 29
High Capacity Feeder B1
4
2.2 Loading Paper
After loading paper, configure the Paper Tray settings on the Home screen.
Refer
For details, refer to “Setup” in “Reference Guide - Operations”.
Images are printed on the face side of the loaded paper.
1. Pull out the Paper Tray toward you until it stops.
2. Remove any paper remaining in the Paper Tray.
3. If changing the Paper Size, adjust the guide position.
1) Open the end guide (
1
), remove the screw for the guide
in the back (
2
), and remove the guide from the Paper
Tray.
2) Insert the protrusions under the guide into the Paper
Size holes.
3) Insert the Paper Tray protrusions into the Paper Size
holes on top of the guide and tighten the screw.
4) Remove the screw for the guide in front and remove the
guide from the Paper Tray.
1
2
Loading Paper 5
5) Insert the protrusions under the guide into the Paper
Size holes.
6) Insert the Paper Tray protrusions into the Paper Size
holes on top of the guide and tighten the screw.
7) Pull the handle for the end guide up (
1
), align with the
Paper Size while moving the handle along the groove
(
2
), and lower the handle (
3
).
Note
The groove on the left side of the end guide 8.5" is not used.
4. Fan the paper well and load sheets with the printed side fac-
ing up, and the paper edges aligned in the direction of the
arrow.
5. Close the end guide completely.
6. Push in the Paper Tray.
Special Media Setting
Hole Punched Paper
Orientation: Place the holes of paper on the right side when you face the front side of machine.
3
1
2
High Capacity Feeder B1
6
2.3 Paper Jams
If paper is jammed, the machine stops and an alarm sounds. Follow the instructions displayed on the
screen to remove the jammed paper.
Gently remove the paper being careful not to tear it. If paper is torn while it is being removed from the
machine, remove all the torn pieces making sure that none remain inside the machine.
When you have finished clearing the paper jam, printing is resumed from the state before the paper
jam occurred. If a paper jam occurred during copying, tap on [Start]. Copying is resumed from the
state before the paper jam occurred.
Note
Clear the paper jams while the machine is on.
Paper Tray
1. Pull out the Paper Tray toward you until it stops.
2. Remove the jammed paper.
3. Push in the Paper Tray.
Exit
1. Hold the handle and move the unit all the way to the left.
2. Remove the jammed paper.
3. Move the unit to the right and connect it with the main unit.
Paper Jams 7
Inside of the Upper Cover
1. Hold the handle and move the unit all the way to the left.
2. Pull the handle (
1
) and open the cover (
2
).
3. Remove the jammed paper.
4. Close the cover.
5. Move the unit to the right and connect it with the main unit.
1
2
High Capacity Feeder C1-D2
8
3 High Capacity Feeder
C1-D2
3.1 Device Components / Caution Labels
1
3
2
4
5
No. Component Function
1Right Cover Open this cover to clear paper jams.
2 High Capacity Tray (Paper
Tray 6)
Load paper here.
3 High Capacity Tray (Paper
Tray 7)
Load paper here.
4 Bypass Tray (Paper Tray 5) Refer
'Reference Guide-Main Unit'
5Remaining Volume Display You can check the remaining paper volume.
Main Specifications
Item Specification
Paper size High Capacity Tray A4 , Letter (8.5 x 11") , JIS B5 , 7.25 x 10.5" (184
x 267 mm)
Bypass Tray Max: 12 x 18" (305 x 457 mm)
Min: Postcard (by Japan Post)
Device Components / Caution Labels 9
Item Specification
Paper weight (g/m2)High Capacity Tray 52 to 200
Bypass Tray 52 to 250
Tray capacity (sheets) 2,470 x 2 trays + Bypass Tray 300 (Max 5,240)
Dimensions (mm) Width 597 x Depth 661 x Height 930
Weight (kg) 73
High Capacity Feeder C1-D2
10
3.2 Loading Paper
After loading paper, configure the Paper Tray settings on the Home screen.
Refer
For details, refer to “Setup” in “Reference Guide - Operations”.

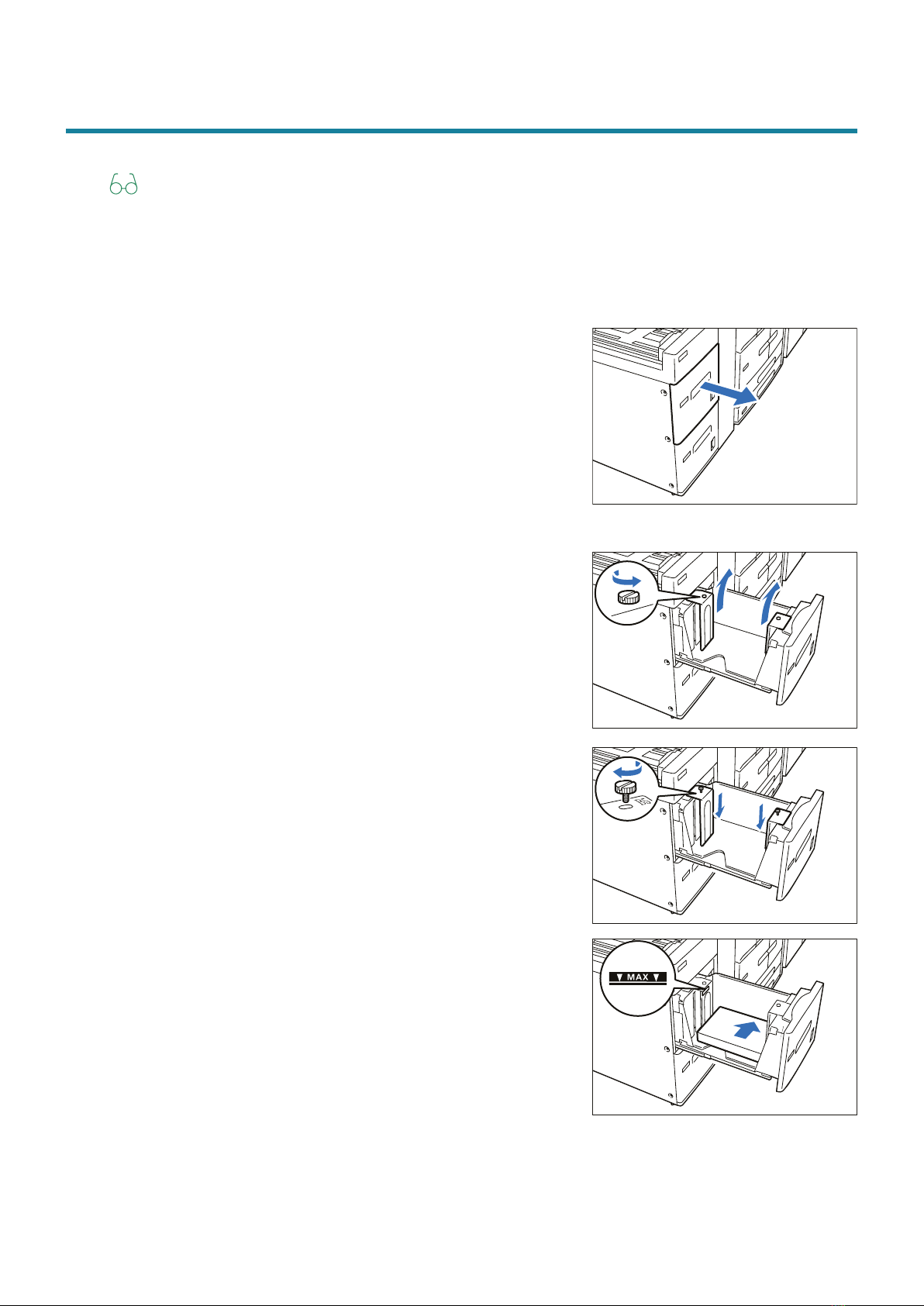

Loading to High Capacity Tray
Images are printed on the face side of the loaded paper.
1. Pull out the Paper Tray toward you until it stops.
2. Remove any paper remaining in the Paper Tray.
3. If changing the Paper Size, adjust the guide position.
1) Remove the 2 screws for the guide, and remove the guide
from the Paper Tray.
2) Insert the guide into Paper Size holes and tighten the
screws.
4. Fan the paper well and load sheets with the printed side fac-
ing up, and the paper edges aligned in the direction of the
arrow.
5. Push in the Paper Tray.
