Parts Name........................................... 30
Before Use............................................. 31
Inserting/Charging the Battery..... 31
Inserting the Battery.....................................31
Charging the Battery ....................................32
Charging Indicator ........................................32
Loading the instax SQUARE Film Pack .... 33
Turning on/off the Printer............... 34
Checking Remaining Battery Life.............34
Connecting and Printing................. 35
When establishing connection for the
first time:...........................................................35
When connection is already established: .....
37
Reprinting............................................. 38
Deleting an Image............................. 39
Unloading a Used instax SQUARE
Film Pack ............................................... 39
About the LED Indication................ 40
SPECIFICATIONS ................................. 41
TROUBLE SHOOTING ........................ 42
IMPORTANT SAFETY NOTICE ......... 46
Handling the Battery ........................ 53
Contents
ENGLISH
• Read“IMPORTANTSAFETYNOTICE”(Page
46)and“HandlingtheBattery”(Page53)for
safetyuse.
• AfterreadingthisUser’sGuide,keepitina
safe,easytofindplacewhereyoucanreferto
itifneeded.
30
EN

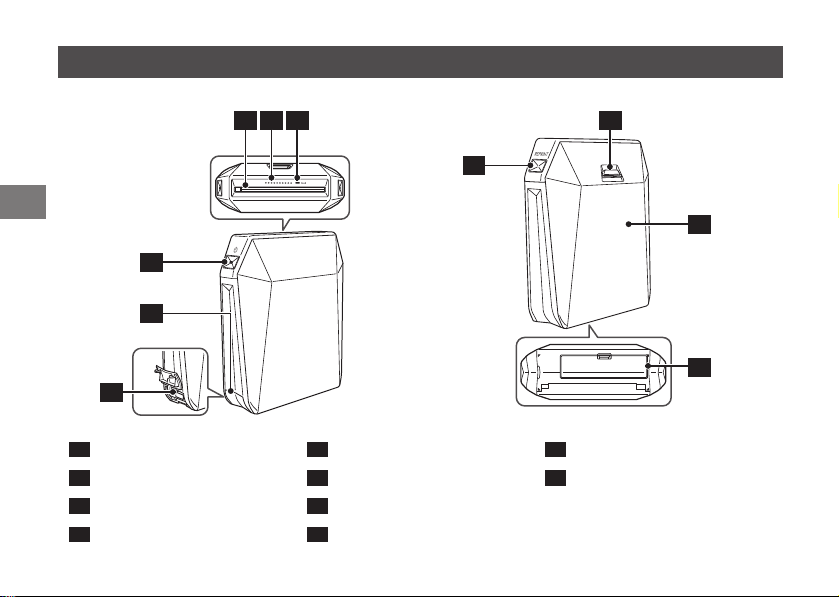

1Battery remaining LED 5USB connector cover 9Battery cover
2Film remaining LED 6USB connector 10 Back cover
3Print exit 7Back cover lock
4POWER button 8REPRINT button
Parts Name
8
31
9
7
10
4
5
6
2
31
EN
Before Use
• Before using the printer, install the instax SHARE application on your device.
• When you are using an Android OS device, search for“instax SHARE”in the Google Play, then install the application.
* System requirements of an Android OS device: Android Ver 4.0.3 or later and Google Play are installed.
• When you are using an iOS device, search for“instax SHARE” in the App Store, then install the application.
* System requirements of an iOS device: iOS Ver 8.0 or later is installed.
You may not be able to print from some devices even if you have installed the instax SHARE application and your
device meets the requirements listed here.
• The battery is not charged fully at shipment. Be sure to charge it before using the printer.
Access instax SHARE website for the latest information on system requirements.
Inserting/Charging the Battery
InsertingtheBattery

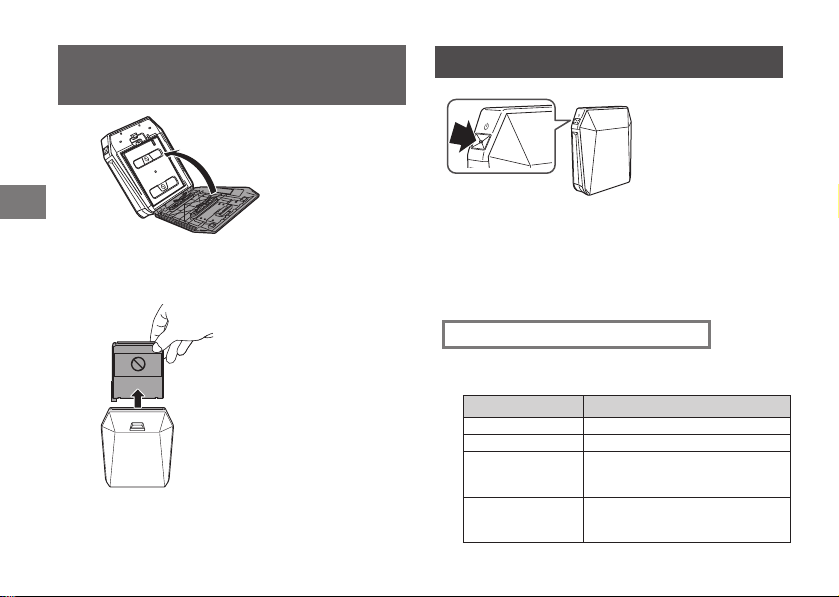

Push the battery cover lock down
to open the battery cover.
Insert the battery according to the arrow on
it. Make sure the yellow line on the battery
aligns with the mark on the printer.
Align the tabs on the battery cover
and push the battery cover lock
until it clicks into place.
~ Ÿ !
32
EN
Inserting/Charging the Battery (Continued)

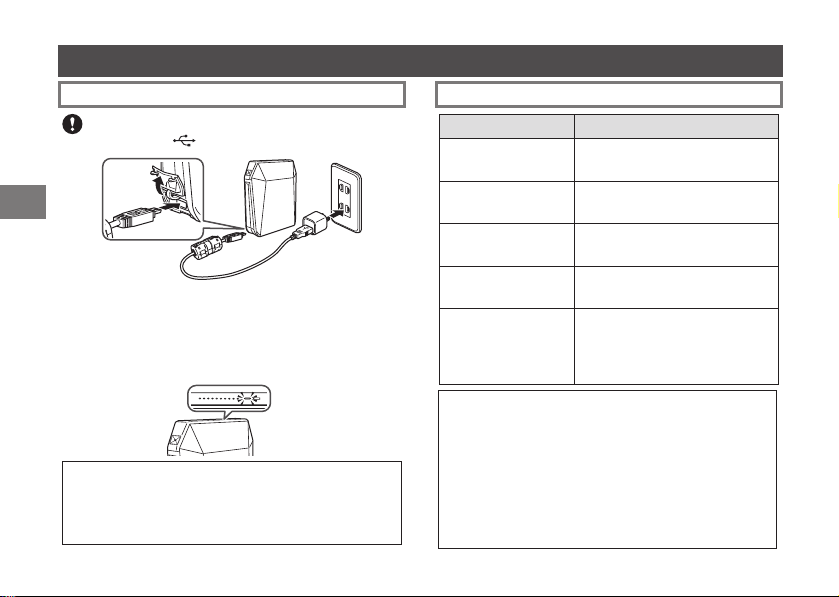

ChargingtheBattery ChargingIndicator
Indication Batterystatus/Action
Lights red (ON)
Flashes red (OFF) Charging is in progress.
Lights orange (ON)
Flashes orange (OFF) Charging is half completed.
Lights green (ON)
Flashes green (OFF) Charging is almost completed.
Flashes green, then
goes off (OFF) Charging is completed.
Flashes green and
red alternately, or
flashes red, then
goes off
An error is being occurred. Stop
charging.
ChargingfromaPC:
• Connect the printer and PC directly. Do not connect
them via a keyboard or USB hub.
• If the PC enters the sleep mode while charging is in
progress, charging will stop. If you continue charging,
resume the PC and reconnect the USB cable.
• You may not charge the printer from a PC depending
on your PC specifications, settings, or status.
Connect the printer and an AC power adapter supplied
with your smartphone using the supplied USB cable, then
connect the AC power adapter to an indoor power outlet.
The battery remaining LED indicates the battery charge
status. For details, see the table on the right column.
• Use an AC adapter to meet the rated output below:
DC 5.0 V/1000 mA
• You can print an image while charging is in progress.
• Charging time is approximately three hours.
Be careful of the orientation. Connect the USB cable
with the mark ( ) on the terminal facing up.
33
EN

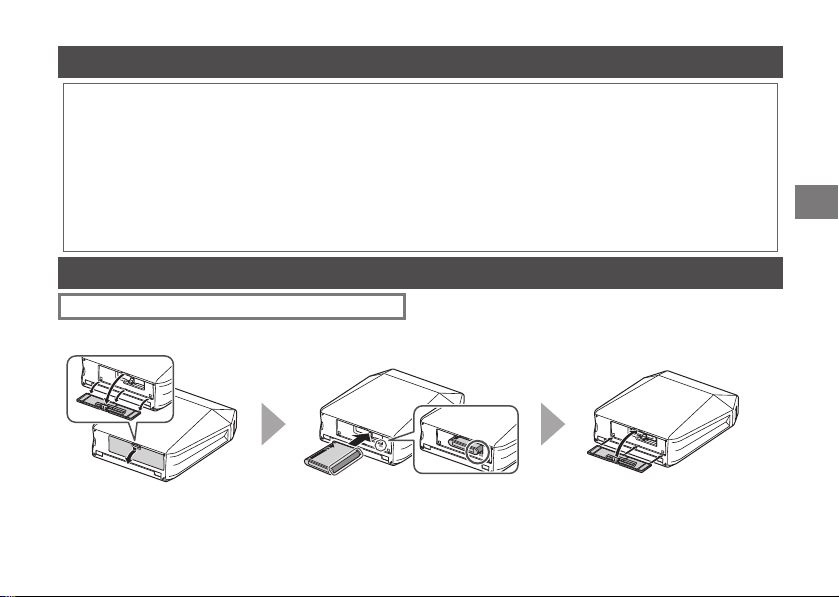

Loading the instax SQUARE Film Pack
~Ÿ
Caution
Do not open the back cover until you have used up the film; otherwise, the rest of the film will
become exposed and turn white. The film can no longer be used.
• When you load the film pack, never press the two rectangular holes on the back of the film pack.
• Never use a film pack beyond its shelf life; otherwise, it may damage the printer.
Use FUJIFILM Instant Film “instax SQUARE”only. The instax mini film or instax WIDE film cannot be used.
Notes on the film pack
• Each FUJIFILM Instant Film“instax SQUARE” pack contains 1 black film protective cover and 10 film sheets.
• Do not remove the film pack from its inner bag before loading it into the printer.
• The film cover is ejected automatically when the back cover is closed.
For details, refer to the instructions and warnings on FUJIFILM Instant Film "instax SQUARE".
Continued on the next page
Press the back cover lock down to open the back
cover.
Hold both sides of the film pack, align the bottom of the
film pack on the groove of the film chamber (1), then insert
it straight (2).
2
1
34
EN
Loading the instax SQUARE Film Pack
(Contunued)
⁄
!
Close the back cover. Make sure the back cover
lock clicks into place.
The film cover (black) is ejected
automatically when the back
cover is closed. Remove the film
cover from the print exit.
Turning on/off the Printer
Press and hold the POWER button for approx. 1 second
to turn the printer on or off.
Turning the printer on lights up the battery remaining
LED.
If no operation occurs for a certain period of time, the
printer turns off automatically.
CheckingRemainingBatteryLife
Use the battery remaining LED to check when turning
the printer on or while printing is in progress.
Indication Remainingbatterylife
Green Sufficient
Orange At half capacity
Red Low. Charging the battery is
recommended. (See page 32.)
Printer turns off
after flashing red.
No battery capacity remains.
Charge the battery. (See page 32.)
35
EN
Connecting and Printing
~
Ÿ
!
Continued on the next page
WirelessLANSetupforiOSDevices
When you are using an iOS device, follow the procedure
below to perform wireless LAN setup.
1. Select “ON” for “Wi-Fi”in the“Settings”menu of your device.
2. Tap the network name (printer name) under“Choose a Network”
.
Whenestablishingconnectionfor
thefirsttime:

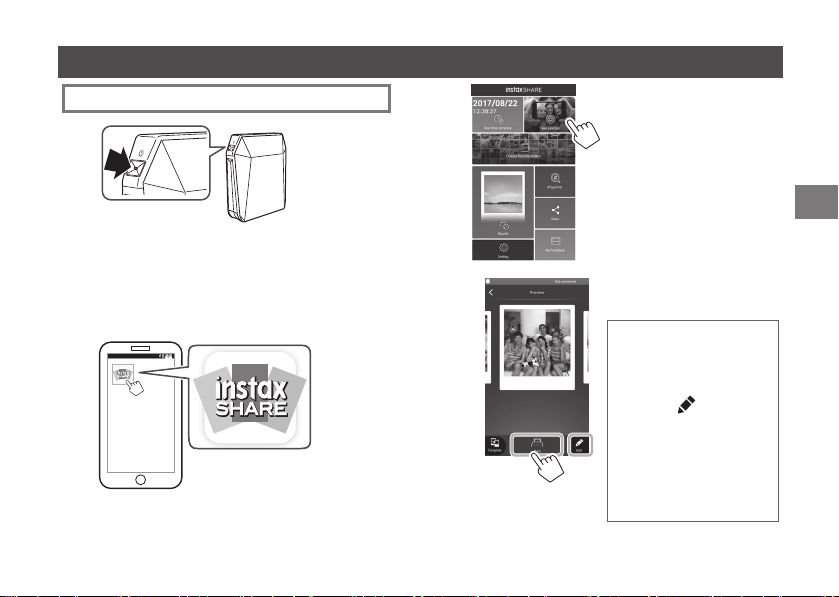

Press and hold the POWER button for approx.
1 second to turn the printer on.
The battery remaining LED lights up.
Start the downloaded application “instax SHARE”.
Select the picture to print or take a picture.
NotesonPrinting
1. Place the printer vertically.
2. When printing, put the printer on a steady surface
such as a desk.
36
EN
⁄
Connecting and Printing (Continued)
@
Tap “Connect and print”.
When a printer is detected,
tap “Connect”. If multiple
printers are detected, select
the printer to connect from
the list.
Printer's identifier (SSID) is
located on the bottom of the
printer.
#
Enter the factory default
password (1111) or the one you
specified, then tap “OK”.
The printer starts printing.
Toresetthepasswordtothefactorydefault
(1111),turntheprinteronwhileholdingthe
REPRINTbutton.
When the film has been ejected (the
printer stops making a sound), grasp
the edge of the film, then take it out.
1 film remaining LED turns off every
time you print an image.
¤
Before tapping “Connect
and print”, tapping on
the lower right displays the
edit menu. You can add
a template or adjust an
image on this menu.
Tap “Done” to exit from the
menu.
When printing, put the
printer on a steady surface
such as a desk.
INSTAX-1111
1111
37
EN
Whenconnectionisalreadyestablished:
Connecting and Printing
~
Ÿ

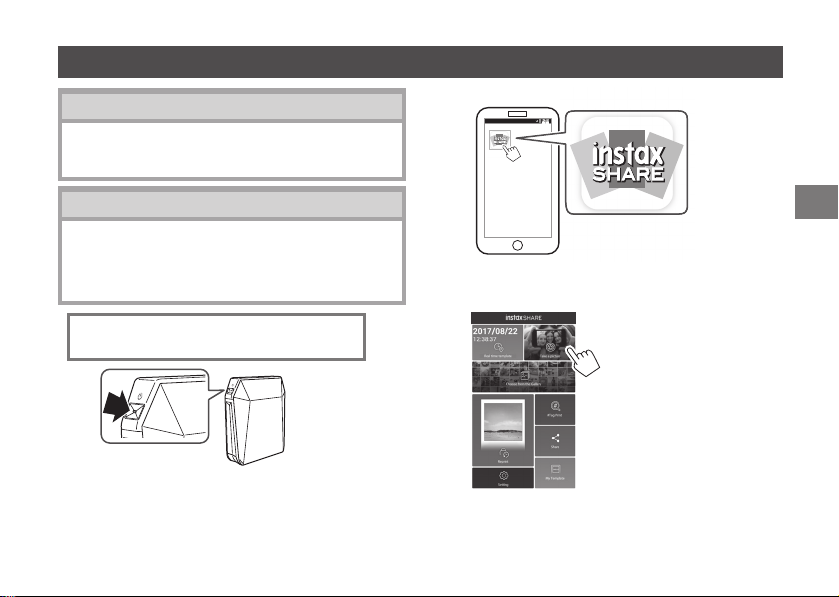

Start the downloaded application “instax SHARE”.
!
Continued on the next page
Select the picture to print or
take a picture.
Tap “Print”.
The printer starts printing.
⁄
• When printing, put
the printer on a steady
surface such as a desk.
• Before tapping “Print”,
tapping on the lower
right displays the edit
menu. You can add a
template or adjust an
image on this menu.
Tap “Done” to exit from
the menu.
Press and hold the POWER button for approx.
1 second to turn the printer on.
The battery remaining LED lights up.
