FujiFilm ASK-300 Manuel utilisateur

- 1 -

Contents

1. Unpacking and Confirming the items

1-1. Printer

1-2. Paper,Ribbon

1-3. PC

2. Printer Setting

2-1. Set Paper &Ribbon to Printer

3. PC Setting & Connecting the devices

3-1. Set the angle stand

3-2. Connect power adapter&cable to PC

3-3. Connect USB cable (PC & Printer), turn on power.

4. Operating for test print

1st Screen: Touch the screen at first.

2nd Screen: Select "Photos".

3rd Screen: Insert the digital media.(auto-loading)

4th Screen: Select "Single Selection". Or "All Select"

5th Screen: Select shooting dates and push "Continue".

6th Screen: Select images and push "Done".

7th Screen: Confirm the contents of order and push "Continue ".

8th Screen: Confirm the shopping cart of order and push "Complete Order ".

9th Screen: Remove the media, push "OK".

10th Screen: Order completed. Push "OK".

5. Administrator operation(Turning off, Changing the settings)

Quick Start Guide

for FUJIFILM Compact Kiosk System

Thank you for purchasing our products.

This guide is for start-up system, so please see manuals for details of each product.

【Necessary Items】

-Printer( FUJIFILM ASK-300)

-Ink ribbon & Paper set for ASK-300

-Kiosk(FUJIFILM DPC Portable)

-Power Cable x 2pcs for each 1set *Not included in product box.

-USB Cable (Connector: A to B) *Not included in product box.

【Option Items】

If you purchased option items together with Kiosk, please prepare following items.

-Wireless Module (Bluetooth & Wireless LAN) * This board needs to be installed by technician at on-site.

-DVD/CD Player (as external unit)

-Wall Mount Bracket

-Receipt Printer(as external unit) *This item needs to be procured locally based upon FUJIFILM’s recommendation.

- 2 -

Procedure of starting

1. Unpacking and Confirming the items

1-1. Printer

- 3 -

1-2. Paper, Ribbon

Unpack the box and take paper x 1 roll and ribbon x 1 roll out.

- 4 -

1-3. PC

- 5 -

2. Printer Setting

2-1. Set Paper &Ribbon to Printer

- 6 -

3. PC Setting & Connecting the devices

3-1. Connect power adapter&cable to PC

3-2. Connect USB cable (PC & Printer), turn on power.

(If you want to set option items, please see manuals of DPC Portable)

4. Operating for test print

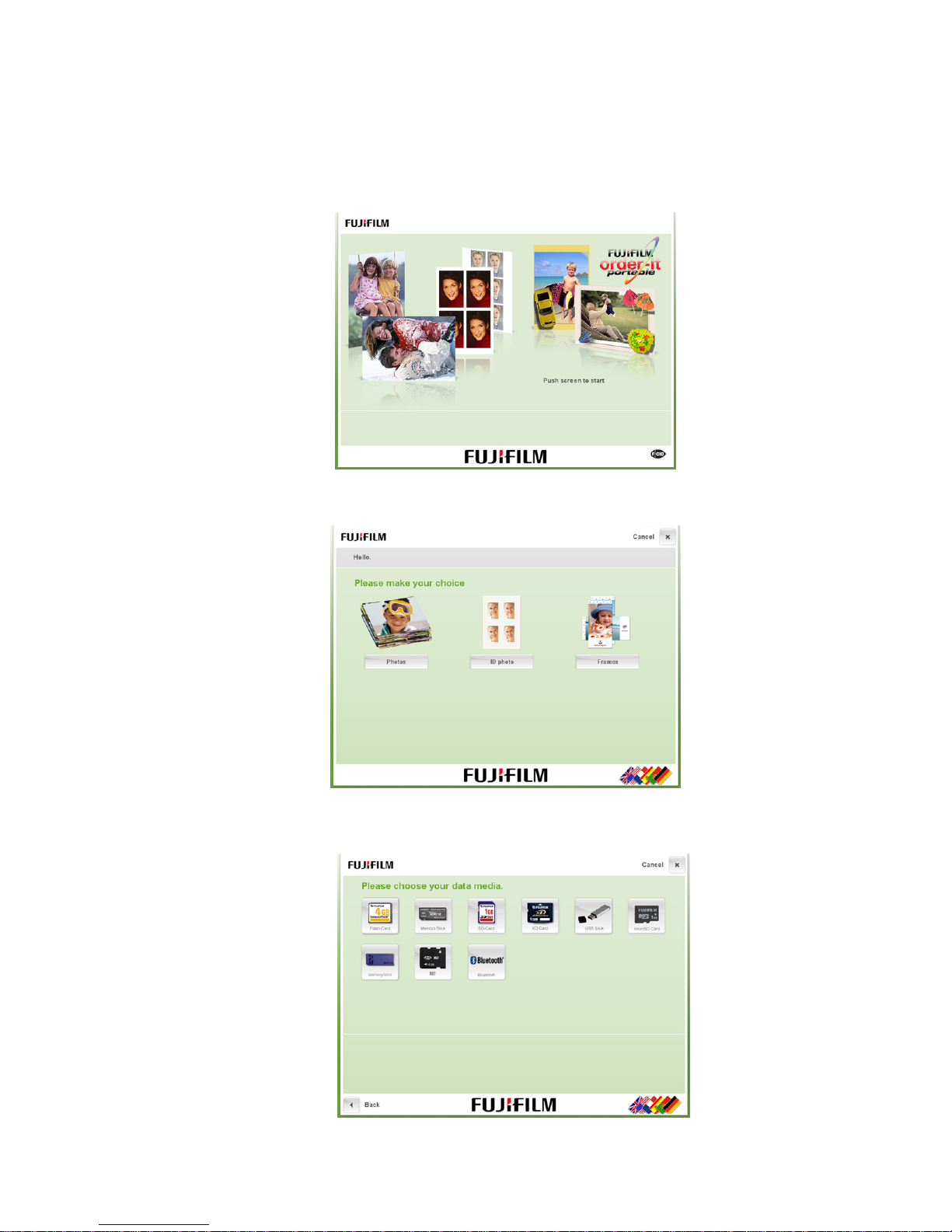

1st Screen: Touch the screen at first.

2nd Screen: Select "Photos".

* If you select "ID Photo", you can crop the face using GUI and you can select 4layout or 6layout.

3rd Screen: Insert the digital media.(auto-loading)

* You can select media by touching the media button for specify the location of media slot.

- 7 -

4th Screen: Select "Single Selection". Or "All Select".

If you select “Single Selection”, you can select the images in the next screen.

If you select “All Select”, the all images will be selected in the next screen.

5th Screen: Select shooting dates and push "Continue".

6th Screen: Select images and push "Done". (* in case of “Single Selection”)

If you push the image, the number of print will be 1. It will be 0 if the image is pushed again.

7th Screen: Confirm the contents of order and push "Continue ".

If you want to add data from another media, you can select “Additional data media”.

- 8 -

8th Screen: Confirm the contents of shopping cart and push "Complete Order ".

9th Screen: Remove the media, push "Continue".

10th Screen: Order completed. Push "OK".

- 9 -

5. Administrator Operation(Turning off, Changing the setting)

In the first screen, ｔouch the above left corner and lower left corner.

When the popup screen is displayed, enter password “123456” and press OK.

In the Administrator screen, you can select Order maintenance & Kiosk maintenance & Exit kiosk.

You can change the settings. (“Kiosk maintenance”->“assist-it”)

Note: Ver8.1.5 & Ver8.1.6 is Demo Version, so you can’t change the Currency ID or Country ID, and other ID.

In the “Exit kiosk”screen, if you select "Yes", PC will be shut down.

If you select "No", application will be shut down. Then, you can operate OS and you can shut down OS.

１
