FS S5500-48T8SP Manuel utilisateur

Managed Network & Data Center

1、Description

Please use two cables or modules + jumper to stack devices.The device stack is called

BVSS.

2、Precautions

Please use the 10G port to stack

3、BVSS Configuration

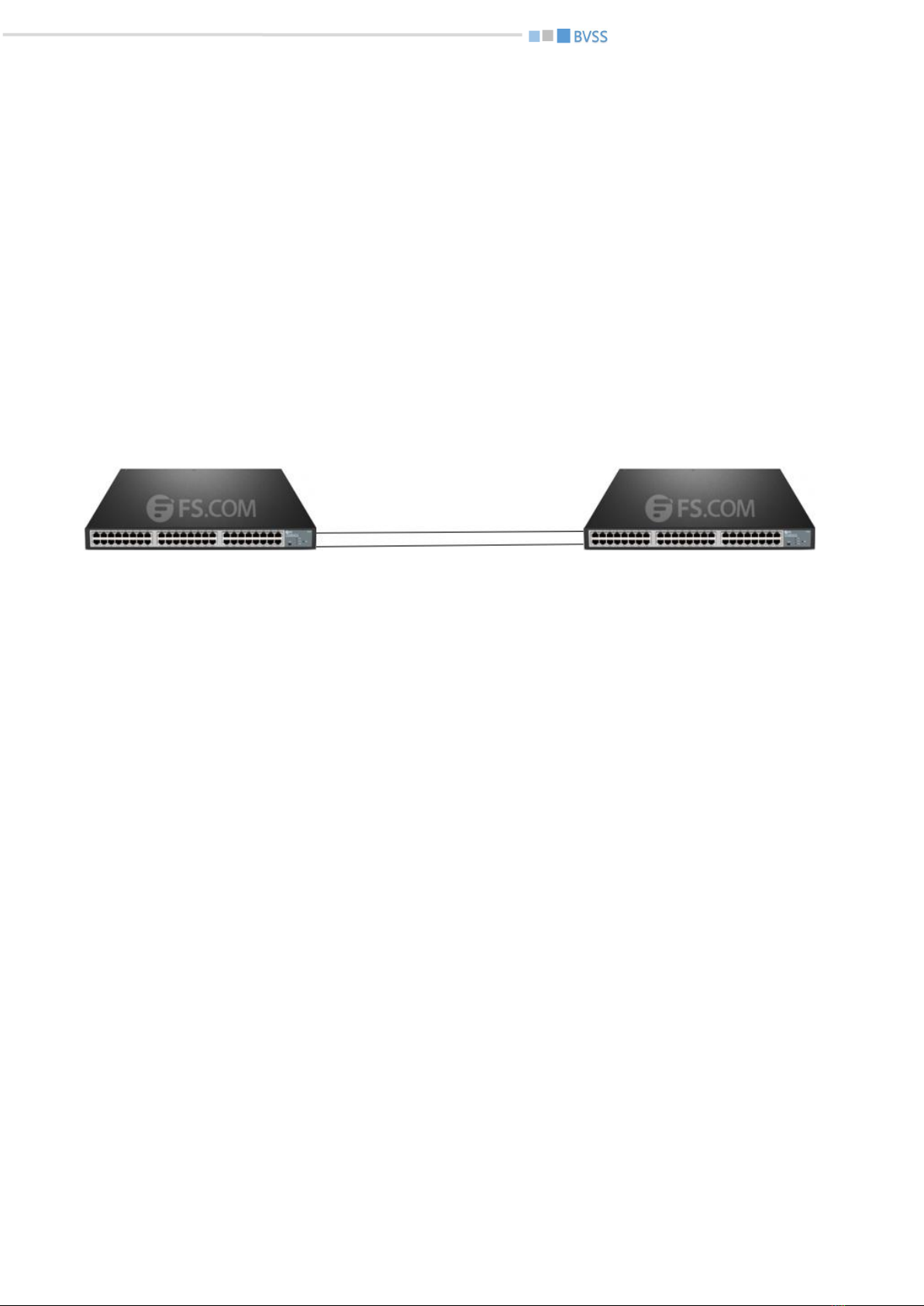

Network Topology

Configuration Steps

1. Connect the device

# Connect the PC and the switch to the network cable and the console port. Connect one end of the RJ-45 network

cable to the network card interface of the PC and the other end to the network port of the SW. Connect one end of

the console cable USB to the USB port of the PC. One end of the RJ-45 is connected to the console port on the

front panel of the switch.

2. Download the configuration software

# After the connection is complete, here we recommend HyperTerminal, putty or SecureCRT tools to configure the

switch.

3. Open the switch and use the login software

# Power on the switch, then open the installed login software, select the serial login mode, Port is determined by

the device manager, Baud rate: 115200, Data bits: 8, Parity: None, Stop bits: 1.

Note：

You can view the COM Number via Device Manager (right-click My Computer > Administration > Device

Manager > Ports (COM and LPT). If an unrecognized USB device is displayed, download and install the

corresponding driver.

4. Log in to the switch

# After completing the above steps, hitting the Enter key of the keyboard will prompt you to enter the account

password. At this time, enter the default username and password admin/admin to log in to the switch.

5. Switch configuration

First device configuration：

Switch>enable

Switch#config

Switch_config#bvss

Switch_config_bvss#bvss enable

Switch_config_bvss#bvss domain-id 1

Switch_config_bvss#bvss member-id 1

Switch_config_bvss#bvss priority 100

Switch_config_bvss#bvss mode normal

Switch_config_bvss#bvss interface 1 type TGigaEthernet port 1 group 1

Switch_config_bvss#bvss interface 2 type TGigaEthernet port 2 group 1

Switch_config_bvss#quit

Switch#write bvss-config

Switch#reboot

Second device configuration：

Switch>enable

Switch#config

Switch_config#bvss

Switch_config_bvss#bvss enable

Switch_config_bvss#bvss domain-id 1

Switch_config_bvss#bvss member-id 2

Switch_config_bvss#bvss priority 10

Switch_config_bvss#bvss mode normal

Switch_config_bvss#bvss interface 1 type TGigaEthernet port 1 group 2

Switch_config_bvss#bvss interface 2 type TGigaEthernet port 2 group 2

Switch_config_bvss#quit

Switch#write bvss-config

Switch#reboot

PS:This is the configuration command for two wires to be stacked.

3、After the customer completes the BVSS configuration, you can use the

command: show interface brife ，to verify whether the stack is successful.
