Front Runner LALD009 Manuel utilisateur

front runner

LALD009

ENG

Thank you for purchasing a Front Runner Land Rover Defender 90 / 110 Ladder.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the included components.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

LAND ROVER DEFENDER 90/110 LADDER

FIGURE 1.1

CHECK ONLINE FOR THE LATEST FITMENT GUIDE WWW.FRONTRUNNEROUTFITTERS.COM

GET ORGANIZED1

IN THE BOX

1 2 X Ladder Side

2 1 X Ladder Top Assembly

3 3 X Ladder Step

4 1 X Support Bracket

5 2 X M8 x 35 Hex Head Bolt

6 4 X PVC Washer 24.5 x 2.5

7 2 X M8 x 25 x 2 Flat Washer

8 2 X M8 Nyloc Nut

9 2 X M8 Nut Cap

10 6 X M6 x 25 Thread Forming Screw

11 6 X M6 x 16 Flange Button Head

12 6 X M6 Nyloc Nut

13 1 X Bottom Step

14 2 X M10 x 80 Hex Head Bolt

15 1 X M10 x 100 Hex Head Bolt

16 1 X Aluminium Spacer

17 1 X M10 Flat Washer

IN THE BOX

18 1 X M10 x 30 x 3 Flat Washer

19 2 X M10 Nyloc Nut

20 6 X M6 Nut Cap

21 2 X M10 Nut Cap

22 2 X M6 x 19 x 1 Flat Washer

23 2 X M6 Spring Washer

24 2 X M6 x 60 Cap Screw

3 9 5

6 6

Torx

T30 Anti-

Rust

Anti-

Seize

TOOLS NEEDED

4mm

5mm

8.5mm

12mm

Marker

10mm

13mm

2794

4685

1.0m

0.5m

5cm

Scale: 1:25 All measurements in millimeters.

FIT AND SECURE

2.1

2.2

2.3

Ensure that the two pieces of Pinch Weld are

assembled to the edges of the Ladder Top

and the Clamp as shown.

Assemble the three Ladder Rungs and

Support Bracket (Item 3 & 4) to the Ladder

Sides (Item 1) using M6 x 16 Flange Button

Head Bolts, M6 Nyloc Nuts and M6 x 25

Thread Forming Screws (Items 10, 11 & 12)

as shown.

Place M6 Nut Caps (Item 20) on all the Nyloc

Nuts.

10mm

Assemble the Ladder Top Assembly from

2.1 to the Ladder Sides using M6 x 16

Flange Button Head Bolts and M6 Nyloc Nuts

(Items 11 & 12) as shown.

Place M6 Nut Caps (Item 20) on all the Nyloc

Nuts.

20 12

Torx

T30

10mm

Torx

T30

Apply a little anti-seize on screw

threads before inserting. Note these are

thread forming screws.

Note:

The Thread Forming Screws are used for

the Ladder Rungs

2794

4685

1.0m

0.5m

5cm

Scale: 1:25 All measurements in millimeters.

2021

1790

1992

2794

4685

1.0m

0.5m

5cm

Scale: 1:25 All measurements in millimeters.

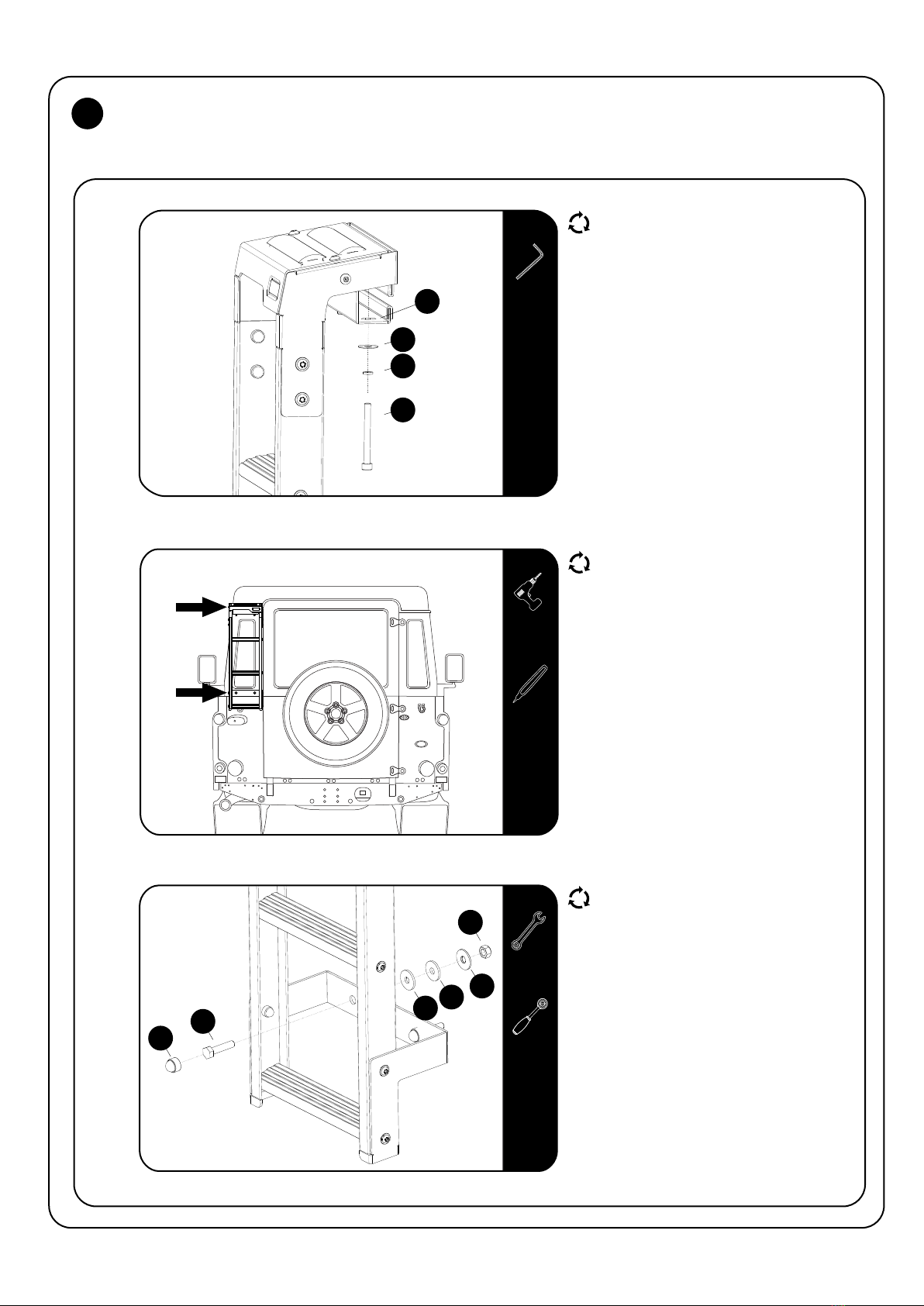

FIT AND SECURE

2.4

2.5

2.6

Loosely insert two M6 x 60 Cap Screws with

M6 SS Spring Washers and M6 x 19 x 1SS

Flat Washers (Items 22, 23 & 24) through the

Clamp (A) into the Ladder Top (Item 2) as

shown.

Swing open the Clamp. Fit the top asembly

into vehicle's gutter.

Align the Ladder with the edge of the door.

Inside the vehicle, remove the left rear

window cover and speaker box.

Check door clearance and make sure the

ladder is aligned straight with the door.

Mark the bottom two holes of the Ladder on

the vehicle's body and remove the Ladder.

Using a drilling machine and a 6mm drill

bit, drill two pilot holes on your markings.

Change to a 8.5mm drill bit and drill the

holes to 8.5mm.

5mm

Place the ladder back onto the vehicle and

line up the holes in the bottom of the Ladder

with the holes drilled in 2.5.

Insert two M8 x 35 Hex Bolts (Item 5)

through the holes in the Ladder. Place the

two M8 PVC Washers (Item 6) between the

ladder and the vehicle, place the other two

on the inside of the vehicle. Fit the M8 Flat

Washers (Item 7) and secure with the M8

Nyloc Nuts (Item 8).

Fully tighten the two M6 x 60 Cap Screws

clamping the Ladder to the gutter.

Reﬁt the rear window and speaker box cover

removed in 2.5.

Place M8 Nut Caps (Item 9) on the bolt

heads.

6 6 7

6mm

8.5mm

13mm

2021

1790

1992

1790

1992

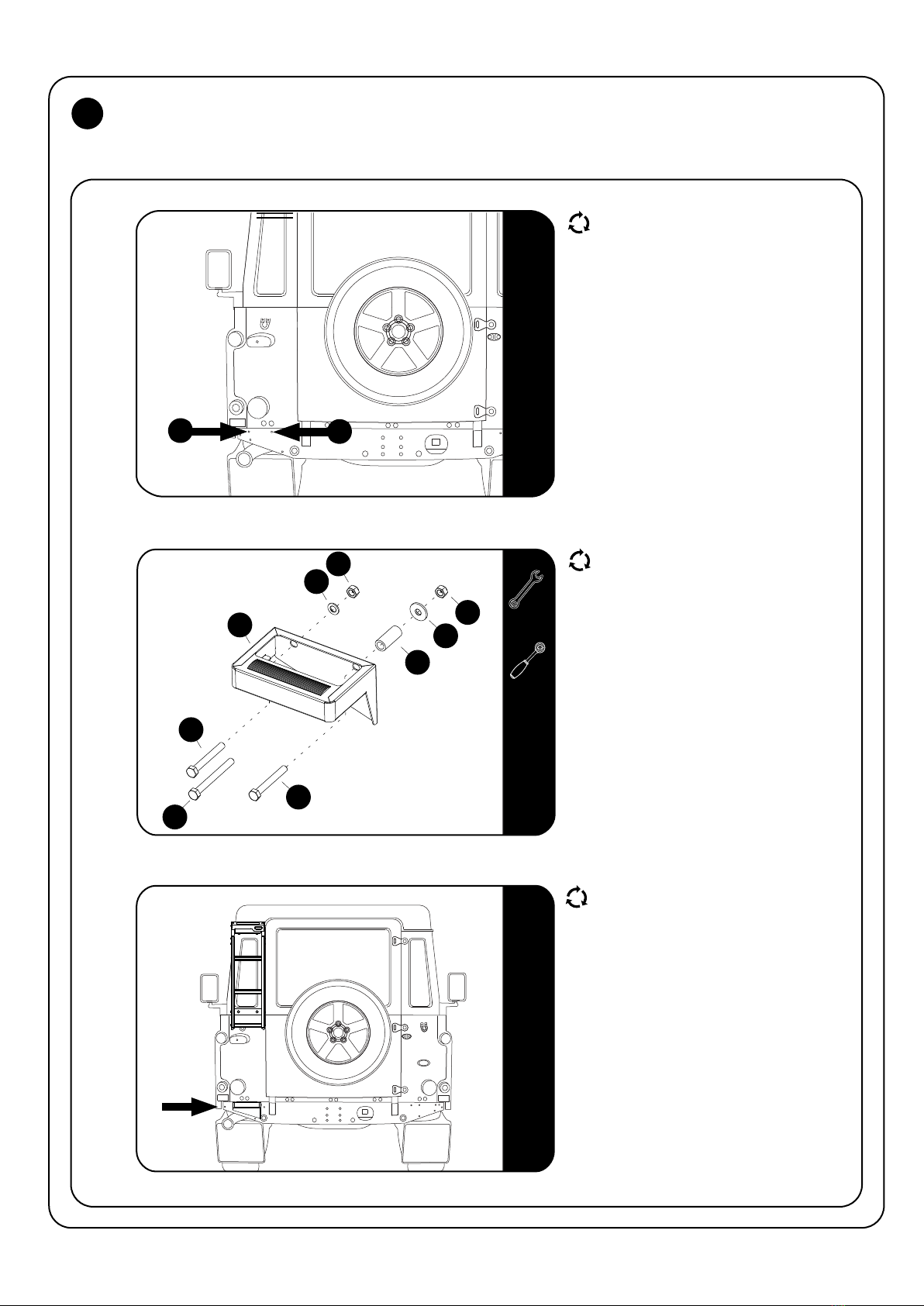

FIT AND SECURE2

2.7

2.8

2.9

Remove the two orginal bolts from the

bumper (A + B) and place the Bottom step

(Item 13) against the body, and align with

the two holes in the bumper as shown.

Refer to 2.7 and insert the M10 x 80 Hex

Bolt (Item 14) into the right hole marked

"A". Behind the bumper insert the Spacer

(Item 16) between the bumper and the "Tab"

attached to the body/bumper. Guide the Hex

Bolt through the Spacer and loosely fasten

using a M10 x 30 x 3 Flat Washer and M10

Nyloc Nut (Item 18 & 19).

For the left side marked "B", insert the M10

x 80 Hex Bolt & loosely fasten using a M10

Flat Washer and M10 Nyloc Nut (Item 17

& 19). If the original bolt went through the

chassis and the seat belt support bar, use

the M10 x 100 Hex Bolt (Item 15).

Align the Bottom step and Fully tighten all

bolts.

17mm

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutﬁtters #BornToRoam

Share your adventures on:

FINISH

Congratulations! You did it. Take a step back and admire your work!
