Front Runner RRAC018 Manuel utilisateur

Thule Rapid FOOT System

Adaptor Plates

RRAC018

ENG

IMPORTANT WARNING!

Thank you for purchasing a Front Runner Thule Rapid Foot System Adaptor Plates

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

FRONT RUNNER CAN NOT RECOMMEND A MAXIMUM LOAD CARRYING CAPACITY. PLEASE REFER TO YOUR VEHICLE MANUFACTURER'S RECOMMENDATIONS. IT IS CRITICAL

THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN

AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS

TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE. THEREFORE YOU

MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU

DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE

INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

RRAC018_REV_A00

TOOLS NEEDED

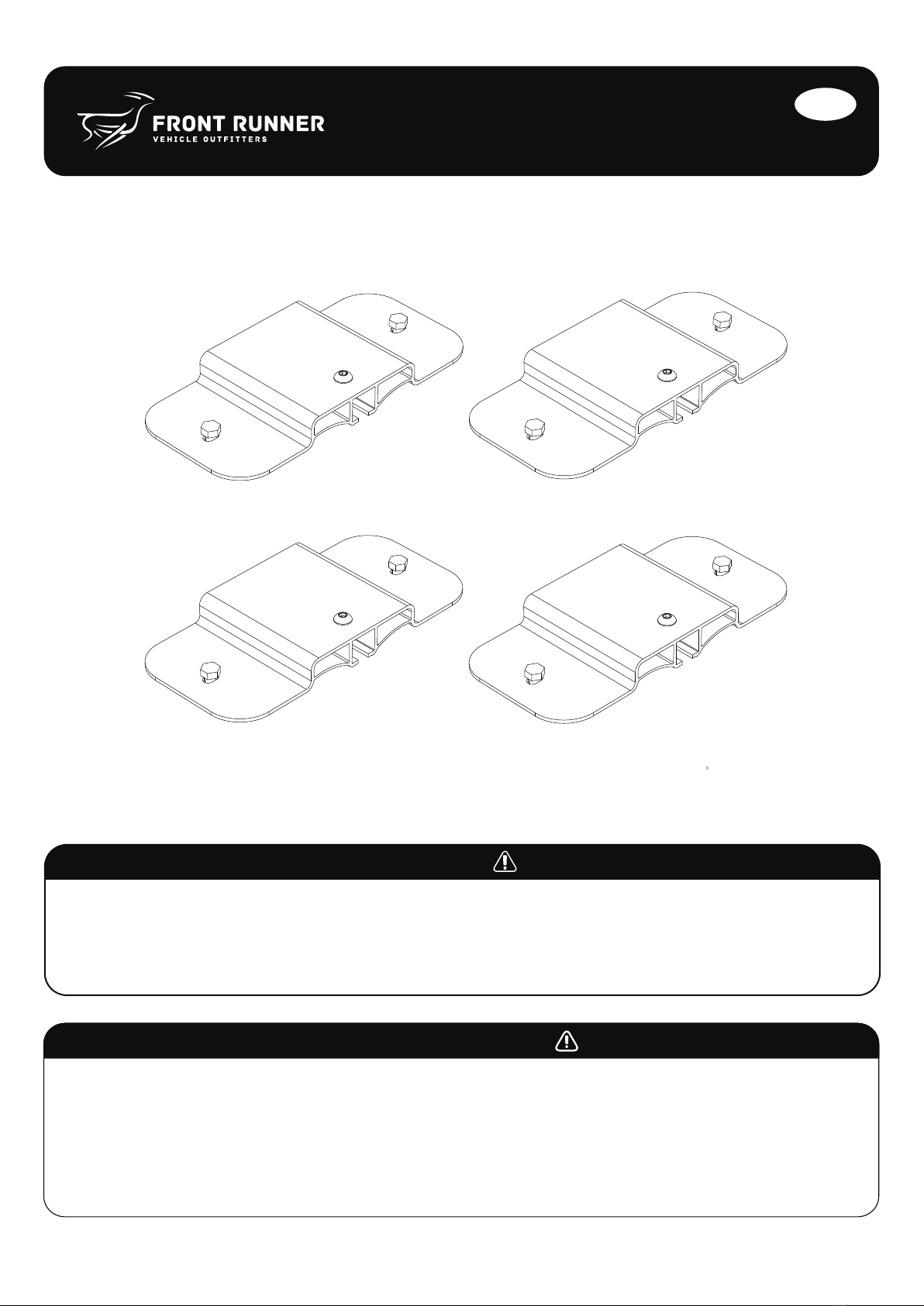

1 4 X Thule Rapid Foot System Adaptor Plates

2 4 X M8 x 16 Button Head Bolt

3 8 X M8 x 20 Hex Bolt

4 12 X M8 Nyloc Nut

5 12 X M8 Flat Washer

6 8 X M8 Nut Cap

IN THE BOX

FIGURE 1.1

5mm

13mm

GET ORGANIZED1

RRAC018_REV_A00

FIT AND SECURE

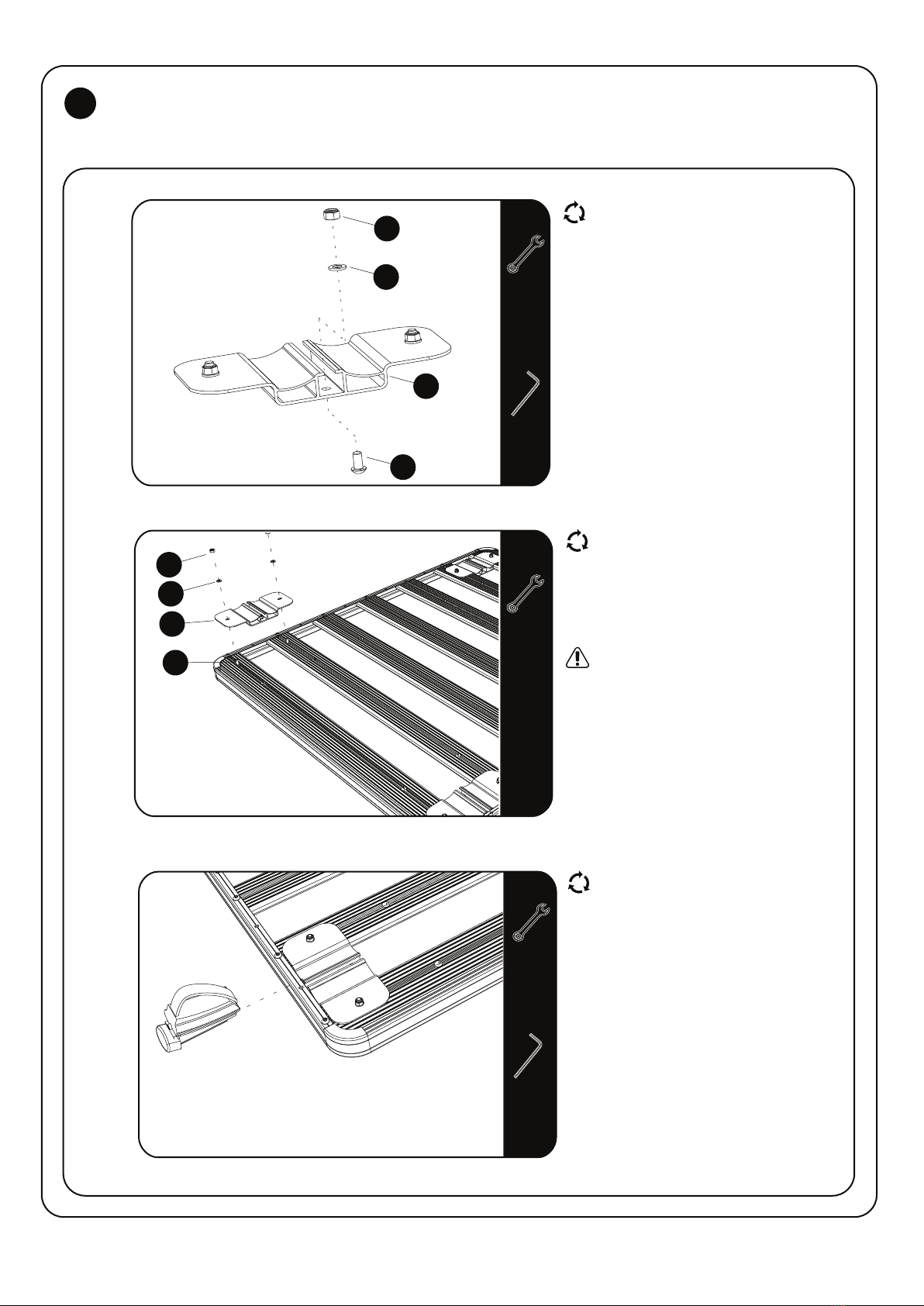

Unlock and remove the Locking Handle of

the Strap-On-Foot. Loosen the M6 Socket

Head Screw using the Allen Key supplied

with the Strap-On-Foot. You will see that

this will loosen the Strap of the Foot.

Remove one end of the Strap. Slide the

Thule Rapid Foot into the Adaptor Plate

channel up to the Button Head Bolt.

(Item 2)

Insert a M8 x 20 Hex Bolt (Item 3) into

each of the required Slats using the

Machined Slots as shown.

Place the Adaptor Plate (Item 1) over the

Hex Bolts and loosely fasten using M8 Flat

Washers and M8 Nyloc Nuts (Items 5 & 4).

The Button Head Bolts must face inward.

The assembly should still be able to slide.

8MM

3MM

2.1

2.2

2.3

Insert and fasten the M8 x 16 Button Head

Bolts (Item 2) to the Adaptor Plates (item 1)

using the M8 Nyloc Nuts and M8 x 16 x 1SS

Flat Washers. (Items 4 & 5)

13MM

5MM

INSTALL OTHER VEHICLE AND RACK ACCESSORIES5

Now's the time to visit your favorite Front Runner Dealer in person or Online.

COMPLETION

3.1

Congratulations! You did it. Take a step back and admire your work!

4Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

FIT AND SECURE

2.4

13MM

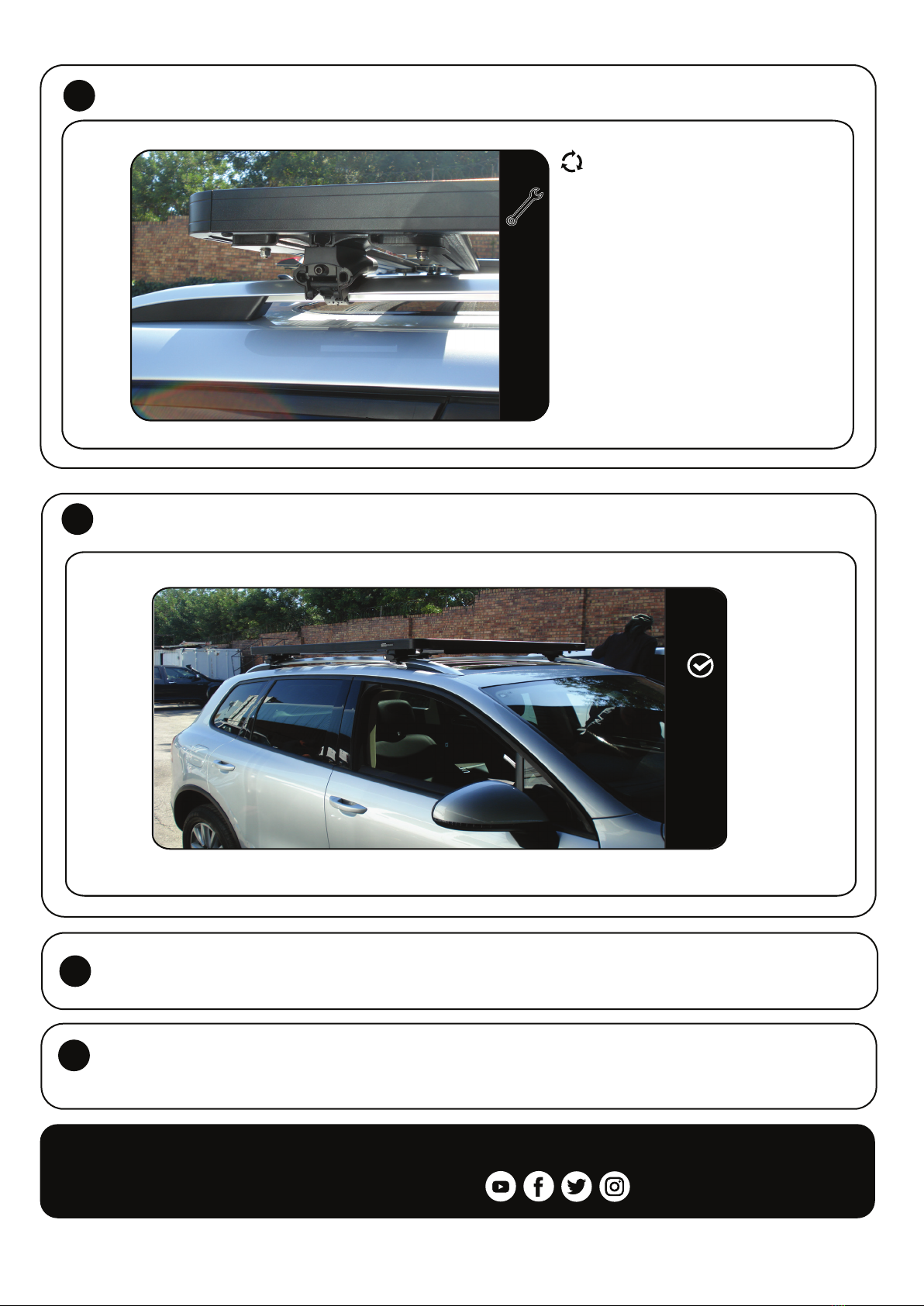

Flip the Rack over so that the Strap-On-Feet

are below the Rack. Place the Rack on your

vehicle so that the Strap-On-Feet are

positioned on the Raised Rails of the

vehicle as shown in 2.4

Wrap the Straps around the Raised Rails

and reﬁt the loose end into the Rapid Foot

as removed in Step 2.3.

Fully tighten the Strap by using the Allen Key

on the Locking Handle.

Before fully tightening the Adaptor Plates,

center the rack on your vehicle.

Finally, make sure that all four of the Adaptor

Plates are fully tightened. Place M8 Nut Caps

(Item 6) over all the Nyloc Nuts.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:
