Signature Features

30" Gas

Fits-More™ Cooktop

The Fits-More™ cooktop features five

burners so you can cook more at once.

Quick Boil

Boils water faster.

Express-Select® Controls

Easily go from warm to boil.

Eortless™ Oven Rack

Bottom rack extends when you

open the door for easy access.

Product Dimensions

Height (Max.) 47-1/2"

Width 29-7/8"

Depth (Including Handle) 28-1/2"

More Easy-To-Use Features

Quick Bake Convection

Bake faster and more evenly with Quick

Bake Convection.

Low Simmer Burner

Perfect for delicate foods and sauces.

Continuous Grates

Continuous Grates make it easy to

move heavy pots and pans between

burners without lifting.

Even Baking Technology

Our latest technology ensures even

baking every time.

Auto Shut-O

As an extra safety measure, the oven

will automatically shut off after 6 hours.

One-Touch Self Clean

Start the self-cleaning cycle with

just the touch of a button.

Quick Clean

For a quick, light oven cleaning.

Delay Start

Set your oven to begin cooking on

your schedule. It can be programmed

from 1 to 24 hours.

Available in:

White

(W)

Black

(B)

Burners

Right Front

Right Rear

Left Front

Left Rear

Center Extra Zone

BTU

17,000

5,000

9,500

14,000

9,500

Freestanding Ranges

FGGF3032K W/ B

Specifications

subject to change.

Accessories information available

on the web at frigidaire.com

Cutout Dimensions

Height (Standard)

Width (Min.)

Depth (Min.)

36"

30"

24"

Product Dimensions

A - Height (Max.)

B - Width

C - Depth (Including Handle)

Depth with Door Open 90˚

47-1/2"

29-7/8"

28-1/2"

46-5/8"

30" Gas Freestanding Ranges

Frigidaire Baseline

36"

(Adjustable)

NOTE: For planning purposes only. Always consult local and national electric and gas codes.

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

1For use on adequately wired 120V, dedicated circuit having 2-wire service

with a separate ground wire. Appliance must be grounded for safe operation.

Features

Oven Control / Timing System

Surface Type

Sealed Gas Burners

Grates

Window

Exterior Door Finish

Handle Design

Exterior Finish (Side Panels)

Convection System

Oven Cleaning System

Drawer Functionality

Oven Controls

Bake / Broil

Eortless™ Convection Conversion

Convection Bake / Broil / Roast

Quick Bake Convection

Quick Preheat

My Favorite

Chicken Nugget Button

Pizza Button

Keep Warm

Add-a-Minute

Delay Bake

Self Clean

Quick Clean Option

Delay Clean

Kitchen Timer / Timed Cook Option

Auto Oven Shuto

Lower Drawe r Control

Cooktop Features

Right Front Burner (BTU)

Right Rear Burner (BTU)

Left Front Burner (BTU)

Left Rear Burner (BTU)

Center Extra Zone Burner (BTU)

Oven Features

Capacity (Cu. Ft.)

Oven Light

Rack Conﬁguration

Baking System

Broiling System

Bake Burner / Broil Burner (BTU)

Drawer Racks

Optional Accessories

LP Gas Conversion Kit

Speciﬁcations

Oven Interior ( H x W x D )

Power Supply Connection Location

Gas Supply Connection Location

Voltage Rating

Conn. Load (kW Rating) @ 120 Volts1

Amps @ 120 Volts

Shipping Weight (Approx.)

Express-Select® Controls

Black Porcelain

Yes

Continuous Cast Iron

w/ Black Matte Finish

Extra-Large

Color-Coordinated

Quick Bake Convection

Self Clean

Storage

Yes / Low and High

Yes

2, 3 Hours

Yes

Yes / Yes

12 Hours

17,000

5,000

9,500

14,000

9,500

5.0

1 Standard, 1 Oset,

1 Eortless™

Even Baking Technology

Vari-Broil™ Hi/Lo

18,000 / 13,500

PN # GRLP3

17-5/8" x 24-3/8" x 19-3/4"

Left Bottom Rear

Right Bottom Rear

120V / 60Hz / 15A

1.8

215 Lbs.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Freestanding Ranges

FGGF3032K W/ B 30" Gas

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

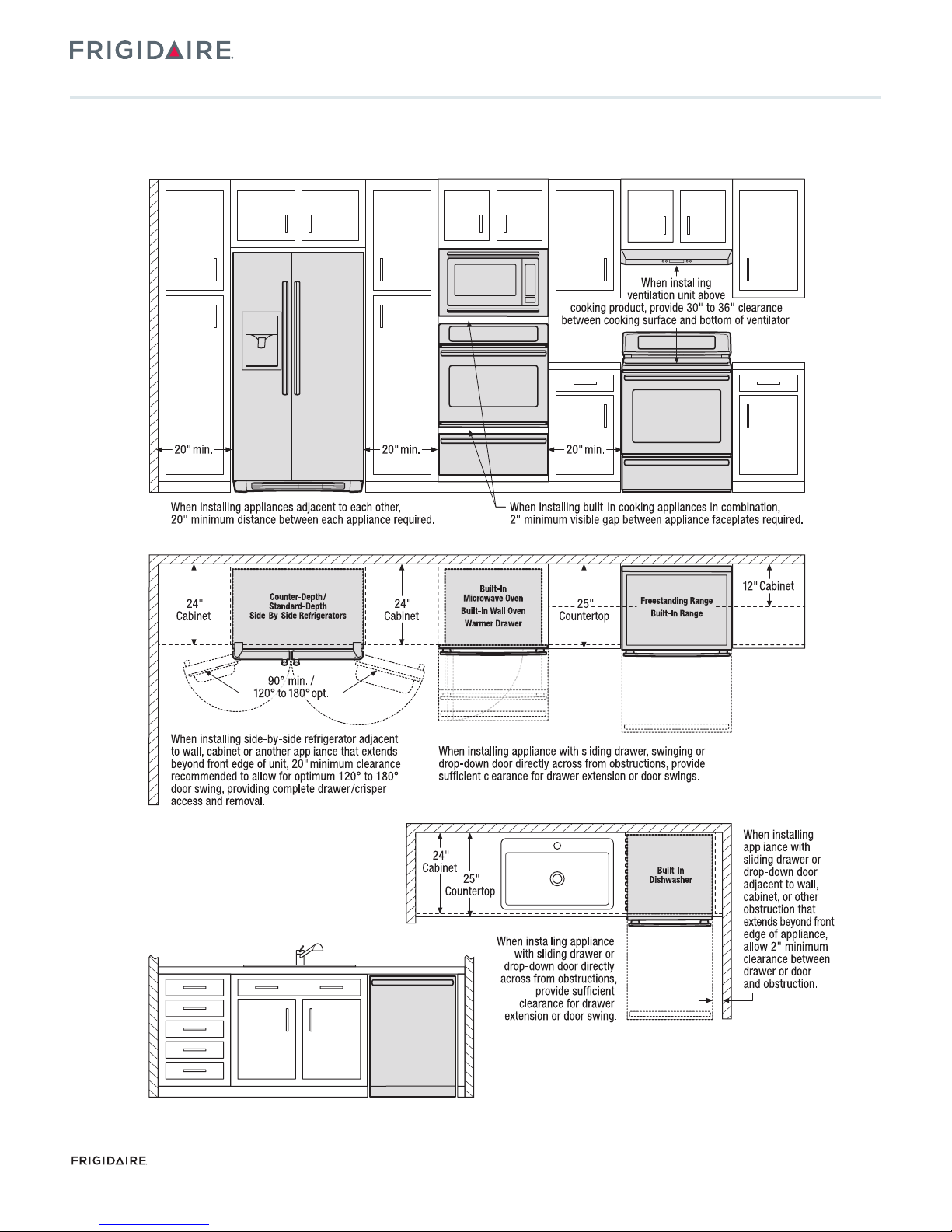

General Installation Guidelines

with Side-by-Side Refrigerator

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Top

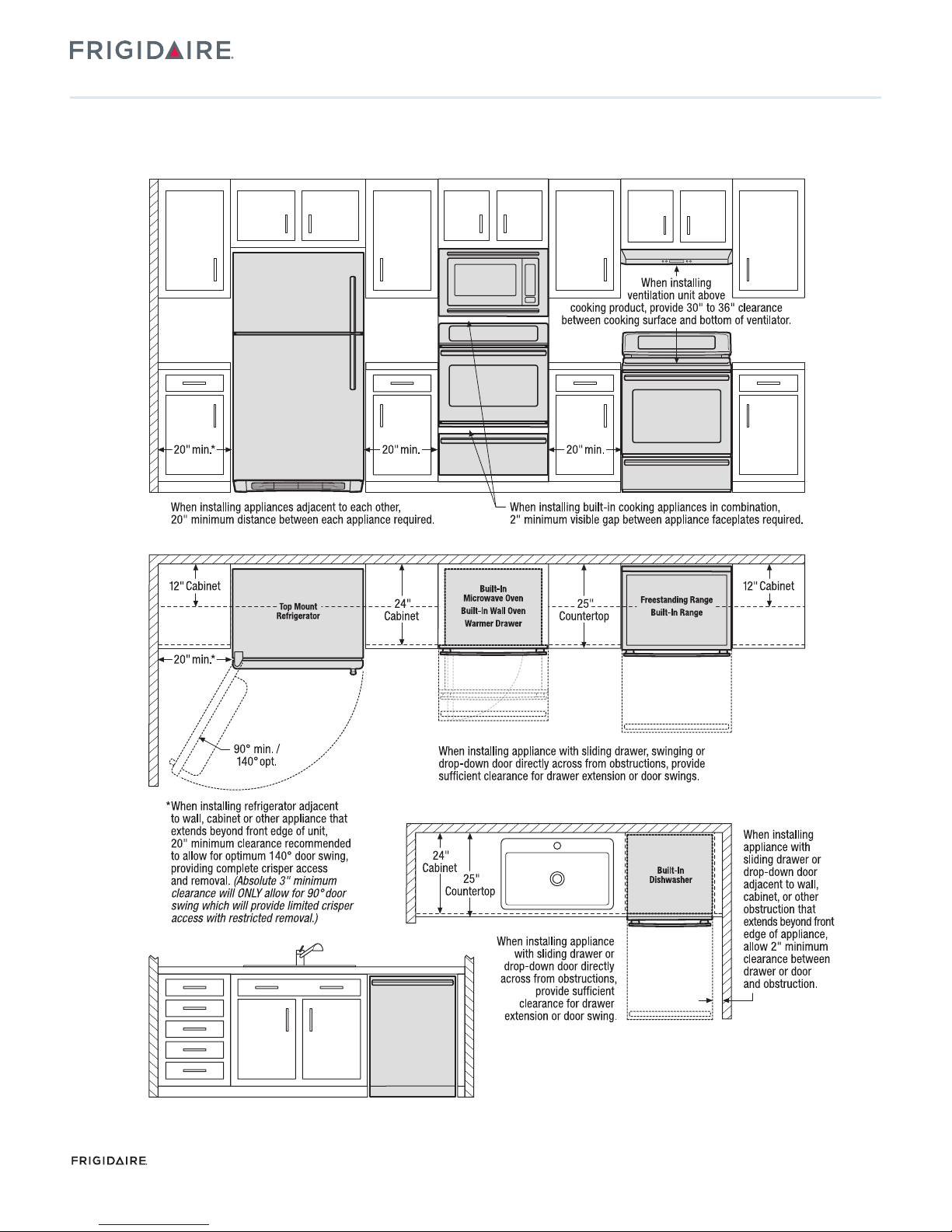

General Installation Guidelines

with Top Mount Refrigerator
