Drop-In Cooktop

FPEC3085K S

30" Electric30" Electric

CFEF3012LW

Signature Features

Ready-Select® Controls

Select options or control cooking

temperature with our easy-to-use

controls.

Product Dimensions

Height (Max.) 47"

Width 29-7/8"

Depth (Including Handle) 28-1/2"

More Easy-To-Use Features

Large Window

Our large oven window lets you

easily see what’s inside.

Smoothtop Cooking Surface

Timed Cook Option

Electronic Kitchen Timer

Bright Lighting

Our bright lighting makes it easy

to see what’s inside.

Manual Clean Oven

Attractive Stainless Steel Exterior1

Available in:

Freestanding Ranges

Elements

Right Front

Right Rear

Left Front

Left Rear

Watts

2,500

1,250

2,100

1,250

Size

Oers two-position broiling and

variable temperature control for

more control.

Store-More™

Storage Drawer

Our convenient drawer gives you

extra storage space in your kitchen.

Even Baking Technology

Our latest technology ensures

even baking every time.

White

(W)

1Select model only.

Speciﬁcations

subject to change.

Accessories information available

on the web at frigidaire.ca

NOTE: For planning purposes only. Always consult local and national electric codes.

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.ca.

Features

Surface Type

Window

Exterior Door Finish

Handle Design

Exterior Finish (Side Panels)

Convection System

Oven Cleaning System

Drawer Functionality

Oven Controls

Bake

Broil

Add-a-Minute

Delay Bake

Self-Clean

Quick Clean Option

Delay Clean

Kitchen Timer

Timed Cook Option

Cooktop Features

Right Front Element (Watts)

Right Rear Element (Watts)

Left Front Element (Watts)

Left Rear Element (Watts)

Center Element (Watts)

Hot Surface Indicator Light

Oven Features

Capacity (Cu. Ft.)

Oven Light

Hidden Bake Element

Rack Conﬁguration

Even Baking System

Broiling System

Speciﬁcations

Power Supply Connection Location

Voltage Rating

Connected Load

Minimum Circuit Required (Amps)

Shipping Weight (Approx.)

Ready-Select® Controls

Black Ceramic Glass

Large

Colour-Coordinated (W)

Manual Clean

Storage

Yes

Low and High

Yes

9" – 2,500

6" – 1,250

8" – 2,100

6" – 1,250

4.8

2 Standard

21" x 24-3/8" x 19-1/8"

Middle Bottom Rear

140 Lbs.

Frigidaire Baseline

36"

(Adjustable)

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Freestanding Ranges

30" Electric

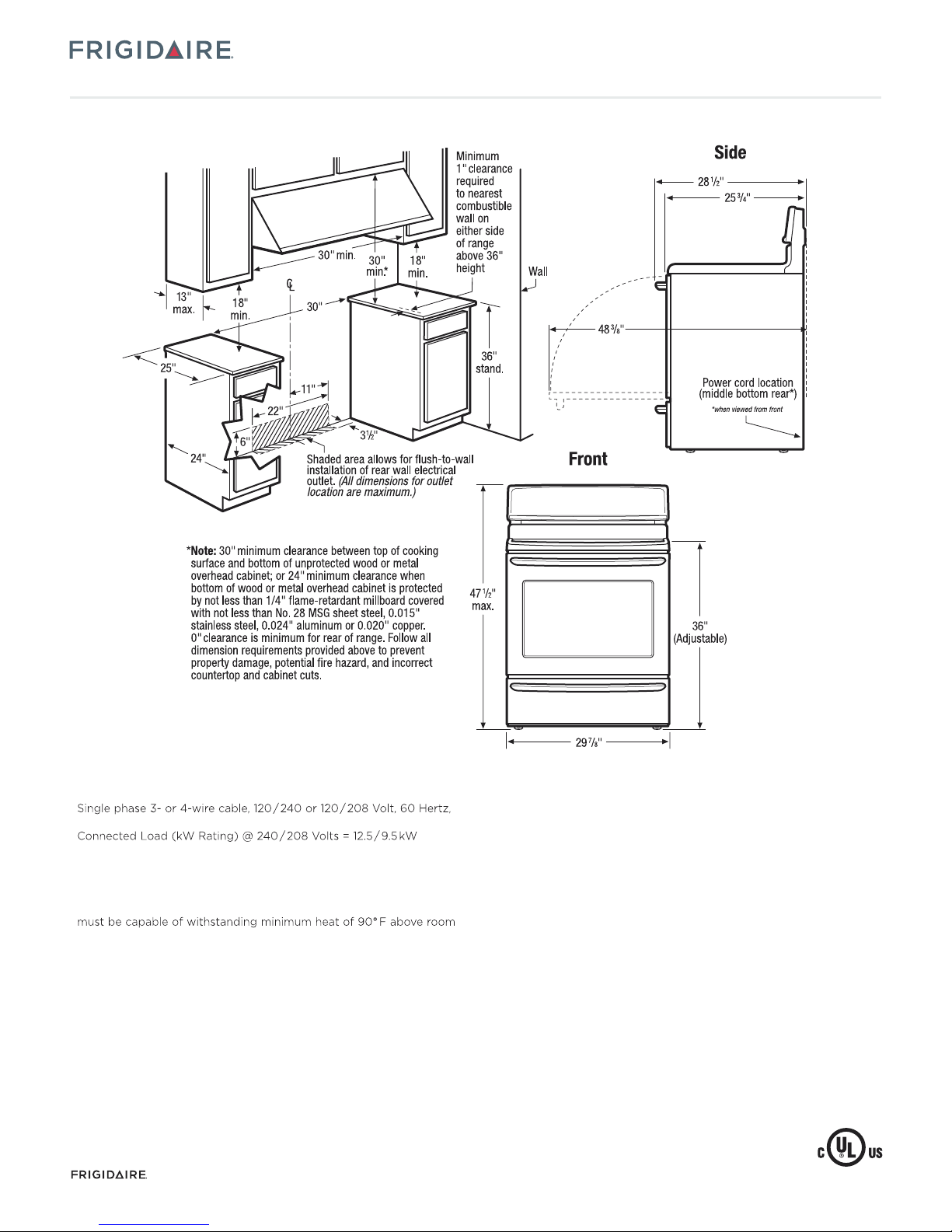

Cutout Dimensions

Height (Standard)

Width (Min.)

Depth (Min.)

36"

30"

24"

Product Dimensions

Depth with Door Open 90˚

47-1/2"

29-7/8"

28-1/2"

48-3/8"

CFEF3012LW

Baseline

Speciﬁcations subject to change.

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Freestanding Range Speciﬁcations

•Product Shipping Weight (approx.) – 140 Lbs.

•

fused on both sides of line with ground.

•

•Recommended Circuit Breaker – 40 Amps

•Always consult local and national electric codes.

•Make sure wall coverings around range can withstand heat generated

by range.

•Linoleum or any other synthetic ﬂoor covering located beneath range,

temperature without shrinking, warping or discolouring. Insulating

pad or 1/4"-thick plywood required between range and a carpeted

ﬂoor.

•Floor beneath range MUST be solid and level.

•Overhead cabinetry should not exceed a 13" maximum depth.

•Absolute minimum horizontal distance between overhead cabinets

installed to either side of appliance must be no less than maximum

width of appliance.

•Range can be installed ﬂush to wall with 0" minimum rear clearance.

•Minimum 1" clearance required from edge of rangetop to nearest

combustible wall on either side of range above 36" height.

•Allow 30" minimum clearance between top of cooking surface and

bottom of unprotected wood or metal overhead cabinet; or 24"

minimum clearance when bottom of wood or metal overhead cabinet

is protected by not less than 1/4" ﬂame retardant millboard covered

with not less than No. 28 MSG sheet steel, 0.015" stainless steel,

0.024" aluminum or 0.020" copper.

•To reduce risk of ﬁre when using overhead cabinetry, install

range hood that projects horizontally a recommended minimum

of 5" beyond bottom of cabinets.

•Follow all dimension requirements provided to prevent property

damage, potential ﬁre hazard, and incorrect countertop and

cabinet cuts.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.ca for detailed instructions.

Freestanding Ranges

CFEF3012LW 30" Electric
