Frigidaire FGF354BG Manuel utilisateur

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FGF354BGDA FGF354BG ALMOND USA

FGF354BGDB FGF354BG ALMOND USA

FGF354BGWA FGF354BG WHITE USA

FGF354BGWB FGF354BG WHITE USA

5995308458

980610

-EN/SERVICE /CML

369

GAS - RANGE

Model No.

FGF354BG

FACTORY PARTS CATALOG

GAS RANGE

WIRING DIAGRAM # - 316002068

OWNER’S MANUAL # -316000271

INSTALLATION INST. # - 316002989

104 WARREN ROAD

AUGUSTA, GA 30907-3755

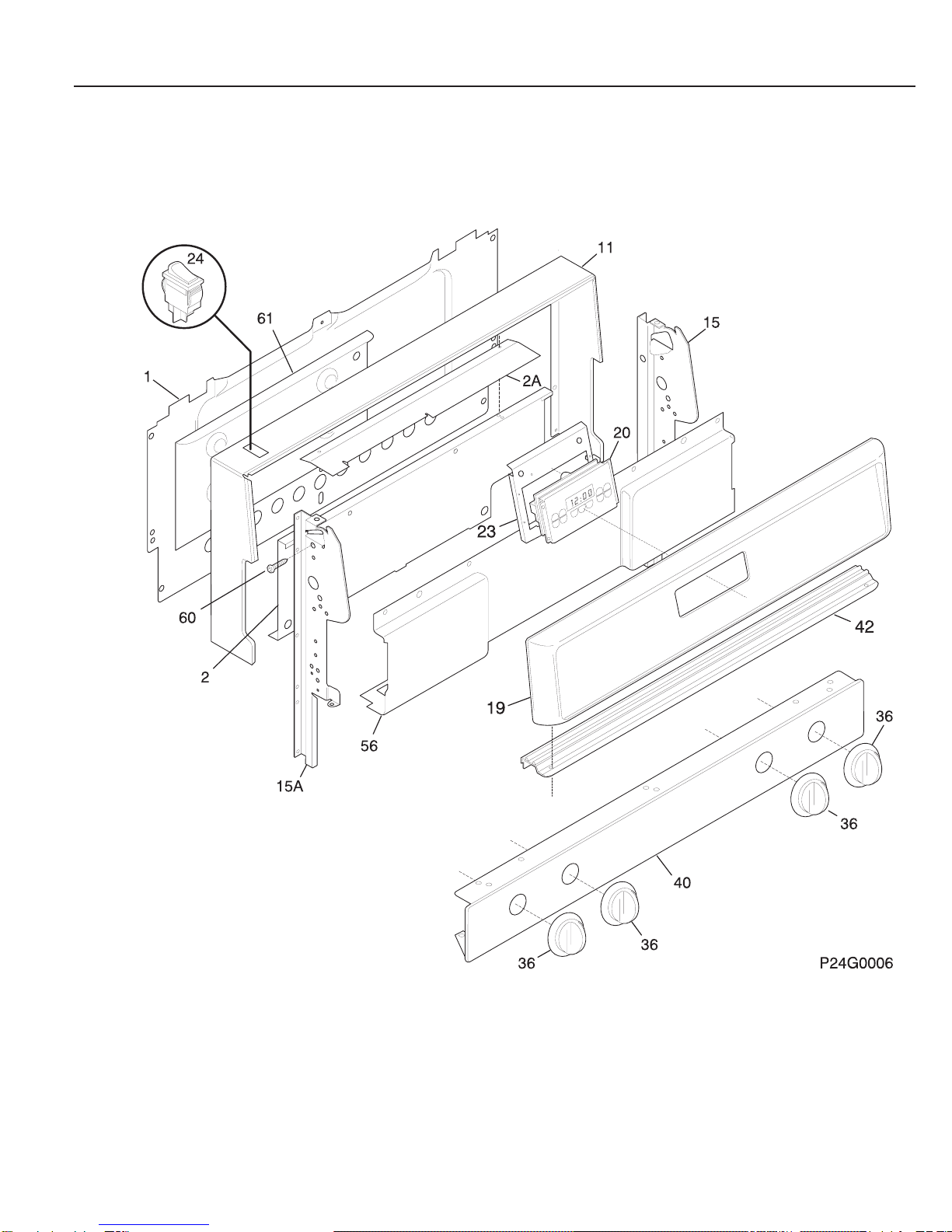

BACKGUARD

Publication No. FGF354BGWA ,FGF354BGWB, FGF354BGDA, FGF354BGDB

5995308458

06/98 2

A = FGF354BG (FGF354BGWA, FGF354BGWB)

B = FGF354BG (FGF354BGDA, FGF354BGDB)

POS. NO PART NO DESCRIPTION

* 316002989 A B Instructions,installation

* 316021105 A B Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316071902 A B Gasket-edge

1 316028701 A B Shield-backguard,rear wall

2 316051700 A B Shield-heat

2A 316053802 A B Shield-backguard,inner/top

11 316083718 A B Trim-wrapper,black

15 316023108 A B Support-backguard,RH

15A 316023109 A B Support-backguard,LH

19 316100530 A B Panel-control,metal ,black

20 # 316101102 A B Clock/Timer,Trimline

20* 316101505 A B Overlay-clock

23 316100300 A B Bracket-clock mtg

24 # 316005602 A B Switch-rocker,oven light ,black

32 316101400 A B Knob-thermostat

36 316109502 A B Knob-top valve blk,black

40 316009268 A B Panel-manifold

42 316055200 A B Trim-vent

56 316074907 A B Deflector-flue,black

60 316021105 A B Screw

BACKGUARD

FGF354BGWA ,FGF354BGWB, FGF354BGDA, FGF354BGDB Publication No.

5995308458

# = Functional Part 3 06/98

* = Non-Illustrated Part

BURNER

Publication No. FGF354BGWA ,FGF354BGWB, FGF354BGDA, FGF354BGDB

5995308458

06/98 4

BURNER

A = FGF354BG (FGF354BGWA, FGF354BGWB)

B = FGF354BG (FGF354BGDA, FGF354BGDB)

POS. NO PART NO DESCRIPTION

1 # 316066201 A B Manifold Pipe

2 # 5303935130 A B Valve-top burner

2* 316048200 A B Screw-top valve mtg,hex washer head ,

1/4-20 x 0.31,w/gasket

3 # 316103600 A B Switch-ignitor,(4)

4 # 316059612 A B Tube-burner,red ,RF

5 # 316059613 A B Tube-burner,green ,LF

6 # 316059614 A B Tube-burner,nat. ,RR

7 # 316059615 A B Tube-burner,black ,LR

8 # 5303280394 A B Spark Module

8* 5303289034 A B Harness-wiring,module/igniter

10 # 5303935025 A B Burner Assy-top,sealed ,small ,9000 BTU

11 # 316011200 A B Ignitor-top burner,(4) ,w/mtg bracket

13 # 316065005 A B Tube,aluminum ,rgltr to manf ,

with fittings

14 # 316091706 A B Regulator-pressure

14* 316021104 A B Screw-regulator/brkt,hex ,8-18 x 3/8 ,

nick, 3

15 316091600 A B Bracket-regulator

16 # 316065003 A B Tube-valve to rgltr,3/8

17 # 5303208499 A B Valve-safety,dual

18 # 3131290 A B Burner-oven

19 # 5303935066 A B Ignitor-oven

20 3131284 A B Baffle-oven burner

20 5303288408 A B Baffle-oven burner

21 5303013272 A B Nut,hex head sems

22 # 316065002 A B Tube-valve to mixer

23 # 316087900 A B Burner-broiler

24 # 316070400 A B Mixer Elbow

25 5303210379 A B Baffle-broiler

25 5303288407 A B Baffle-broiler

26 # 5308067970 A B Ignitor-broiler

37 316069301 A B Screw-metric

44 5303210090 A B Orifice-top burner,small

45 316011100 A B Screw-ignitor mtg,self-tapping ,M3x5.8

46 316074700 A B Plate-burner tube

47 5303286386 A B LP Conversion Kit

FGF354BGWA ,FGF354BGWB, FGF354BGDA, FGF354BGDB Publication No.

5995308458

# = Functional Part 5 06/98

* = Non-Illustrated Part

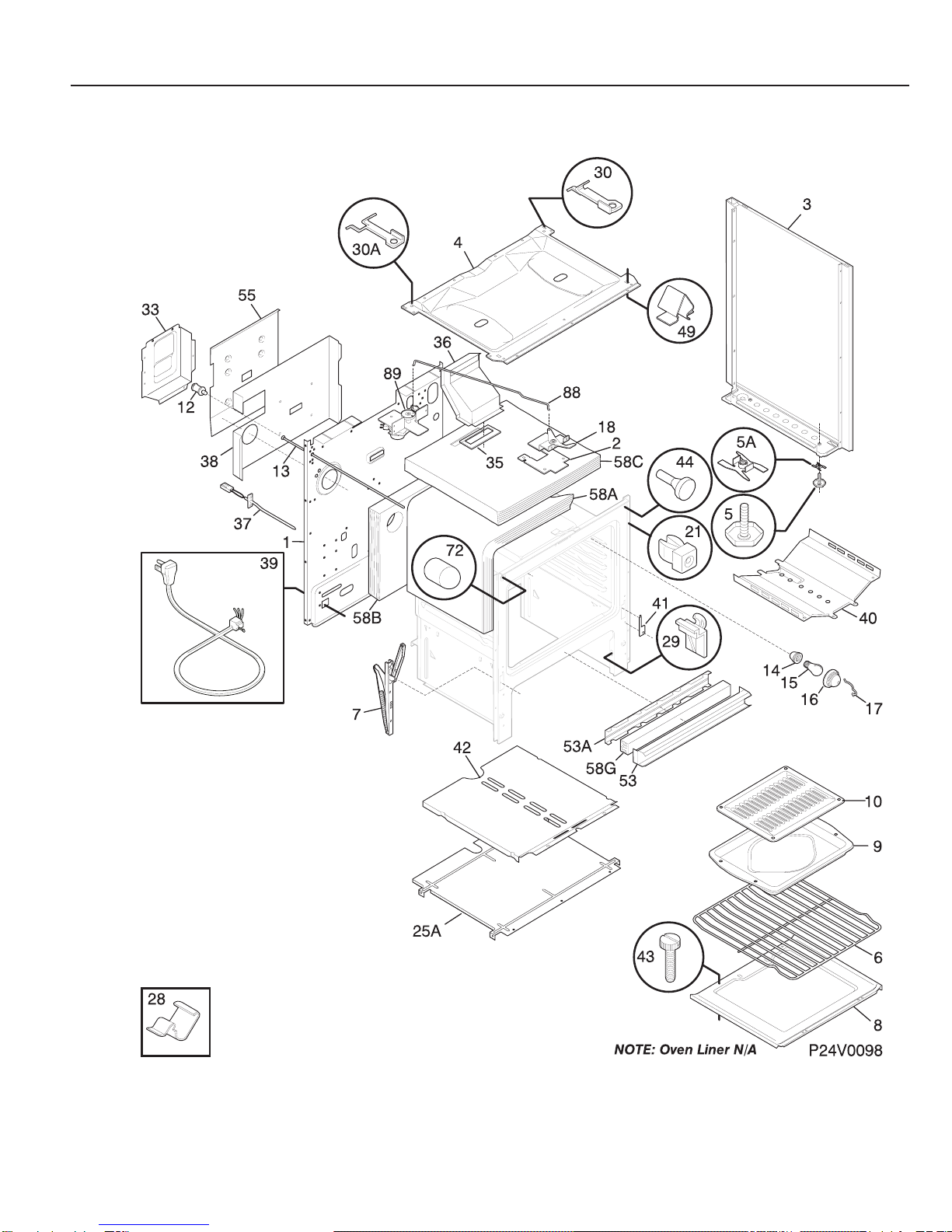

BODY

Publication No. FGF354BGWA ,FGF354BGWB, FGF354BGDA, FGF354BGDB

5995308458

06/98 6

BODY

A = FGF354BG (FGF354BGWA, FGF354BGWB)

B = FGF354BG (FGF354BGDA, FGF354BGDB)

POS. NO PART NO DESCRIPTION

* 316001632 A B Harness-wiring,chassis

* 316021105 A B Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

1 316029412 A B Back-main

2 3131314 A B Shield-oven top

3 316081028 A - Panel-bodyside,white ,RH

3 316081030 - B Panel-bodyside,almond ,RH

3* 316081029 A - Panel-bodyside,white ,LH

3* 316081031 - B Panel-bodyside,almond ,LH

4 316011912 A B Burner Box,black

5 5303203397 A B Screw-leveling

5* 3934058 A B Anti-tip Kit

5* 316078600 A B Screw,anti-tip ,(4)

5* 5303288460 A B Nut,T-type ,leveling screw

6 316067902 A B Rack-oven

7 316007002 A B Hinge-oven door,(2)

7* 5303012323 A B Clip,hinge ,(4)

8 5303212540 A B Panel-oven bottom

8* 316064600 A B Support-oven bottom

9 316073800 A B Pan-broiler

10 3205234 A B Insert-broiler pan

12 # 316027701 A B Switch-oven light

13 316026800 A B Rod-light switch /door

14 3014073 A B Socket-light/lamp,oven

15 5303013071 A B Light Bulb/Lamp

16 08011086 A B Lens-light/lamp,glass ,oven

17 316087500 A B Retainer-lens

18 # 316036300 A B Latch-door

21 3014099 A B Spacer-bodyside,(8)

25 5303288580 A B Shield-heat,lower

26 08067757 A B Cover Plate

28 3011813 A B Clip-wire,bodyside

29 3051162 A B Glide-drawer,front

30 316059200 A B Bracket-main top,RH

30A 316059201 A B Bracket-main top,LH

33 316014401 A B Shield,rear wall

35 08067965 A B Gasket-flue

36 5303272844 A B Flue

37 # 316111200 A B Probe-oven temp

38 316051700 A B Shield-heat

39 3202006 A B Cord-electric power

39* 08067961 A B Fastener-power cord

40 3200836 A B Shield-heat baffle

40* 5303288570 A B Screw-heat shield,hd shldr sqdr ,

8-18 X 1/2

41 3131570 A B Cover-hinge cutout

42 5303288578 A B Shield-bake burner

43 3131732 A B Screw-oven bottom,8-18 x 1.438

44 3131903 A B Bumper-door/drawer,rubber

45 08068018 A B Shield-wire

49 3051124 A B Clip-spring mtg

53 5303288579 A B Shield-main front

53* 08067992 A B Shield-insulation,galv steel

53* 08067973 A B Insulation,main front

55 316107800 A B Shield-flue

58A 316047708 A B Insulation,oven wrapper

58B 316054200 A B Insulation,oven back

58C 3131304 A B Insulation,oven top

72 5303285692 A B Cover-light/switch rod

88 316026400 A B Rod-latch,auto

89 # 316028101 A B Motor-latch/lock

FGF354BGWA ,FGF354BGWB, FGF354BGDA, FGF354BGDB Publication No.

5995308458

# = Functional Part 7 06/98

* = Non-Illustrated Part

TOP/DRAWER

Publication No. FGF354BGWA ,FGF354BGWB, FGF354BGDA, FGF354BGDB

5995308458

06/98 8

A = FGF354BG (FGF354BGWA, FGF354BGWB)

B = FGF354BG (FGF354BGDA, FGF354BGDB)

POS. NO PART NO DESCRIPTION

* 316021105 A B Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316021112 A - Screw-8-18x1/2 Tr Sqd White

* 316021113 - B Screw-8-18x1/2 Tr Sqd Almond

* 316089500 A B Screw,10-16 x .486 ,safety valve ,

handle,(4)

* 316089600 A B Spacer-drawer,(2)

* 5303280311 A B Screw,waf hd sdr ,10-32 x 5/16 ,(2)

1 316011501 A B Drawer-utility

2 3131975 A B Shield-panel

4 316084405 A - Panel-drawer,white

4 316084406 - B Panel-drawer,almond

4* 08067785 - B Screw,hex washer head ,8-18AB x 1/2

7 3051163 A B Glide-drawer,rear

10 5303280308 A B Screw-handle mtg,wafer head ,10-24T x 2

16 5303301546 A - Main Top,white

16 5303301547 - B Main Top,almond

20 # 316085201 A B Grate,(4)

21 316011300 A B Trim Ring-burner,black ,small, (4)

22 316098501 A B Cap-burner,black ,(4))

TOP/DRAWER

FGF354BGWA ,FGF354BGWB, FGF354BGDA, FGF354BGDB Publication No.

5995308458

# = Functional Part 9 06/98

* = Non-Illustrated Part

DOOR

Publication No. FGF354BGWA ,FGF354BGWB, FGF354BGDA, FGF354BGDB

5995308458

06/98 10
