Frigidaire Gallery FGGF304DLF Feuille d'instructions

frigidaire.com

Signature Features

Freestanding Ranges

FGGF304DL F/ W/ B

30" Gas

Fits-More™ Double Oven Range

A second 2.3 cu. ft. oven gives you

more space to cook multiple dishes

at the same time.

Largest Range Capacity

with Second Oven

Cook a large meal effortlessly with

our double oven range, offering the

largest cooking capacity available so

you can cook two meals, at different

temperatures, at once.

True Convection2

Multi-rack baking is faster and

more even with True Convection.

Quick Preheat

Preheat in less than six minutes.

Product Dimensions

Height (Max.) 49"

Width 30"

Depth (Including Handle) 28-5/16"

More Easy-To-Use Features

Quick Boil

Boils water faster.

Express-Select® Controls

Easily go from warm to boil.

One-Touch Options

Our ovens feature easy-to-use one touch

buttons so you can cook pizza or chicken

nuggets — or even add a minute to the

timer — with the touch of a button.

SpaceWise® Half Rack

Flexible rack system that adjusts to

cook multiple dishes at once. Remove the

half rack and you’ll have extra height for

tall dishes.

One-Touch Keep Warm Setting

Just one touch of a button keeps food

warm until everything — and everyone —

is ready.

Real Stainless Steel3

Real stainless steel with a protective

coating that reduces fingerprints and

smudges so it’s easy to clean.

Eortless™ Convection

Takes the guesswork out of convection

cooking — our oven does the converting

for you.

Low Simmer Burner

Perfect for delicate foods and sauces.

Sabbath Mode (Star-K® Certiﬁed)

Available in:

Stainless

(F)

White

(W)

Black

(B)

Burners

Right Front

Right Rear

Left Front

Left Rear

Center Extra Zone

BTU

17,000

5,000

9,500

14,000

9,500

1 Based on single rack cooking performance,

not set temperature, using Quick Preheat.

2Main oven only.

3 Select model only.

Specifications

subject to change.

Accessories information available

on the web at frigidaire.com

Cutout Dimensions

Height (Standard)

Width (Min.)

Depth (Min.)

36"

30-1/8"

24"

Product Dimensions

A - Height (Max.)

B - Width

C - Depth (Including Handle)

Depth with Door Open 90˚

49"

30"

28-5/16"

45-1/2"

30" Gas Freestanding Ranges_Double Oven_Upper

Frigidaire Gallery

36"

(Adjustable)

NOTE: For planning purposes only. Always consult local and national electric and gas codes.

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

Features

Oven Control / Timing System

Surface Type

Sealed Gas Burners

Grates

Window

Exterior Door Finish

Handle Design

Exterior Finish (Side Panels)

Convection System

Oven Cleaning System

Auxiliary Oven

Oven Controls

Bake / Broil

Eortless™ Convection Conversion

Convection Bake / Broil / Roast

Quick Bake Convection

Quick Preheat

My Favorite

Chicken Nugget Button

Pizza Button

Keep Warm

Add-a-Minute

Delay Bake

Self Clean

Quick Clean Option

Delay Clean

Kitchen Timer / Timed Cook Option

Auto Oven Shuto

Auxiliary Oven Control

Cooktop Features

Right Front Burner (BTU)

Right Rear Burner (BTU)

Left Front Burner (BTU)

Left Rear Burner (BTU)

Center Extra Zone Burner (BTU)

Oven Features

Main / Auxiliary Capacity (Cu. Ft.)

Main / Auxiliary Oven Light

Rack Conﬁguration

Baking System

Broiling System

Main Bake / Broil Burners (BTU)

Auxiliary Bake / Broil Burners (BTU)

Auxiliary Oven Racks

Certiﬁcations

Sabbath Mode (Star-K® Cert.)

Speciﬁcations

Main Oven Interior ( H x W x D )

Auxiliary Oven Interior ( H x W x D )

Power / Gas Supply Conn. Location

LP Gas Conversion Kit

Voltage Rating

Conn. Load (kW Rating) @ 120 Volts1

Amps @ 120 Volts

Shipping Weight (Approx.)

Express-Select® Controls

Black Porcelain (F),

Color-C. Porc. (W/B)

Yes

Continuous Cast Iron

w/ Black Matte Finish

Large

Real Stainless Steel (F),

Color-Coordinated (W/B)

Stainless Steel (F),

Color-Coordinated (W/B)

Black (F),

Color-Coordinated (W/B)

True Convection (Main)

Self Clean

Fits-More™ Upper Oven

Yes / Variable

(400 – 550 °F)

Yes (Main)

Yes / No / Yes (Main)

Yes

2, 3, 4 Hours

Yes

Yes / Yes

6 Hours

Electronic

17,000

5,000

9,500

14,000

9,500

3.5 / 2.3

1 / 1

2 Heavy Duty,

1 SpaceWise® Half Rack

Even Baking Technology

Vari-Broil™ Hi/Lo

12,500 / No

11,500 / 10,000

Yes

12-3/4" x 24-1/8" x 19-1/2"

8-3/8" x 24-3/8" x 19-3/8"

Left / Right Bottom Rear

Included

120V / 60Hz / 15A

.43

280 Lbs.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Freestanding Ranges

FGGF304DL F/ W/ B 30" Gas

1For use on adequately wired 120V, dedicated circuit having 2-wire service

with a separate ground wire. Appliance must be grounded for safe operation.

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

General Installation Guidelines

with Side-by-Side Refrigerator

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

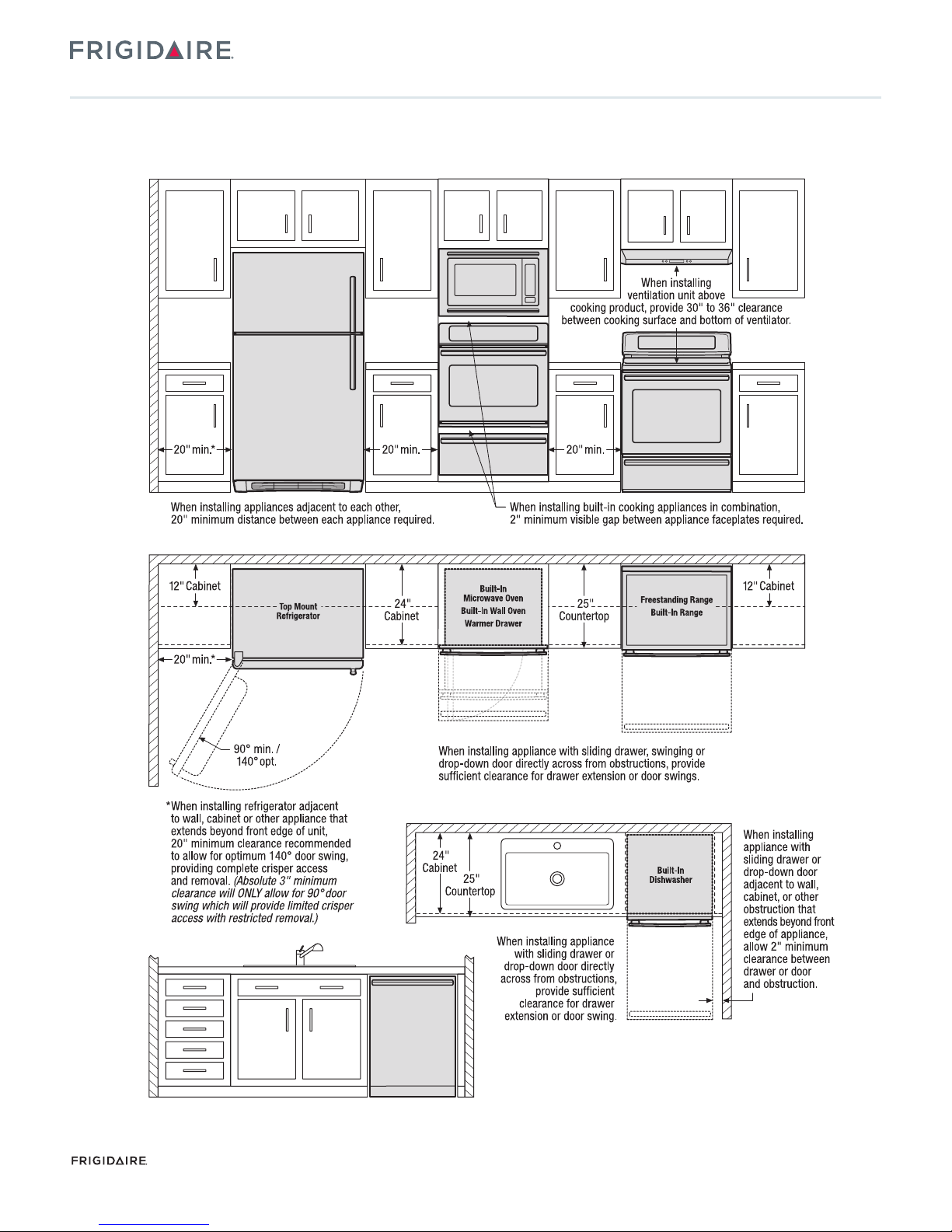

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Top

General Installation Guidelines

with Top Mount Refrigerator
