Frigidaire FEF366E Manuel utilisateur

FEF366D.eps T20G5642.eps T20V0038.eps T20T1826.eps T20D0024.eps

316417751d.eps 316417751s.eps

Product No. FEF366EBB FEF366EQB FEF366ESB

Series 30" f/s elec 30" f/s elec 30" f/s elec

Color black bisque white

Market North America North America North America

Wiring Diagram 316417751 316417751 316417751

Owner's Guide 316417003 316417003 316417003

Installation Instructions 316259206 316259206 316259206

Service Data Sheet 316417613 316417613 316417613

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995448502

05/09/20

(EN/SERVICE/BJH)

369

30-INCH FREE-

STANDING ELECTRIC

RANGE

Model No.

FEF366E

Publication No: 5995448502 FEF366E

09/05 2

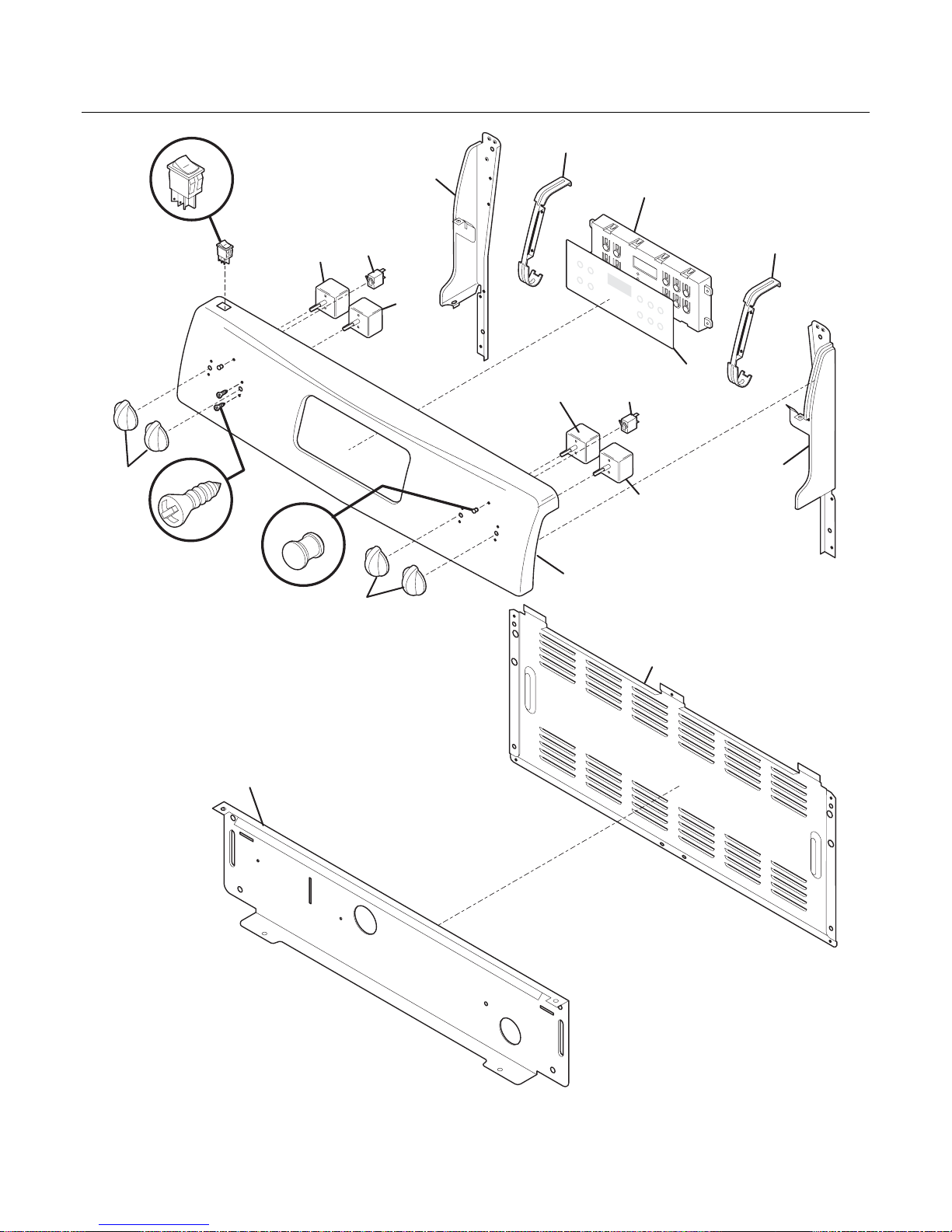

BACKGUARD

8.8.

54A

54A 14

T20G5642

15A

20A

FEF366E Publication No: 5995448502

# Functional Parts 3 09/05

* Non-Illustrated Parts

BACKGUARD

Model Index: AFEF366E (FEF366EBB)

BFEF366E (FEF366EQB)

CFEF366E (FEF366ESB)

POS. NO PART NO. DESCRIPTION

1 316416100 A B C Shield, backguard, rear wall

14 316022500 A B C Light/Lamp, indicator, 125 V

15 316411405 A - - Support, backguard, black, RH

15 316411407 - B - Support, backguard, bisque, RH

15 316411403 - - C Support, backguard, white, RH

15A 316411404 A - - Support, backguard, black, LH

15A 316411406 - B - Support, backguard, bisque, LH

15A 316411402 - - C Support, backguard, white, LH

19 316445209 A - - Panel-backguard, black

19 316445211 - B - Panel-backguard, bisque

19 316445210 - - C Panel-backguard, white

20 # 316418200 A B C Clock/Timer, electronic, ES300

20A 316419103 A - - Overlay, clock, black, ES300

20A 316419105 - B - Overlay, clock, bisque, ES300

20A 316419104 - - C Overlay, clock, white, ES300

23 316441600 A B C Bracket-clock mtg, black

24 # 316246001 A - - Switch, rocker, black

24 316246002 - B - Switch, rocker, bisque, oven light

24 316246000 - - C Switch, rocker, white, oven light

31 316223002 A - - Knob, control, black

31 316223003 - B - Knob, control, bisque

31 316223000 - - C Knob, control, white

46 316040201 A B C Lens, indicator light, red

54 # 316436000 A B C Switch, infinite, small element

54A# 316436001 A B C Switch, infinite, large element

56 316234013 A - - Shield, backguard, black, inner

56 316234014 - B - Shield, backguard, bisque, inner

56 316234012 - - C Shield, backguard, white, inner

69 5303288565 A B C Screw, truss sqdr, 8-32 x 3/16, switch mtg

* 316021105 A B C Screw, hex head cup pt, 8-18 x 0.375, black

* 316021109 A B C Screw, 8-18 x 0.5, chrome

* 316021110 A B C Screw, 8-18 x 0.5, black

Publication No: 5995448502 FEF366E

09/05 4

BODY

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

170

T20V0038

151

59B

59A

FEF366E Publication No: 5995448502

# Functional Parts 5 09/05

* Non-Illustrated Parts

BODY

Model Index: AFEF366E (FEF366EBB)

BFEF366E (FEF366EQB)

CFEF366E (FEF366ESB)

POS. NO PART NO. DESCRIPTION

1 316401800 A B C Panel, main back

3 316400118 A - - Panel, bodyside, black, RH

3 316400119 A - - Panel, bodyside, black, LH

3 316400120 - B - Panel, bodyside, bisque, RH

3 316400121 - B - Panel, bodyside, bisque, LH

3 316400116 - - C Panel, bodyside, white, RH

3 316400117 - - C Panel, bodyside, white, LH

5 316272900 A B C Screw, leveling, plastic, rear, (2)

5A 316407201 A B C Leveling Leg Assy, metal, front, (2), bracket & leg

6 316404500 A B C Rack, oven

8 316400601 A B C Panel, oven bottom

12 316445501 A B C Switch, oven light, door frame

14 316116400 A B C Receptacle, oven light

15 5303013071 A B C Bulb/Lamp, light

16 08011086 A B C Lens, oven light, glass

17 316087500 A B C Retainer, lens

18 # 316405800 A B C Latch Assembly, oven door

21 316408000 A B C Clip, bodyside

25 5304403169 A B C Shield, heat, lower

29 316407301 A B C Glide, drawer, front

37 # 316217001 A B C Probe, oven temp

42 316407700 A B C Shield, wool, lower

44 316246501 A B C Spacer, oven door

45 316234100 A B C Shield, wire, vent tube

57 316422400 A B C Cover, access

58 316403800 A B C Insulation, oven bottom

58A 316406600 A B C Insulation, oven wrapper

58B 316406500 A B C Insulation, oven back

59 316208201 A B C Tube, oven vent, lower

59A 316208304 A B C Tube, oven vent, upper

59B 316247300 A B C Catalyst, oven vent, ceramic

62 5303935238 A B C Terminal Block Kit, w/ground plate

62* 316085600 A B C Insulator

62* 316205500 A B C Nut, hex flange, 3/8 10-32

63 316278800 A B C Plate, grounding strap

66 # 316203200 A B C Element, broil

67 316075103 A B C Element, bake

68 316404000 A B C Support, element, broil

71 316422300 A B C Shield, rear wall

86 316441300 A B C Receptacle, hinge

86* 316418901 A B C Screw, trilobe, 10-32 x 5/16"

87 316081200 A B C Bracket, cable mtg

88 316203500 A B C Rod, auto latch

89 # 316415400 A B C Motor, latch/lock

151 316404600 A B C Shield, bodyside

170 5303935180 A B C Anti-tip Kit, w/bracket, screw

170* 316107200 A B C Bracket, anti-tip

170* 316112500 A B C Template, anti-tip

Publication No: 5995448502 FEF366E

09/05 6

BODY

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

170

T20V0038

151

59B

59A

FEF366E Publication No: 5995448502

# Functional Parts 7 09/05

* Non-Illustrated Parts

BODY

Model Index: AFEF366E (FEF366EBB)

BFEF366E (FEF366EQB)

CFEF366E (FEF366ESB)

POS. NO PART NO. DESCRIPTION

170* 316116000 A B C Screw, concrete, 1.75", anti-tip brkt

* # 316416422 A B C Harness, wiring, main

* 3203550 A B C Plug, button, oven bottom

* 5303305345 A - - Paint, touch-up, black

* 5304414035 - B - Paint, touch-up, bisque

* 5303321319 - - C Paint, touch-up, white

* 316021105 A B C Screw, hex head cup pt, 8-18 x 0.375, black

* 316021110 A B C Screw, 8-18 x 0.5, black

* 316089500 A B C Screw, 10-16 x .486

* 5303285179 A B C Screw, wafer head, 8-32T x 0.500, black

* 5308014215 A B C Screw, 6-20 x 0.312

Publication No: 5995448502 FEF366E

09/05 8

TOP/DRAWER

26B

26A

15A

T20T 2618

FEF366E Publication No: 5995448502

# Functional Parts 9 09/05

* Non-Illustrated Parts

TOP/DRAWER

Model Index: AFEF366E (FEF366EBB)

BFEF366E (FEF366EQB)

CFEF366E (FEF366ESB)

POS. NO PART NO. DESCRIPTION

1 316408701 A B C Drawer, utility

2 316403300 A B C Liner, drawer

4 316403502 A - - Panel, drawer front, black

4 316403503 - B - Panel, drawer front, bisque

4 316403501 - - C Panel, drawer front, white

7 316407400 A B C Glide, drawer, rear

15 # 316010205 A B C Element, surface, 6", 1200 W, radiant

15A# 316224200 A B C Element, surface, 9", 2500W, radiant

16 316421239 A - - Maintop, frame/glass, black

16 316421241 - B - Maintop, frame/glass, bisque

16 316421240 - - C Maintop, frame/glass, white

18 316436600 A B C Hinge Bracket, maintop, (2)

26 316427600 A B C Channel, element support, (2)

26A 316099202 A B C Bracket, chassis support, rear

26B 316214200 A B C Bracket, chassis support, front

52 316278300 A B C Clip, element mtg

* # 316416852 A B C Harness, wiring, surface

* 316264000 A B C Cleaner, cooktop

* 316021105 A B C Screw, hex head cup pt, 8-18 x 0.375, black

* 316021109 A B C Screw, 8-18 x 0.5, chrome

* 316021110 A B C Screw, 8-18 x 0.5, black

* 5308014215 A B C Screw, 6-20 x 0.312

Publication No: 5995448502 FEF366E

09/05 10

DOOR

60B

T20D0024
