Frigidaire GLES389F Manuel

GLES389F.tif LA20BG0052.eps BPLES389ECB.eps LA20CT0093.eps

DGLCS389FSA.eps 318271934-1.eps 318271934-2.eps

Product No. GLES389FBA GLES389FQA GLES389FSA

37956366H6361 37956364H6341 37956367H6311

Series 30" slide-in 30" slide-in 30" slide-in

Color black bisque white

Market North America North America North America

Wiring Diagram 318271934 318271934 318271934

Owner's Guide 318203810 318203810 318203810

Installation Instructions 318201611 318201611 318201611

Timer Guide 318200194 318200194 318200194

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995470928

06/07/27

(EN/SERVICE/ECL)

377

30-INCH SLIDE-IN

ELECTRIC RANGE

Model No.

GLES389F

Publication No: 5995470928 GLES389F

07/06 2

BACKGUARD

GLES389F Publication No: 5995470928

# Functional Parts 3 07/06

* Non-Illustrated Parts

BACKGUARD

Model Index: AGLES389F (GLES389FSA)

BGLES389F (GLES389FBA)

CGLES389F (GLES389FQA)

POS. NO PART NO. DESCRIPTION

16 318299100 A - - Console, assy., white

16 318299102 - B - Console, assy., black

16 318299101 - - C Console, assy., bisque

16* 5304447071 A B C Clip, console, (2)

17 318306900 A B C Bracket, bushing, (2)

19 318313800 A - - Control Panel Assembly, white, w/touch pad

19 318313802 - B - Control Panel Assembly, black, w/touch pad

19 318313801 - - C Control Panel Assembly, bisque, w/touch pad

19A 318224405 A B C Panel, control mtg.

20 # 316418735 A B C Clock/Timer, electronic, ES510

20* 5304453707 A B C Screw, control mtg.

35 318233721 A - - Retainer, control panel, white

35 318233720 - B - Retainer, control panel, black

35 318233722 - - C Retainer, control panel, bisque

36 316223022 A - - Knob, control, white

36 316223021 - B - Knob, control, black

36 316223023 - - C Knob, control, bisque

42 318298001 A B C Trim, vent, black, upper

54A# 316441801 A B C Control, electronic, dual element, (3), w/potentiometer

54B# 316441804 A B C Control, electronic, left front, dual element, w/potentiometer

55 316247700 A B C Nut, probe mtg

55A 316247800 A B C Washer, lock, control mtg

69 5303323134 A B C Screw, 8-32 x 0.188

99 316435702 A B C Board, power supply

99A 318223900 A B C Gasket, dark grey

101 318233400 A B C Bushing, retainer

* # 318228820 A B C Harness, wiring, main, backguard

* # 318224813 A B C Harness, wiring, timer

* 08016432 A B C Screw, truss head, 8-18 x 0.375

* 5303300265 A B C Screw, 8-18 X 1/2, (2)

Publication No: 5995470928 GLES389F

07/06 4

BODY

GLES389F Publication No: 5995470928

# Functional Parts 5 07/06

* Non-Illustrated Parts

BODY

Model Index: AGLES389F (GLES389FSA)

BGLES389F (GLES389FBA)

CGLES389F (GLES389FQA)

POS. NO PART NO. DESCRIPTION

1 318259204 A B C Back, main

1A 318225110 A B C Panel, main back, upper

2 318258902 A B C Shield, insulation, upper

3 318225210 A B C Panel, bodyside, upper RH

3A 318225211 A B C Panel, bodyside, upper LH

5 318175503 A B C Screw, leveling

6 318345208 A B C Rack, oven

6A 318219500 A B C Rack, broiler pan

8 318262001 A B C Cover, element

8A 318318600 A B C Bracket, element, hidden bake

9 5303317977 A B C Pan, broiler

10 5303317976 A B C Insert, broiler pan

12 # 318089917 A B C Switch, light

14 318224000 A B C Receptacle, oven light

15 5303013071 A B C Bulb/Lamp, light

16 08011086 A B C Lens, oven light, glass

17 5304400195 A B C Retainer, light cover

29 318147411 A B C Bumper, (2)

37 # 316217002 A B C Probe, oven temp

41 5303310526 A B C Cover, hinge cutout

54 318222400 A B C Housing, oven light

58A 318285055 A B C Insulation, oven wrapper

58B 318285056 A B C Insulation, oven back

59 318072560 A B C Duct, oven vent

59A 318261600 A B C Bracket, vent tube

62 5303935061 A B C Terminal Block Kit

62* 5303323139 A B C Screw, 10-24 x 0.906

62* 5303323144 A B C Nut, 10-32

63 318264200 A B C Plate, grounding strap

66 # 318255600 A B C Element, broil, 2750W

67 318254901 A B C Element, bake, 3400W, 8 pass

68 5304403015 A B C Support, hanger, (2), broil element

70 318259100 A B C Shield, insulation, sides, (2)

71 318260007 A B C Panel, rear box

76 318056217 A B C Front, oven

80 5303320846 A B C Plate, oven mtg

81 318192400 A B C Spring, oven

82 318258708 A B C Shield, insulation, lower

83 318261400 A B C Liner, oven assy

86 5303310524 A B C Receptacle, hinge

87 318260608 A B C Bracket, cable mtg.

87A 318111804 A B C Plate, cord set mtg

89 # 318261209 A B C Motor, latch assy

90 318296902 A - - Panel, filler, white, RH

90 318296904 - B - Panel, filler, black, RH

90 318296906 - - C Panel, filler, bisque, RH

90A 318296903 A - - Panel, filler, white, LH

90A 318296905 - B - Panel, filler, black, LH

Publication No: 5995470928 GLES389F

07/06 6

BODY

GLES389F Publication No: 5995470928

# Functional Parts 7 07/06

* Non-Illustrated Parts

BODY

Model Index: AGLES389F (GLES389FSA)

BGLES389F (GLES389FBA)

CGLES389F (GLES389FQA)

POS. NO PART NO. DESCRIPTION

90A 318296907 - - C Panel, filler, bisque, LH

107 318219401 A B C Cover, fan

108# 318073018 A B C Motor, blower

* 318249401 A B C Tube, protector

108A 318251300 A B C Bracket, fan support

109 316136400 A B C Blade, fan

111 316136600 A B C Nut, fan retainer

112# 318112703 A B C Relay

119# 318005212 A B C Switch, thermal cutout

125# 316415800 A B C Motor, fan

127 318317100 A B C Adapter Assembly, vent tube, w/converter

131 318272900 A B C Box, vent

132 318003000 A B C Plate, shield

142 318123910 A B C Deflector

161# 318255503 A B C Element, convection, 350 W

163 318014110 A B C Spacer, (6)

166 318298410 A B C Bracket, base support, (2)

166A 318298403 A B C Bracket, base support, lower, (2)

170 318335500 A B C Anti-tip & accessories

185 318165800 A B C Spacer

200 318298201 A B C Frame, drawer, black, front

201 318298210 A B C Frame, drawer

219# 318003614 A B C Thermostat, safety

219A 318003613 A B C Thermostat, safety, 1.375" mtg, 105/120

263 316136500 A B C Washer, flat

* # 318224945 A B C Harness, wiring, main

* 318235300 A B C Connector assy., w/3 lugs, & instructions

* 3051050 A B C Screw, shoulder

* 3201861 A B C Screw, 6 x 0.375, (4)

* 08016432 A B C Screw, truss head, 8-18 x 0.375

* 5303211311 A B C Screw, 8 x 0.500

* 5303307980 A B C Screw, 8-32 x 0.437, (4)

* 5303323129 A B C Screw, 8 X 0.750

* 5304415832 A B C Screw, 8-18 x 0.406

* 5304436875 A B C Screw, 8-18 X 1/2, black

Publication No: 5995470928 GLES389F

07/06 8

TOP/DRAWER

GLES389F Publication No: 5995470928

# Functional Parts 9 07/06

* Non-Illustrated Parts

TOP/DRAWER

Model Index: AGLES389F (GLES389FSA)

BGLES389F (GLES389FBA)

CGLES389F (GLES389FQA)

POS. NO PART NO. DESCRIPTION

1 318304401 A B C Drawer, body assembly

1A 318300000 A B C Panel, warmer drawer, side, (2)

1C 318300300 A B C Panel, warmer drawer, rear

2 318303901 A B C Panel, drawer, black, inner

4 318299901 A - - Panel, drawer, white, front

4 318299903 - B - Panel, drawer, black, front

4 318299902 - - C Panel, drawer, bisque, front

13 318259507 A B C Glide, warmer, inner RH

13A 318259506 A B C Glide, warmer, inner LH

15B# 318198925 A B C Element, surface, 6/9, 1200/2500W, dual radiant

15C# 318198930 A B C Element, surface, dual, 750/1800W, (2)

16 318223638 A - - Main Top, glass assy., white

16 318223640 - B - Main Top, glass assy., black

16 318223639 - - C Main Top, glass assy., bisque

29 318147430 A B C Bumper, (2)

39 5304457012 A - - Handle, door, white, w/spacer

39 5304457011 - B - Handle, door, black, w/spacer

39 5304457013 - - C Handle, door, bisque, w/spacer

46 318225410 A B C Box, burner

51 # 318044820 A - C Light, indicator, red

51 # 318044822 - B - Light, indicator, clear

52B 318122010 A B C Spring, element mtg, 1000W/2500W

52C 318122008 A B C Spring, element mtg

60 316001002 A B C Screw, wafer head, 10-24 x 1.81, (2), handle mtg.

81 # 318255300 A B C Element, warmer drawer

84 # 318005108 A B C Thermostat

85 318257600 A B C Rack, warmer drawer

86 316095800 A B C Clip, hold down, warmer element

87 318300100 A B C Panel, warmer drawer, lower

95 318303800 A B C Shield, wire

124 316105501 A B C Glide, outer/RH & LH, (2)

141# 318005211 A B C Switch, thermal cutout

165 318227503 A B C Plate, mounting

* # 318228913 A B C Harness, wiring, cooktop

* 318199749 A B C Wiring Harness, drawer

* 318163601 A B C Cleaner-cooktop

* 5303325171 A B C Washer, plastic

* 08016432 A B C Screw, truss head, 8-18 x 0.375

* 5303211311 A B C Screw, 8 x 0.500

* 5303300265 A B C Screw, 8-18 X 1/2, (2)

Publication No: 5995470928 GLES389F

07/06 10

DOOR

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Frigidaire Gamme

Frigidaire

Frigidaire FGDS3065KF - Gallery Series - 30in Slide-in Dual-Fuel Range 4 Sealed... Manuel utilisateur

Frigidaire

Frigidaire 316417119 Manuel utilisateur

Frigidaire

Frigidaire FEF322BADJ Manuel utilisateur

Frigidaire

Frigidaire FED300A Manuel utilisateur

Frigidaire

Frigidaire GLES388CSB Guide de l'utilisateur

Frigidaire

Frigidaire FEF365A Manuel utilisateur

Frigidaire

Frigidaire FFGF3011LB Instructions d'installation

Frigidaire

Frigidaire 316000638 Manuel utilisateur

Frigidaire

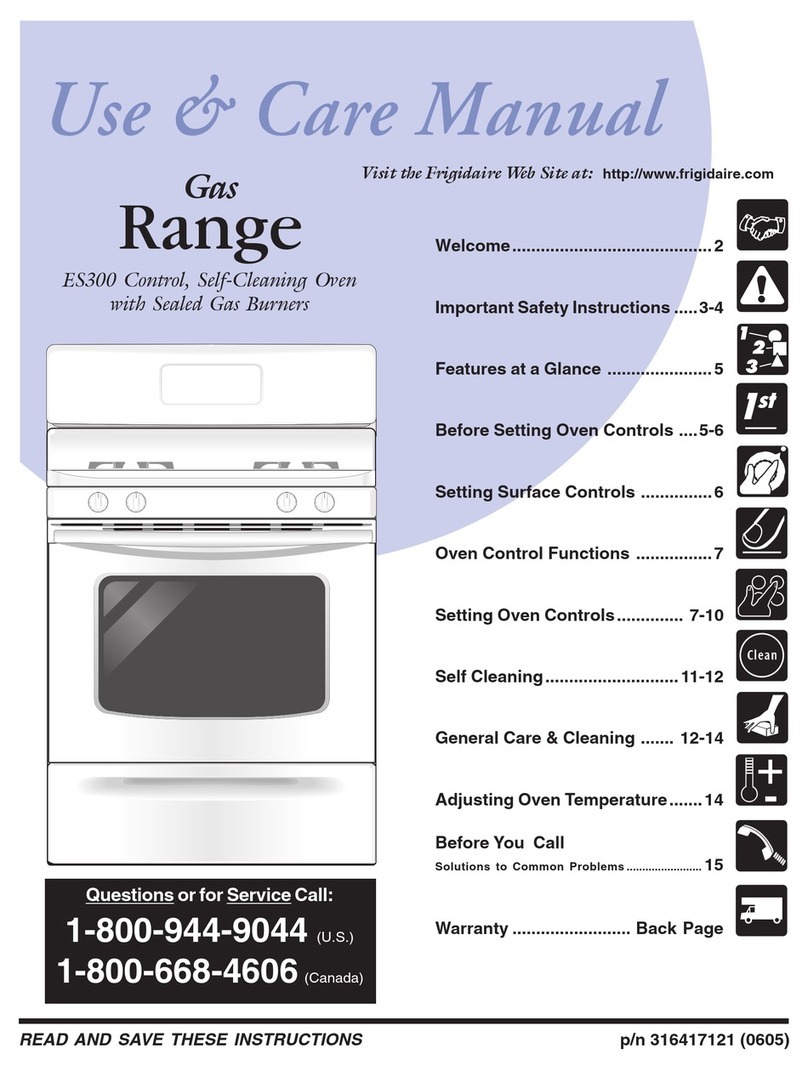

Frigidaire FGF366EB Manuel utilisateur
