Frigidaire FEB30T7D Manuel utilisateur

FEB30T7DC.eps CFEB30T7DCA.eps BUFEB30T6DSA.eps BLFEB30T7DCA.eps

DFEB30T7DCA.eps 318046116.eps

UPPEROVEN LOWER OVEN

Low er OvenUpper Oven

Clock

Keep

warm

Controls

Clear

/Off

Bake

tim e

Start

tim e

Oven

ligh t

Timer

On/Off

STAR T

Broil

Bake Speed

clean

Speed

bake

Clean

Speed Bake O vens

Keep

warm

Controls

Clear

/Off

Bake

tim e

Start

tim e

Oven

ligh t

STAR T

Broil

Bake Speed

clean

Speed

bake

Clean

Product No. FEB30T7DCA

37054381F40S1

Series 30" double

Color stainless

Market North America

Wiring Diagram 318046116

Owner's Guide 318200924

Installation Instructions 318201514

Service Data Sheet 318047305

Timer Guide 318200132

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995420501

04/11/01

(EN/SERVICE/ECL)

377

DOUBLE ELECTRIC

WALL OVEN

Model No.

FEB30T7D

Publication No: 5995420501 FEB30T7DCA

11/04 2

CONTROL PANEL

FEB30T7DCA Publication No: 5995420501

# Functional Parts 3 11/04

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

2A 318257300 Shield, oven top

2B 318260100 Cover, box

19 318271513 Control Panel Assembly, steel/glass, stainless/black, w/touch pad

20 # 316429709 Control, electronic, 5800W2, dual oven

* 316021107 Screw, hex head, 8-32, silver

23 318262900 Bracket, control mtg., (2)

97 316429800 Board, relay, dual oven

* 318231704 Harness, wiring, control-relay

* 5303211311 Screw, 8 x 0.500

Publication No: 5995420501 FEB30T7DCA

11/04 4

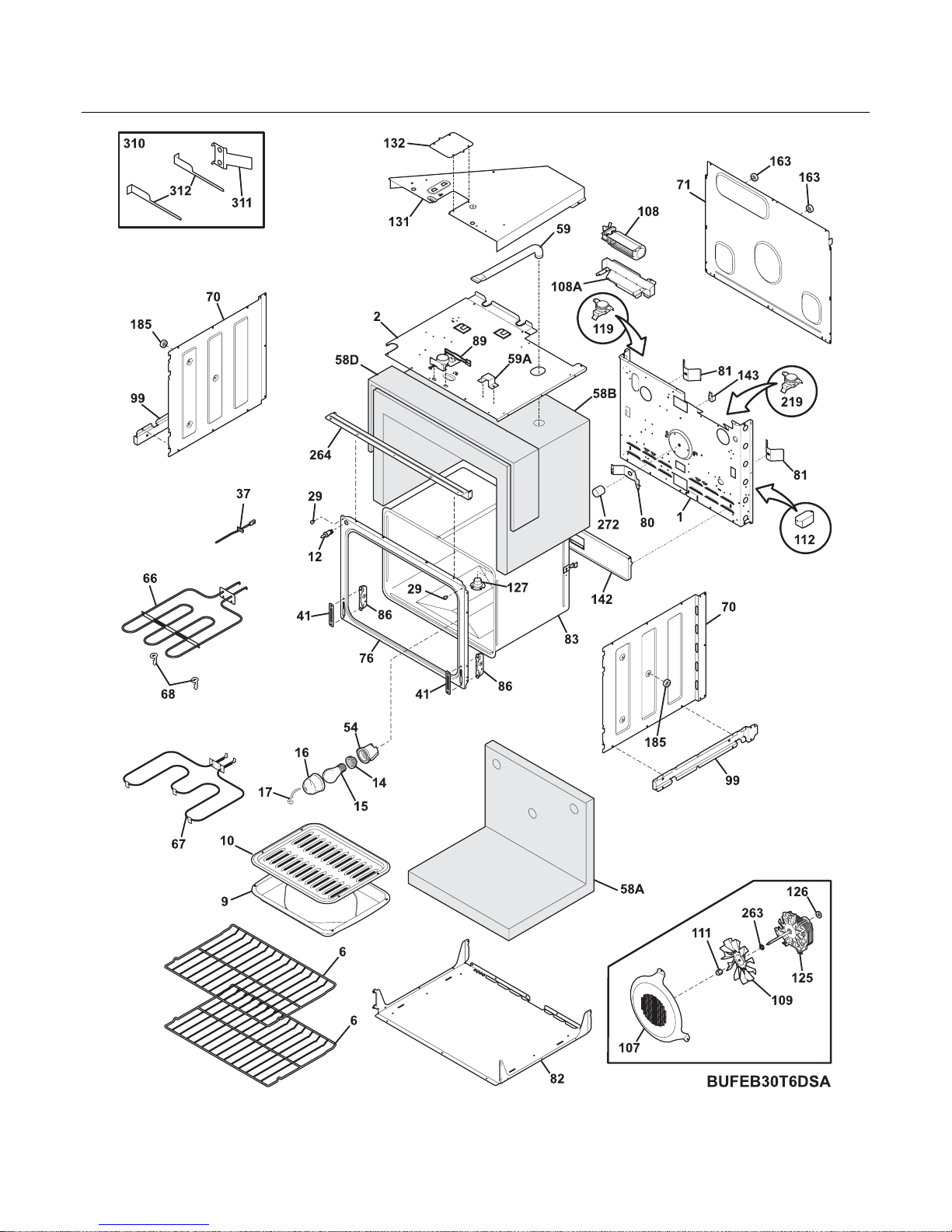

UPPER OVEN

FEB30T7DCA Publication No: 5995420501

# Functional Parts 5 11/04

* Non-Illustrated Parts

UPPER OVEN

POS. NO PART NO. DESCRIPTION

1 318259200 Back, main

2 318258900 Shield, insulation, upper

6 318262502 Rack, oven

9 5303317977 Pan, broiler

10 5303317976 Insert, broiler pan

12 # 318089917 Switch, light

* 3015722 Clip, wire retainer

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, oven light

16 3201911 Cover, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, door, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

* 5303325980 Screw, 10-32 x 0.437

54 318222400 Housing, oven light

58A 318133791 Insulation, oven wrapper, back/bottom

58B 318133790 Insulation, oven wrapper, top/sides

58D 318133793 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

66 # 318255600 Element, broil, 2750W

67 # 318255401 Element, bake, 3400W

68 5304403015 Support, element hanger

70 318259100 Shield, insulation, sides, (2)

71 318260004 Panel, rear box

76 318056217 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258700 Shield, insulation, lower

83 318261404 Liner, oven assy

86 5303310524 Receptacle, hinge

89# 318261200 Motor, latch assy

* 318231705 Harness, latch

99 318252800 Support, side

* 5303300265 Screw, 8-18 x 0.500, chrome, (3)

107 318219401 Cover, fan

108# 318073018 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

112# 318112701 Relay

119# 318004900 Switch, thermal

125# 316415800 Motor, fan

126 318142100 Washer, motor, RH, convection

127 5303310542 Adapter, vent tube, with converter

131 318272900 Box, vent

132 318003000 Plate, shield

142 318123910 Deflector

Publication No: 5995420501 FEB30T7DCA

11/04 6

UPPER OVEN

FEB30T7DCA Publication No: 5995420501

# Functional Parts 7 11/04

* Non-Illustrated Parts

UPPER OVEN

POS. NO PART NO. DESCRIPTION

143 318172904 Support, wire/glass

163 318014111 Spacer

185 318014700 Spacer, oven shield, (4)

219# 318003606 Thermostat, safety

263 316136500 Washer, fan motor

264 318257701 Trim, oven, black, front

272 318249401 Tube, protector

310 5304440067 Cabinet Mounting Kit

311 318246010 Bracket, cabinet mtg, (2)

311* 5304438005 Screw, 6 x 1, black

312 318246702 Tool, cabinet bracket, RH

312 318246703 Tool, cabinet bracket, LH

* 3201861 Screw, 6 x 0.375, (4)

* 5303211311 Screw, 8 x 0.500

* 5303323277 Screw, 8-18 X 13/32

* 5304415832 Screw, 8-18 x 0.406

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995420501 FEB30T7DCA

11/04 8

LOWER OVEN

FEB30T7DCA Publication No: 5995420501

# Functional Parts 9 11/04

* Non-Illustrated Parts

LOWER OVEN

POS. NO PART NO. DESCRIPTION

1 318259200 Back, main

2 318258900 Shield, insulation, upper

6 318262502 Rack, oven

12 # 318089917 Switch, light

* 3015722 Clip, wire retainer

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, oven light

16 3201911 Cover, oven light, glass

17 5304400195 Retainer, light cover

29 318147411 Bumper, door, (2)

37 # 316217002 Probe, oven temp

41 5303310526 Cover, hinge cutout

* 5303325980 Screw, 10-32 x 0.437

54 318222400 Housing, oven light

56 318259914 Trim, side filler, black, RH

56A 318259915 Trim, side filler, black, LH

58A 318133791 Insulation, oven wrapper, back/bottom

58B 318133790 Insulation, oven wrapper, top/sides

58D 318133793 Insulation, 1/2" thick, 43 x 9.5

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

62 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255600 Element, broil, 2750W

67 # 318255401 Element, bake, 3400W

68 5304403015 Support, element hanger

70 318259100 Shield, insulation, sides, (2)

71 318260004 Panel, rear box

76 318056217 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258700 Shield, insulation, lower

83 318261404 Liner, oven assy

86 5303310524 Receptacle, hinge

87 318260602 Bracket, cable mtg.

89# 318261201 Motor, latch assy

* 318231705 Harness, latch

90 318259800 Trim, base, stainless

99 318256200 Bracket, side, bottom, (2)

107 318219401 Cover, fan

108# 318073018 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

112# 318112701 Relay

119# 318004900 Switch, thermal

125# 316415800 Motor, fan

126 318142100 Washer, motor, RH, convection

Publication No: 5995420501 FEB30T7DCA

11/04 10

LOWER OVEN
