Frigidaire FEB789WC Manuel utilisateur

PRODUCT NO. FACTORY NO. COLOR MARKET

FEB789WCCG 38254791G50S7 STAINLESS U.S.A.

ELECTRIC WALL OVEN

Model No.

FEB789WC

FACTORY PARTS CATALOG

ELECTRIC WALL OVEN

WIRING DIAGRAM # - 318046208

OWNER’S GUIDE # - 318200914

INSTALLATION INSTR. # - 318064320

ELECTRONIC TIMER INSTR. # - 318130806

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200

Publication No.

5995319075

990305

-EN/SERVICE

377

Publication No. FEB789WC

5995319075

03/99 2

CONTROL PANEL

19A 19B

LA9923G10

FEB789WC Publication No.

5995319075

# = Functional Part 303/99

* = Non-Illustrated Part

CONTROL PANEL

A=FEB789WC (FEB789WCCG)

POS. NO PART NO DESCRIPTION

19 318030205 APanel-control black

19A 318041800 APanel-control stainless (Included on 19B)

19B 318041700 APanel-control & name plate Assy.

20 # 318010700 AClock/Timer

21 318028300 ATrim-top

23 318111602 ABracket timer

42 318027310 ATrim-vent

51 316082300 AName plate black (Included on 19B)

78 318037200 ACover, oven vent stainless

79 318029602 ATrim-top stainless

80 318111500 ARelay (9 Volts)

96 316037700 ASeal, vent cover

97 316037800 ATape, vent cover

99 5303300265 AScrew, 8-18 X ½ chrome

*5303307406 AScrew, 6-32 X 3/8, black

*3201861 AScrew, 6 X 3/8

*218490900 ACleaner stainless steel

*5303211311 AScrew, #8 X ½

*5303302745 AScrew, 10-16 X 1 1/8

*5303308450 AScrew, 8 X 3/8

*5303311528 AScrew, 6-20 X 3/8

*08002868 AScrew, 10-24 X ½

FEB789WC Publication No.

5995319075

03/99 4

CAVITY / ELEMENTS

124

59 264

103

222

LA9923V16

66 68

58B

58A

187

108

119

127

37 12

129

128

185

98A

265A

185

56 265

15 16

150A

150

107

131

132

132A

188

FEB789WC Publication No.

5995319075

# = Functional Part 503/99

* = Non-Illustrated Part

CAVITY / ELEMENTS

A=FEB789WC (FEB789WCCG)

POS. NO PART NO DESCRIPTION

1318066700 ABack-main

2 318102000 AShield oven top

2A 318071500 AShield oven top

6 318025300 ARack-oven

6A 5303311206 ARack-broiler pan

6B 318025200 AShelf-oven

95303317977 APan-broiler

10 5303317976 AInsert broiler pan

12# 318089910 ASwitch-light

14 5308011085 ASocket-light/lamp

15 3201908 ALamp-oven light

16 3201911 AGlass-oven light lens

17 5304400195 ARetainer-lens

28 3015722 AClip-wire

37# 316111203 AProbe-oven temp

41 5303310526 ACover-hinge cutout

54 5303310514 AHousing-oven light

56 318145502 ATrim-bodyside black

58A 5303311218 AInsulation wrapper

58B 5303311219 AInsulation oven back

59 318072511 ATube-oven vent

62# 5303310518 ATerminal block

66# 5303322963 AElement-broil

67# 5303299718 AElement-bake

68 5304403015 ASupport-element

70 5303300142 AShield-insulation

71 318071100 AShield-rear wall

76 318056104 AFront-oven

80 5303301261 ASpring-oven

81 5303320846 APlate-oven mtg

82 318071800 AShield-oven bottom

83 318089519 ALiner-oven assy

86 5303310524 ASupport-door hinge

88 5303311222 ARod-latch

89# 5303317196 AMotor-latch/lock

89* 318120702 ASwitch-latch

98 318029800 ATrim side inner RH

98A 318029801 ATrim side inner LH

99 318055420 ASupport-adjustable

103 5303316773 ATrim-base black

103* 318028800 ATrim-base (Models under counter)

107 5303318711 ACover fan

108 318073001 AMotor-fan

109 5303311203 AFan blade

111 5303311205 ANut fan retainer

119# 318004900 ASwitch-thermal

124 318076902 ABox-vent

125# 5303311202 AMotor-convection

127 5303310542 AAdapter assy

128 5303311163 ABushing

129 5303311164 ASpring

131 318102203 ACover-control housing

132 318101700 AEnd-cover control

132A 318101701 AEnd-cover control

150 318072207 ABracket-support

150A 318072206 ABracket-support

185 318014700 ASpacer-oven shield

187 318013501 ATube (rod latch)

188 08007817 ASpacer

222 318080000 APlate, plug hole convection element

263 5303320346 AWasher

264 318143811 AHidden wires shield

265 318029500 ATrim-bodyside stainless

265A 318029501 ATrim-bodyside stainless

*5303302745 AScrew, 10-16 X 1-1/8, black

*318078511 ABox & wires assy

*5304407813 AWasher

*3131048 AScrew, 8 x 5/8

*3201861 AScrew, 6 x 3/8

*08002868 AScrew, 10-24 x ½

*5303308449 AFastener

*5303320422 AScrew, 6-20 X 5/16

*5303211311 AScrew #8 X ½

*5303324184 AScrew, 8 X 5/16

Publication No. FEB789WC

5995319075

03/99 6

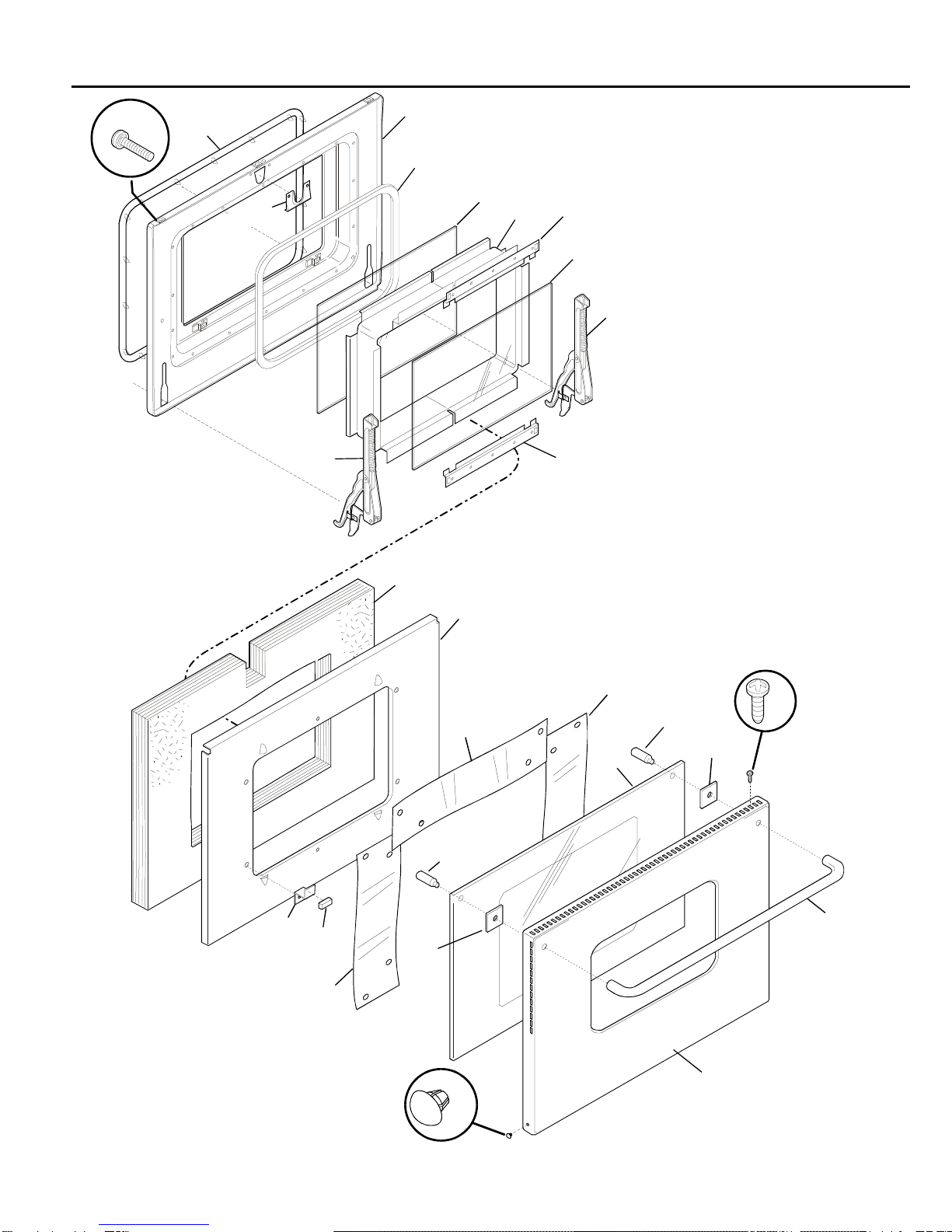

DOOR

LA9923D11

FEB789WC Publication No.

5995319075

# = Functional Part 703/99

* = Non-Illustrated Part

DOOR

A=FEB789WC (FEB789WCCG)

POS. NO PART NO DESCRIPTION

4318041200 AGlass-oven door, black

6318073503 AShield-wool

75303311214 AInsulation, oven door

9318048503 ALiner-oven door

10 5303316953 AScrew-handle, door 10-32 x 2-1/4

12 318053100 ASeal-oven door

13 318009200 APanel-oven door stainless

15 318091101 ABracket-glass

16 318042300 AGlass-oven door, heat

17 318042000 ASpacer-glass

18 318053000 ASeal-rope

20 318086020 ASpacer-handle

22 5303310511 ARetainer-glass

23 5303311259 AHinge-oven door, .

29 318014400 ASpacer-door

31 318065100 ALatch-door

32 318056700 ADeflector (3)

39 318039800 AHandle-door, stainless

54 5303300265 AScrew,8-18 x ½

59 3202113 AButton-plug

61 5303316982 AFoam spacer

*5303300414 ASpacer,cork & rubber

*5303323277 AScrew, 8-18 x 13/32

*5303308450 AScrew, 8 x 3/8

Publication No. FEB789WC

5995319075

01/99 8

WIRING DIAGRAM
