1 Introduction

The MPC8309KIT is a two-board system: one is a processor

board called SOM that features the PowerQUICC processor,

MPC8309, and memory interfaces and the other a carrier

card that consists of external world interfaces terminated on

connector/header.

This is a low-cost, high-performance system solution that

consists of a printed circuit board (PCB) assembly plus a

software board support package (BSP) distributed in a CD

image. This BSP enables the fastest possible time-to-market

for development or integration of applications including

low-end base station, branch access gateway, test and

measurement equipment, DSLAM, and other infrastructure

equipments.

This document describes the hardware features of the board

including specifications, block diagram, connectors,

interfaces, and hardware straps. It also describes the board

settings and physical connections needed to boot the

MPC8309KIT. Finally, it talks about the software shipped

with this platform.

Document Number: MPC8309-KITUG

Rev. 0, 06/2011

Contents

1. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

2. Required Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

3. MPC8309KIT Hardware . . . . . . . . . . . . . . . . . . . . . . . 2

4. Board-Level Functions . . . . . . . . . . . . . . . . . . . . . . . . 7

5. SOM Board Connectors . . . . . . . . . . . . . . . . . . . . . . 27

6. Carrier Board Connectors . . . . . . . . . . . . . . . . . . . . . 30

7. MPC8309KIT Board Configuration . . . . . . . . . . . . . 35

8. Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

9. Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

10. MPC8309KIT Software . . . . . . . . . . . . . . . . . . . . . . 49

11. Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

PowerQUICC MPC8309KIT

User’s Guide

PowerQUICC MPC8309KIT User’s Guide, Rev. 0

2Freescale Semiconductor

Required Reading

When you finish reading this document, you should:

• Be familiar with the board layout

• Understand the default board configuration and your board configuration option

• Know how to get started and boot the board

• Know about the software and further documentation that supports the board

2 Required Reading

Use this manual in conjunction with following documents:

•MPC8309 PowerQUICC II Pro Integrated Communications Processor Family Reference Manual

(MPC8309RM)

•MPC8309 PowerQUICC II Pro Processor Hardware Specifications (MPC8309EC)

•Hardware and Layout Design Considerations for DDR Memory Interfaces (AN2582)

NOTE

This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment

in a residential area is likely to cause harmful interference in which case the

user is required to correct the interference at his own expense.

3 MPC8309KIT Hardware

This section covers the features, block diagram, specifications, and mechanical data of MPC8309KIT

(SOM + Carrier) board.

3.1 Features

• CPU: Freescale MPC8309 e300 core running at 333/266 MHz; CPU Coherent system bus (CSB)

running at 133 MHz

• Memory subsystem:

— 256 MByte unbuffered DDR2 SDRAM discrete devices

— 8 MByte NOR Flash single chip memory

— 512 MByte NAND Flash memory

— 256 Kbit serial EEPROM

•Interfaces:

— 10/100 Base-T Ethernet ports:

PowerQUICC MPC8309KIT User’s Guide, Rev. 0

Freescale Semiconductor 3

MPC8309KIT Hardware

– FEC1 MII/RMII: one 10/100 Base-T RJ-45 interface using Micrel™ KSZ8001 10/100

Base-T PHY on SOM card

– FEC2 MII/RMII: one 10/100 Base-T interfaced with 5-Port Switch (PSB6972) on carrier

card

– FEC3 MII/RMII: one 10/100 Base-T RJ-45 interface using Micrel™ KSZ8001 10/100

Base-T PHY on carrier card

— USB 2.0 Port:

– USB ULPI signals are interfaced with USB3300 PHY device on carrier card.

— eSDHC Port:

– One microSD Card Connector

— Dual UART Ports:

– UART1 supports up to 115200bps (RS232) terminated on 3-Pin Header on SOM and DB9

connector on carrier card

– UART2 port converted in to RS-485 and terminated on a DB9 connector on carrier card

—I

–I

2C1: Connected to Microchip™ 24LC256 Serial EEPROM

–I

2C2: Connected to I/O expander PCA9534 on carrier card

— Flex CAN module

– CAN: Interfaced with one CAN transceiver (MCZ33902F) on carrier card

• SOM Board Connectors:

— 3 pin power jack connector

— 3 pin UART header for console

— JTAG/COP for debugging

— 120 pin and 140 pin board-to-board connector

— 6 pin BDM header for KA2 programming

— RJ45 for Ethernet connectivity

— MicroSD card connector

— 6 pin header for boot device (NAND/NOR) selection

• Carrier board connectors:

— Mini PCIe(x1) card edge connector (not used in MPC8309KIT)

— PCI card edge connector

— Mini PCI card edge connector

— Dual stack DB9 female connector for RS-232 console and RS-485

— 2x2 RJ45 connector for Ethernet switch

— Unshielded RJ45 connector for T1/E1

— MiniAB USB connector

— Microcontroller UART header

— Microcontroller BDM header.

PowerQUICC MPC8309KIT User’s Guide, Rev. 0

4Freescale Semiconductor

MPC8309KIT Hardware

— Shielded RJ45 connector for FEC-3

— 4-Pin CAN header

— RJ-11 connector for SLIC/PSTN phone interface

— 60 pin local bus connector on carrier for future expansion

— 120 pin and 140 pin board-to-board connector

— 16 Pin SPI and IEEE 1588 Header on carrier for future expansion and measurement

— 16 pin GPIO header

• Form Factor:

— SOM: 90 mm x 70 mm

— Carrier: 170 mm x 170 mm

• 6-Layer PCB (4-layer signals, 2-layer power and ground) routing

• Certification

— FCC Class-A

—CE

• Lead free (RoHS)

PowerQUICC MPC8309KIT User’s Guide, Rev. 0

Freescale Semiconductor 5

MPC8309KIT Hardware

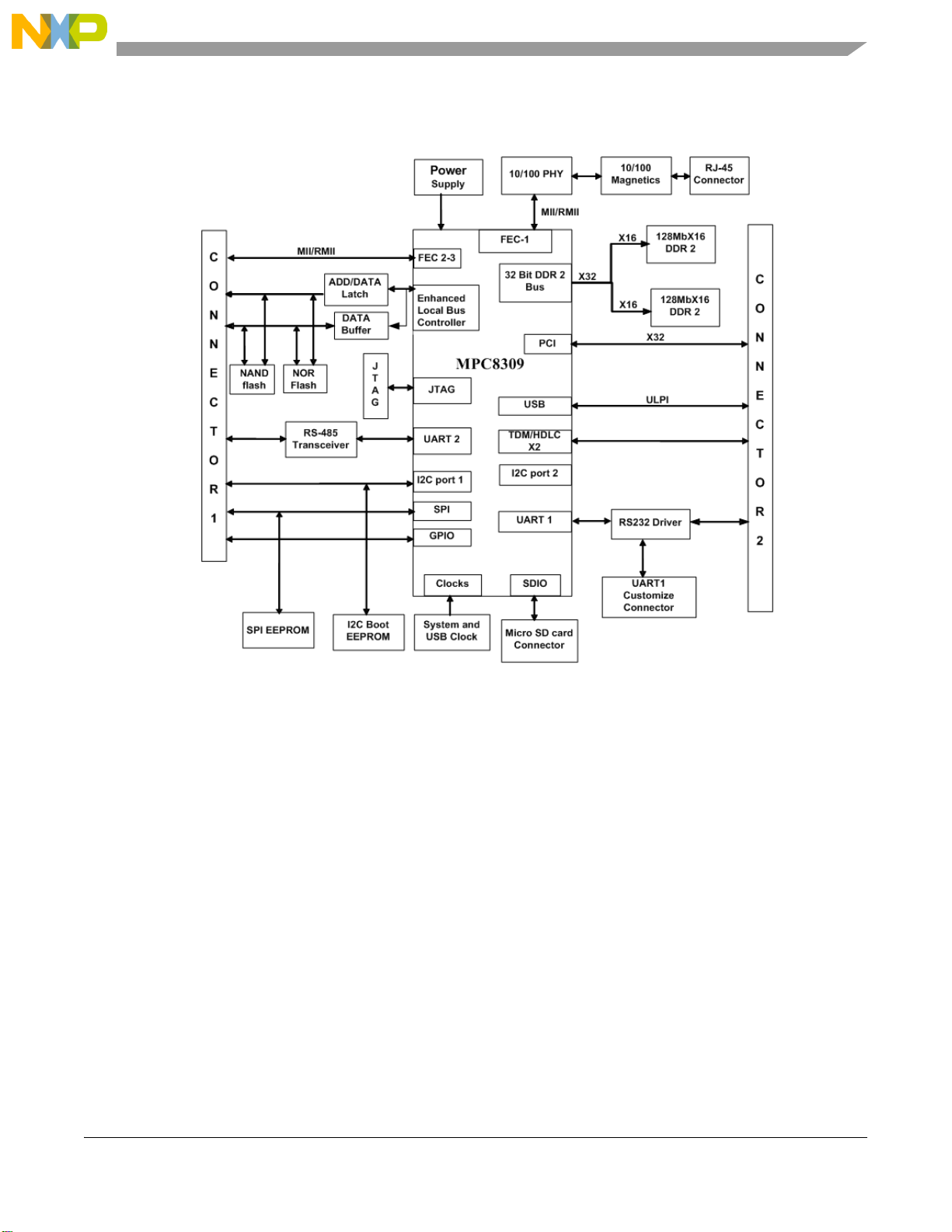

This figure shows MPC8309SOM block diagram.

Figure 1. MPC8309 SOM Block Diagram

PowerQUICC MPC8309KIT User’s Guide, Rev. 0

6Freescale Semiconductor

MPC8309KIT Hardware

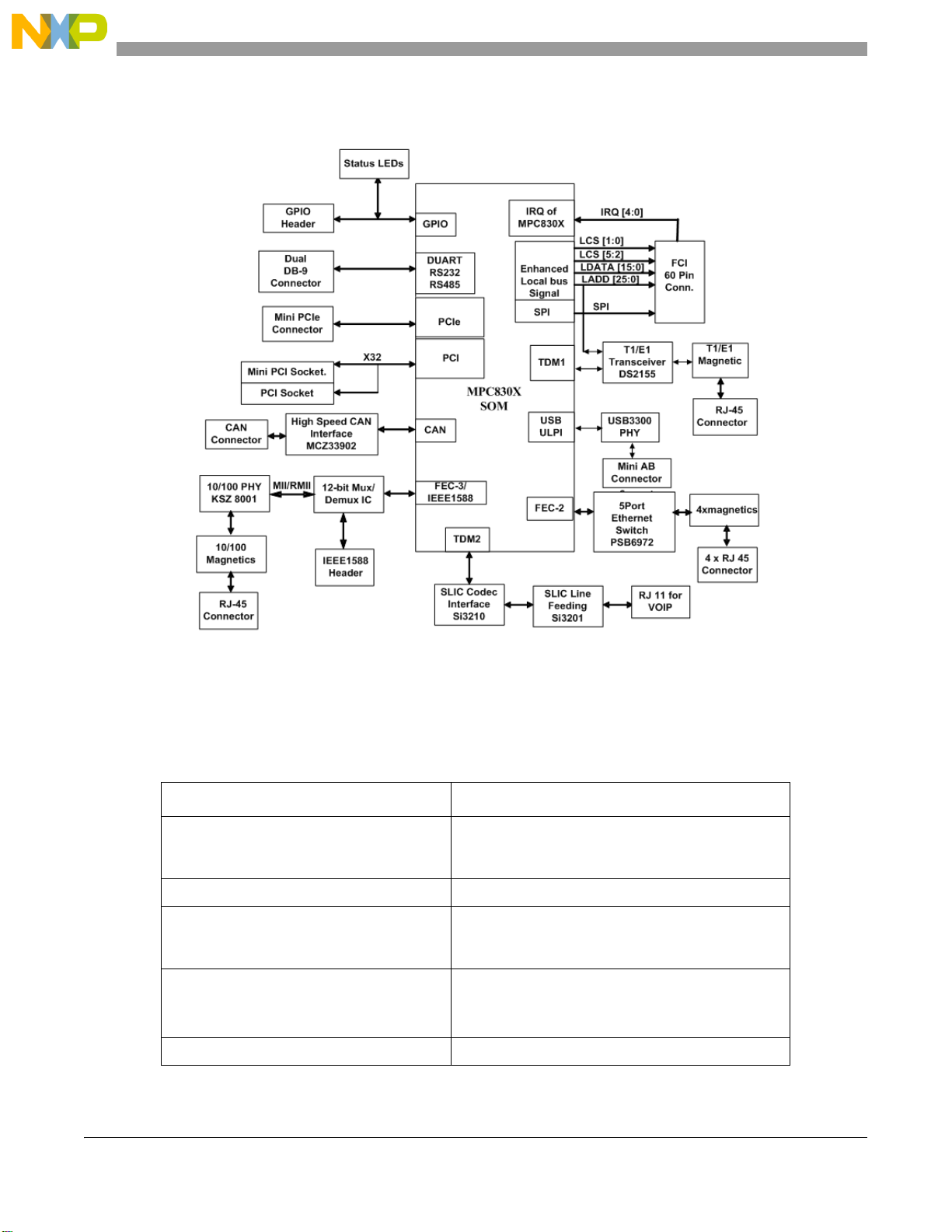

This figure shows MPC830X carrier block diagram.

Figure 2. MPC830X Carrier Block Diagram

3.2 MPC8309KIT Specifications

This table lists the specifications of MPC8309KIT.

Table 3-1. Specifications of MPC8309KIT

Characteristics Specifications

Power Requirement SOM stand-alone

MPC8309 KIT 5 VDC @ 1A

12 VDC @ 5A

Communication Processor MPC8309 running @ 333 MHz

Addressing: Total address range

Flash memory (local bus)

DDR2 SDRAM

4 GByte (32 address lines)

8 MByte with one chip-select

256 MByte DDR2 SDRAM

Operating temperature MPC8309SOM

MPC830X_Carrier –40 °C to 85 °C

0 °C to 70 °C

Storage Temperature –40 °C to 125 °C

PowerQUICC MPC8309KIT User’s Guide, Rev. 0

Freescale Semiconductor 7

Board-Level Functions

3.3 Mechanical Data

This figure shows MPC8309KIT dimensions (in mm). The MPC830X carrier board measures

170 x 170 mm and MPC8309SOM board measures 90 x 70 mm.

Figure 3. MPC8309KIT Dimension

4 Board-Level Functions

The board-level functions include reset, external interrupts, clock distribution, DDR SDRAM controller,

local bus controller, I2C, SPI, SD memory card interface, FEC-1/2/3 interface, CAN interface, RS-232,

RS-485, KA2 microcontroller, PCI, MiniPCI, COP/JTAG interface, and USB interface.

Relative Humidity —

PCB dimensions SOM Board (LxWxT)

Carrier Board (LxWxT) 90 mm x 70 mm x 1.63 mm

170 mm x 170 mm x 1.63 mm

Table 3-1. Specifications of MPC8309KIT (continued)

Characteristics Specifications

PowerQUICC MPC8309KIT User’s Guide, Rev. 0

8Freescale Semiconductor

Board-Level Functions

4.1 Reset and Reset Configurations

An MPC8309KIT module generates single reset to the MPC8309 and other peripherals on the board. The

reset unit provides power-on reset, hard reset, and soft reset signals in compliance with the MPC8309

hardware specification. Figure 4 shows the reset scheme on board.

• PORESET# (power-on reset) is generated by TI Power Management IC TPS65023. When MR#

(Manual Reset) is deasserted and 3.3 V is ready, the TPS65023 internal timeout guarantees a

minimum reset active time of 100 ms before PORESET# is deasserted. Push button reset interfaces

the MR signal with debounce capability to produce a manual master PORESET#.

• MPC8309 POR# input is also generated by MC9RS08KA2 microcontroller device by monitoring

I2C–I/O expander GPIO status based loading of Reset configuration word from boot device on

SOM board.

• HRESET# (hard reset) is generated either by the MPC8309 or the COP/JTAG port.

• COP/JTAG port reset provides convenient hard-reset capability for a COP/JTAG controller. The

HRESET# line is available at the COP/JTAG port connector. The COP/JTAG controller can

directly generate the hard-reset signal by asserting this line low. As shown in Figure 4, it allows the

COP to independently assert HRESET# or TRST# while ensuring that the MPC8309 can drive

HRESET# as well.

• Carrier_RST# is used to provide POR signal to the devices on carrier card. This signal is generated

by ANDing carrier_POR# and HRESET# signal generated by MPC8309.

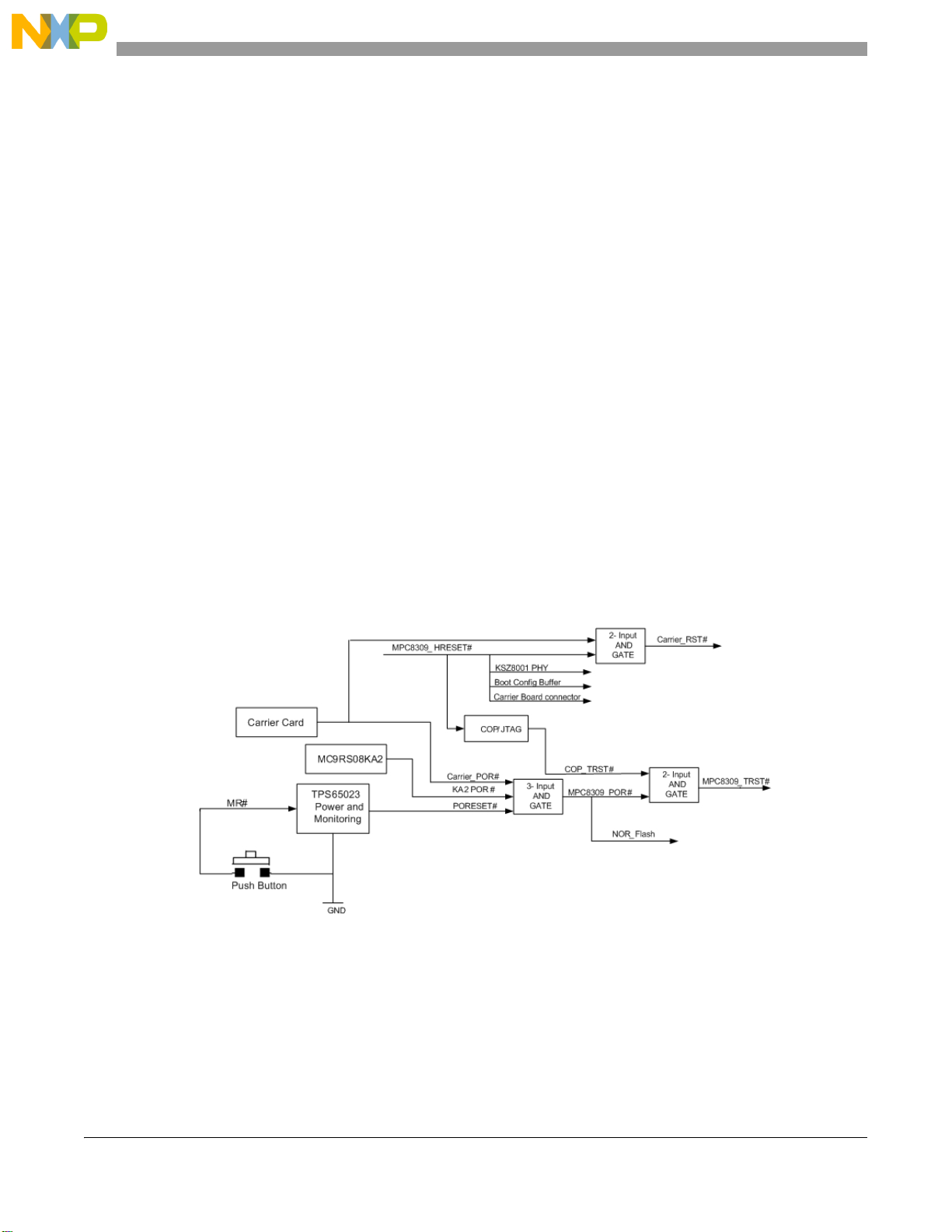

This figure shows reset circuitry of MPC8309KIT.

Figure 4. Reset Circuitry of MPC8309KIT

PowerQUICC MPC8309KIT User’s Guide, Rev. 0

Freescale Semiconductor 9

Board-Level Functions

4.2 External Interrupts

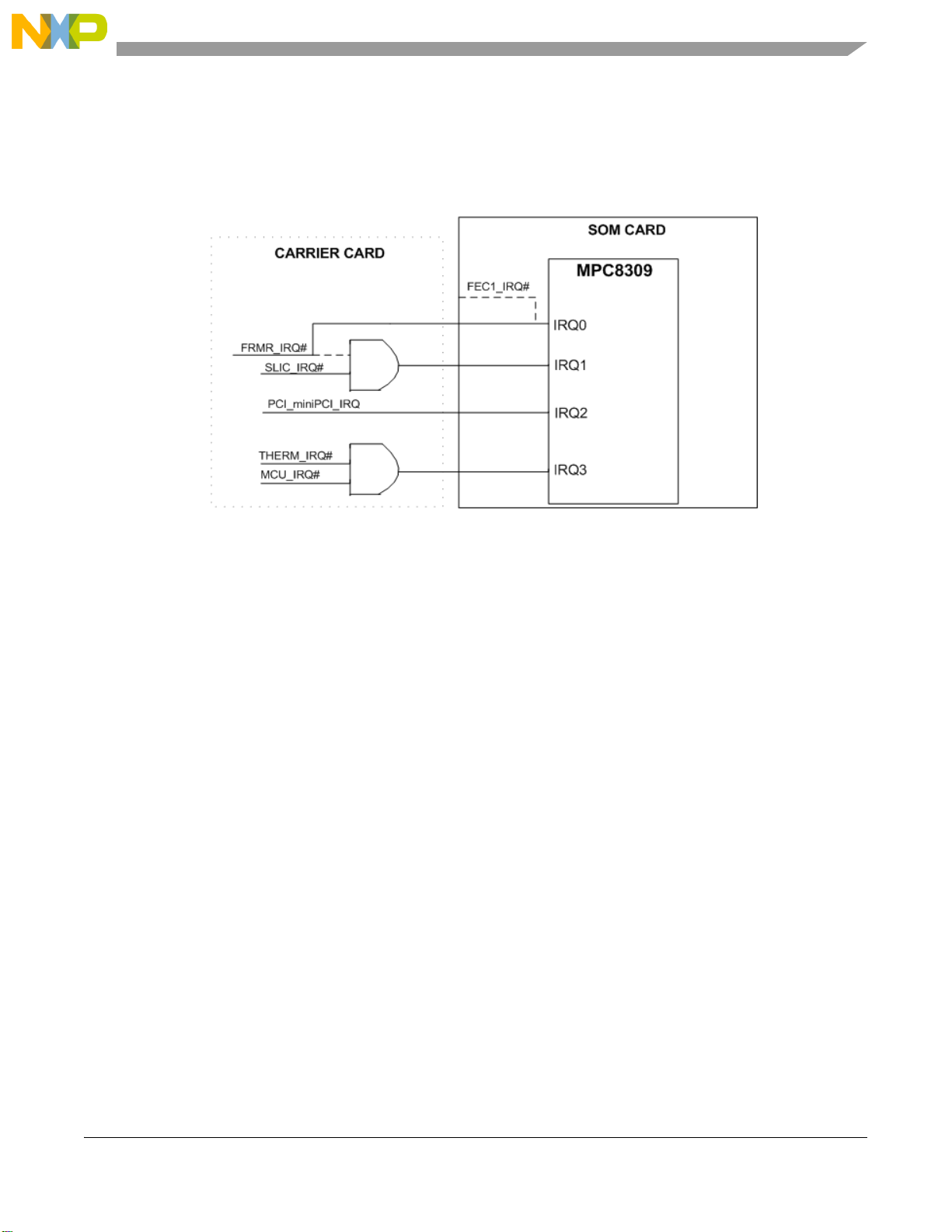

This figure shows external interrupt circuitry of MPC8309KIT.

Figure 5. Interrupt Circuitry of MPC8309KIT

• All external interrupt signals are pulled up by 4.7 K resistors.

• Either PHY (KSZ8001) interrupt (FEC1_IRQ#) or FRMR_IRQ# is connected to IRQ0# of

MPC8309. The selection between FEC1_IRQ# and FRMR_IRQ# can be done through resistor

mount/No mount. Default IRQ0 is connected to FRMR_IRQ#.

• Option provided to connect SLIC and Framer device interrupt (FRMR_IRQ#) to be ANDed and

given to IRQ1# of MPC8309. By default, only SLIC Interrupt is connected to IRQ1.

• Interrupt from PCI and miniPCI card is given to IRQ2 of MPC8309.

• MCU interrupt (MCU_IRQ#) and thermal interrupt (THERM_IRQ#) are ANDed and given to

IRQ3 of MPC8309.

PowerQUICC MPC8309KIT User’s Guide, Rev. 0

10 Freescale Semiconductor

Board-Level Functions

4.3 Clock Distribution

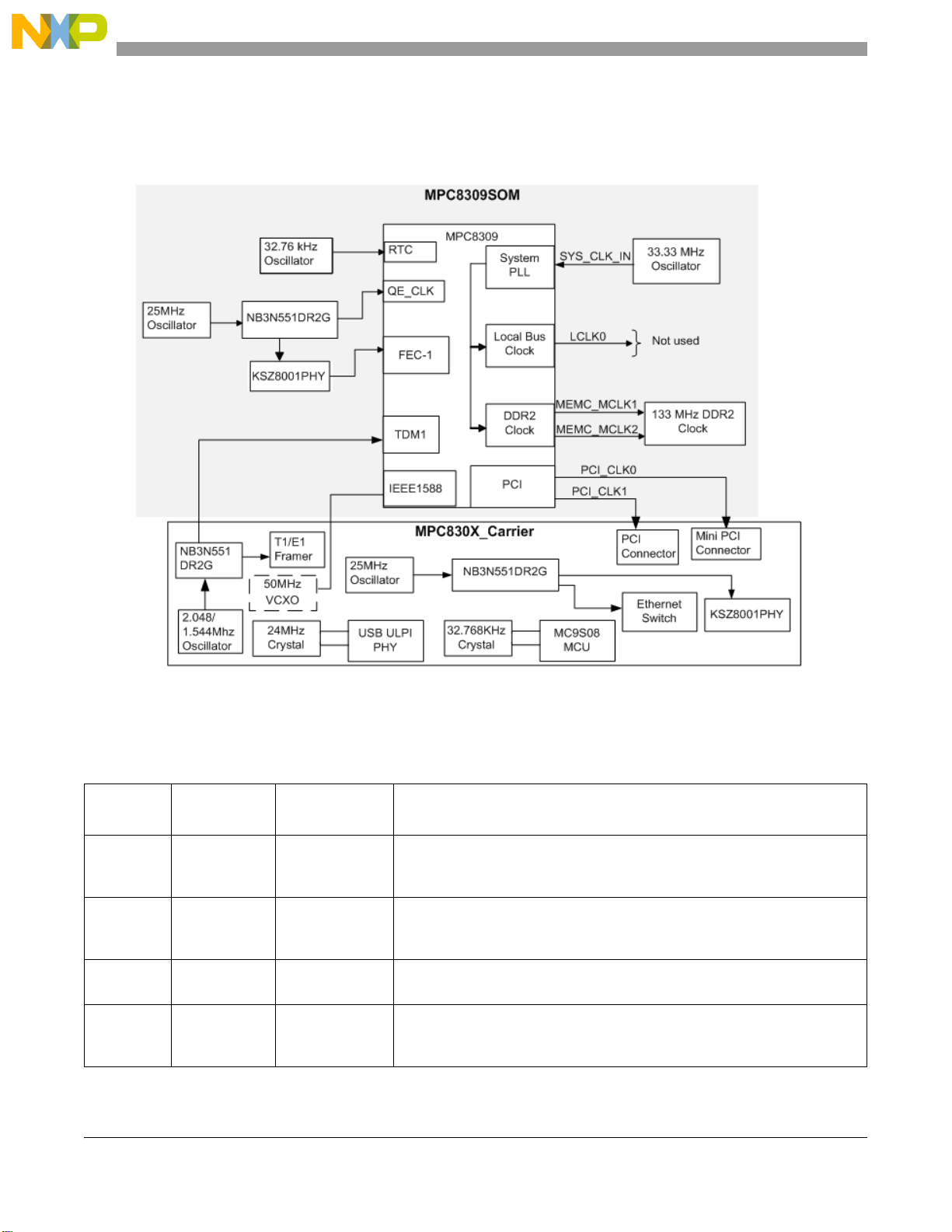

This figure shows clock distribution on SOM board.

Figure 6. Clock Distribution on MPC8309KIT

The table shows the clock distribution on MPC8309KIT (SOM + Carrier) board.

Table 4-2. MPC8309SOM and Carrier Clock Distribution

Clock

Frequency Module Generated by Description

33.33 MHz MPC8309

CLKIN 33.33 MHz OSC The MPC8309 uses CLKIN to generate the internal system PLL. The CSB

clock is generated by the internal PLL and is fed to the e300 core PLL for

generating the e300 core clock.

133 MHz DDR2 SDRAM MPC8309 The DDR memory controller is configured to use the 2:1 mode CSB to DDR

for the DDR interface (DDR266). The local bus clock uses 1:1 local to CSB

clock, which is configured by hard reset configuration or SPMR register.

32.76 KHz Real Time

Clock 32.76 KHz OSC Clock for RTC

25 MHz MPC QE and

FEC1 PHY

Clock

25 MHZ OSC

and 1:4 Clock

buffer

The 25 MHz oscillator provides the clock for MPC8309 QUICC Engine and

FEC1 PHY KSZ8001.

Table des matières

Autres manuels Freescale Semiconductor Carte mère

Freescale Semiconductor

Freescale Semiconductor NXP DEMO9S08JS16 Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor QorIQ LS1043A Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor MC13853 LNA Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor MCF5206eLITE Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor DEMO908GZ60 Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor FRDM-KV31F Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor Qorivva MPC5746R-176DS Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor USB-KW019032 Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor KIT22XS4200EKEVB Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor FRDM-KL25Z Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor MC13892 Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor KIT33882EKEVB Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor KIT33879AEKEVBE Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor i.MX 6UltraLite Manuel d'installation

Freescale Semiconductor

Freescale Semiconductor MPC8313E PowerQUICC II Pro Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor TWR-K60N512-KEIL Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor FRDM-KL46Z Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor KIT33810EKEVME Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor PE Micro Cyclone Pro Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor TWR-K80F150M Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor TWR-K70F120M Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor MPC8572E Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor KIT33816AEEVM Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor T4240RDB Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
