FRDM-KL25Z User's Manual

1 Overview

The Freescale Freedom development platform is a set of software and hardware tools for evaluation

and development. It is ideal for rapid prototyping of microcontroller-based applications. The Freescale

Freedom KL25Z hardware, FRDM-KL25Z, is a simple, yet sophisticated design featuring a Kinetis L series

microcontroller, the industry’s first microcontroller built on the ARM® Cortex™-M0+ core.

FRDM-KL25Z can be used to evaluate the KL1 and KL2 Kinetis L series devices. It features a

KL25Z128VLK, a KL2 family device boasting a max operating frequency of 48MHz, 128KB of flash, a full-

speed USB controller, and loads of analog and digital peripherals. The FRDM-KL25Z hardware is form-

factor compatible with the Arduino™ R3 pin layout, providing a broad range of expansion board

options. The on-board interfaces include an RGB LED, a 3-axis digital accelerometer, and a capacitive

touch slider.

The FRDM-KL25Z is the first hardware platform to feature the Freescale open standard embedded

serial and debug adapter known as OpenSDA. This circuit offers several options for serial

communications, flash programming and run-control debugging.

2 Reference Documents

The table below provides a list of reference documents for the FRDM-KL25Z hardware.

Table 1. FRDM-KL25Z Reference Documents

Filename Description

FRDM-KL25Z Quick Start Package Quick Start Guide and supporting files for getting started with

the FRDM-KL25Z.

FRDM-KL25Z User’s Manual This document—overview and detailed information for the

FRDM-KL25Z hardware.

FRDM-KL25Z Pinouts

Spreadsheet of pin connections for all MCU pins. Includes

pinout for the I/O headers, Arduino R3 compatibility chart,

and OpenSDA MCU pinout.

FRDM-KL25Z Schematics PDF schematics for the FRDM-KL25Z hardware

FRDM-KL25Z Design Package Zip file containing all design source files for the FRDM-KL25Z

hardware

OpenSDA User’s Guide Overview and instructions for use of the OpenSDA embedded

debug circuit

3 FRDM-KL25Z Hardware Overview

The features of the FRDM-KL25Z include:

MKL25Z128VLK4 in an 80 LQFP package

Capacitive touch slider

MMA8451Q accelerometer

Tri-color (RGB) LED

Flexible power supply options –USB, coin cell battery, external source

Battery-ready, power-measurement access points

Easy access to MCU I/O via Arduino ™ R3 compatible I/O connectors

Programmable OpenSDA debug interface with multiple applications available including:

-Mass storage device flash programming interface

-P&E Debug interface provides run-control debugging and compatibility with IDE tools

-CMSIS-DAP interface: new ARM standard for embedded debug interface

-Data logging application

Figure 1 shows a block diagram of the FRDM-KL25Z design. The primary components and their

placement on the hardware assembly are pointed out in Figure 2.

Figure 1. FRDM-KL25Z Block Diagram

Figure 2. FRDM-KL25Z Feature Call-outs

4 FRDM-KL25Z Hardware Description

4.1 Power Supply

There are multiple power supply options on the FRDM-KL25Z. It can be powered from either of the

USB connectors, the VIN pin on the I/O header, an on-board coin cell battery, or an off-board 1.71-3.6V

supply from the 3.3V pin on the I/O header. The USB and VIN supplies are regulated on-board using a

3.3V linear regulator to produce the main power supply. The other two sources are not regulated on-

board. Table 2 provides the operational details and requirements for the power supplies.

Table 2. Power Supply Requirements

Supply Source Valid Range OpenSDA

Operational?

Regulated on-

board?

OpenSDA USB (J7) 5V Yes Yes

KL25Z USB (J5) 5V No Yes

VIN Pin 4.3-9V No Yes

3.3V Pin 1.71-3.6V No No

Coin Cell Battery 1.71-3.6V No No

Note that the OpenSDA circuit is only operational when a USB cable is connected and supplying power

to J7. However, protection circuitry is in place to allow multiple sources to be powered at once.

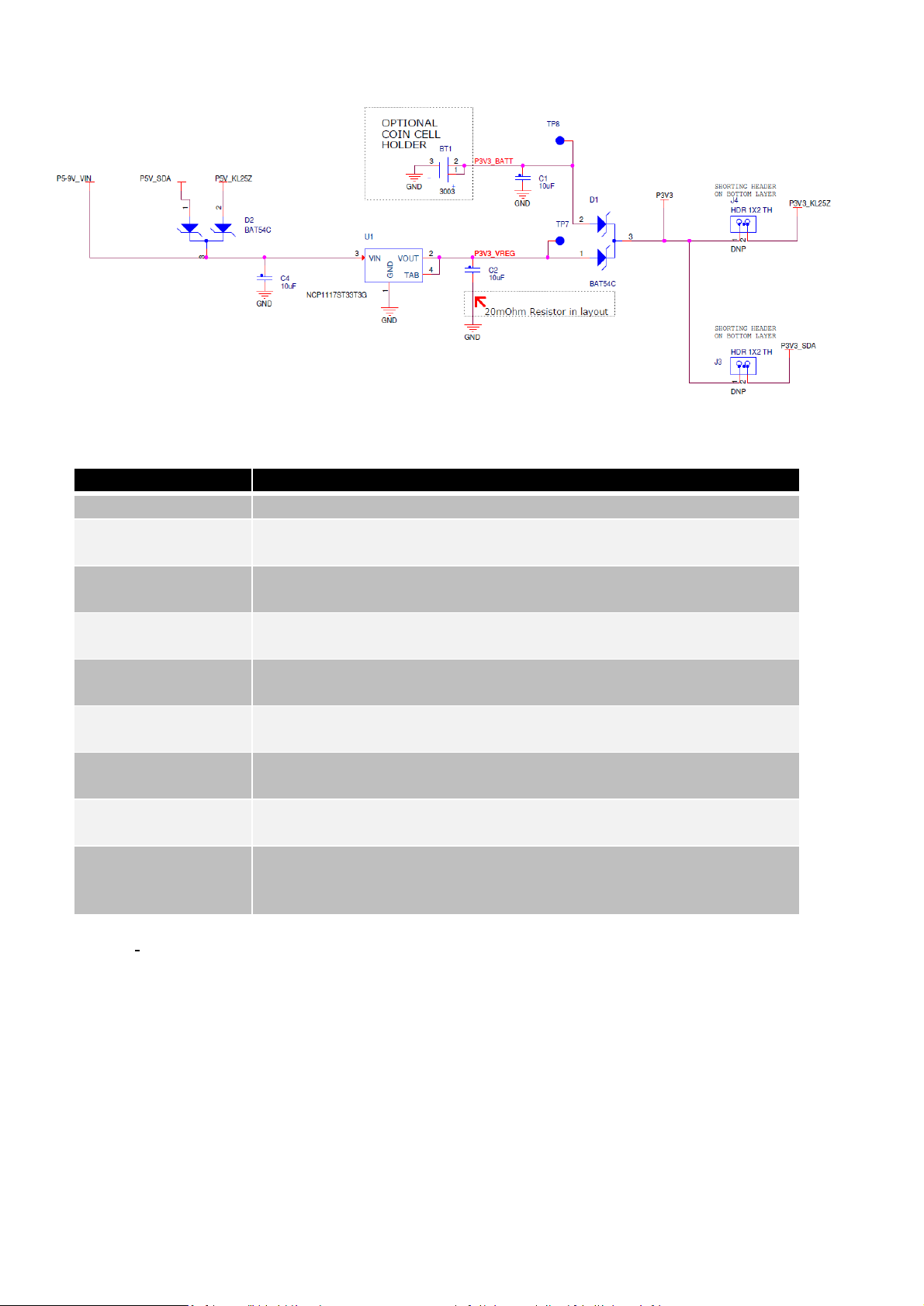

Figure 3 shows the schematic drawing for the power supply inputs and the on-board voltage regulator.

Figure 3. Power Supply Schematic

Table 3. FRDM-KL25Z Power Supplies

Power Supply Name Description

P5-9V_VIN Power supplied from the VIN pin of the I/O headers (J9 pin 16).

P5V_SDA Power supplied from the OpenSDA USB connector (J7). A Schottky

diode provides back drive protection.

P5V_KL25Z Power supplied from the KL25Z USB connector (J5). A Schottky diode

provides back drive protection.

P3V3_VREG Regulated 3.3V supply. Sources power to the P3V3 supply rail

through a back drive protection Schottky diode. 1

P3V3_BATT Coin cell battery supply voltage. Sources power to the P3V3 supply

rail through a back drive protection Schottky diode.

P3V3 Main supply rail for the FRDM-KL25Z assembly. May be sourced from

P3V3_VREG, P3V3_BATT, or directly from the I/O headers (J9 pin 8)

P3V3_KL25Z KL25Z MCU supply. Header J4 provides a convenient means for

energy consumption measurements. 2

P3V3_SDA OpenSDA circuit supply. Header J3 provides a convenient means for

energy consumption measurements. 2

P5V_USB

Nominal 5V supplied to the I/O headers (J9 pin 10). Sourced from

either the P5V_KL25Z or P5V_OSDA supply through a back drive

protection Schottky diode.

NOTES:

1) By default the linear regulator, U1, is a 3.3V output regulator. However, this is a common footprint that

would allow the user to modify the assembly to utilize an

The KL25Z microcontroller has an operating range of 1.71V to 3.6V.

alternative device such as a 1.8V or 2.5V regulator.

2) J3 and J4 are not populated by default. The two pins of these headers are shorted together by a trace on

the bottom layer of the PCB. To measure the energy consumption of either the KL25Z or the OpenSDA MCU,

the trace between these pins must first be cut. A current probe or a shunt resistor and voltage meter can then

be applied to measure the energy consumption on these rails.

4.2 Serial and Debug Adapter (OpenSDA)

OpenSDA is an open-standard serial and debug adapter. It bridges serial and debug communications

between a USB host and an embedded target processor as shown in Figure 4. The hardware circuit is

based on a Freescale Kinetis K20 family microcontroller (MCU) with 128 KB of embedded flash and an

integrated USB controller. OpenSDA features a mass storage device (MSD) bootloader, which provides

a quick and easy mechanism for loading different OpenSDA Applications such as flash programmers,

run-control debug interfaces, serial-to-USB converters, and more. Refer to the OpenSDA User’s Guide

for more details.

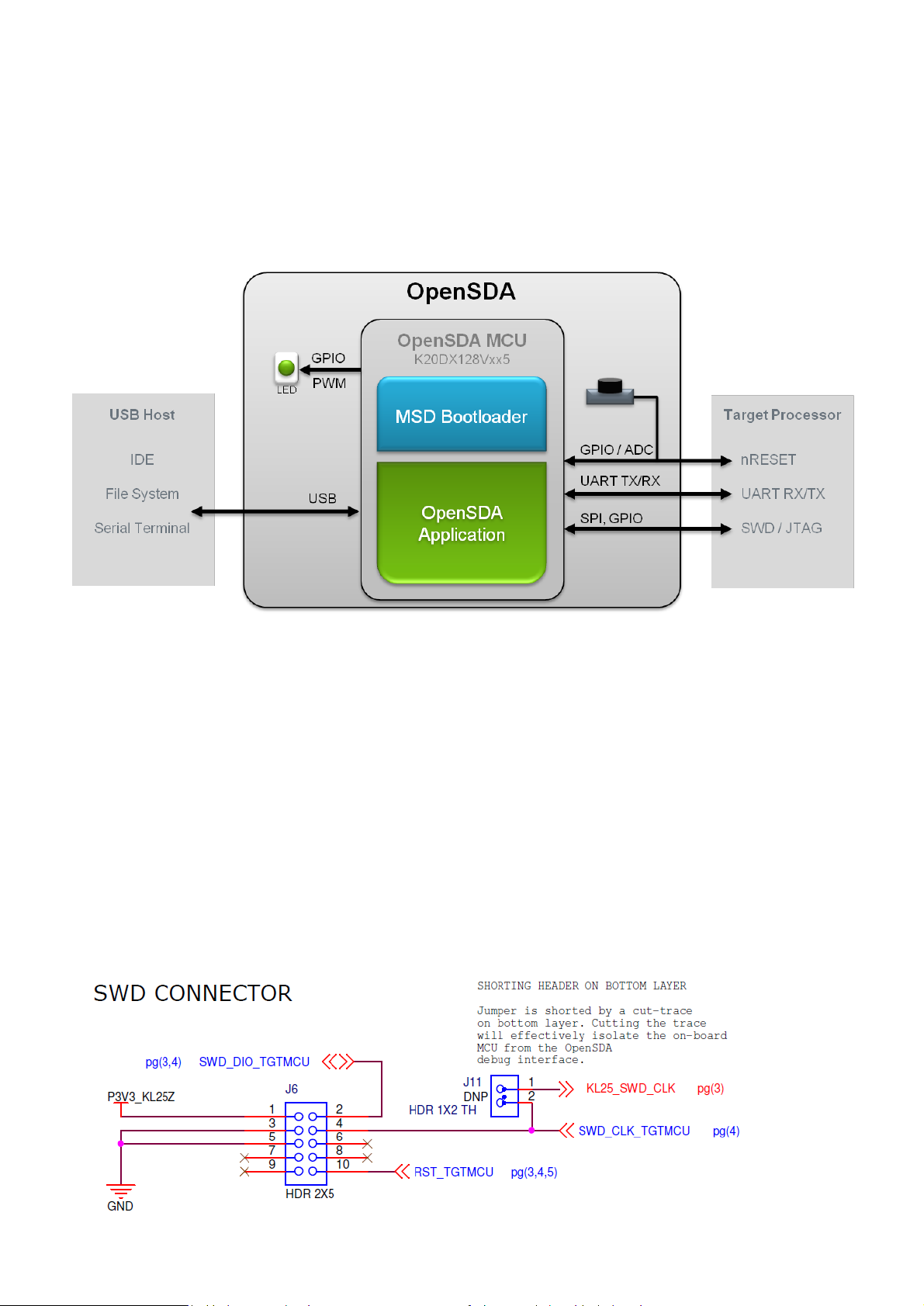

Figure 4. OpenSDA High-Level Block Diagram

OpenSDA is managed by a Kinetis K20 MCU built on the ARM® Cortex™-M4 core. The OpenSDA circuit

includes a status LED (D4) and a pushbutton (SW1). The pushbutton asserts the Reset signal to the

KL25Z target MCU. It can also be used to place the OpenSDA circuit into Bootloader mode. SPI and

GPIO signals provide an interface to either the SWD debug port of the KL25Z. Additionally, signal

connections are available to implement a UART serial channel. The OpenSDA circuit receives power

when the USB connector J7 is plugged into a USB host.

4.2.1 Debug Interface

Signals with SPI and GPIO capability are used to connect directly to the SWD of the KL25Z. These

signals are also brought out to a standard 10-pin (0.05”) Cortex Debug connector (J6). It is possible to

isolate the KL25Z MCU from the OpenSDA circuit and use J6 to connect to an off-board MCU. To

accomplish this, cut the trace on the bottom side of the PCB that connects J11 pin 1 to J11 pin 2. This

will disconnect the SWD_CLK pin to the KL25Z so that it will not interfere with the communications to

an off-board MCU connected to J6.

Figure 5. SWD Debug Connector

Note that J6 is not-populated by default. A Samtec FTSH-105-02-F-D or compatible connector can be

added to the J6 through-hole connector. A mating cable, such as a Samtec FFSD IDC cable, can then be

used to connect from the OpenSDA of the FRDM-KL25Z to an off-board SWD connector.

4.2.2 Virtual Serial Port

A serial port connection is available between the OpenSDA MCU and pins PTA1 and PTA2 of the KL25Z.

Several of the default OpenSDA Applications provided by Freescale, including the MSD Flash

Programmer and the P&E Debug Application, provide a USB Communications Device Class (CDC)

interface that bridges serial communications between the USB host and this serial interface on the

KL25Z.

4.3 KL25Z Microcontroller

The target microcontroller of the FRDM-KL25Z is the KL25Z128VLK4, a Kinetis L series device in an 80

LQFP package. The KL25Z MCU features include:

32-bit ARM Cortex-M0+ core

-up to 48 MHz operation

-Single-cycle fast I/O access port

Memories

-128 KB flash

-16 KB SRAM

System integration

-Power management and mode controllers

-Low-leakage wakeup unit

-Bit manipulation engine for read-modify-write peripheral operations

-Direct memory access (DMA) controller

-Computer operating properly (COP) Watchdog timer

Clocks

-Clock generation module with FLL and PLL for system and CPU clock generation

-4 MHz and 32 kHz internal reference clock

-System oscillator supporting external crystal or resonator

-Low-power 1kHz RC oscillator for RTC and COP watchdog

Analog peripherals

-16-bit SAR ADC w/ DMA support

-12-bit DAC w/ DMA support

-High speed comparator

Communication peripherals

-Two 8-bit Serial Peripheral Interfaces (SPI)

-USB dual-role controller with built-in FS/LS transceiver

-USB voltage regulator

-Two I2C modules

-One low-power UART and two standard UART modules

Timers

-One 6-channel Timer/PWM module

-Two 2-channel Timer/PWM modules

-2-channel Periodic Interrupt Timer (PIT)

-Real time clock (RTC)

-Low-power Timer (LPT)

-System tick timer

Human-Machine Interfaces (HMI)

-General purpose input/output controller

-Capacitive touch sense input interface hardware module

4.3.1 Clock Source

The Kinetis KL2 microcontrollers feature an on-chip oscillator compatible with three ranges of input

crystal or resonator frequencies: 32-40 kHz (low freq. mode), 3-8 MHz (high freq. mode, low range) and

8-32 MHz (high freq. mode, high range). The KL25Z128 on the FRDM-KL25Z is clocked from an 8 MHz

crystal.

4.3.2 USB Interface

The Kinetis KL2 microcontrollers feature a dual-role USB controller with on-chip full-speed and low-

speed transceivers. The USB interface on the FRDM-KL25Z is configured as a full-speed USB device. J5

is the USB connector for this interface.

4.3.3 Serial Port

The primary serial port interface signals are PTA1 and PTA2. These signals are connected to both the

OpenSDA and to the J1 I/O connector.

4.3.4 Reset

The PTA20/RESET signal on the KL25Z128 is connected externally to a pushbutton, SW1, and also to the

OpenSDA circuit. The reset button can be used to force an external reset event in the target MCU. The

reset button can also be used to force the OpenSDA circuit into bootloader mode. Please refer to

section 5.2, Serial and Debug Adapter (OpenSDA), for more details.

4.3.5 Debug

The sole debug interface on all Kinetis L Series devices is a Serial Wire Debug (SWD) port. The primary

controller of this interface on the FRDM-KL25Z is the onboard OpenSDA circuit (see section 5.2).

However, an unpopulated 10-pin (0.05”) Cortex Debug connector, J6, provides access to the SWD

signals. The Samtec FTSH-105-02-F-D or compatible connectors can be added to the J6 through-hole

debug connector to allow for an external debug cable to be connected.

4.4 Capacitive Touch Slider

Two Touch Sense Input (TSI) signals, TSI0_CH9 and TSI0_CH10, are connected to capacitive electrodes

configured as a touch slider. Freescale’s Touch Sense Software (TSS) provides a software library for

implementing the capacitive touch slider.

4.5 3-axis Accelerometer

A Freescale MMA8451Q low-power, three-axis accelerometer is interfaced through an I2C bus and two

GPIO signals as shown in Table 4 below. By default, the I2C address is 0x1D (SA0 pulled high).

Table 4. Accelerometer Signal Connections

MMA8451Q KL25Z128

SCL PTE24

SDA PTE25

INT1 PTA14

INT2 PTA15

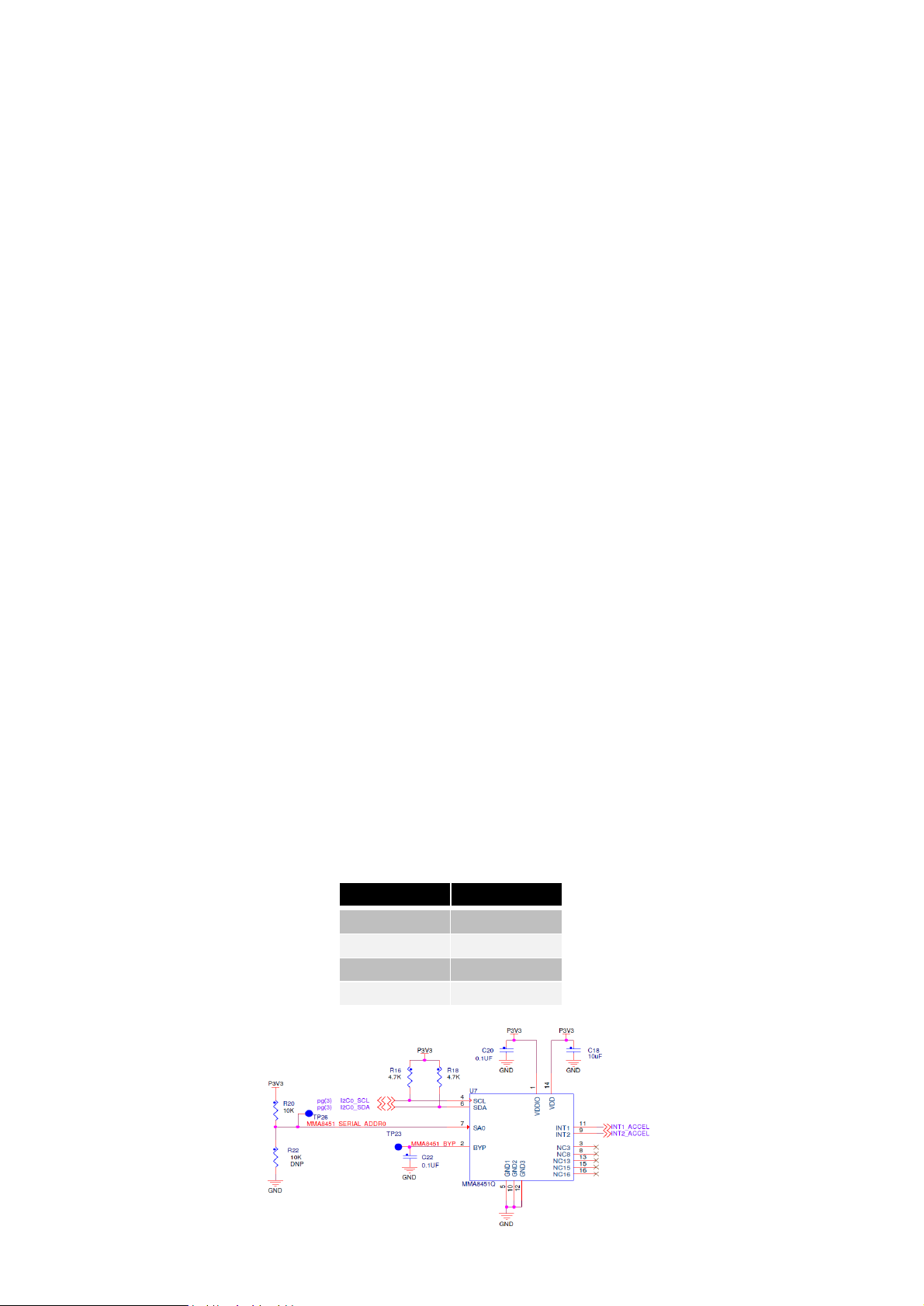

Figure 6. MMA8451Q Schematic Diagram

4.6 RGB LED

Three PWM-capable signals are connected to a red, green, blue LED, D3. The signal connections are

shown in Table 5 below.

Table 5. RGB LED Signal Connections

RGB LED KL25Z128

Red Cathode PTB18

Green Cathode PTB19

Blue Cathode PTD1 1

NOTE:

1) PTD1 is also connected to the I/O header on J2 pin 10 (also known as D13).

Figure 7. RGB LED Schematic Diagram

4.7 Input/Output Connectors

The KL25Z128VLK4 microcontroller is packaged in an 80-pin LQFP. Some pins are utilized in on-board

circuitry, but many are directly connected to one of four I/O headers.

The pins on the KL25Z microcontroller are named for their general purpose input/output port pin

function. For example, the 1st pin on Port A is referred to as PTA1. The I/O connector pin names are

given the same name as the KL25Z pin connected to it, where applicable.

Note that all pinout data is available in spreadsheet format in FRDM-KL25Z Pinouts. See the Reference

Documents section for details.

4.8 Arduino Compatibility

The I/O headers on the FRDM-KL25Z are arranged to allow compatibility with peripheral boards

(known as shields) that connect to Arduino™and Arduino-compatible microcontroller boards. The

outer rows of pins (the even numbered pins) on the headers share the same mechanical spacing and

placement as the I/O headers on the Arduino Revision 3 (R3) standard.

Refer to the FRDM-KL25Z Pinouts spreadsheet for a compatibility chart showing how all the functions

of the KL25Z signals on the I/O connectors map to the pin functions available on the Arduino Uno R3.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Freescale Semiconductor Carte mère

Freescale Semiconductor

Freescale Semiconductor T4240RDB Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor DSPAUDIOEVM Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor KIT33879AEKEVBE Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor KIT33932VWEVBE Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor CSM-56F801 Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor FRDM-17C724-EVB Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor QorIQ LS1043A Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor KIT33926PNBEVBE Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor NXP DEMO9S08JS16 Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor T2080RDB-PC Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor KIT33912EVME Manuel

Freescale Semiconductor

Freescale Semiconductor PE Micro DEMO9S08QE8 Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor FRDM-KL25Z Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor MPC8313E PowerQUICC II Pro Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor Qorivva MPC5746R-176DS Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor PE Micro Cyclone Pro Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor KITVR500EVM Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor TWR-K65F180M Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor MPC5777C EVB Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor ColdFire MCF5275 Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor DSPD56362EVM Guide de démarrage rapide

Freescale Semiconductor

Freescale Semiconductor KIT33730EKEVBE Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor MPC8309KIT Manuel utilisateur

Freescale Semiconductor

Freescale Semiconductor NXP 56F8013 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
