Foxconn 845GVME-S Fiche technique
1
845GVME-S
P/N: 91-185-U45-F1-0E

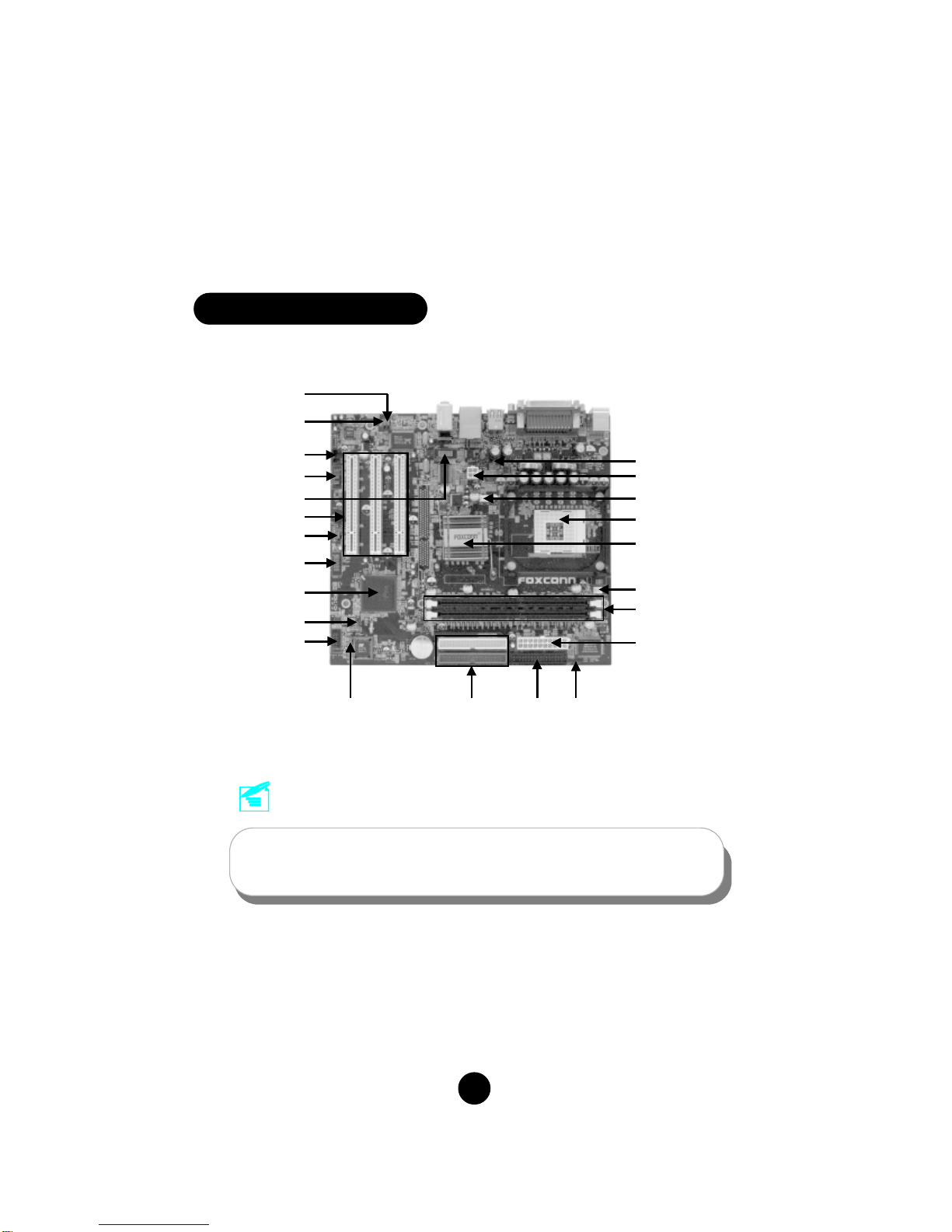

Motherboard Layout
Easy Installation Guide
Remark:
The above motherboard layout is provided for reference only;
please refer to the physical motherboard.
JP4USBPowerSelec-
tionJumper
ATA33/66/
100IDE
Connectors
CD_INAudioConnector
12VATXPowerConnector
ATXPowerConnector
184-pin DIMM Slots
North Bridge: Intel®
845GVChipset
SouthBridge:Intel®
ICH4 Chipset
ClearCMOSJumper
FDD
Connector
FrontAudioConnector
IRConnector
SystemFANConnector
478-pinCPUSocket
PCIExpansionSlots
USB2.0Connector
FrontPanelConnector
BIOS-Protection
Jumper
CPUModelSelection Jumper
COM2Connector
CPU FAN Connector
JP3USBPowerSelec-
tionJumper
JP5USBPowerSelec-
tionJumper
2

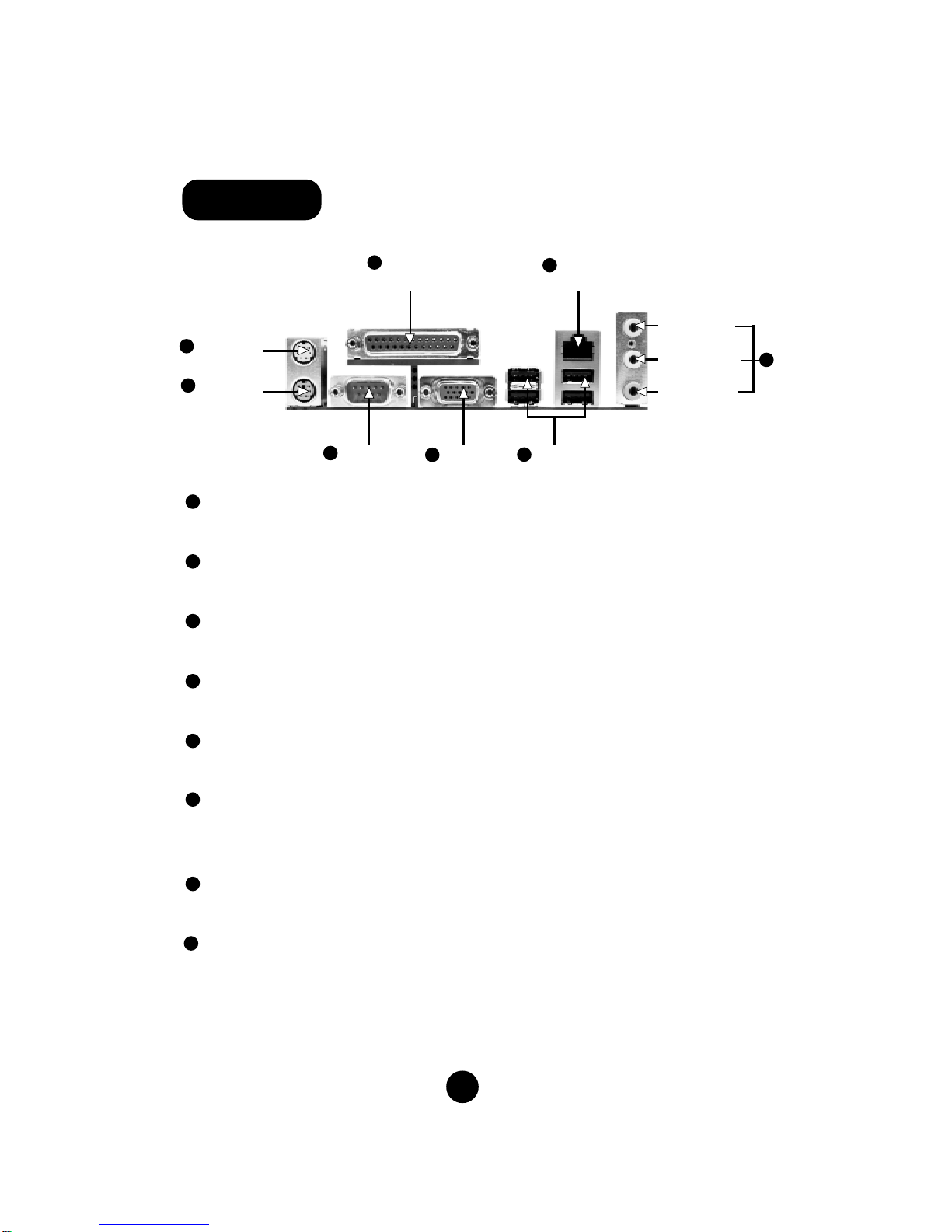

PS/2 Mouse Connector
This green 6-pin connector is for a PS/2 mouse.
PS/2 Keyboard Connector
This purple 6-pin connector is for a PS/2 keyboard.
Serial Port (COM1)
This 9-pin COM1 port is for a serial mouse or other serial devices.
SPP/EPP/ECP Parallel Port (Printer Port)
This 25-pin port is for a parallel printer, a scanner, or other devices.
VGA Connector
The VGA connector is for output to a VGA-compatible device.
USB 2.0 Ports
These four Universal Serial Bus (USB) ports are available for connecting USB
2.0 devices.
LAN Connector
This port is for connection to a Local Area Network (LAN) through a network hub.
Line-in jack, Line-out jack, Microphone jack
When using a two-channel sound source, the Line-out jack is used to connect to
speakers or headphones; the Line-in port connects to an external CD player,
tape player or other audio device. The Microphone jack is used to connect to the
microphone.
7
Rear Panel
3
4
5
6
8
1
2
Serial Port
(COM1)
PS/2Mouse
Connector
SPP/EPP/ECP
Parallel Port
(Printer Port)
10Mb/100Mb
LANConnector
Line-in jack
Line-out jack
Microphone
jack
4
6
5
7
8
PS/2 Keyboard
Connector
3
2
1
VGA
Connector USB2.0 Port
3
845GVME-S Motherboard (x1)
Foxconn Utility CD (x1)
Easy Installation Guide (x1)
IDE Ribbon Cable (x1)
FDD Ribbon Cable (x1)
I/O Shield (x1)
Accessory Checklist
CPU/Memory Support Features
CPU:
Supports Intel®Pentium®4 socket 478 (Willamette/Northwood/Prescott)
processors
Supports Intel®Celeron®socket 478 (Willamette/Northwood/Prescott) pro-
cessors
Supports FSB at 400MHz/533MHz
Supports up to 2.8G Prescott CPU and 3.06G Northwood CPU
Memory:
Supports two 184-pin DIMM slots
Supports DDR266/333
Supports memory technology up to 2GB
4
The default status for JP2 is Open, which supports the
Prescott and Northwood CPU. If JP2 set as Close, then
it supports the Willamette CPU.
3. CPU Selection Jumper: JP2
The motherboard BIOS is inside the FWH. If the jumper
BIOS_WP set as Close, the system BIOS is protected
from being attacked by a serious virus, such as the
CIH virus. You will be unable to flash the BIOS to the
motherboard when the system BIOS is protected.
2. BIOS-Protection Jumper: BIOS_WP
This motherboard uses the CMOS RAM to store all
the parameters. The CMOS can be cleared by reset-
ting the CMOS jumper. You can refer to the following
process.
1. Turn off the AC power supply and connect pin 1 and
2 together using the jumper cap.
2. Return the jumper setting to normal (pin 2 and 3
together with the jumper cap).
3. Turn the AC power supply back on.
Clear
CMOS
Normal Status
(Default)
1
1
1. Clear CMOS Jumper: CLR_CMOS
CLR_CMOS
Open
Disabled Protection
BIOS_WP
1
2
1
2
Close
Enabled Protection
(Default)
Attach the power LED, IDE LED, reset switch and
power switch connectors to the corresponding pins.
4. Front Panel Connector: FP1
Open
(Default)
JP2
Close
2
1
2
1
NC
HD-LED PWRLED
PWRSW
EMPTY
RESET
1
FP1
+
_+
_
5

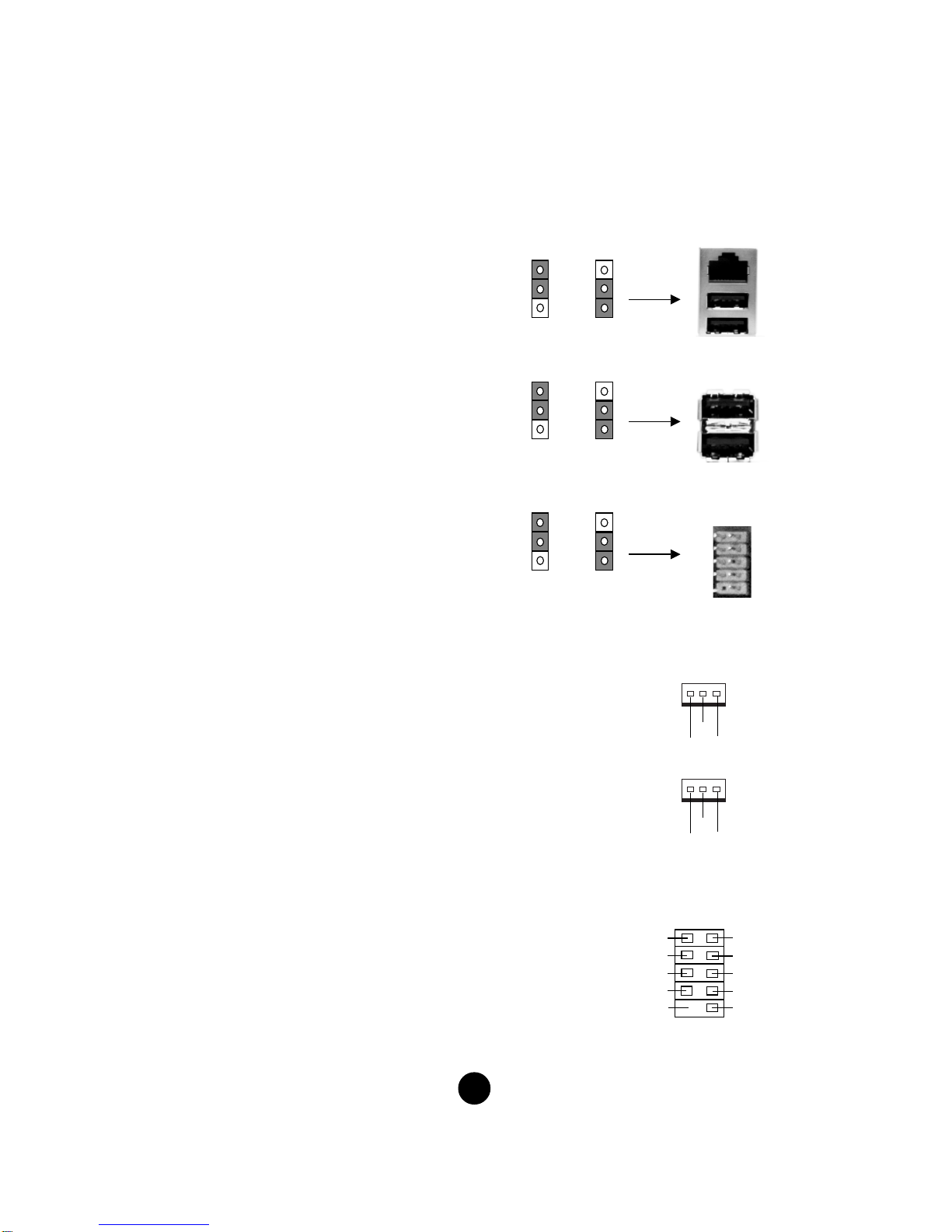

The motherboard uses JP3, JP4, JP5
jumper to select USB power. JP3 is for
USB, JP4 is for NIC_USB, JP5 is for Front
USB (FP_USB1). Pin 1 and 2 together
(default) select +5V_SYS power, which
doesn’t supports USB device wake up
function. Pin 2 and 3 together select
+5V_SB, which supports USB device wake
up function.
5. USB Power Selection Jumper: JP3, JP4, JP5
+5V_SYS
(Default)
11
+5V_SB
JP4
JP3
11
+5V_SB
+5V_SYS
(Default)
JP5
11
+5V_SB
+5V_SYS
(Default)
NIC_USB
USB
FP_USB1
for
for
for
The fan speed of PWR_FAN and CPU_FAN can be
detected and viewed in ‘‘PC Health Status’’ section
of the CMOS Setup. These fans will be automatically
turned off after the system enters S4 and S5 mode.
6. Fan Connectors: PWR_FAN, CPU_FAN
Besides four USB ports on the rear panel, the se-
ries of motherboard also have one 10-pin header
on board which may connect to front panel USB
cable (optional) to provide two additional USB ports.
7. USB 2.0 Header: FP_USB1
FAN1
+12V
SENSE
GND
1
CPU_FAN
+12V
SENSE
GND
1
D1-
VCC
NC
GND
D1+
FP_USB1
D0+
Empty
GND
VCC
1 2
9 10
D0-
6
The audio interface provides two kinds of audio
output choices: the Front Audio, the Rear Audio.
Their priority is sequential from high to low(Front
Audio to RearAudio). If headphones are plugged
into the front panel of the chassis(using the
Front Audio), then the Line-out (the Rear Audio)
on the rear panel will not work. If you do not
want to use the Front Audio, pin 5 and pin 6, pin
9 and pin 10 must be SHORT, and then the
signal will be sent to the rear audio port.
9. Front Audio Connector: F_AUDIO1
The connector supports wireless transmitting and
receiving device. Before using this function, config-
ure the settings of IR Mode from the “Integrated
Peripherals” section of the CMOS Setup.
10. IrDA Header: IrDA
AUD_OUT_L
CD_IN is Sony standard CD audio connector, it can be
connected to a CD-ROM drive through a CD audio
cable.
8. CD_IN Connector: CD_IN
CD_IN
CD_R
1
CD_L
GND
IrDA
+5V
GND
IRRX IRTX
Empty
1
MIC_IN MIC_GND
+5VA
AUD_OUT_R AUD_RET_R
NC Empty
AUD_RET_L
F_AUDIO1
910
MIC_PWR
12
7

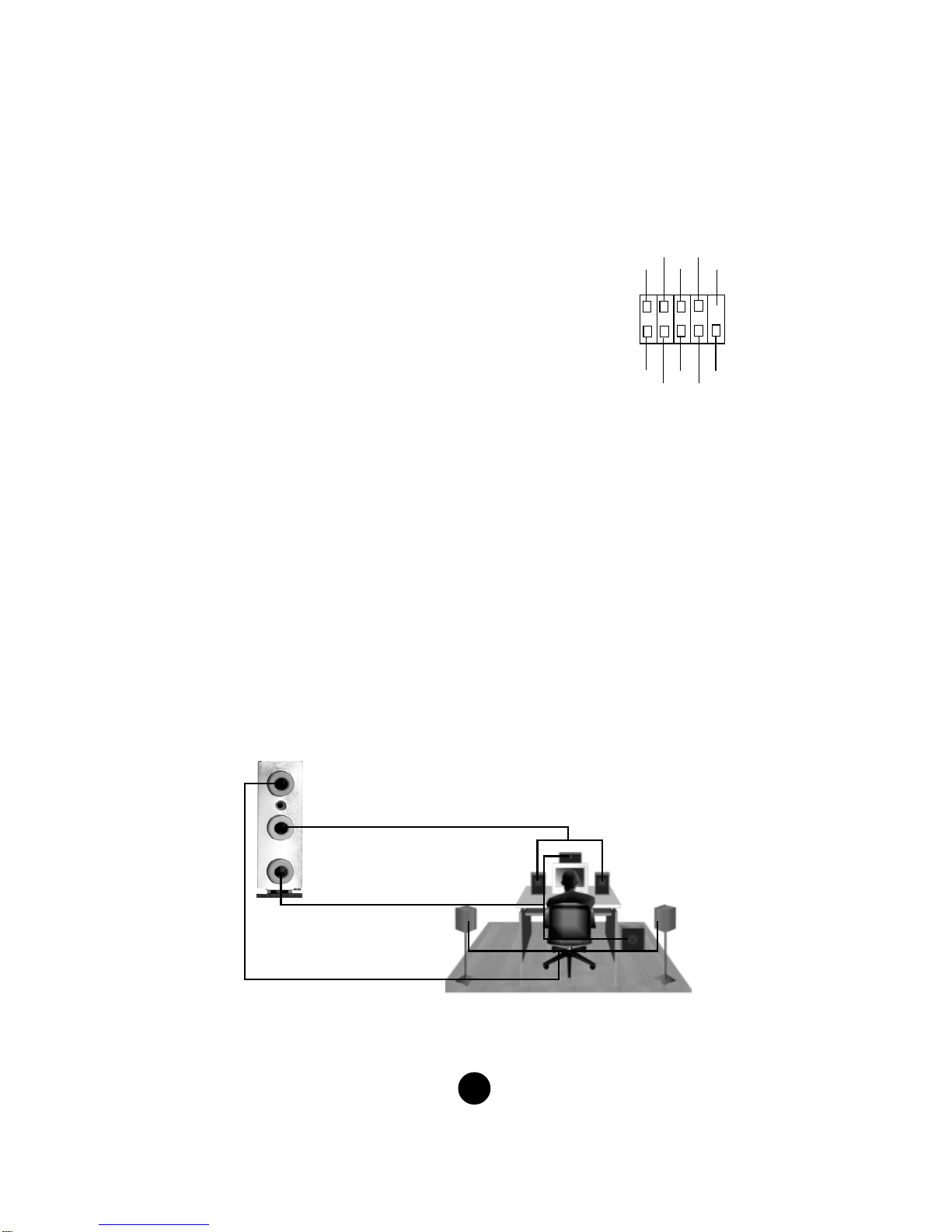

This motherboard attached a serial connector for your
computer, you only need connect it with cable, then link
devices to cable port.
11. COM2 Connector: FP_COM2
12. 6-channel Audio Effects
The motherboard is equipped with the Realtek ALC655 chip, which provides sup-
port for 6-channel audio output, including 2 front, 2 rear, 1 center and 1 subwoofer
channel. ALC655 allows the board to attach 2, 4 or 6 speakers for a better sur-
round sound effect. To apply this function, you have to install the audio driver in
utility CD as well as an audio application supporting 6-channel. Picture below
represents the standard location of all speakers in 6-channel sound track. Con-
nect the front speaker to the green audio output; connect the surround sound
speaker to the blue audio input; connect the center speaker/subwoofer to the red
Microphone input.
FP_COM2
SOUT RTS
RLSD
CTS
GND
DSR Empty
DTR
RI
9
10
SIN
1
2
Front
Left Front
Right
Rear Left Rear Right
Center
Blue
Green
Red
Subwoofer
8

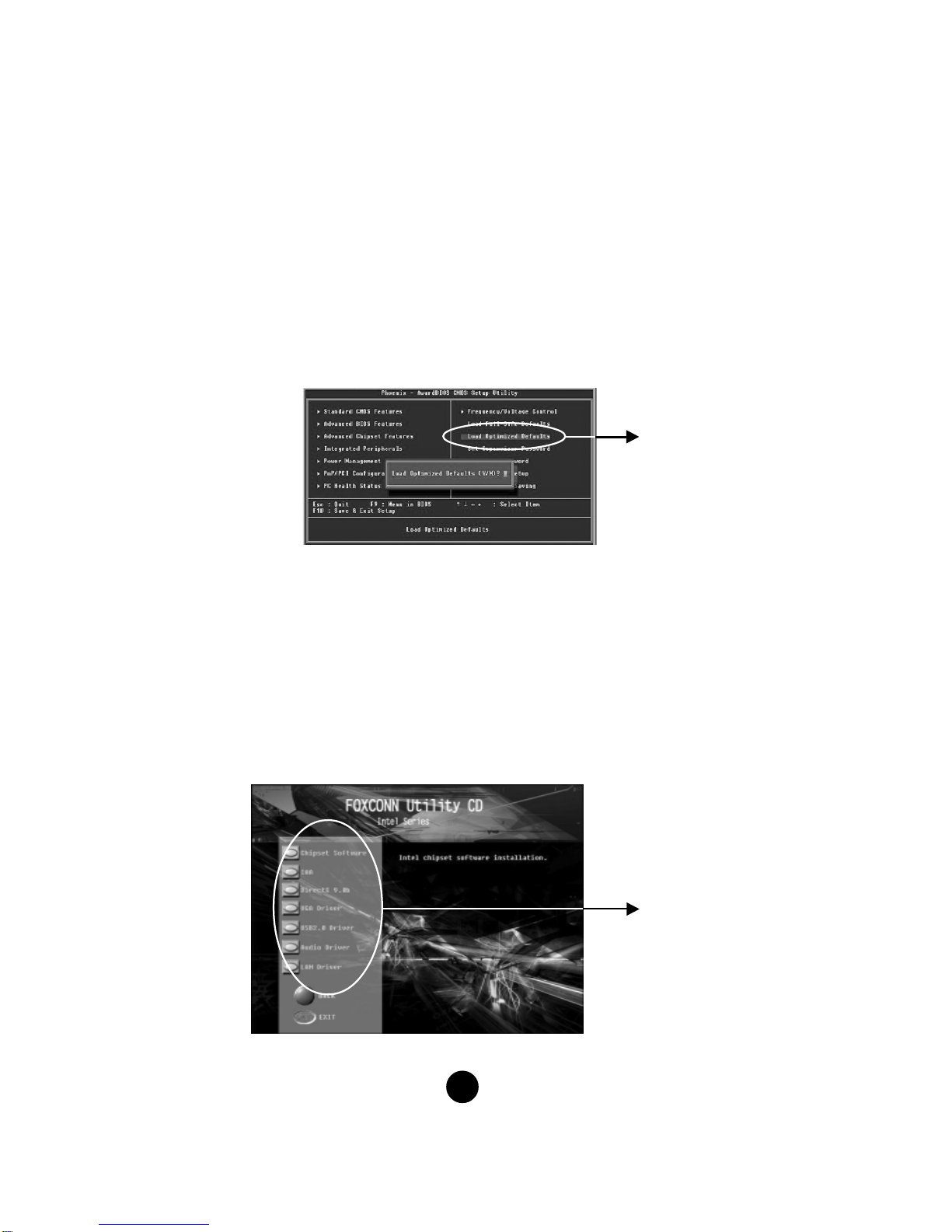

14. Foxconn Utility CD
This motherboard comes with one Utility CD. To begin using the CD, simply insert
the CD into your CD-ROM drive. The CD will automatically display the main menu
screen. After selecting Install Driver, you can install its Chipset Software, IAA,
DirectX 9.0, VGA Driver, USB 2.0 Driver, Audio Driver, LAN Driver from this CD.
Follow the screen
order to install the
motherboard
drivers.
After you finish the setting of jumpers and connect correct cables. Power on and
enter the BIOS Setup, Press <Del> during POST (Power On Self Test). Choose
“Load Optimized Defaults” for recommended optimal performance. Please en-
sure your system components are good enough for optimized defaults.
13. Power on and Load Optimized Defaults
Select this option
and press <Enter>.
