Easy Installation Guide
Remark:
The above motherboard layout is provided for reference only;
please refer to the physical motherboard.
661FXME
184-pin DIMM Slots
ATX Power
Connector
ATA 66/100/133
IDE Connectors
System FAN Connector
Clear CMOS
Jumper
Front Panel Connector
12V ATX Power
Connector
Front Audio Connector
S/PDIF OUT
Connector (optional)
SiS 661FX Chipset
CD_IN Connector
IrDA Header
(optional)
Speaker Connector
FDD Connector
PCI Expansion Slots
8X AGP Slot
USB headers
SiS 964 Chipset
CPU FAN Connector
478-pinCPU Socket
CPU Model Selection
Jumper
S-ATA
Connectors
P/N: 91-185-U61-M4-0E
Layout
2

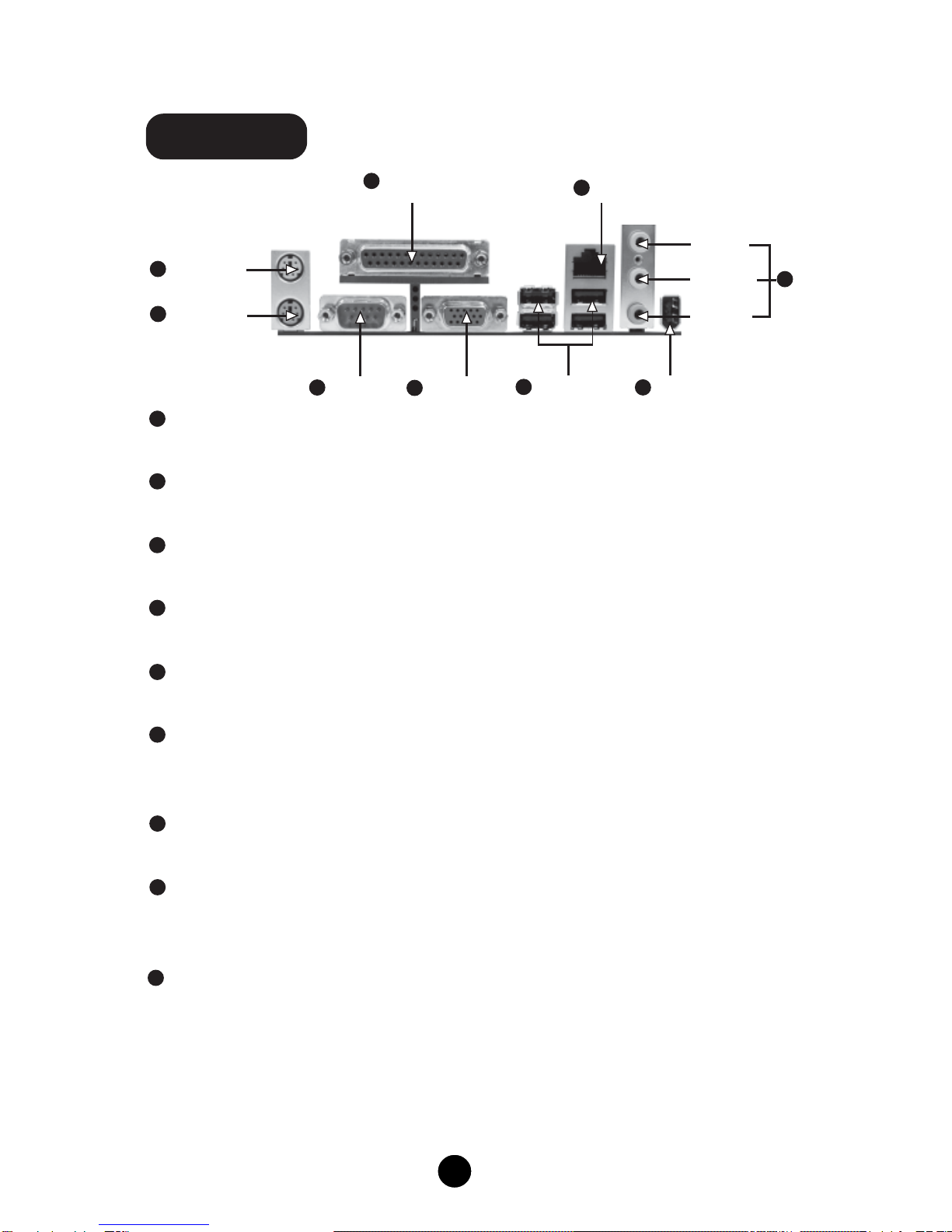

Rear Panel
Serial Port
(COM1) VGAConnector USB2.0Portx4
PS/2Mouse
Connector
ParallelPort
(Printer Port) LANConnector
1
2
4
6
5
7
PS/2 Keyboard
Connector
3
Line-injack
Line-outjack 9
Microphone
jack
1394Port
PS/2 Mouse Connector
This green 6-pin connector is for a PS/2 mouse.
PS/2 Keyboard Connector
This purple 6-pin connector is for a PS/2 keyboard.
Serial Port (COM1)
This 9-pin COM1 port is for pointing devices or other serial devices.
Parallel Port (Printer Port)
This 25-pin port connects a parallel printer, a scanner, or other devices.
VGAConnector
The VGA connector is for output to a VGA-compatible device.
USB 2.0 Ports
These four Universal Serial Bus (USB) ports are available for connecting USB 2.0
devices.
LAN Connector
This port allows connection to a LocalArea Network (LAN) through a network hub.
1394 Port
This digital interface supports electronic devices such as digital cameras, scanners
and printers.
Line-in jack, Line-out jack, Microphone jack
Use the three audio ports to connect audio devices. The Line-in jack is for a tape
player or other audio sources. The Line-out jack is for a headphone or a speaker.
The Microphone jack is for a microphone. In 6-Channel mode, the function of the
three jacks becomes Rear Speaker Out, Front Speaker Out and Center/Subwoofer
Speaker respectively.
2
5
3
6
1
4
7
9
8
8
3
Thank for your purchasing Foxconn’s 661FXME series motherboard. Please care-
fully check the package; if there are any missing or damaged items, contact your
distributor as soon as possible.
661FXME motherboard (x1)
Foxconn Utility CD (x1)
Easy Installation Guide (x1)
IDE Ribbon cable (x1)
FDD Ribbon cable (x1)
I/O Shield (x1)
S-ATASignal cable (x1) (optional)
S-ATAPower cable (x1) (optional)
Accessory Checklist
CPU/ Memory Support Features
CPU:
Supports Intel®Pentium ®4 socket 478 (Willamette/Northwood/Prescott) pro-
cessors
Supports Intel®Celeron ®socket 478 (Willamette/Northwood) processors
Supports FSB at 400MHz/533MHz/800MHz
Memory:
Two 184-pin DIMM slots
Supports 266/333/400MHz Single Channel DDR DRAM interface
Supports 128/256/512/1024 Mb memory technology up to 2.0GB
Supports unbuffered non-ECC RAM
4
You can clear CMOS to restore default system
setting. To clear the CMOS, follow the procedures
described below.
1. Turn off the AC power and connect pin 1 and 2
together using the jumper cap.
2. Return the jumper setting to normal (pin 2 and
3 together with the jumper cap).
3. Turn the AC power supply back on.
The default status for J2 is open, which supports
the Prescott and Northwood CPU. If J2 set as
close, then it supports the Willamette CPU.
CLS_CMOS
1. Clear CMOS Jumper: CLS_CMOS
2. CPU Model Selection Jumper: J2
Plug the CPU cooling fan cable into the 3-pin
CPU_FAN power supply on the mainboard. Con-
nect the case cooling fan connector to FAN1.
4. FAN Connectors: CPU_FAN, FAN1
Attach the power LED, IDE LED, reset switch and
power switch connectors to the corresponding
pins.
3. Front Panel Connector: FP1
Normal
(default)
1
Clear CMOS
1
NC
IDE-LED+
GND
PLED+
PWRBTN#
PLED-
GND
IDE-LED-
EMPTY
RESET
1 2
9 10
FP1
J2
Open
(Default) 12
Close 12
FAN1
SENSE
+12V
GND
1
CPU_FAN
GND
+12V
SENSE
1
5
The audio interface provides two kinds of audio
output choices: the FrontAudio, the RearAudio.
Their priority is sequenced from high to low (Front
Audio to RearAudio). If headphones are plugged
into the front panel of the chassis (using the
Front Audio), then the Line-out (Rear Audio) on
the rear panel will not work. If you do not want to
use the Front Audio, pin 5 and 6, pin 9 and 10
must be SHORT, and then the signal will be
sent to the rear audio port.
7. Front Audio Connector: F_AUDIO
The serial ATA connector is used to connect the
Serial ATA device to the motherboard. These
connectors support the thin Serial ATA cable for
primary internal storage devices. The current
Serial ATA interface allows up to 150MB/s data
transfer rate.
5. Serial ATA Connector: SATA1, SATA2
CD_IN is Sony standard CD audio connector, it
can be connected to a CD-ROM drive through a
CD audio cable.
6. CD_IN Connector: CD_IN
F_AUDIO
MIC_IN MIC_GND
MIC_PWR +5VA
AUD_OUT_R AUD_RET_R
AUD_OUT_L AUD_RET_L
12
910
EmptyNC
SATA1/SATA2
GND
GND
GND
RX+RX-
TX+TX-
1
CD_IN
CD_R
GND
CD_L
1
6
The speaker connector is used to connect the
speaker of the chassis.
8. Speaker Connector: SPEAKER
SPK
NC
SPKJ
Empty
1
SPEAKER
The S/PDIF output connector is capable of provid-
ing digital audio to external speakers, or com-
pressed AC3 data to an external Dolby digital
decoder.
10. S/PDIF Out Connector(optional): SPDIF_OUT
Besides four USB ports on the rear panel, the
series of motherboard also have two 10-pin head-
ers on board which may connect to front panel
USB cable to provide four additional USB ports.
9. USB Headers: F_USB1, F_USB2
SPDIF_OUT
5V
SPDIF_OUT
GND
Empty
1
F_USB1/F_USB2
D0+
D0-
Empty
GND
VCC VCC
GND
D1-
D1+
1 2
NC
9 10
7
This header supports wireless transmitting and
receiving devices. Before using this function,
Configure the settings of IR mode from the “In-
tegrated Peripherals” section of the CMOS
Setup Utility.
11. IrDA Header (optional): IR
The motherboard is equipped with the CODEC ALC655 chip, which provides
support for 6-channel audio output, including 2 front, 2 rear, 1 center and 1
subwoofer channel. ALC655 allows the board to attach 2, 4 or 6 speakers for
a better surround sound effect. To apply this function, you have to install the
audio driver in utility CD as well as an audio application supporting 5.1 Channel.
The illustration shown below represents the standard location of all speakers in
5.1 Channel sound track. Connect the front speaker to the green audio output;
connect the surround sound speaker to the blue audio input and connect the
center speaker/subwoofer to the red microphone input.
Blue
FrontLeft Front Right
RearLeft Rear Right
Subwoofer
Center
Green
Red
12. 5.1 Channel Audio Effects
Empty
IR
1+5V
GND
IRRX
IRTX
8
After you finish the setting of jumpers and connect correct cables, power on the
system and press <Del> during POST (Power On Self Test) to enter the BIOS Setup
Utility. Choose “Load Optimized Defaults” for recommended optimal performance.
Please make sure your system components are good enough for optimized defaults.
This motherboard comes with one Utility CD. To begin using the CD, simply insert
the CD disc into the CD-ROM drive. The CD will automatically bring up the main
menu screen. Click “Install Driver”, then click the relevant buttons to install the IDE
Driver, AGP Driver, VGA Driver, DirectX 9.0b, USB2.0 Driver,Audio Driver and LAN
Driver from this CD.
Follow the screen order to
install the motherboard
drivers.
Select this option
and press <Enter>.
13. Power on and Load Optimized Defaults
14. Foxconn Utility CD
