US01, US03 & US06 Series Quick Start

EchoTouch®

Intrinsically Safe Reflective Ultrasonic Liquid Level Transmitter

| 2 QS300820 Rev A2

WELCOME TO THE ECHOTOUCH® QUICK START

The EchoTouch® Quick Start provides basic mounting, setup and use instructions for getting the

EchoTouch® up and running quickly. If you have a non-standard installation or setup requirement that is

not addressed here, please refer to the EchoTouch® Manual or other support documentation located at

flowline.com.

WE DO YOUR LEVEL BEST

Thank you for purchasing EchoTouch®. The transmitter provides WebCal® software configuration (all models)

or integrated LCD and three push-button configuration (US06 series only). This quick start includes everything

you’ll need to get the transmitter up and running.

COMPONENTS

Depending upon the transmitter part number shipped, EchoTouch® comes with the Quick Start and a Viton®

gasket for installation with G threaded versions only.

EchoTouch®

US01-0001-00

US01-0001-01

US01-0011-00

US01-0011-01

EchoTouch®

US03-0001-00

US03-0001-01

US03-0011-00

US03-0011-01

EchoTouch®

US06-0003-00

US06-0003-01

US06-0013-00

US06-0013-01

USB® Key Fob

P/N: LI99-2001

Viton® gasket (2”)

P/N: 200129

G threaded version

only

WebCal

Configuration Only

WebCal

Configuration Only

Push Button or

WebCal

Configuration

ENCLOSURE

While the enclosure housing is liquid-resistant the EchoTouch® transmitter is not designed to be operational

upon being immersed. It should be mounted in such a way that the enclosure and transducer do not come into

contact with the application media under normal operational conditions. Before closing the enclosure (US06

series only), make sure that the enclosure gasket is properly seated, and that any conduit fittings, cable

connectors or plugs are installed correctly and sealed. Note: If using the Flowline LM90-1001 (liquid tight

fitting) on the ½” conduit, the cable minimum is 0.170” (4.3mm) and the maximum is 0.450” (11.4mm).

CONFIGURATION

When configuring EchoTouch®, choose either the WebCal® (all versions of EchoTouch®) or Push Button

method (US06 series only). Changes to the configuration can be made using the alternative method. When

beginning with one method, it is recommended to complete the configuration before using the other method to

make any adjustments.

QS30

Ech

be p

STE

spe

Win

You

inst

STE

mus

com

The

the

STE

Mea

in c

take

resp

iden

tran

setti

mea

820 Rev A2

FIGURING

Touch

erformed p

1: INSTAL

nload Web

ifications:

ows

2000

must have

ll software

2: CONNE

E: Do not

Cal

softw

E: When c

t remove th

leted, you

transmitter

port, ens

omputer a

emove the

onnector o

onnect the

orrespondi

entical for

nd Black w

a. Pow

b. Pow

c. Web

d. Web

ighten the

lug the Fo

3 - MEAS

suring the t

nfiguring th

into accou

ect to fitting

ify where t

mitte

. Th

gs determi

sured from

CHOTOUC

onfigured t

ior to moun

WEBCAL

al® softwa

XP/Vista/7/

n active In

efore proc

T THE US

onnect the

re.

nnecting th

display or

can re-conn

ommunica

re that all e

d EchoTou

display an

the circuit

proper ter

g colored t

ll series –

res.

r (+) to Re

r (-) to Bla

al (W) to

al (G) to G

erminal scr

into the P

RE THE TA

nk is one o

transmitte

t the locati

, risers, do

e measure

HEIGHT (

ne the 4-20

he bottom

(WEBCA

rough Web

ing, since it

SOFTWAR

e from ww

/10, 10 M

ernet conn

eding to St

FOB

Fob to you

sensor to

the softwar

ect the disp

es to Web

ternal pow

is 15’.

unplug th

oard (US0

inals from t

rminals on

se only the

hite

reen

ws with a s

USB

port

the most i

. When me

n of the tra

e tops an

ents are ta

mA) and FI

A span an

f the tank u

) – ALL VE

Cal

, a PC

requires co

.flowline.co

storage sp

ction to do

p 2. Install

computer

he WebCal

will not co

ay to the te

through

r is discon

cable from

series onl

e EchoTou

the Fob. W

Red, Gree

lotted scre

portant as

suring the

smitte

wit

bottoms, a

ken from th

LL-H (20m

are alway

SIONS OF

oftware pr

nection to

m/webcal-s

ce, 256 M

nload Web

er program

ntil you’ve

Software,

nect. Onc

minal.

the USB

ected from

the

to the

iring

, White

driver.

ects

ank,

)

CHOTOUC

gram. Con

our PC.

ftware ont

RAM, 1 U

. Doubl

ill automa

nstalled

you

ob. Prior to

EchoTouch

iguration of

a PC with

2.0 port

e-click the

ically install

plugging th

. The max

your trans

he followin

ebCal

ins

any require

Fob into y

mum distan

itte

should

minimum

taller to

drivers.

ur compute

ce between

3 |

| 4

STE

Con

STE

Dist

will

curr

4 - TRANS

igure the L

5 – DIMEN

ance (defa

eflect linea

nt span for

Height

Sensor

(bottom

Fill-Hei

(bottom

MITTER CO

op Fail-Saf

IONAL EN

lt): Output

ly to the cur

the transmi

nits: Conf

eight: Se

f tank) to t

ht: Sets th

f tank) to t

FIGURATI

, Output at

f transmitt

rent output.

. Both v

rm units for

s the locati

e Measure

location fo

e Full level

Empty and

is based

The two val

lues will b

use in Sen

n for 4mA.

ent locatio

r 20mA. It i

position (se

Startup Co

n the heigh

ues of Sen

set in the u

or Height a

It is based

for the se

based on

below).

dition for th



of liquid in

or Height a

nits shown

d Fill-Heig

n the dista

sor (botto

he distanc

transmitte

Loop Fail

o Sets

the tr

recei

cond

Output at

o Sets

appli

4mA

20m

Startup C

o Sets

pow

to th

valid

the tank. A

d Fill-Heig

nder Heig

t settings.

ce from th

of senso

from the E

safe

he default

ansmitte

e a return

tion)

Empty

he current l

ation with r

being at th

at the top

ndition

he current

r is first ap

transmitter

return sign

ny change i

t set the 4-

t Units.

Empty lev

pty level p

QS300820 Rev

utput when

es not

ignal (LOS

ogin for the

gards to

bottom an

r reversed

utput whe

lied relative

acquiring a

liquid leve

0 mA

l position

sition

QS300820 Rev A2 5 |

STEP 6 - TANK LEVEL CONFIRMATION

Verify the Height Units, Sensor Height & Fill-Height. All values were calculated and set in the previous

Dimensional Entry window. Make any adjustments if required.

STEP 7 - WRITE TO UNIT

This WebCal®* operation uploads the configuration into the transmitter, provides a custom wiring diagram

specific to the signal output and/or relay configuration, and saves the configuration file to your hard drive.

Before configuration can be

completed:

 You must click the Write to

Unit button to save the settings

to the unit.

 Then, click Wiring Diagram for

a hard copy of the transmitter’s

settings.

 Finally, enter the file name

under which you wish to save

the configuration file and click

Save Config File.

Configuration is now complete.

Disconnect the USB® Fob before

continuing to the next step:

Mounting the EchoTouch®.

* For complete information on the WebCal® software, please refer to the WebCal® manual located at

flowline.com/webcal-software.

| 6 QS300820 Rev A2

CONFIGURING ECHOTOUCH® (DISPLAY) – US06 SERIES ONLY

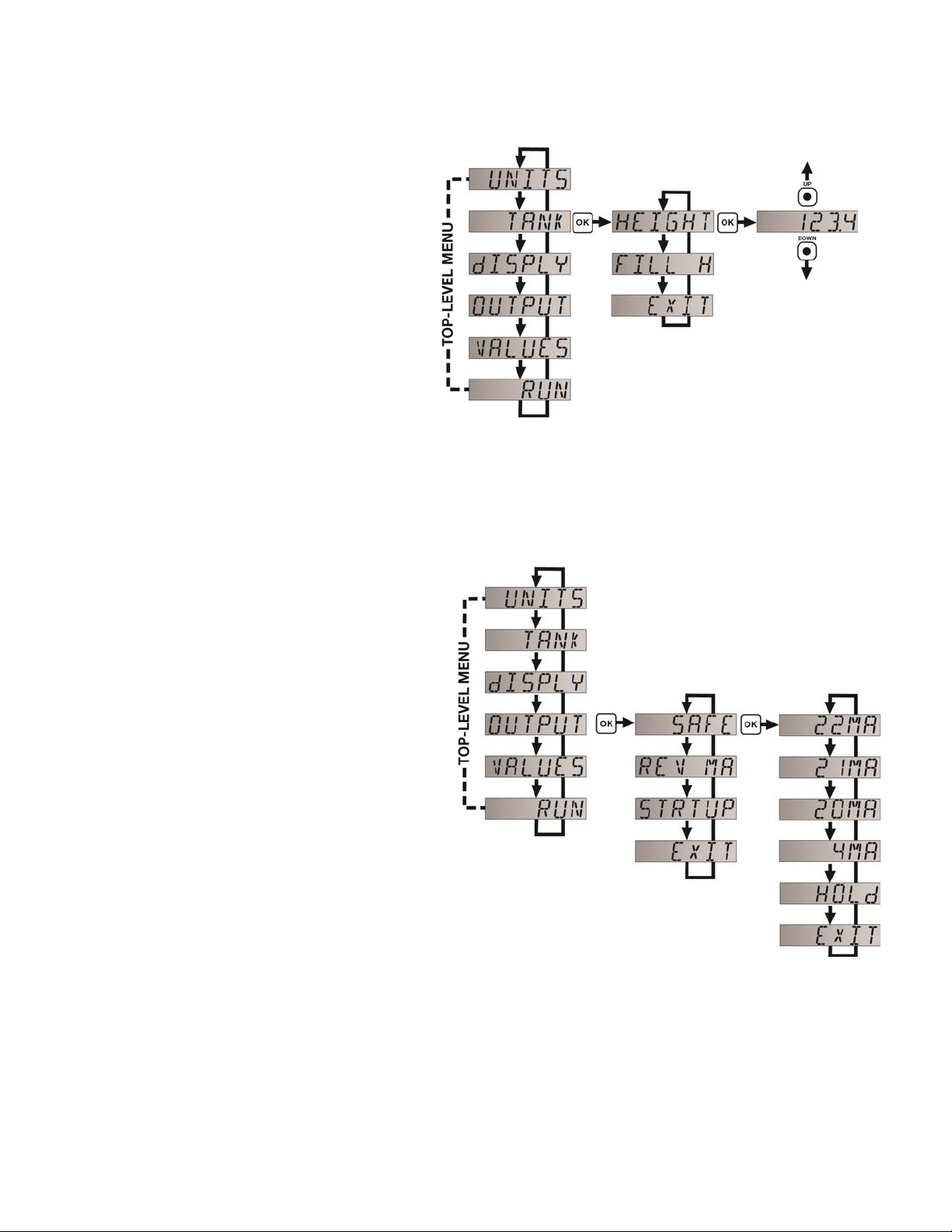

TOP-LEVEL MENU

The transmitter is configured with the three buttons on the transmitter face (UP, DOWN and OK) and the

transmitter’s LCD. To access the transmitter’s Top-level menu, simply hold down the OK button for five

seconds. The display menu will automatically begin to scroll through the TOP-LEVEL MENU.

When the menu scrolls to an item you wish to configure, simply press the OK button to choose that item. The

TOP-LEVEL MENU will continue to scroll through the following (UNITS – TANK – dISPLY – OUTPUT –

VALUES – RUN), If you miss your selection, it will appear again shortly.

 To return to the TOP-LEVEL MENU, press OK when EXIT appears.

 To return to Operational Mode of the transmitter, press OK when RUN appears in the TOP-LEVEL

MENU.

 Note: To speed up the scrolling of the values on the display, hold down the OK button while holding

down the UP or DOWN buttons.

STEP 1 - MEASURE THE TANK

Measuring the tank is one of the most important aspects in

configuring the transmitter. When measuring the tank, take into

account the location of the transmitter with respect to fittings,

risers, dome tops and bottoms, and identify where the

measurements are taken from the transmitter. The HEIGHT

(4mA) and FILL-H (20mA) settings determine the 4-20mA span

and are always measured from the bottom of the tank up.

Height: Sets the location for 4mA. It is based on the distance

from the Empty level position (bottom of tank) to the

Measurement location for the sensor (bottom of sensor).

Fill-Height: Sets the location for 20mA. It is based on the

distance from the Empty level position (bottom of tank) to the Full

level position (see below).

#2 - SETTING THE UNITS OF MEASUREMENT (UNITS)

The EchoTouch

displays information in the following units:

inches, feet, centimeters, meters or percentage. The value

shown on the display represents the amount of liquid in the

tank.

1) In TOP-LEVEL MENU mode, select UNITS by pressing OK.

2) Next, select INCHES, FEET, CM, METERS by pressing

OK.

3) Finally, select EXIT by pressing OK to return to the TOP-

LEVEL MENU.

QS300820 Rev A2 7 |

#3 - SETTING THE HEIGHT (SENSOR HEIGHT OR 4mA) AND FILL-HEIGHT (FILL-H OR 20mA)

This setting customizes the reading for your installation. Follow these instructions to set the height and fill

height for your tank:

1) In TOP-LEVEL MENU mode, select TANK.

2) Select HEIGHT.

3) Use the UP and DOWN buttons, set the

HEIGHT of your tank.

4) To enter the value, press and hold OK for 5

seconds and release. SAVED will display.

HEIGHT is now set.

5) Select FILL-H.

6) Use the UP and DOWN buttons, set the Fill-

H of your tank.

7) To enter the value, press and hold OK for 5

seconds and release. SAVED will display.

FILL-H is now set.

8) Select EXIT by pressing OK to return to the TOP-LEVEL MENU.

9) Select RUN by pressing OK to return to Operational Mode.

Note: The Height (4mA) and Fill Height (20mA) settings also determine the 4 to 20 mA current span.

#4 - HOW TO SELECT FAIL-SAFE CURRENT OUTPUT (LOST)

In the event the transmitter does not receive an

echo, the Fail-Safe Current Output or LOST

setting can be set to output a current of 4mA,

20mA, 21mA, 22mA or HOLD (last known value).

During fail-safe, the display will read LOST.

1) In TOP-LEVEL MENU mode, select SAFE.

2) Select 4mA, 20mA, 21mA, 22mA or

HOLD.

a. Press and hold OK on the selected

setting for 2 seconds then release.

3) Select EXIT to return to the TOP-LEVEL

MENU.

TROUBLESHOOTING

If you face any issues not addressed in this Quick Start, please refer to the EchoTouch® Manual located on

Flowline’s website at www.flowline.com.

| 8 QS300820 Rev A2

MOUNTING ECHOTOUCH®

The transmitter should always be mounted perpendicular to the liquid surface. Insure that there are no

restrictions or obstacles in the path of the acoustic signal. For further mounting information, please refer to the

EchoTouch® manual at www.flowline.com.

Installation in existing 3” fittings:

Use a LM52-2400 3” thread x 2” thread adapter or a LM52-2410 3”

slip x 3” thread adapter.

Basic Tank Installation:

Use a 2” bulkhead fitting, such as the LM52-2890 bulkhead fitting.

Use a larger bulkhead fitting, such as the 3” LM52-3890 with a

reducer bushing such as the LM52-2400 (3” to 2”).

Use a flange with a 2” thread, such as the LM52-2850.

Weld a plastic 2” half coupling to the tank top.

Mounting in Riser:

Installations with tall, narrow risers can impede the acoustic signal.

2" diameter risers should be no taller than 4". Larger diameter

risers should be no taller than 12". For best results, follow a 2:1

Height to Inner Diameter ratio (example: 8” Height to 4” Inner

Diameter or 12” Height to 6” Inner Diameter).

Installation in open tanks and sumps:

Use Flowline's LM50-1001 side mount bracket.

Note: The Side Mount Bracket (LM50 series) is not designed

for use with stand pipes or as a method to secure stand pipes.

There are too few threads to properly hold the transmitter and

the stand pipe.

LM50-1001

LM52-2400

LM52-2890

LM52-2850

Mounting in Riser

QS300820 Rev A2 9 |

IMPORTANT MOUNTING GUIDELINES

1) Never mount the transmitter at an angle.

2) Liquid should never enter the dead band.

3) Mount at least 3” from the side wall.

4) Never mount the transmitter in a vacuum.

5) Do not obstruct the transmitter’s beam width with objects underneath the transmitter.

6) Never mount in the center of a dome top tank.

7) In a cone bottom tank, position the transmitter over the deepest part of the tank.

8) Avoid mounting in a riser where the transmitter is recessed more than twice the diameter of the riser.

MOUNTING IN A STAND-PIPE

A stand-pipe may be used to dampen turbulence, separate surface foam from the point of measurement or

increase performance in heavy vapor. When mounting the transmitter in a stand-pipe, the minimum diameter of

the pipe is 2” for the US01 and US03 series and 3” for the US06 series. Larger diameter pipes can be used.

The pipe should be attached with a coupling or tank adapter and reducer bushing. Avoid the use of multiple pipe

fittings when possible. An ideal mount would be to select a 3” tank adapter (S x T or S x S) and connect the pipe

to the inside slip and use a reducer bushing to attach the transmitter (see example below).

The pipe length should run the measurement span and the bottom of the pipe should remain submerged at all

times to prevent foam from entering the pipe. Cut the bottom end of the pipe at 45° and drill a 1/4” pressure

equalization hole within the transmitter’s dead band. Locate the stand-pipe away from pump outlets and/or other

sources of substantial turbulence which might cause the liquid in the pipe to oscillate.

3” x 2”

Reducer Bushing

(TxT)

3” Tank

Adapter

(S x T)

3” PVC Pipe

Stand-Pipe Example

Stand-Pipe Mounting

| 10 QS300820 Rev A2

ANALOG OUTPUT (4-20 MA)

The analog output of the EchoTouch® is a loop powered 4-20 mA control circuit. The typical way to use this

feature is to connect a positive supply to the (+) input and to sense the current flow out of the (-) output. For all

Intrinsically Safe applications, refer to control drawing 600820 for the US06 series and 610125 for the US01

and US03 series. All control drawing can be found at flowline.com.

The cabling should be a shielded twisted pair to minimize EMI interference. Typically 20 to 24 gauge wire is

used in this application.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels FlowLine Émetteur

FlowLine

FlowLine EchoSonic II LU23 Series Manuel utilisateur

FlowLine

FlowLine EchoPulse LR10 Series Manuel utilisateur

FlowLine

FlowLine EchoBeam LR81 Series Manuel utilisateur

FlowLine

FlowLine EchoPulse LR15 Series Manuel utilisateur

FlowLine

FlowLine EchoWave LG10 Series Manuel utilisateur

FlowLine

FlowLine FloaTek LV55 Series Manuel utilisateur

FlowLine

FlowLine EchoWave LG11 Series Manuel utilisateur

FlowLine

FlowLine MiniMe LU12 Manuel utilisateur

FlowLine

FlowLine EchoSpan LU80-5101 Manuel utilisateur

FlowLine

FlowLine EchoBeam LR80 Series Manuel utilisateur

FlowLine

FlowLine EchoBeam LR85 Series Manuel utilisateur

FlowLine

FlowLine LU20 Manuel utilisateur

FlowLine

FlowLine LU30 Manuel utilisateur

FlowLine

FlowLine EchoPod US01-03 Manuel utilisateur

FlowLine

FlowLine EchoSafe XP88 Manuel utilisateur

FlowLine

FlowLine LD31-S301 Series Manuel utilisateur

FlowLine

FlowLine EchoPod UG06 Series Manuel utilisateur

FlowLine

FlowLine EchoSpan LU80 series Manuel utilisateur

FlowLine

FlowLine EchoPro LR11 Series Manuel utilisateur

FlowLine

FlowLine EchoPod UG12 Series Manuel utilisateur

FlowLine

FlowLine EchoSonic LU23 Series Manuel utilisateur

FlowLine

FlowLine EchoSonic II LU27 Series Manuel utilisateur

FlowLine

FlowLine EchoSonic II Series Manuel utilisateur

FlowLine

FlowLine EchoSpan LU80 series Manuel utilisateur

Manuels Émetteur populaires d'autres marques

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuel du propriétaire

Honeywell

Honeywell 5816WMBR Manuel utilisateur

Kamstrup

Kamstrup READy MTU Mode d'emploi

Omega

Omega ZW Series Manuel utilisateur

ABB

ABB Field 264H Mode d’emploi

Alinco

Alinco DJ-V17T Manuel utilisateur

Dejero

Dejero EnGo 3x Manuel utilisateur

Rosemount

Rosemount 4600 Manuel utilisateur

Speaka Professional

Speaka Professional 2342740 Manuel utilisateur

trubomat

trubomat GAB 1000 Manuel utilisateur

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuel utilisateur

Rondish

Rondish UT-11 Manuel utilisateur

MG 10JRE Manuel utilisateur

Burkert

Burkert 8177 Manuel utilisateur

Firetide

Firetide HotPort 3203 Manuel

Tele Radio

Tele Radio T9-02 Manuel utilisateur

Rotronic

Rotronic HygroFlex HF3 Series Manuel utilisateur

Jamara

Jamara FCX6 Pro Tel Manuel utilisateur
