FELIXprinters Pro Series Manuel d'utilisation

29 januari 2021

Revision 1

FELIX Pro Series

Maintenance guide

FELIX Pro Series

Page 1

1Safety

General safety

-Keep children under the age of 14 out of reach of the printer

-FELIXprinters are only suitable for professional use.

Considerations when in operation.

-Don’t leave the printer unattended, before making sure the

first layer is printed properly

-Don’t lean on the printer.

-Be careful with long hair and wide clothes.

-Don’t transport the printer.

-Make sure all moving parts can move without any

obstructions.

-Don’t remove any objects from the hot plate while printing.

-Caution with any moving parts that move in the X, Y and Z

direction. Moving parts can have a pinching hazard.

Electronic safety

-Only use the power supplies and cables supplied by

FELIXprinters. Always turn off and unplug the printer before

performing maintenance or modifications.

-The power supply meets all CE mark regulations and is

protected against short-circuit, overload, over voltage and

over temperature.

Printer placement

-Place the FELIXprinter on a stable surface.

-Place the printer out of reach of children. Use the FELIXprinter

in a dry environment at room temperature.

Ventilate

-Good ventilation while printing is advised. When printing

ABS, small concentrations of styrene vapor can be released.

This can (in some cases) cause headaches, fatigue,

dizziness, confusion, drowsiness, malaise, difficulty in

concentrating, and a feeling of intoxication.

-We recommend using filament types shown on the

FELIXprinters website. Examples PLA, PETG, ABS-X,

Glassbend etc. Other types may be toxic; please follow

instructions from the filament supplier.

Caution with heater elements

-There is a potential risk of burn, as the print head can reach

temperatures of up to 275°C and the heated bed of up to

120°C.

-Don’t place objects on the heated bed, not even when the

printer is turned off.

-Always let the printer cool down for at least 5 minutes

before doing maintenance or modifications.

-Never try to print without a buildplate in the machine, this

can cause damage to the machine and heated bed.

FELIX Pro Series

Page 2

2Introduction

Thank you for choosing FELIXprinters!

It is highly recommended to read this manual while doing maintenance. It explains how to

properly take care of the machine. Maintenance should be done in intervals of 3 –4 months

depending on use and machine location.

3Contents

1SAFETY ..................................................................................1

2INTRODUCTION .............................................................2

3CONTENTS.........................................................................2

4RAILS......................................................................................3

5BALL SCREWS ................................................................ 6

6BELTS.................................................................................... 8

FELIX Pro Series

Page 3

4Rails

We are going to start with the rails for the

machine especially the X and Y rails of the

coreXY (the upper part of the machine).

We recommend Superlube products that we

also have in stock but other machine oils can

also be used.

First clean the rails with a paper towel or a

cloth to take the excess dirt off.

FELIX Pro Series

Page 4

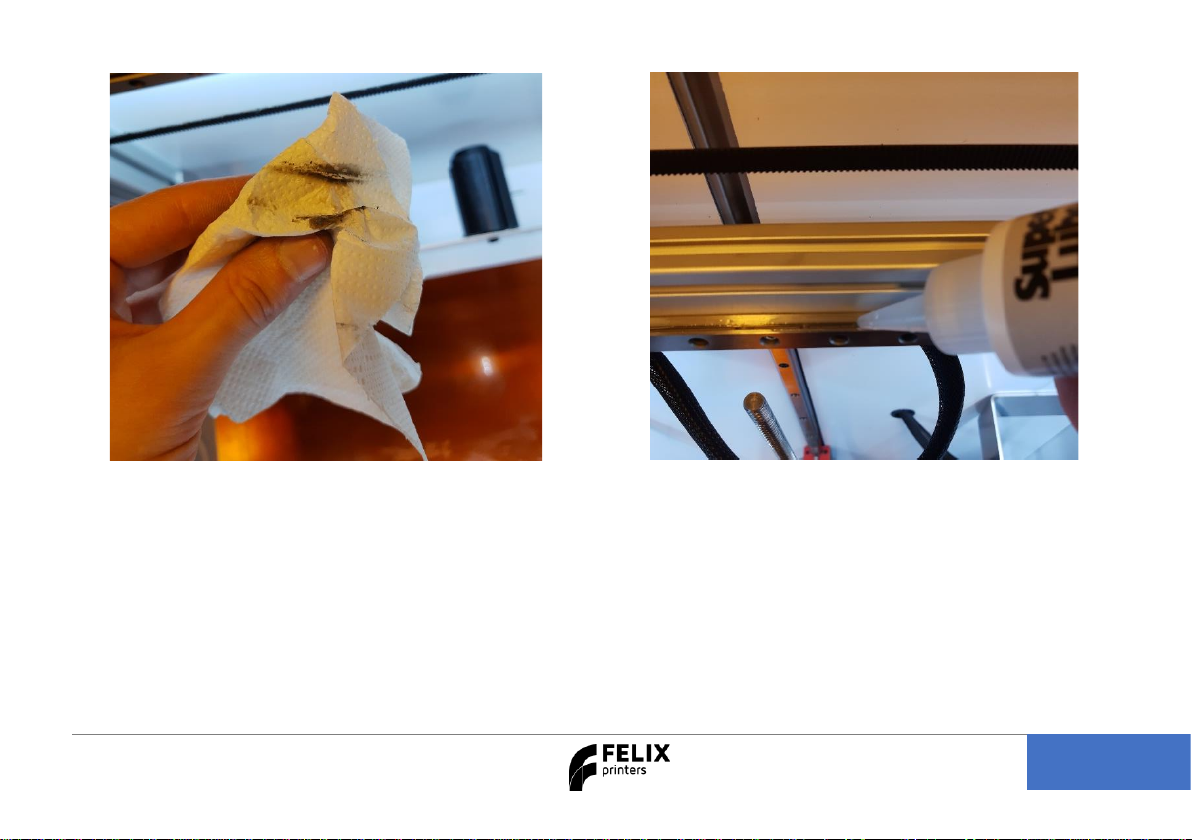

As you can see my rails had some dirt and

grease on them it’s important to take this off

before redoing the lubrication. Do this for all

the rails in the machine X, Y and Z.

Now we can reapply oil put a little over the

whole rail at top of the rail.

FELIX Pro Series

Page 5

Then take a paper towel or cloth and rub it

lightly over the rail then take the excess oil

and rub it on the bottom of the rail. After this

step move the head around a few times and

take of any excess oil so it doesn’t drip onto

the bed or other parts.

FELIX Pro Series

Page 6

5Ball screws

First we have to move the bed of the machine

down for easier access, this can be done by

hand or with the move menu.

Just like with the rails we have to clean the ball

screws first, again use a paper towel or a cloth

for this step.

FELIX Pro Series

Page 7

For the ball screws we are going to use the

PTFE based oil again, it only needs a little bit

along the rails.

Apply a few dots along all the ball screws I

usually make 3 to 4 dots. After this you can

home the machine in the move menu and it

will lubricate it’s with it’s upward motion, now

the machine is lubricated again and ready for

use if you see any belt slack check the belts

section.

FELIX Pro Series

Page 8

6Belts

Above the head and behind, you’ll find two

belts these need to be checked for tension

every 3 months. If they feel loose you can

tighten them with the bolt by screwing it in.

The Z motor also has a belt that should be

checked in regular intervals about every 6

months and can be tighten by undoing

the bolts a bit and then pushing it

backward then retighten everything and

then the machine is ready for use again.
