Quick Start Guide

Pro 2

FELIXprinters Quick Start Manual for the FELIX Pro 2

General safety

Keep children under the age of 14 out of reach of the printer.

FELIXprinters are only suitable for professional use.

Considerations when in operation

Do not lean on the printer.

Be careful with long hair and loose clothes.

Do not transport the printer while working.

Make sure all moving parts can move without any obstructions.

Do not remove any objects from the hot plate while printing.

Caution with any moving parts that move in the X, Y and Z

direction. At the end of each moving part there is a pinching

hazard.

Electronic safety

Only use the power supplies and cables supplied by FELIX-

printers. Always turn off and unplug the printer before doing

maintenance or modications.

The power supply meets all CE mark regulations and is

protected against short-circuit, overload, over voltage and over

temperature.

Printer placement

Place the FELIXprinter on a stable table/desk.

This will keep it safe from small children.

Use the FELIXprinter in a dry environment.

Ventilate

Good ventilation while printing is advised though printing

pure PLA is considered safe. When printing ABS, small

concentrations of Styrene vapour can be released. This

can (in some cases) cause headaches, fatigue, dizziness,

confusion, drowsiness, malaise, difculty in concentrating,

and a feeling of intoxication.

We recommend using lament types shown on the FELIX-

printers website. Examples PLA, PETG, ABS, Glassbend etc.

Other types may be toxic. Please follow instructions from the

lament supplier.

Caution with heater elements

There is a potential risk of injury, as the print head can reach

temperatures of up to 275°C and the heated bed of up to

100°C. Don’t place objects on the heated bed that are not

being printed, not even when the printer is turned off.

Always let the printer cool down for at least 10 minutes

before doing maintenance or modications.

We do not recommend to leave the printer unattended for

a very long period of time. If you do, it is recommended to

leave it in a properly conditioned room with distance from

highly amable objects.

Safety

Page 2

FELIXprinters Quick Start Manual for the FELIX Pro 2

Thank you for choosing FELIX Pro 2.

This Quick Start guide contains the following information for you to familiarize yourself with your 3D printer, to use it

to its best advantages and to benet fully from all the functions and the technical developments it incorporates.

It is well worth taking a few minutes to read this guide to familiarize yourself with the information and guidelines it

contains about the machine and its functions.

More manuals and tutorials can be found on www.felixprinters.com/support

Page 3

Chapter 1 – Unboxing

1.1 What’s in the box?

1.2 Installing foot bracket

1.3 Installing display unit

Chapter 2 – Setup

2.1 Preparing the print bed

2.2 Installing lament accessoires and cables

2.3 Power on

Chapter 3 – Preparation

3.1 Display overview

3.2 Print bed calibration

3.3 Loading lament

3.4 Cleaning the print bed

INTRODUCTION & CONTENT

Chapter 4 – Print

4.1 Start your rst print

4.2 When a print has nished

4.3 Remove and nish a printed object

Chapter 5 – Software, maintenance, support

5.1 Software

5.2 Tips and tricks

5.3 Maintenance

5.4 Display messages

Require additional support?

Have a look at www.felixprinters.com/support

or at our user forum.

FELIXprinters Quick Start Manual for the FELIX Pro 2

Page 4

FELIX Pro 2

System Specications

• Printer dimensions (L, W, H) 420 x 400 x 550 mm

• Weight 11.5 kg

• Power requirements: 220 V

Capabilities

• Build volume Single mode (L, W, H) 237 x 245 x 235 mm

• Build volume Dual mode (L, W, H) 237 x 245 x 235 mm

• Layer height range 0.05 - 0.25 mm

• Bed temperature: max. 100 °C

Extruders

• Diameter nozzle: 0.35 mm (optional 0.5mm)

• Nozzle temperature: max. 275 °C

• Full metal hot-ends

Website

www.FELIXprinters.com

Print materials

• Open source 1.75 mm filaments

• Tolerance: ± 0.15 mm

• PLA, PET(G), Flex, ABS, PVA, Wood, Glassbend

Connectivity

• Stand-alone micro-SD card printing

• USB cable connection

• Optional WiFi (external unit)

Software

• Including one-year licence for Simplify3D or FELIXbuilder

• Support for open source Repetier Host for FELIXprinters

Contact

[email protected]

Zeemanlaan 15, 3401 MV IJsselstein, The Netherlands

Specs

FELIXprinters Quick Start Manual for the FELIX Pro 2

The Basics

Display unit

Nozzles / Extruder

Print bed

Lever for rotating bed

Foot

SD card slot

Filament guide

Filament spool holder

Power switch

Power connection

USB PC connection

Page 5FELIXprinters Quick Start Manual for the FELIX Pro 2

FELIXprinters Quick Start Manual for the FELIX Pro 2

1.1 What’s in the box?

The box could contain extra materials like lament you have ordered.

We recommend to use the following tools: small pliers, scissors, (plastic) spatula, detergent like alcohol, paper towel or cloth.

1 x Allen key

2 x Filament holder

1 x Filament guide

2 x M4x20 bolts

1 x Foot bracket

1 x Display unit

1 x Power unit

1 x Power cable

1 x USB cable

1 x Tweezers

1 x USB ash drive

2 x Teon tubes

Chapter 1: Unboxing

Page 6FELIXprinters Quick Start Manual for the FELIX Pro 2

Recommended tools:

FELIXprinters Quick Start Manual for the FELIX Pro 2

1.2 Installing the foot bracket

Chapter 1: Unboxing

Take out the foot bracket. Leave the printer frame in the

box for now.

Place the foot bracket on a stable and at surface.

Page 7Page 7FELIXprinters Quick Start Manual for the FELIX Pro 2

FELIXprinters Quick Start Manual for the FELIX Pro 2

Fix the printer frame onto the foot bracket with the

supplied M4x20 screws using the provided Allen key.

Remove the foam protection from the printer frame and

place the frame on the foot bracket.

Page 8

Chapter 1: Unboxing

FELIXprinters Quick Start Manual for the FELIX Pro 2

Plug in the connector into the display unit, then slide the dis-

play onto the metal pins. Do not turn on power just yet.

1.3 Installing the display unit

Page 9

Chapter 1: Unboxing

Connect the cables from the printer with the display unit.

Make sure the power is turned off when connecting

the display. Failing to do so could cause serious damage.

FELIXprinters Quick Start Manual for the FELIX Pro 2

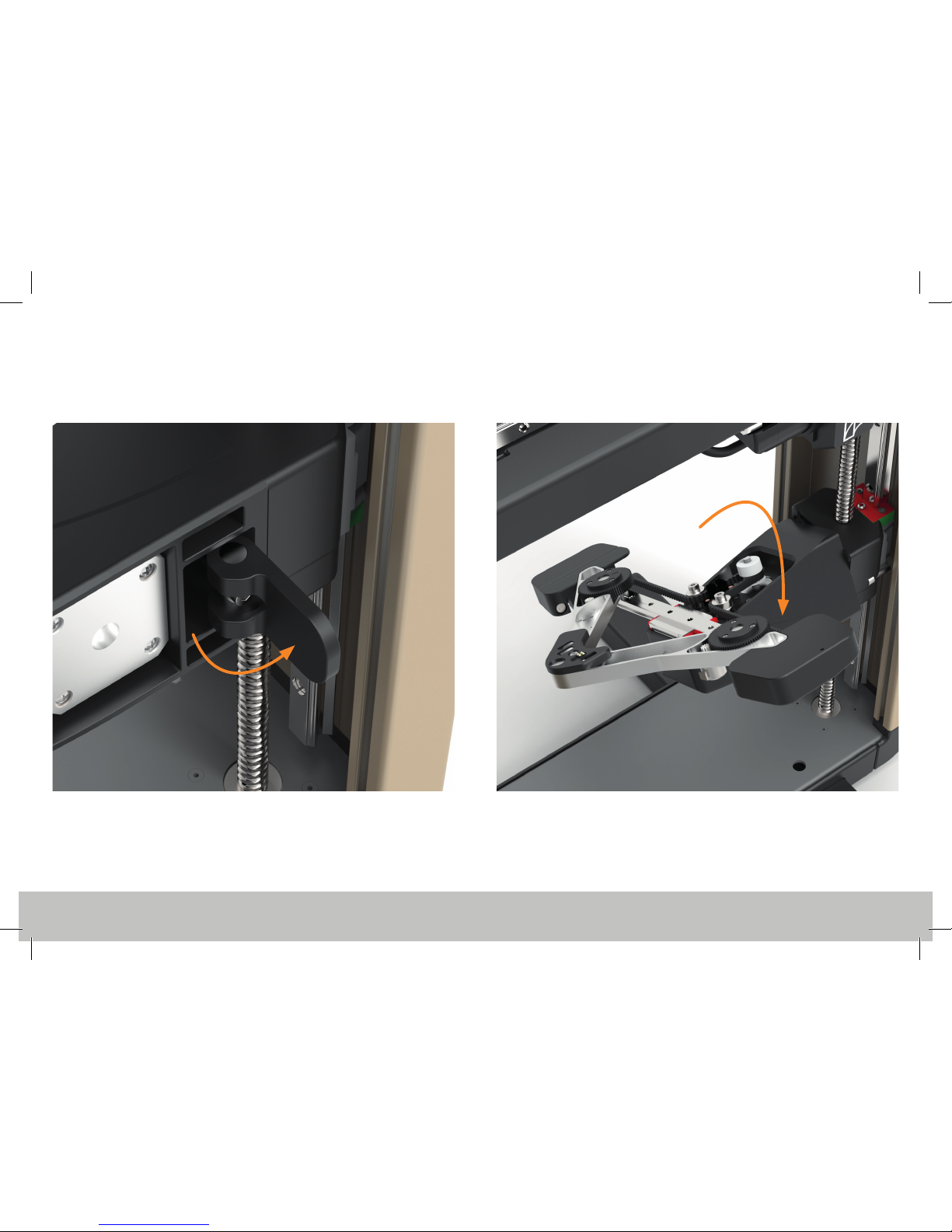

Flip out the lever. Turn the print bed. This might require a little force.

2.1 Preparing the print bed

Chapter 2: Setup

Page 10
