Felix Storch Tec 4.0 to Tec 4.1 Upgrade Kit Guide de démarrage rapide
www.felixprinters.com
FELIX Tec 4.0 to Tec 4.1 Upgrade Kit
For Both Single and Dual head 3D printers

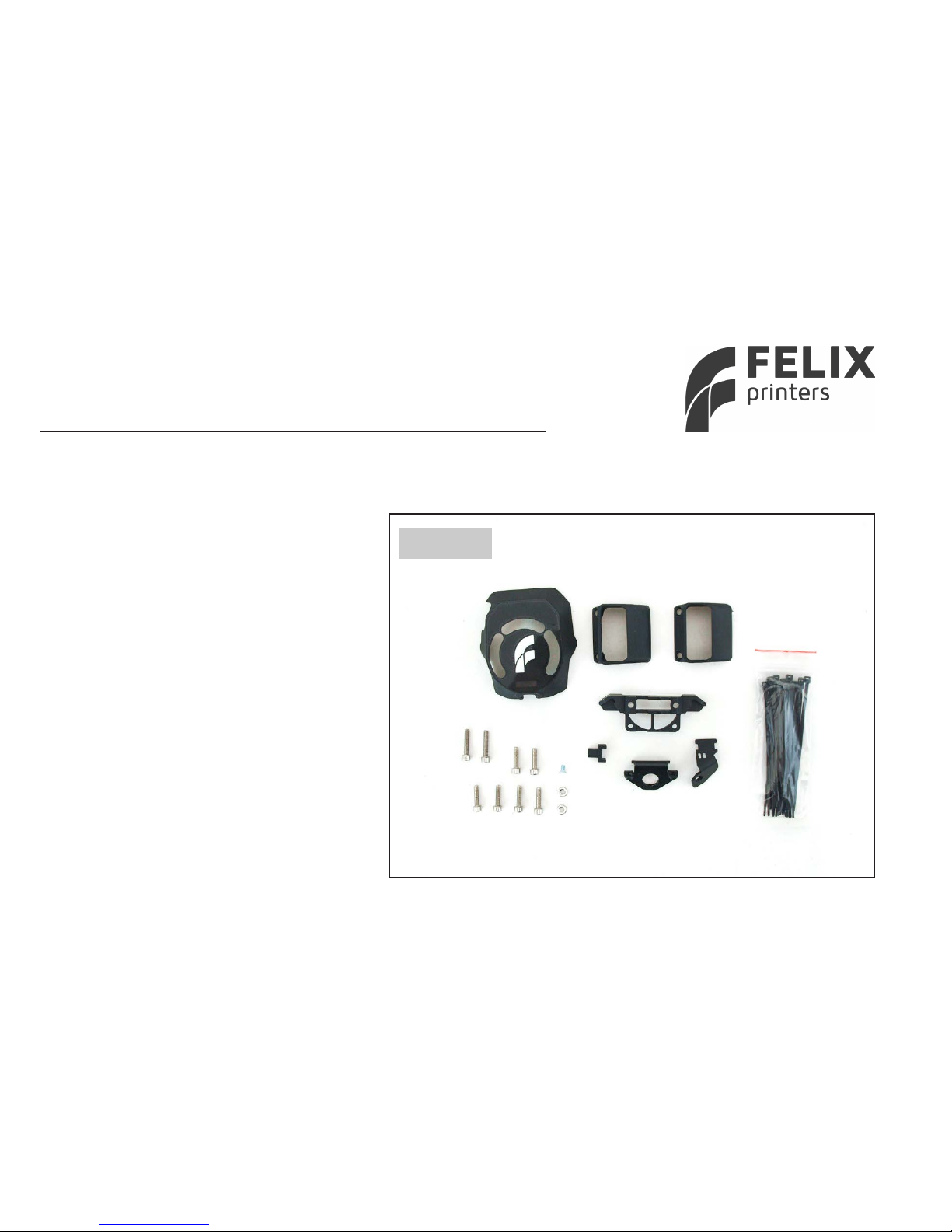

In the box
Upgrade manual
v 1.0
Tools:
Chapter: Preparing Upgrade
10 Minutes
3
Remove front cover
1.
Remove cable ties
2.
Tools:
Remove sleeve from cables.
3.
Remove Z-sensor by removing nut.
4.
Tools: Remove LED Strip carefully
with tweezers.
5.
Tools:
2
www.felixprinters.com
Caution, be carefull
www.felixprinters.com
22,5
5,5 mm 17 mm
17 mm
(2x) Remove M4 x 40 bolt. Tools:
3
6.
Remove Front Bracket
7.
Lower extruder / fan bracket
8.
Unplug motor cables
9.
Write on each cable the corresponding motor number.
LEFT: 0 RIGHT: 1
10.
Disassemble RIGHT fan assembly.
Remove nger guard and fan duct.
11.
Tools:
2,5
3
www.felixprinters.com
4
www.felixprinters.com
Disassemble LEFT fan assembly.
Remove nger guard and fan duct.
Tools:
2,5
12.
TOP: old bracket
BOTTOM: new bracket
Place bolt and nut in new bracket.
Note: do NOT use old mover in combination with new bracket.
13.
Assembly of NEW mover and bracket
including M3 x 20 bolt.
14.
Tools:
2,5
www.felixprinters.com
5,5 mm
Tools:
Chapter: Assembly
10 Minutes
2 3
place bracket with M3 x 6 Tools:
2
15.
(2x) Slide Dual fan into fan duct.
Note: sticker on fan should face inwards.
16.
Parts needed for fan duct assembly.
Bolts: (4x) M4 x 16
Nut: (2x) M4
17.
(2x) Assemble fan ducts.
Make sure the nut is on the correct bolt
and check the orientation of the wires.
18.
Tools:
3
Mount both fan duct assemblies to
bracket. Double check wire orientation.
19.
Tools:
3
5
www.felixprinters.com
Left fan duct Right fan duct
7 mm
Glue
7 mm 17 mm
Calibration
Card
Connect motor cables.
LEFT: 0 RIGHT: 1
20.
Place hot-end(s) in their sockets. Mount fan assembly
after that. Lock tightly with M4 x 20 bolts.
21.
Parts needed to assemble the z-sensor bracket.
22.
Assemble z-sensor bracket as shown in the image.
The distance between bottom side of bracket and bottom
of the sensor should be +/- 13 mm.
23.
Mount front fan to z-sensor bracket
with (2x) M4 x 16
24.
Tools:
3
Place a thin layer of glue onto the LED strip.
Use heat resistant glue up to at least 90°C
We use: Loctite 401
25.
Tools: Glue
6
www.felixprinters.com
www.felixprinters.com
13 mm
3
Place LED Strip onto bracket.
26.
Place Z-sensor assembly onto extruder.
27.
Connnect Z-sensor assembly by tightning
bolts.
28.
Tools:
3
(4x) Lock cables with cable ties.
29.
Bundle heater + thermistor with cable ties.
Note: do NOT bundle them with the other
cables for easier maintenance in the future.
Cut o end of cable ties.
30.
Tools: Place back sleeve and tighten with
cable tie.
Cut o end of cable tie.
31.
Tools:
7
www.felixprinters.com
Move Z-sensor right above front adjustment
wheel. A folded Calibration Card should t
between sensor and wheel while nozzles
touch the plate.
Tools:
Calibration
Card
32.
(1x) T-Nut M4
33.
Tools:
2
(1x) T-Nut M4
34.
Tools:
2
(1x) T-Nut M4
35.
Tools:
2
(1x) T-Nut M4
36.
Tools:
2
(1x) T-Nut M4
37.
Tools:
2
8
www.felixprinters.com
You have completed the upgrade from FELIX Tec 4.0 to Tec 4.1.
Please proceed with all the calibration steps which are explained in the Quick
Start Manual.
Are you experiencing issues or do you have any questions?
Please check www.felixprinters.com/support for more information or contact
