Felix Storch Pro L Series Manuel utilisateur
How to replace the ribbon cable
16 March
2022
Revision 0
FELIX Pro L and XL
series
How to replace the ribbon cable
16 March 2022
1
FELIX Pro L XL
www.FELIXprinters.com
Pro L XL series
1Introduction
This manual explains how to replace the ribbon cable properly.
2Tools
The tools you need to replace the ribbon cable of the Pro L and XL:
•Allen key 2,5
•Allen key 5
•Tweezers

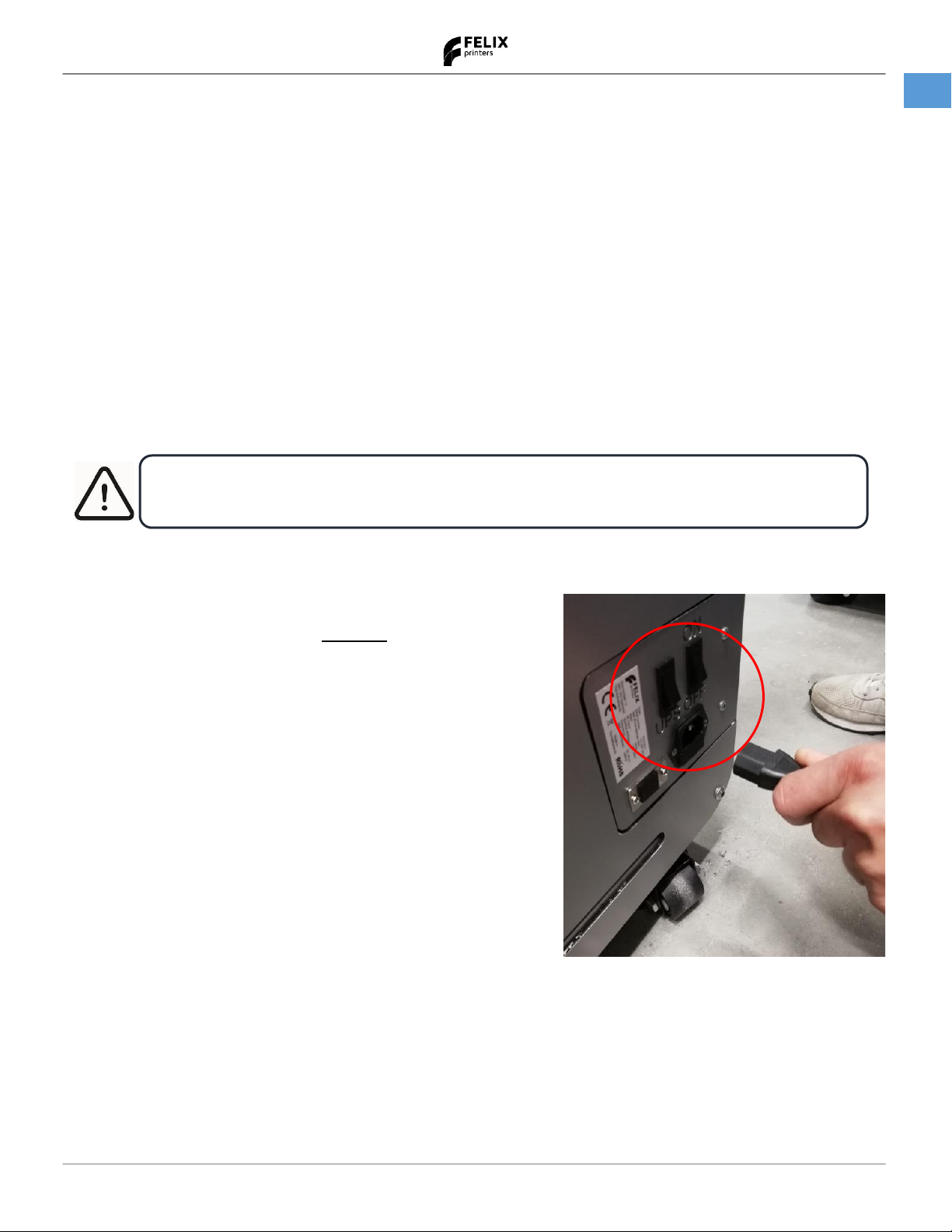

3Preparations
Warning: Always turn off the printer and remove the power cable
before working on the printer.
1) Turn of the printer
-Turn off the printer and remove the power cable
from the printer.
How to replace the ribbon cable
16 March 2022
2
FELIX Pro L XL
www.FELIXprinters.com
Pro L XL series

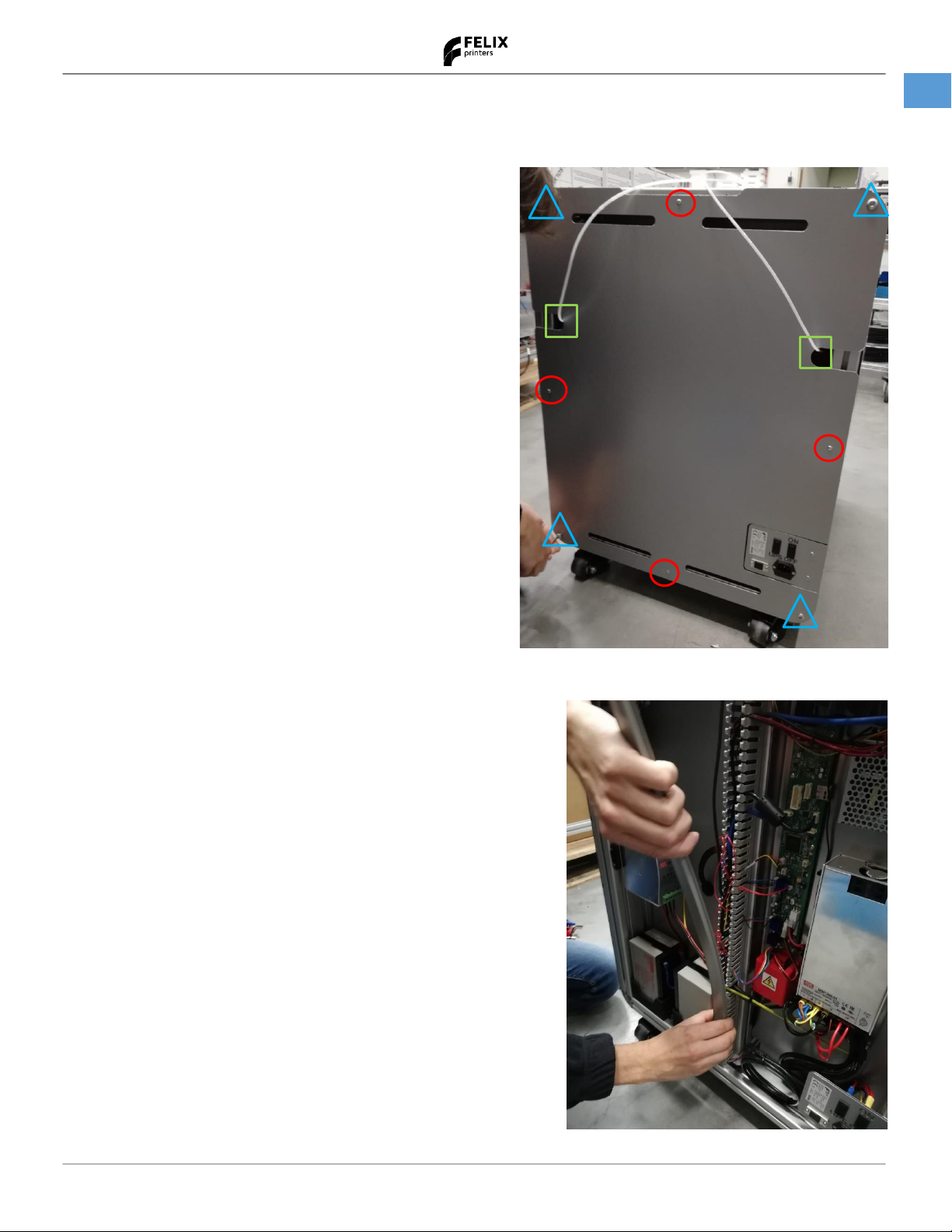

2) Remove the back cover
-Remove the tubes. Green squares .
-Loosen the M4 bolts for around 4 rotations
using an allen key 2,5. Red circles
-Remove the back cover by removing the M8
bolts with a allen key 5. Blue triangles.
3) Remove cover
-Remove the cable tray cover by gently pressing
the pins.
How to replace the ribbon cable
16 March 2022
4
FELIX Pro L XL
www.FELIXprinters.com
Pro L XL series

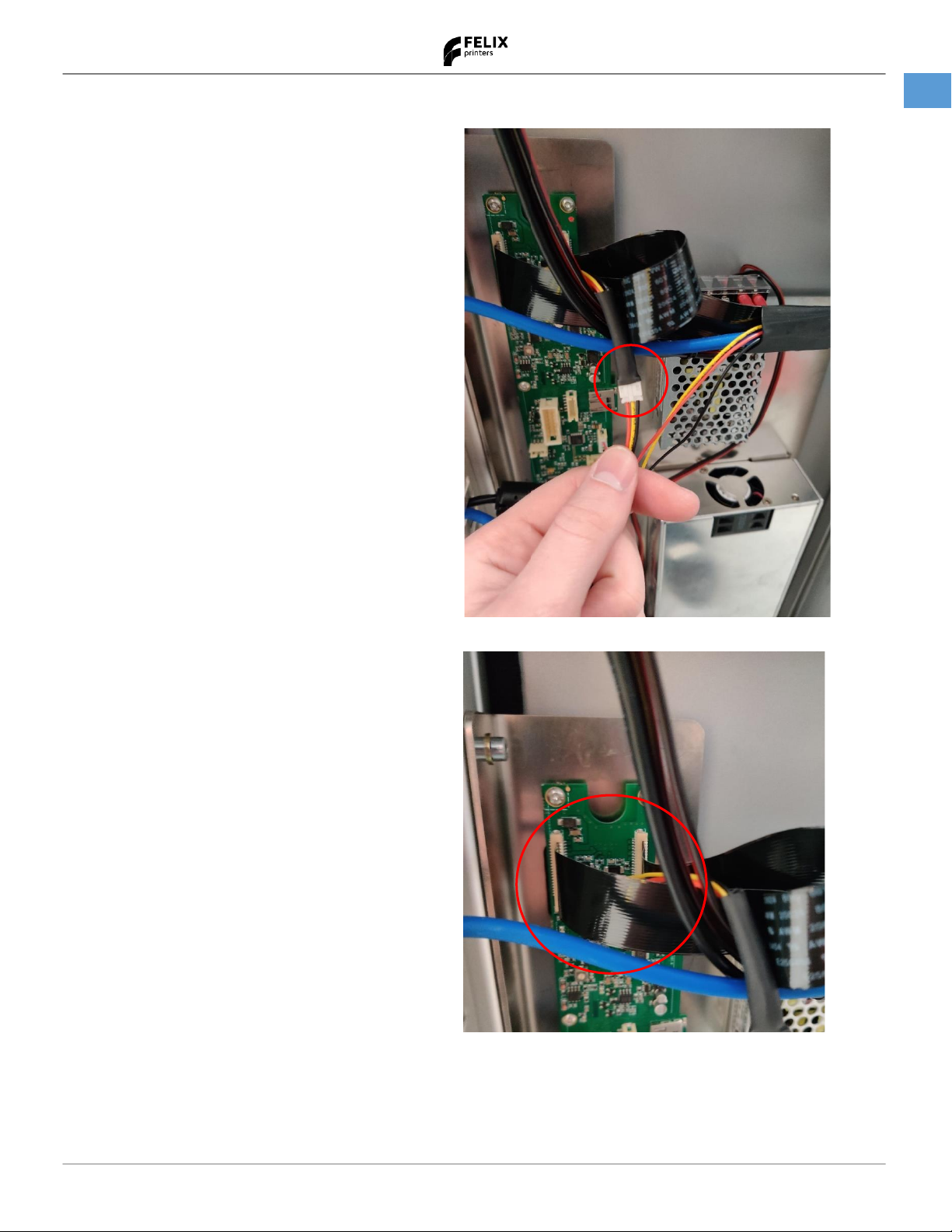

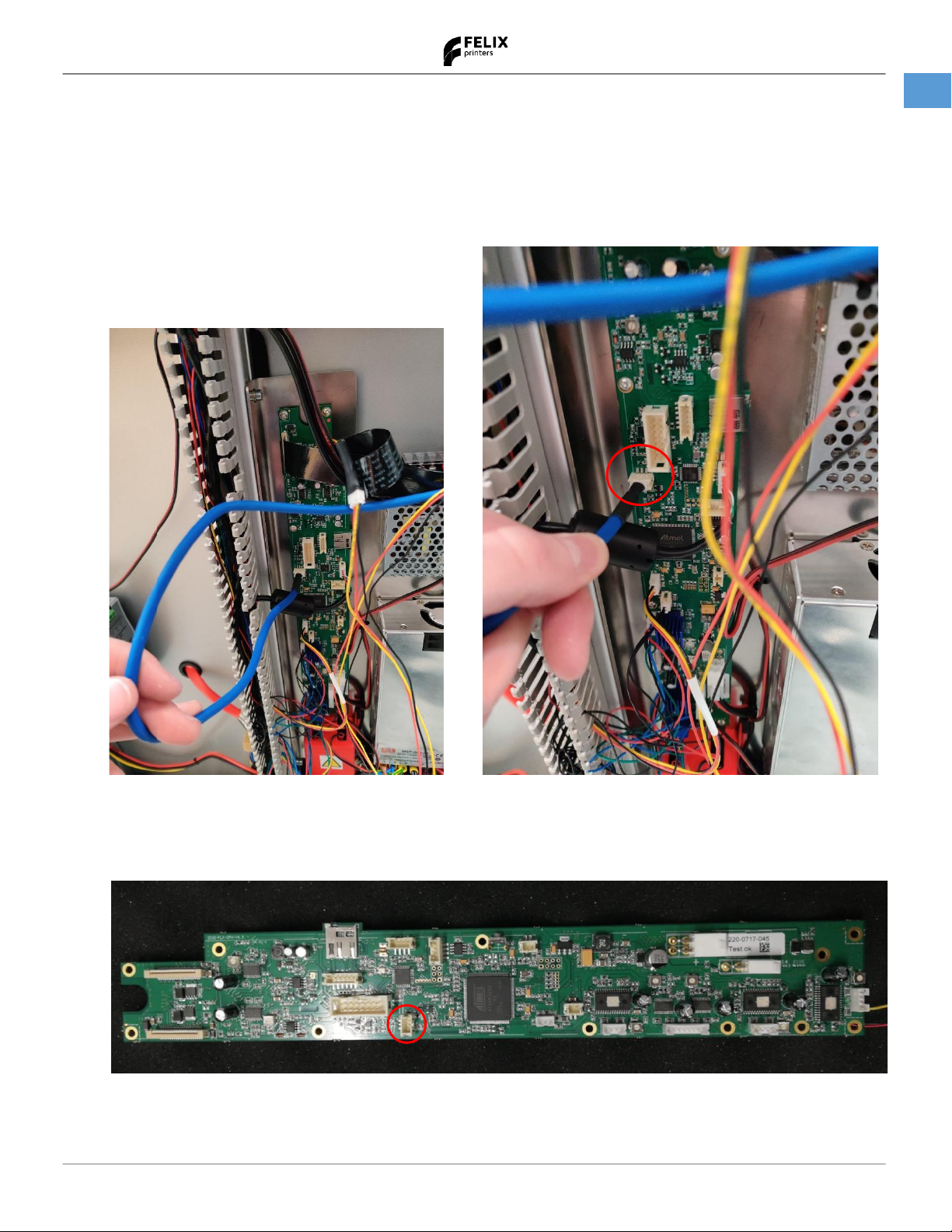

2) Disconnect sensor cable
-Remove the sensor cable. Red circle.
3) Disconnect the ribbon cables
-Disconnect the ribbon cables.
Be careful to not destroy the
connectors. Red circle.
You can use tweezers.
How to replace the ribbon cable
16 March 2022
5
FELIX Pro L XL
www.FELIXprinters.com
Pro L XL series

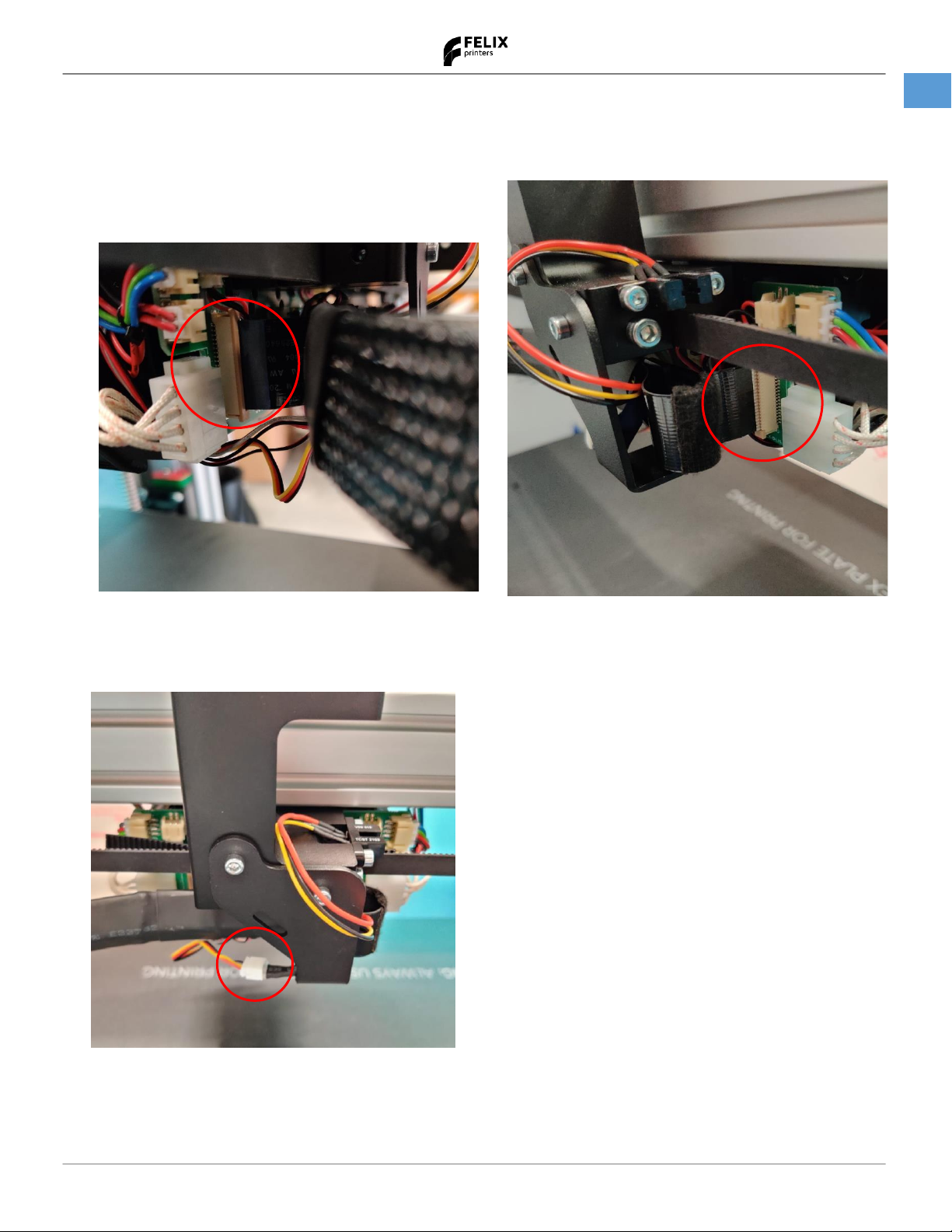

4) Disconnect the ribbon cables at the printhead
-Disconnect the ribbon cables.
Be careful to not destroy the connectors.
Red circles.You can use tweezers.
5) Disconnect the servo cable at the printhead
-Disconnect the servo cable. Red circle.
How to replace the ribbon cable
16 March 2022
7
FELIX Pro L XL
www.FELIXprinters.com
Pro L XL series

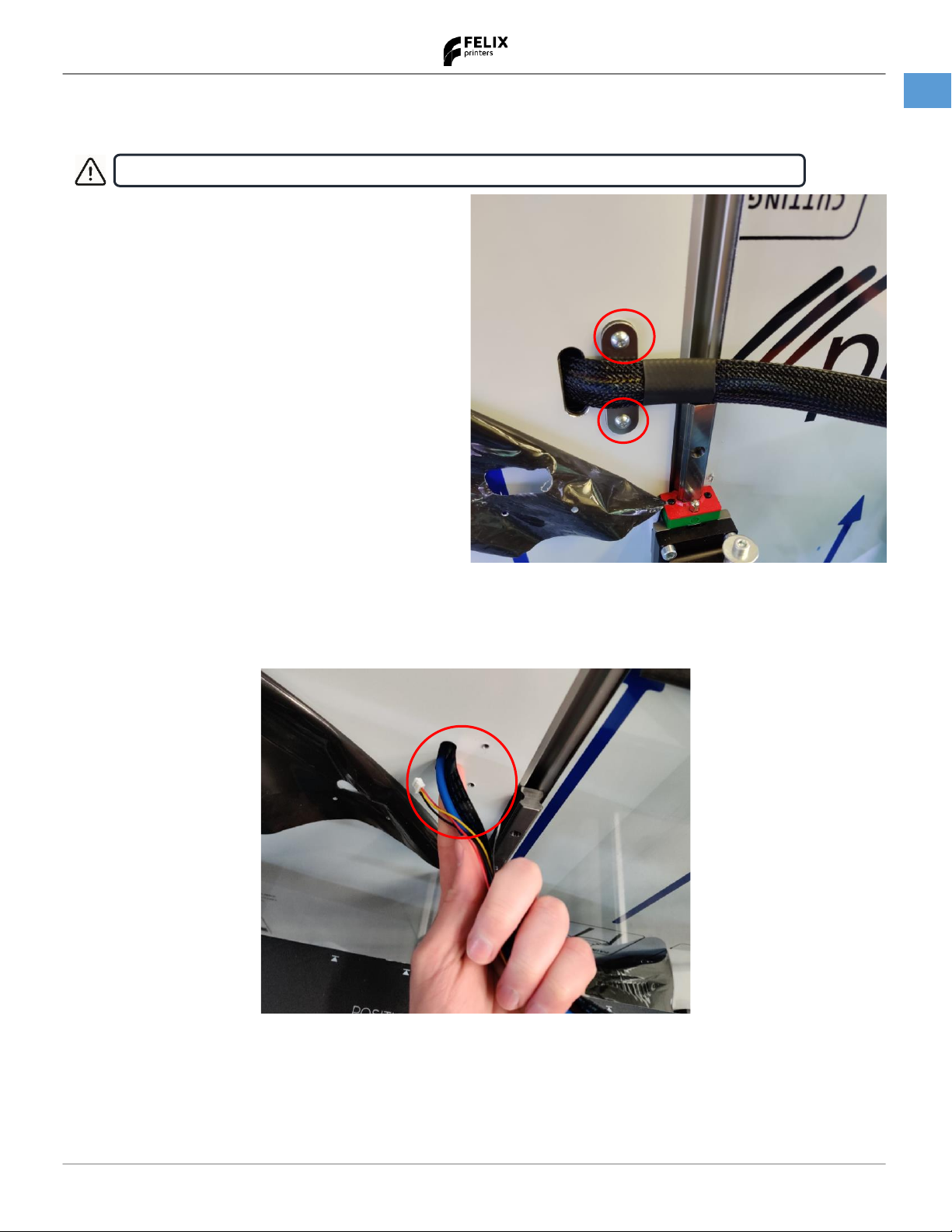

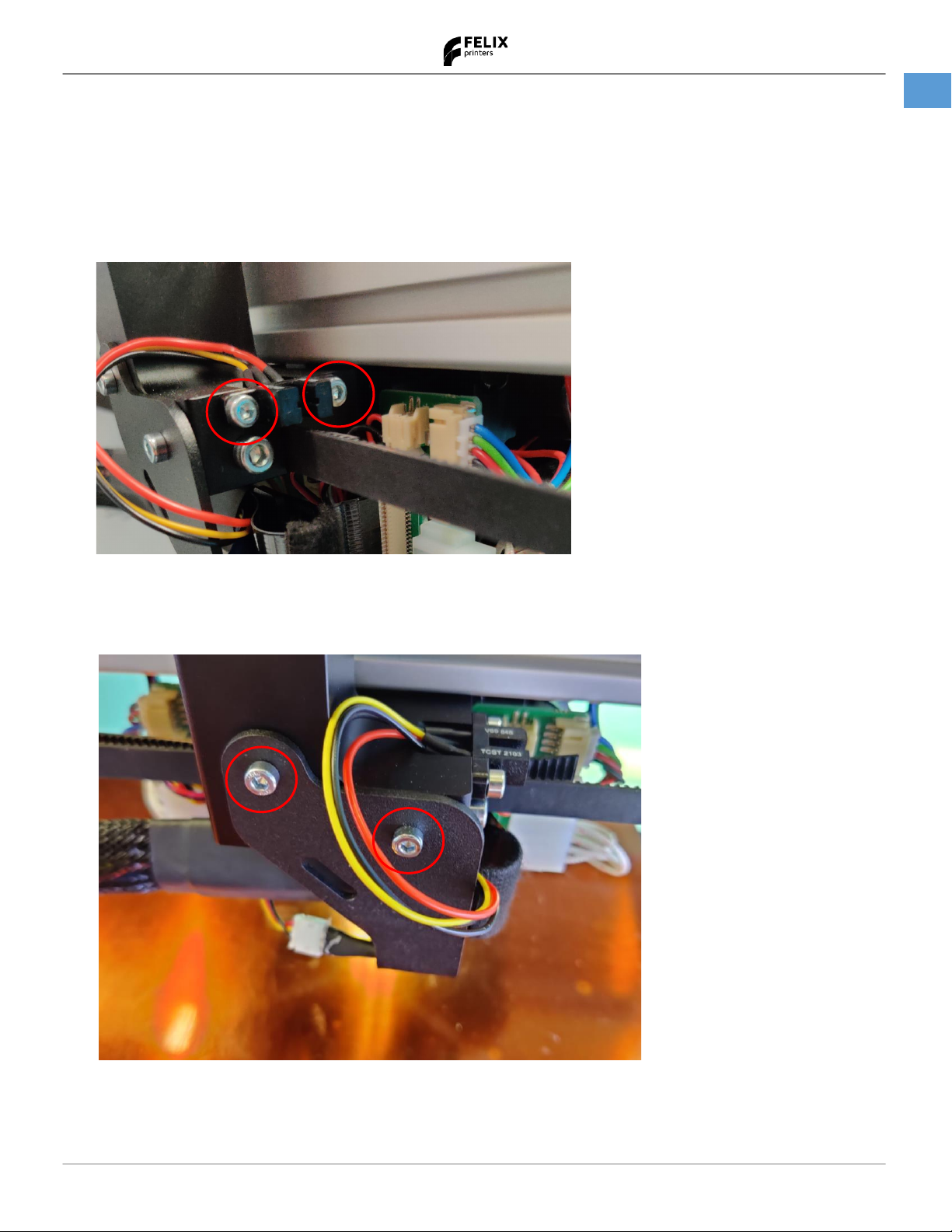

3) Remove the spring bolts
Warning: Don’t lose the plate that is positioned behind the spring!
-Loosen the bolts with an allen key 2,5.
Red circles.
4) Remove the ribbon cable
-Gently remove the ribbon cable out of the printer.
How to replace the ribbon cable
16 March 2022
8
FELIX Pro L XL
www.FELIXprinters.com
Pro L XL series

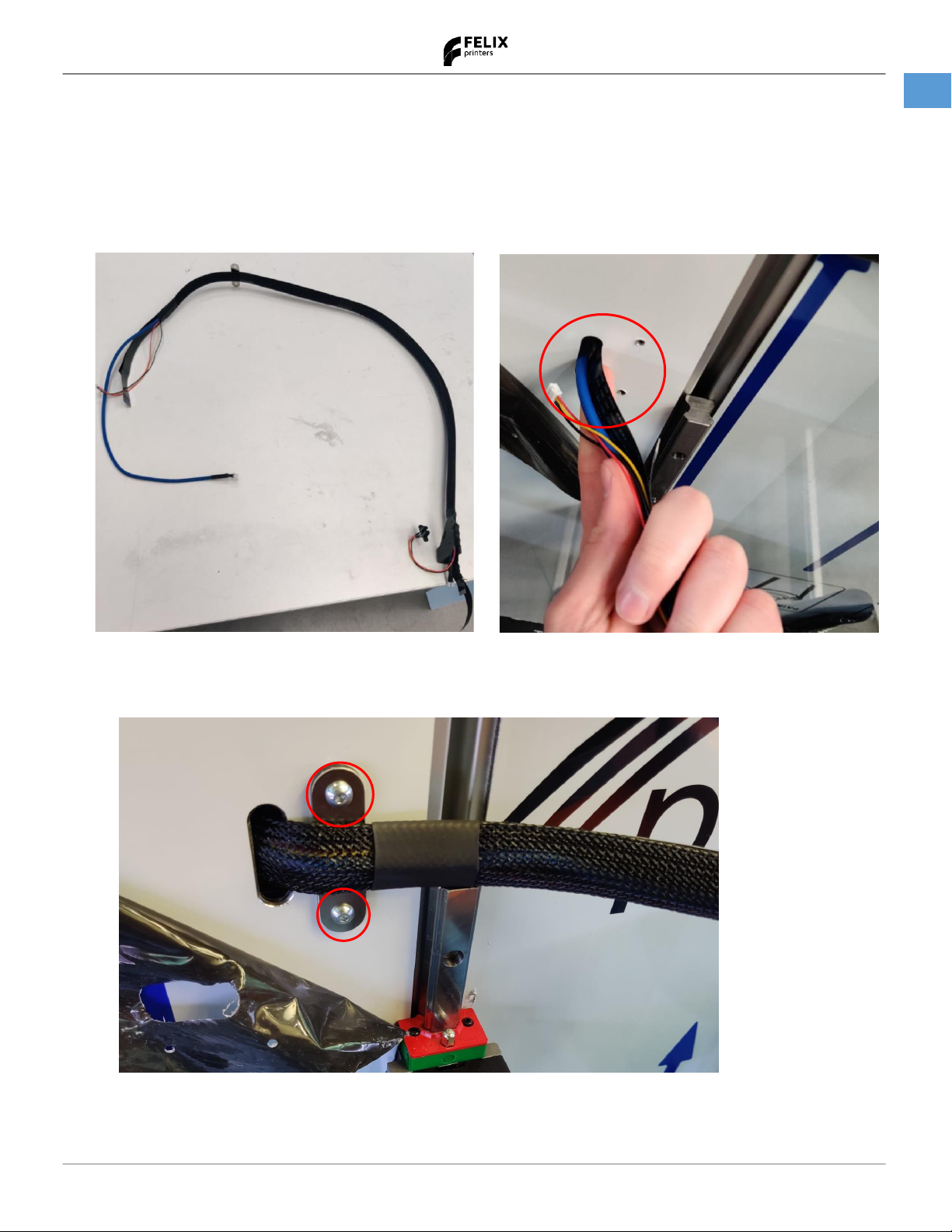

6Place the new ribbon cable
1) Place the new ribbon cable
-Grap the new ribbon cable assembly and place the backend trough the back plate.

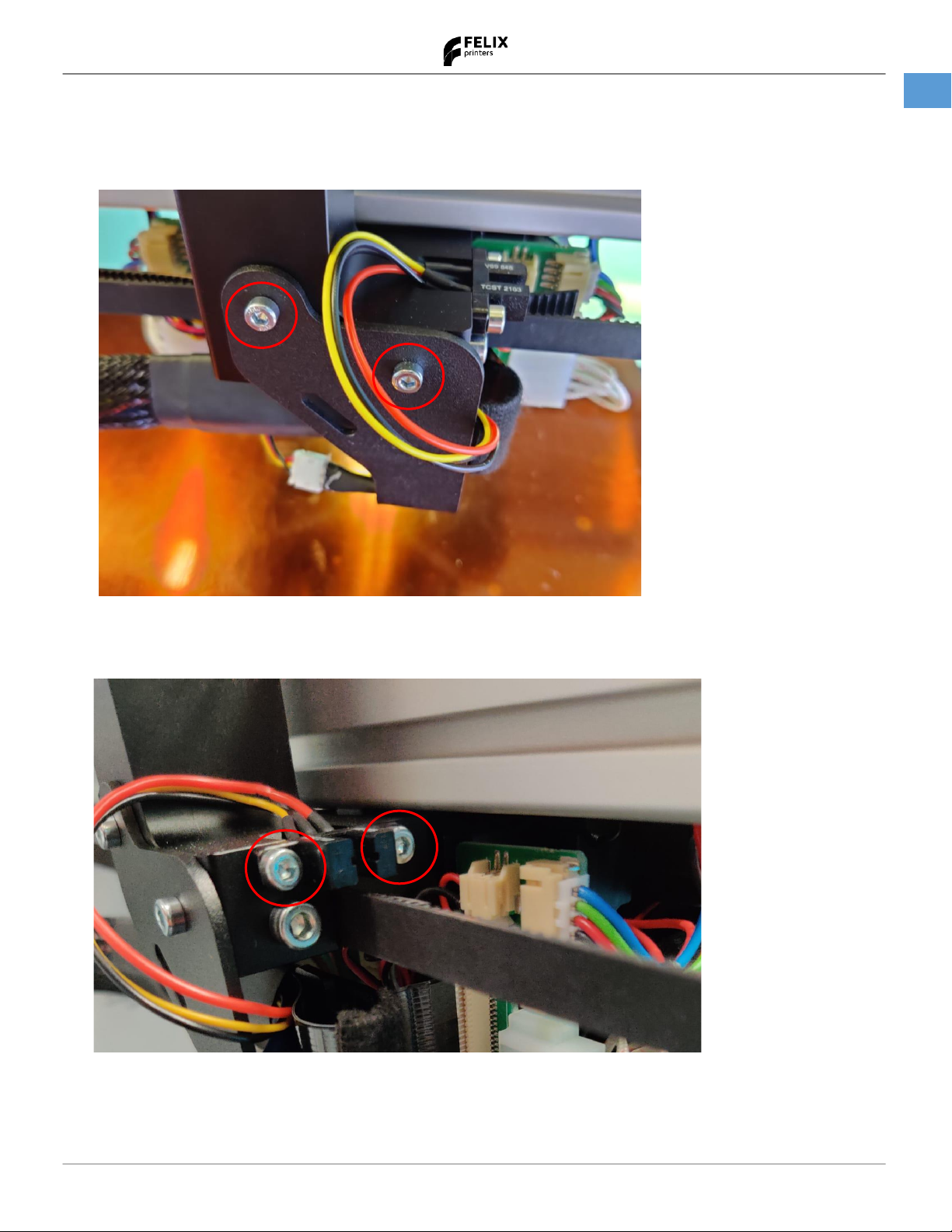

2) Fix the ribbon cable spring
-Fix the spring with de 2 bolts. Use an allen key 2,5. Make sure you place the plate between
the spring and the backplate. Red circles.
