FeiYu Tech A2000 Manuel utilisateur

3-Axis Gimbal for Mirrorless and DSLR Cameras

Guilin Feiyu Technology Incorporated Company

V 2.1ENUser Manual

[1] Tilting axis

[2] Cross arm

[3] Rolling lock screw

[4] Rolling axis

[5] Vertical arm

[6] Status indicator

[7] Joystick

[8] Function button

[9] Shutter button

[10] Shutter cable socket

[11] Sliding arm

[12] Quick plate

[13] Adjustment skateboard

[14] Adapter(Clamping plate)

[15] Panning lock screw

[16] Panning axis

[17] Socket connector

[18] Tilting lock screw

[19] Camera support frame screw

[20] Camera support frame

[21] Thumb screw

[22] Retaining ring

[23] Trigger button

[24] Charging indicator

[25] USB interface

[26] Handle

1. Product Overview

[1]

[4]

[3]

[2]

[18]

[19]

[14] [13] [12] [21]

[23]

[25] [24]

[15]

[16]

[17]

[9] [8]

[7] [6]

[22]

[26]

[5]

[11]

[10]

[21] [20]

Included Accessories

After installation, please

tighten the retaining ring

USB cable 4 Batteries

(type: 18650)

Shutter release

cable for Sony cameras

(3.5 audio to multi)

Smart charger Quick plate

Thumb screw

Camera support

frame screw

Camera support

frame

Cold shoe

mount

Double-Hand Foldable Set (optional)

Retaining ring

1/4-20

inch screw

（double-hand foldable set）

Single Handle

Advanced Accessories

Installation Way

Tripod

Shutter release cable

for Panasonic cameras

(3.5 mm to multi port)

Shutter release cable

for Canon cameras

（RS-80N3）

(1)Remove the quick plate from the gimbal.

Insert the provided 1/4-20 screw into a mounting

hole on quick plate.For a front-heavy camera(i.e.

bigger,heaver lens),select a mounting hole closer

to the back end of the quick plate to ensure proper

balance.

2. User Guide

Attention: please read the following instructions before turning on the power on the gimbal

Insert the Batteries

Remove the handle, insert 2 pcs 18650 batteries

and tighten the handle.

Prior to use, please be sure to fully charge

the batteries.

Attach Camera

18650

*The screw is screwed into the threaded

holes on the quick plate.

Thumb screw

Balance Adjustment

After installing the camera, press and hold the anti-column, place the quick plate with mounted which

the camera is mounted on the clamping plate, and tighten the screws.

（2）

Anti-column

Thumb

screw

Adjust the centre of gravity balance of the three axis (see section 9. Balance Adjustment for details)

then turn on the gimbal.

Note: centre of gravity imbalance can lead to stable performance degradation, and

may not balance the camera.

3. Modes / Functions

Power�on： press and hold the function button until the green light on and you hear the tone.

Power�o�：

press and hold the function button until the red light changes from quick ﬂashing to constant

and you hear the tone.

Trigger button

Lock

Function button

Two taps

One tap

Function

Three taps

Reset

Long press

Return to panning mode, tilting and rolling to return to initial level

Explanation

Function Explanation

Panning Mode

Panning and Tilting Mode Under panning and tilting mode, control the rolling axis by moving the

joystick to the left or right, and the control angle is - 30 °~+ 30°

Rotate horizontal 180° Make the camera lens rotate 180 °(the current mode of work does not

change)

Default mode

Operating Instructions

In the panning mode or panning and tilting mode, press and hold lock

shortcuts to enter the lock mode, release to return before mode

Four taps Both the panning and tilting directions can be rotated

Autorotation Mode

Five taps After the initialization succeeds or fails, you can click the function button

to wake up the gimbal

Initialization

Power On/Power Oﬀ

In case of low battery the indicator light will ﬂash red three times

every 5 seconds. Please charge gimbal or replace batteries.

The current mode of the gimbal can be identiﬁed by

the indicator status.

LED indicator status Mode / status

Blue light ﬂashes once

Blue light ﬂashes twice

Panning Mode

Panning and Tilting Mode

Lock mode / initialize the gimbalBlue light constant on

Blue light keeps ﬂashing Initialization failure / malfunction

Low battery Red light ﬂashes three times

Red light keeps ﬂashing Entering power oﬀ

Explanation of joystick control

Function

Button

Shutter

Button

Indicator

Left

Right

Down

Panning Mode (default mode )

Panning and Tilting Mode

Lock Mode

Reset

The orientation of the camera is ﬁxed.

Return to panning mode, tilting and rolling to return to initial level.

Tilting and rolling direction are ﬁxed, and the camera lens moves according to the handle movement.

Working Modes

The rolling direction is ﬁxed, and the camera lens moves according to the hand movement.

Explanation of LED Indicator Status

Autorotation Mode

With camera, delay photography function can be used to achieve mobile delay photography.

1. The speed setting is made by Feiyu ON App.

Note: both the panning and tilting directions can be rotated.

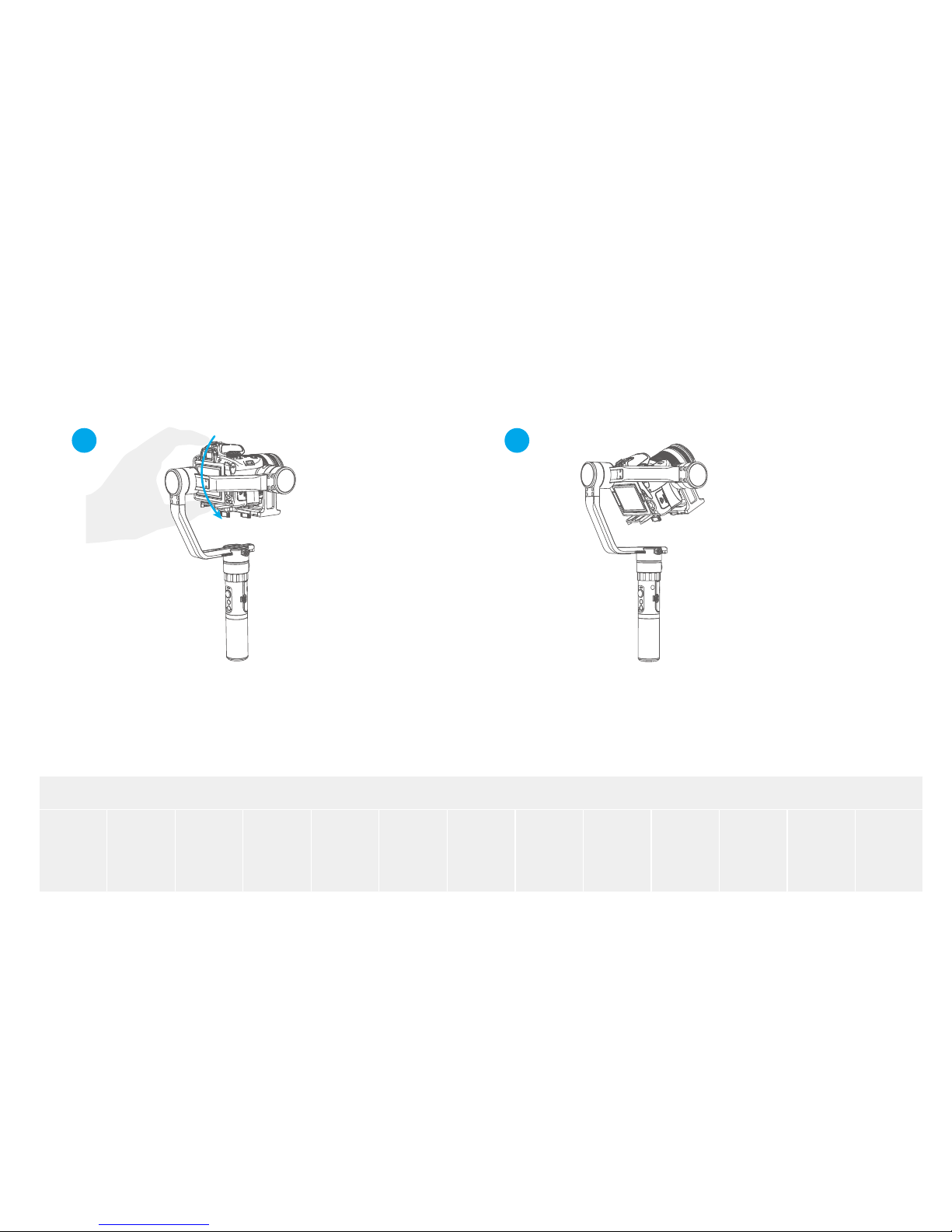

Manual Lock

Hold the camera and change

its angle in tilting axis direction.

Keep this position for half

a second, the current angle

will be locked manually.

Pull to the required angle and hold for half a second to lock in that position. (The tilting axis and panning axis in lock

mode can be manual. The tilting axis can be manually locked in the panning mode.) Take the tilting axis as an

example:

hours

/ turn

hours

/ turn

hour

/ turn

(default)

minutes

/ turn

minutes

/ turn

minutes

/ turn

minutes

/ turn

minutes

/ turn

seconds

/ turn

seconds

/ turn

seconds

/ turn

seconds

/ turn

minute

/ turn

a2000 Rotate Speed

5.The gimbal will go to the start position and

start the autorotation function.

4. Pull the gimbal (which can be rotated more

than one turn) to the rotation path you want

to set, and then click the function button to

record the end position.

3. Set the gimbal start rotation position: pull

the tilting axis or panning axis to the start

position by hand,click the function button to

record the start position.

2.Four taps on function button, gimbal will

enter the autorotation mode .

Exit operations：

1.Click the function button to exit the autorotation mode during automatic rotation.

2.Two taps the trigger button to exit the autorotation mode during setting the automatic rotation.

Function

Button

Tilting

Panning

Function

Button

Tilting

Panning

Function

Button

Input：5V/1A

（equipped by user）

Explanation of Charging Indicator Status

LED status Mode / status

Blue light on,

red light oﬀ

Blue light and

red light are

ﬂashing

(If the two batteries voltage diﬀerence between the

larger, the process takes a long time)

Stop charging

The voltage of two batteries

balance ajustment

Blue light and

red light charging

Indicator

Charging indicator

Photograph

Manual photograph: click the shutter

button to focus, click again within 3s to

take pictures.If there is no operation within

3 seconds , the focus state is cleared.

Automatic continuous shooting: shutter

button long press 3s or more, gimbal "drop"

sound and enter the automatic continuous

shooting mode, the default 5s shot once.

One tap the shutter button to exit the

automatic continuous shooting mode.(you

can enter the Feiyu On App to setting the

photographic interval time.)

Micro USB

The shutter button can take pictures via the shutter release cable.

4. Charging
