FeiYu Tech AK2000C Manuel utilisateur

3-Axis Stabilized Handheld Gimbal for Camera

Instruction

EN V 2.1

Catalogue

1. Product Overview ……………………………………………… 2

2. Start to Use ……………………………………………………… 3

2.1 Charging ……………………………………………………………………… 3

2.2 Unlock and Lock …………………………………………………………… 4

2.3 Camera Installation ………………………………………………………… 5

2.4 Gimbal Balancing …………………………………………………………… 5

2.5 Power ON/OFF ……………………………………………………………… 10

3. Function operation ……………………………………………… 10

3.1 Mode/Function Introduction ……………………………………………… 10

3.2 Button Operation …………………………………………………………… 12

3.3 USB Port ……………………………………………………………………… 14

3.4 Touch Screen ………………………………………………………………… 15

3.5 Modes Setting ……………………………………………………………… 16

3.6 Motion-timelapse Mode …………………………………………………… 19

3.7 Initialization ………………………………………………………………… 21

3.8 Manual Lock ………………………………………………………………… 22

4. Feiyu ON App …………………………………………………… 23

4.1 Download the Feiyu ON App ……………………………………………… 23

4.2 App Connecting ……………………………………………………………… 23

4.3 Firmware Upgrade ………………………………………………………… 24

5. Accessories ……………………………………………………… 25

5.1 Tripod ………………………………………………………………………… 25

5.2 Versatile Arm (Optional Accessories) ……………………………………… 26

5.3 L-shaped quick release plate (Optional Accessories) …………………… 26

5.4 Hyperlink Remote Controller (Optional Accessories) …………………… 26

5.5 Extension Rod (Optional Accessories) …………………………………… 28

5.6 Multifunctional Bracket (Optional Accessories) ………………………… 28

5.7 Wireless MIC Kit (Optional Accessories) …………………………………… 29

6. Speci󽗉cations …………………………………………………… 31

Compatible Cameras for Reference …………………………… 32

Disclaimer …………………………………………………………… 34

www.feiyu-tech.cn 1

Introduction

AK2000C is a professional 3-axis stabilized handheld gimbal for DSLR and

mirrorless camera, which can be held in one hand and installed on tripods,

versatile arms or other devices.

AK2000C is equipped with function buttons and a touch screen so that userscan

switch the working modes, control the rotating orientation, and set parameters

by one hand. The gimbal can directly control the camera shooting and focusing

through connecting camera control cable.

Suggestion

AK2000C is designed with function button and LCD touch screen, which can

switch the gimbal working mode, control the rotation and the parameters

setting by one hand. The camera shutter cable is equipped for controlling the

photography, video recording and focus following directly at handle.

Tutorial

Feiyu AK2000C includes below information, please read the

information before using the gimbal:

1. Quick start guide

2. Online instruction

3. Tutorial

The tutorial videos can be watched at FeiyuTech official

website or scan the QR code.

https://www.feiyu-tech.com/play/

Feiyu ON App

Feiyu ON App is needed while using the gimbal. Please download Feiyu ON at

your smartphone App Store or scan the QR code as below. See P23 for more.

www.feiyu-tech.com 2

1. Product Overview

1. Arca quick release plate

2. Quick release plate

3. Fixed plate

4. 1/4 inch thread hole

5. Tilt axis

6. Tilt axis position lock

7. Vertical arm lock screw

8. Power button

9. USB-C port

10. Function button

11. 1/4 inch thread hole

3/8 inch thread hole

12. Touch screen

13. Joystick

14. Mode button

15. Shutter button

16. Sliding arm

17. Sliding arm lock screw

18. Thumb screw

19. Lens holder

20. Pan axis position lock

21. Trigger button

22. Cross arm

23. Arca quick release plate

safety lock

24. Cross arm lock screw

25. Roll axis

26. Roll axis position lock

27. Quick release plate safety

lock

28. Vertical arm

29. Pan axis

30. Handle (built in battery)

* This product does not include the camera.

www.feiyu-tech.com 32

Standard accessories

USB2.0 to Type-C×1 Type-C to Type-C (C02)×1 Type-C to TRS2.5 (T02)×1 Type-C to Micro（A03）×1

Type-C to Multi (Sony

shutter cable)×1

DC2.5mm (TYPE C to

2.5mm)(Panasonic shutter

cable)×1

Anti-slip metal tripod×1 Wrench×1

Optional accessories

Hyperlink remote

controller×1 Extension rod×1 Multifunctional bracket for

tilt axis×1

Versatile arm

( for AK2000S and

AK2000C)×1

Wireless MIC Kit

Wireless MIC×1 Wireless receiver×1 L-shaped quick release

plate×1

2. Start to Use

2.1 Charging

TIP:

• Please fully charge the battery before power on the gimbal for the 󽗉rst time.

• When the battery is low, please charge the gimbal.

Open the USB rubber cover. Connect the USB 2.0 AM to Type-C MALE cable to

charge. Quick charge is available.

www.feiyu-tech.com 4

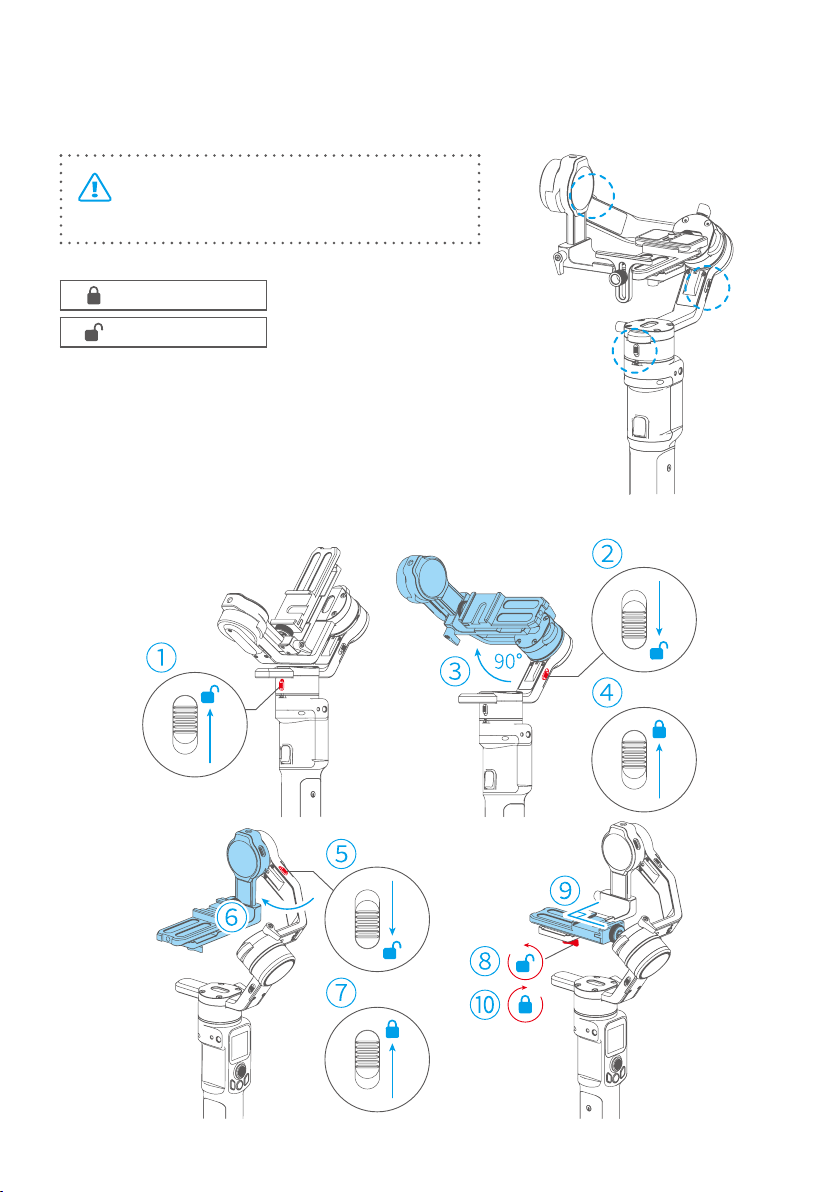

2.2 Unlock and Lock

Each rotating axes has a position lock for convenient balancing and storage.

Be sure to unlock the position locks

before using the gimbal.

Lock

Unlock

Step:

Stored lock satus

Balanced lock satus

www.feiyu-tech.com 54

2.3 Camera Installation

TIP: Camera is ready to shoot. (The lens cover should be removed from the camera

and the memory card and battery needs to be inserted to the camera to complete all the

connections.)

①

2.4 Gimbal Balancing

For ideal shooting effects, balancing the gimbal is necessary, and accurate

balance will o󽗈er longer battery life.

TIP:

• Before balancing the gimbal, please lock the gimbal at the balanced lock status,

and the lens cover should be removed from the camera and the memory card

needs to be inserted to the camera to complete all the connections to ensure

that the camera is ready for shooting.

• The camera is ready for shooting and has mounted on the gimbal.

• During balancing the gimbal, make sure the camera and gimbal are all powered

o󽗈.

• If it is needed to add accessories after the balance is completed, gimbal needs

to be re-balanced again.

Balanced standard: the camera can stay stably at any angles.

www.feiyu-tech.com 6

2.4.1 Balance tilt axis

Step (a)

· Turn the camera lens upwards.

· Let it go, observe the dropping direction of the camera.

· Loosen the lock screw(red).

· Move the camera.

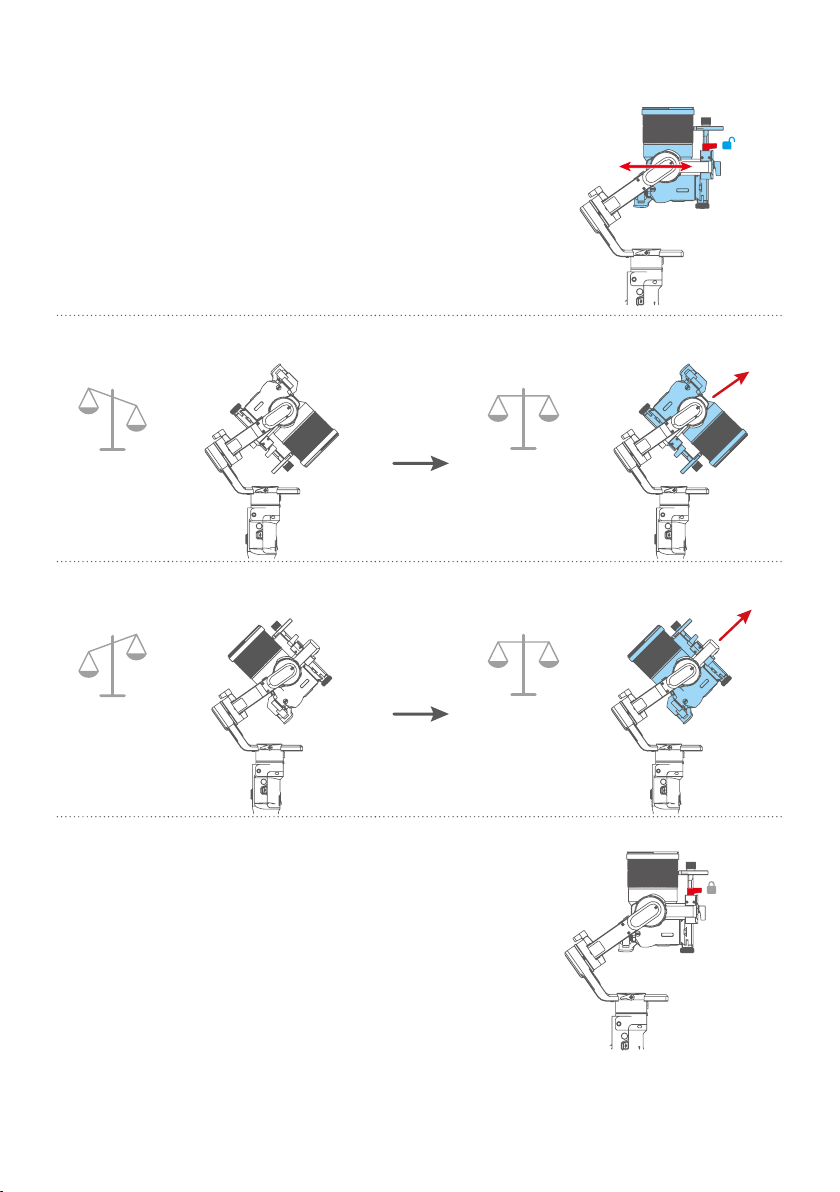

Status A: Tip: Slide the 󽗉xed plate slightly in the

direction of the arrow.

Status B: Tip: Slide the 󽗉xed plate slightly in the

direction of the arrow.

·Move the camera until it can keep upwards, then

tighten the screw.

www.feiyu-tech.com 76

Step (b)

· Turn the camera lens forward.

· Let it go, observe the dropping direction of the camera.

· Unlock the safety lock(red).

· Move the camera.

Status A: Tip: Slide the quick release plate

slightly in the direction of the arrow.

Status B: Tip: Slide the quick release plate

slightly in the direction of the arrow.

·Move the camera until it can keep forward, then

tighten the safety lock.

www.feiyu-tech.com 8

2.4.2 Balance roll axis

· Unlock the safety lock(red).

· Let it go, observe the dropping direction of the camera.

· Loosen the lock screw(red).

· Move the camera.

Status A: Tip: Slide the cross arm slightly in the

direction of the arrow.

Status B: Tip: Slide the cross arm slightly in the

direction of the arrow.

·Move the camera until it can stay horizontally, then

tighten the screw.
