FeiYu Tech SCORP 2 Manuel utilisateur

Instructions V 1.0

Tutorial Videos

Catalogue

1. Overview ……………………………………………………………………………………………………… 1

2. Getting started ……………………………………………………………………………………………… 2

2.1 Charging ……………………………………………………………………………………………………………… 2

2.2 Adjust the gimbal to gimbal balancing position ……………………………………………………………… 2

2.3 Using support stand ……………………………………………………………………………………………… 3

3. Mounting the Camera ……………………………………………………………………………………… 3

3.1 Attach the quick release plate and camera backing base(Optional) ……………………………………… 3

3.2 Install lens holder (Optional) ……………………………………………………………………………………… 4

3.3 Mount camera on gimbal ………………………………………………………………………………………… 4

4. Gimbal Balancing …………………………………………………………………………………………… 5

4.1 Balancing the tilt axis ……………………………………………………………………………………………… 5

4.2 Balancing the roll axis ……………………………………………………………………………………………… 6

4.3 Balancing the pan axis …………………………………………………………………………………………… 7

4.4 Using the memory slider ………………………………………………………………………………………… 8

5. Power ON/ OFF& Wake up ………………………………………………………………………………… 8

5.1 Power ON/ OFF ……………………………………………………………………………………………………… 8

5.2 Lock/Unlock screen ………………………………………………………………………………………………… 9

5.3 Sleep/Wake up ……………………………………………………………………………………………………… 9

6. Function/Modes introduction …………………………………………………………………………… 9

6.1 Follow modes introduction ……………………………………………………………………………………… 10

6.2 Other function introduction ……………………………………………………………………………………… 10

7. App Connecting …………………………………………………………………………………………… 11

7.1 Connect with Feiyu SCORP App ………………………………………………………………………………… 11

7.2 Function introduction of App …………………………………………………………………………………… 11

8. Operation ………………………………………………………………………………………………… 15

8.1 Button operation …………………………………………………………………………………………………… 15

8.2 Touch screen operation …………………………………………………………………………………………… 18

8.3 Function operation ………………………………………………………………………………………………… 21

8.4 Control ports ………………………………………………………………………………………………………… 27

9. Speci󽗉cations …………………………………………………………………………………………… 28

Tutorial

·The tutorial videos can be watched at FeiyuTech o󽗋cial

website or scan the QR code.

https://www.feiyu-tech.com/play/

Download the App

Scan the QR code to download the app, or

search for "Feiyu SCORP" in the App Store or

Google Play.

* Requires iOS 9.0 or above, Android 6.0 or above.

iOS Android

- 1 -

1. Overview

* Not include camera.

[8]

[21]

[20]

[29]

[40]

[9]

[10]

[11]

[34][35]

[18][17] [19]

[1]

[7]

[13][14] [15]

[17]

[36]

[12]

[37]

[25]

[38]

[41]

[28]

[42]

[12]

[16]

[30]

[31]

[26]

[32]

[33]

[23]

[22]

[24]

[27] [39]

[2]

[43]

[3]

[4]

[5]

[6]

[1] Power button

[2] Touch screen

[3] Shutter button

[4] Mode button

[5] Joystick

[6] F1 button

[7] Kickstand

[8] Handle

[9] FPV button

[10] Knob function switching

button

[11] Multifunction knob

[12] Anti-drop lock for slider

[13] Slider

[14] Quick release plate lock

[15] Slider lock

[16] Vertical arm

[17] Anti-drop lock

[18] Quick release plate

[19] Camera backing base

[20] Slider

[21] Slider lock

[22] Image transmission port

[23] Extension port 1

[24] Coss arm lock knob

[25] Cross arm

[26] Trigger button

[27] Roll lock

[28] Versatile arm

[29] F2 button

[30] Tilt lock

[31] Tilt axis

[32] Camera for tracking

module

[33] Indicator light for

tracking module

[34] Lens holder

[35] Lens holder screw

[36] Extension port 2

[37] Camera control port/

USB-C power output port①

[38] Vertical arm lock knob

[39] Pan axis

[40] Pan lock

[41] A/B button

[42] Trigger button

[43] 1/4 inch thread hole

① Supports charging for shooting devices compatible with the USB power supply protocol.

- 2 -

2. Getting started

2.1 Charging

Please fully charge the battery before power on the gimbal for the 󽗉rst time.

Charging with USB-C cable, supports quick charge which charging power ≤ 18W.

2.2 Adjust the gimbal to gimbal balancing position

The gimbal is folded by default, please unlock all the three axes and adjust the

gimbal to gimbal balancing position, and then lock the three axes.

Gimbal folded position Gimbal balancing position

- 3 -

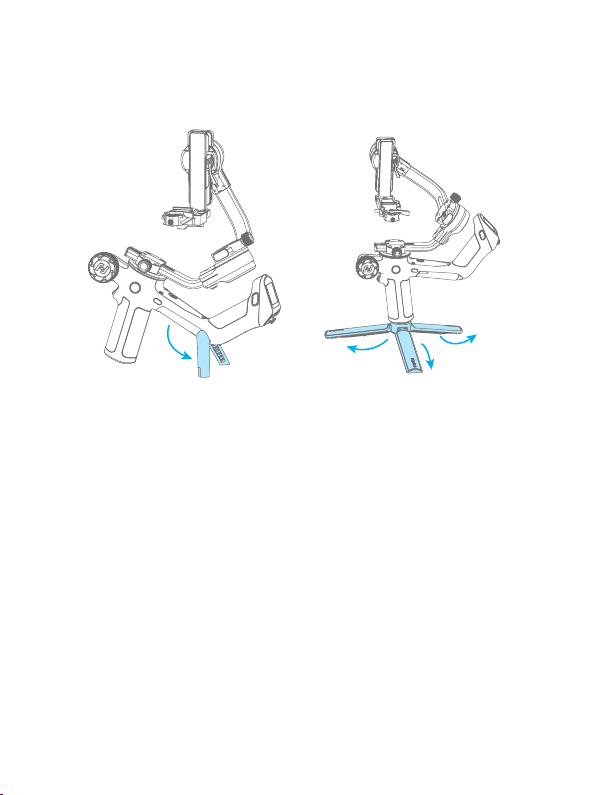

2.3 Using support stand

Users can unfold the built-in kickstand or install tripod to place the gimbal on a 󽗊at

surface.

Unfold the built-in kickstand Unfold the tripod

3. Mounting the Camera

Before mounting the camera, make sure the camera is ready for shooting (Install the

camera lens, and the lens cover should be removed, the memory card and battery

needs to be inserted to the camera, and battery is fully charged) , complete all the

steps which mentioned in chapter "2. Getting started" and the gimbal is adjusted to

gimbal balancing position. Make sure the gimbal is powered o󽗈 or in sleep mode

before mounting the camera.

3.1 Attach the quick release plate and camera backing

base(Optional)

Attach the quick release plate to camera by tightening the screw.

User can choose to attach the camera backing base if needed ( For example, when

using a long or heavy lens). Attach the camera backing base to camera, then attach it

to quick release plate by tightening 2 screws.

- 4 -

Attach with quick release plate only Attach with camera backing base and quick

release plate

3.2 Install lens holder (Optional)

Install the lens holder on the quick release plate if needed, the rubber of the lens

holder must be directly under the lens. It is recommended to use the lens holder

when using a long or heavy lens.

3.3 Mount camera on gimbal

Unlock ①, slide ② into the slot, lock ①, loosen ③, slide ④ into the slot as

indicated, adjust the camera forward and backward until roughly balanced, then

tighten ③.

- 5 -

It is recommended to push the camera against the tilt axis. Unlock ① to move the

camera left or right according to camera's width to adjust, then lock ① .

4. Gimbal Balancing

Please balance the gimbal before shooting. Make sure the

camera and lens are ready for shooting, and the gimbal

is powered o󽗈 or in sleep mode before balancing. It is

recommended to hold up the camera 󽗉rst, then move the

slide arm, cross arm and vertical arm. Tutorial Videos

4.1 Balancing the tilt axis

4.1.1 Balancing the vertical tilt

a. Unlock the tilt lock ① , and loosen the slide arm lock ②.

b. Rotate the tilt axis so that the camera lens is pointing upward. Check the direction

- 6 -

which the lens tilts to.

c. If the lens tilts to one side, then the camera is that side heavy, move the slide

arm ③ to the opposite direction, until the camera is steady pointing upward.

d. Tighten the slide arm lock ② while holding the camera.

4.1.2 Adjust depth for the tilt axis

a. Rotate the tilt axis so that the camera lens is pointing forward. Check the direction

which the lens tilts to.

b. If the lens tilts to one side, then the camera is that side heavy, unlock the quick

release plate lock ① and then move the quick release plate to the opposite direction,

until the camera is steady pointing forward.

c. Lock the quick release plate lock ① while holding the camera.

The tilt axis is balanced when the camera is steady while tilted up or down by 45° .

4.2 Balancing the roll axis

a. Unlock the roll lock ① , check the direction which the camera tilts to.

- 7 -

b. If the camera tilts to one side, then the camera is that side heavy, loosen the cross

arm lock knob ②and then move the cross arm to the opposite direction, until the

camera can stay still and horizontal to the ground.

c. Tighten the cross arm lock knob ②.

The roll axis is balanced when the camera can stay still and horizontal to the ground.

4.3 Balancing the pan axis

a. Unlock the pan lock ①. Hold the tripod, and tilt the gimbal forward until it is

horizontal to the ground.

b. If the camera tilts to one side, then the camera is that side heavy, loosen the

vertical arm lock knob ② and then move the vertical arm ③ to the opposite

direction, until the camera can stay still and horizontal to the ground.

c. Tighten the vertical arm lock knob ②.

The pan axis is balanced when the camera can stay still and horizontal to the ground.
