Fanvil I10 Manuel utilisateur

Version: 1.0

Release Date: 30th, Dec, 2021

How to use the input port on

intercom to make a call as DSS

key?

Catalog

How to use the input port on intercom to make a call as DSS key? ...........................................1

1. Introduction...........................................................................................................................3

1.1. Overview ......................................................................................................................3

1.2. Applicable Model.........................................................................................................3

1.3. Before You Start...........................................................................................................3

1.4. Connection Diagram.....................................................................................................3

2. Operation Guide ...................................................................................................................4

2.1. Connect the external button to intercom’s input port ...................................................4

2.2. Configure the device.....................................................................................................4

Fanvil Technology Co. Ltd

Addr:10/F Block A, Dualshine Global Science Innovation Center, Honglang North 2nd Road, Bao'an District, Shenzhen, China

Tel: +86-755-2640-2199 Email: [email protected] [email protected] Official Web:www.fanvil.com

1. Introduction

1.1.Overview

This document introduces the method to how to use the input port on intercom to make a call as

DSS key. Some customers want to use more function key than the unit provides. In this case, they

can connect an external button to the input port of intercom, and use it as a function.

1.2.Applicable Model

Intercom models: i10, i10D, i10V, i10S, i10SD, i10SV, i16S, i16SV, PA2S

1.3.Before You Start

Step1. Connect your PC and intercom device in to the same PoE switch with Network cable.

Step2. Turn ON your device

Step3. Scan you network for know what it's the IP address assigned on your device via DHCP

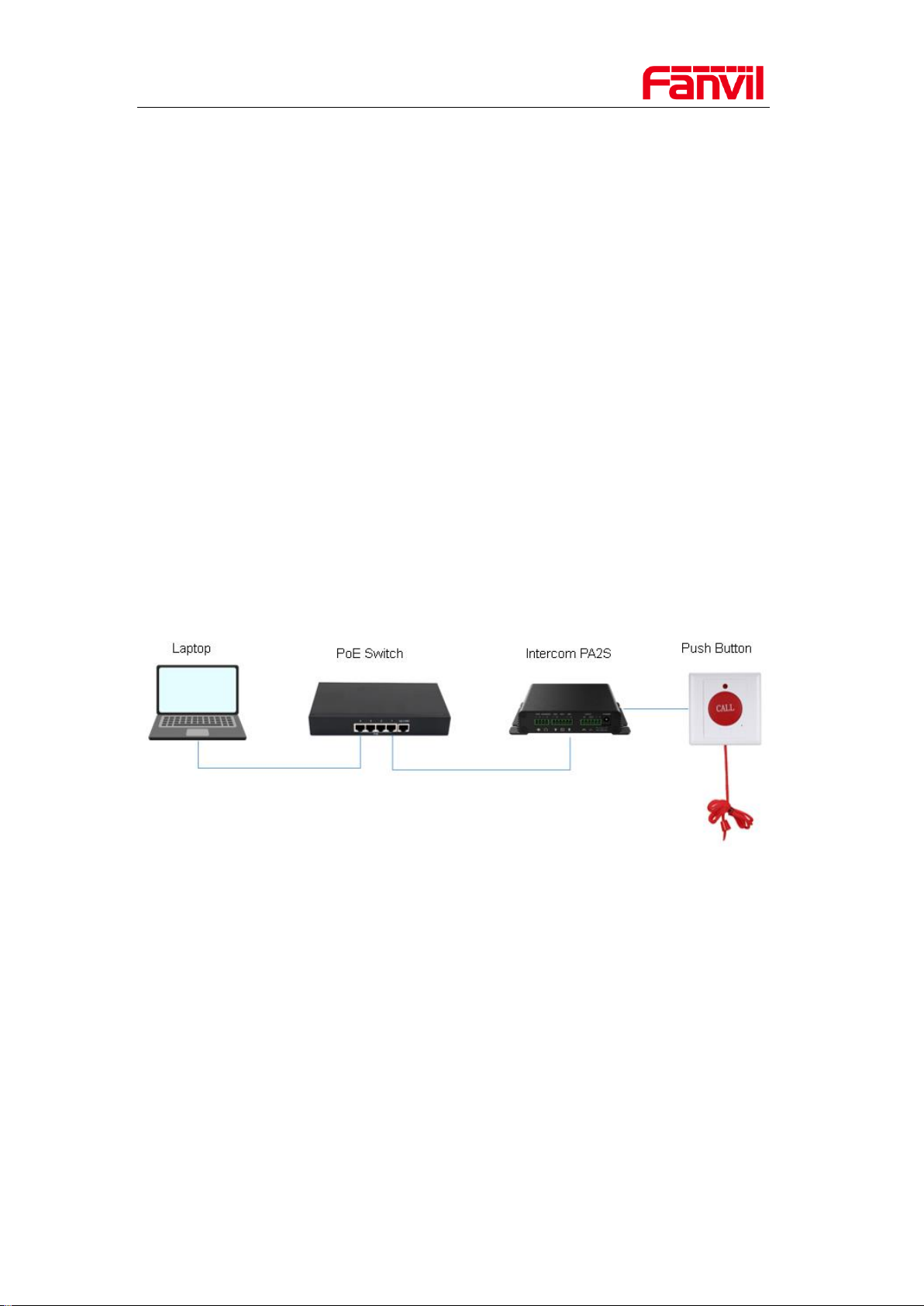

1.4.Connection Diagram

Fanvil Technology Co. Ltd

Addr:10/F Block A, Dualshine Global Science Innovation Center, Honglang North 2nd Road, Bao'an District, Shenzhen, China

Tel: +86-755-2640-2199 Email: [email protected] [email protected] Official Web:www.fanvil.com

2. Operation Guide

To configure the input port to make call as DSS key, you need perform the following procedure.

2.1.Connect the external button to intercom’s input port

Take PA2S as example, here is the connection diagram:

The input port should be connected to a dry contact of push button. Wet contact might damage

the input port.

And here is a list on the numbers of input port for different model:

Model

I10 series

I12

I16V

I18S

I16S

I16SV

PA2S

Input port

number

2.2.Configure the device

Step1. Open web browser and input device’s IP address in browser;

Step2. Input web login username and password;

Fanvil Technology Co. Ltd

Addr:10/F Block A, Dualshine Global Science Innovation Center, Honglang North 2nd Road, Bao'an District, Shenzhen, China

Tel: +86-755-2640-2199 Email: [email protected] [email protected] Official Web:www.fanvil.com

Step3. Go to Security Settings –Select: Dss Key –Select an option (“DSSKEY1”)

Step4. Go to Function Key

4.1. Select Dss Key 1

4.2 Type = Memory Key

Fanvil Technology Co. Ltd

Addr:10/F Block A, Dualshine Global Science Innovation Center, Honglang North 2nd Road, Bao'an District, Shenzhen, China

Tel: +86-755-2640-2199 Email: [email protected] [email protected] Official Web:www.fanvil.com

4.3 Name = Your Function

4.4 Value = SIP Extension

4.5 Subtype = Speed Dial

4.6 Line = Select the line available for perform a call
