i16S/i16SV SIP Intercom
Quick Installation Guide
1) Panel
Device size
Package Contents
1
Physical specification
2
SIP Intercom
Quick Installation
Guide
Connector
Mounting Template
www.fanvil.com
i16S/i16SV SIP Intercom
Quick Installation Guide
195 x 120 x 40 (mm)
Speaker
Camera
DSS key
MIC
1
Screw and tool
IR LED
2) Interface description
①
② ③ ④ ⑤ ⑥ ⑦ ⑧
Serial
number Description Wiring port description(example above)
①Ethernet interface: standard RJ45 interface, 10/100M
adaptive, it is recommended to use five or five types of
network cable
Two groups of short-circuit input detection
interfaces: for connecting switches, infrared probes,
door magnets, vibration sensors and other input devices
Left positive, right grounded
Two groups of short-circuit output control
interface: used to control electric locks, alarms,
etc.
Left grounded, right recording output
Recording output interface: Mix the device and the
sound of the far-end call. One is the recording signal
line, and the other is the ground line (be sure to ground
the line, otherwise there will be noise)
Left grounded, right external active speaker
②
③、⑤
④、⑥
⑦
⑧
2
Power interface: 12V/1A input
Left IN, right OUT
Left (NC): Normally Close Contact
Center (COM): Common Contact
Right (NO): Normally Open Contact
External active speaker interface: external active
speakers for audio power amplification. One is the audio
signal line, and the other is the ground line (be sure to
ground the line, otherwise there will be noise)
Open the rear case of the device, there is a row of terminal blocks for connecting the power supply,
electric lock control, etc. The connection is as follows:
1) Use built-in screw tool to remove the surface shell;
2) Based installation dimensions, mounting hole in the wall to draw, use an electric drill holes lay;
3) The white rubber plugged into the wall and the bottom fixed with screws to the wall;
4) After connecting the power cord and network cable, screw the surface shell fixed.
Installation Diagram
3
Fanvil Technology Co., Ltd
Email:[email protected]Tel:0755-2640-2199
Add: 4F, Block A, Building 1#, GaoXinQi Hi-Tech Park (Phase-II),
67th District, Bao'An, Shenzhen, China
Fax:0755-2640-2618
P.C:518101
Method 2:
Long press DSS key for 3 seconds(after power-on for 30 seconds), and when the speaker beeps
rapidly, press DSS key again quickly, the beeps stop ,the intercom will report the IP address by itself.
Step 1:Log in to the device page
Use the web browser input IP (for example: http://192.168.1.128) access.
The default user and password are admin.
3

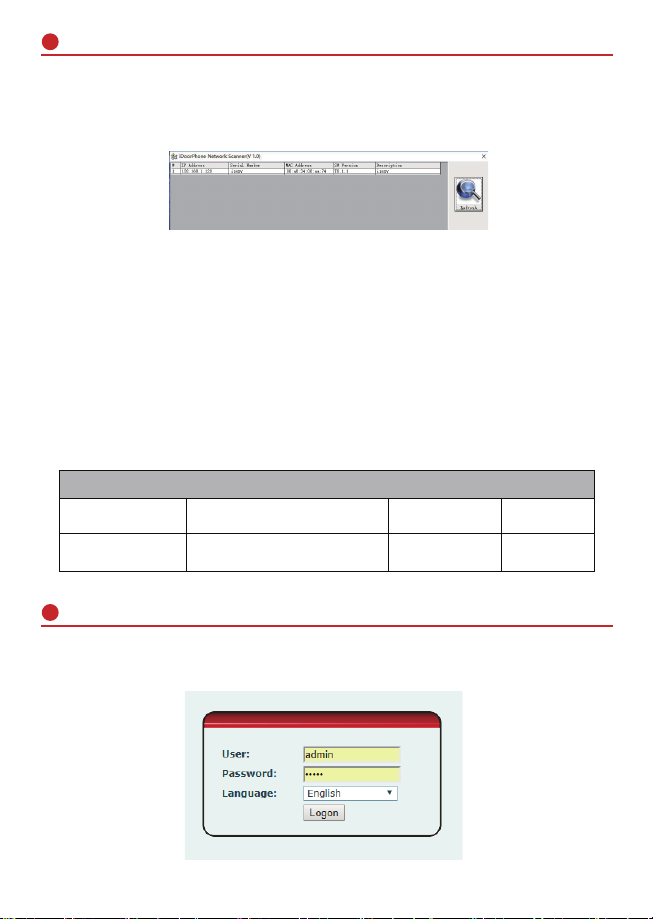

There as shown below to search the device.
Methods 1:
Download address: http://download.fanvil.com/tool/iDoorPhoneNetworkScanner.exe
Open the iDoorPhone Network Scanner. Press the Refresh button to search the device and
find the IP address.
Method 3:
In addition, device provides the device surface DSS key operation to switch IP address acquisition mode:
In the standby mode, long-press the DSS key for 3 seconds and the beep will last for 5 seconds.
Within 5 seconds, press the DSS key three times quickly to switch to the network mode.
a. If it is in the mode of DHCP and doesn't receive the IP address, switch it to the mode of
static IP (192.168.1.128), broadcast the IP address after the successful switch.
b. If it is in the mode of static IP address (192.168.1.128), switch it to the DHCP mode, broadcast
the IP address after the successful switch.
c. If it is in the mode of DHCP and obtain the IP address, the mode will not be switched and directly
broadcast the IP.
Searching device
4
Fast settings
5
Default Setting
Default DHCP Client
Voice broadcast
IP address
Enabled by default
Hold the DSS key for 3 seconds,
then press the DSS key again.
Static IP address
Default Web port
192.168.1.128
80
4
Step 3: Set the volume (if not connected can skip)
Intercom settings => Media Settings => Media Settings
Set the device volume size, as shown below, click [Apply].
Speakerphone volume setting: set the speaker volume of normal calls.
Handsfree Mic Gain: set the microphone volume of call.
Step 4: Set function key (if not connected can skip)
Set the function key as shown below for a quick start, click [Apply] to save this settings.
Type: Memory key
Number 1 (Value): the function key will dial to this number 1
Number 2 (Value 2): if number 1 is unavailable, it will be forwarded to number 2.
Subtype: speed dial
Line: working line
Step 5: Set the security function
1 set of short-circuit input and output settings, tamper alarm server settings.
Step 2: Set SIP account
Set SIP server address, port, user name, password and SIP user with assigned SIP account parameters.
Select “Activate”, and then click [Apply] to save this setting.
