Fanvil I16V Manuel utilisateur

www.fanvil.com

7JEFP*OUFSDPN

2VJDL*OTUBMMBUJPO(VJEF

1) Panel

%FWJDFTJ[F

Package Contents



Physical specification



i16V Video Intercom

Quick Installation

Guide

Connector

Mounting Template

www.fanvil.com

Video Intercom

Quick Installation Guide

195 x 120 x 34 (mm)

IR LED

Speaker

Camera

DSS key

MIC



Screw and tool

Mounting dimensions Unit:MM

2) Interface description

ʗʘ

Serial

number Description Wiring port description(example above)

1Ethernet interface: standard RJ45 interface, 10/100M

adaptive, it is recommended to use five or five types of

network cable

Two groups of short-circuit input detection

interfaces: for connecting switches, infrared probes,

door magnets, vibration sensors and other input devices

Left positive, right grounded

Two groups of short-circuit output control

interface: used to control electric locks,

alarms, etc.

Left grounded, right door magnetic input

Left grounded, right recording output

Recording output interface: Mix the device and the

sound of the far-end call. One is the recording signal line,

and the other is the ground line (be sure to ground the

line, otherwise there will be noise)

-FGUHSPVOEFE, SJHIUFYUFSOBMBDUJWFTQFBLFS

3澝5

4澝6

7澝8



Power interface: 12V/1A input

Left IN, right OUT

Two groups of gate magnetic detection

Left (NC): Normally Close Contact

Center (COM): Common Contact

Right (NO): Normally Open Contact

External active speaker interface: external active

speakers for audio power amplification. One is the audio

signal line, and the other is the ground line (be sure to

ground the line, otherwise there will be noise)

Open the rear case of the device, there is a row of terminal blocks for connecting the power supply,

electric lock control, etc. The connection is as follows：

Wall-mounted:

1) Use built-in screw tool to remove the surface shell;

2) Based installation dimensions, mounting hole in the wall to draw, use an electric drill holes lay;

3) The white rubber plugged into the wall and the bottom fixed with screws to the wall;

4) After connecting the power cord and network cable, screw the surface shell fixed.

Installation Diagram



Fanvil Technology Co., Ltd

Email:[email protected]Tel:0755-2640-2199

Add: 4F, Block A, Building 1#, GaoXinQi Hi-Tech Park (Phase-II),

67th District, Bao'An, Shenzhen, China

Fax:0755-2640-2618

P.C:518101

Method 2:

Long press DSS key for 10 seconds(after power-on for 30 seconds), and when the speaker beeps

rapidly, press DSS key again quickly, the beeps stop ,the intercom will report the IP address by itself.

Step 1: Log in the WEB admin interface of the device

Input IP address (e.g.http://192.168.1.128) into address bar of PC’s web browser.

The default user name and password are both admin

Step 2: Add SIP account

Set SIP server address, port, user name, password and SIP user with assigned SIP account parameters.

Select <enable registration>, click <Apply> to take effect.



There are two methods as shown below to search the device.

Methods 1:

Open the iDoorPhone Network Scanner,click the Refresh button to search the device and

find the IP address.

(Download address http://download.fanvil.com/tool/iDoorPhoneNetworkScanner.exe)

In addition, device provides the device surface DSS key operation to switch IP address acquisition mode:

Long press the DSS key for 10 seconds, to be issued by the speaker Beep, and then press the DSS key

three times, the beep stops. Wait 10 seconds, after the success of the system automatically broadcast

the current IP address.

Searching Video Intercom



Video Intercom Configuration



192.168.1.128 i16V i16V

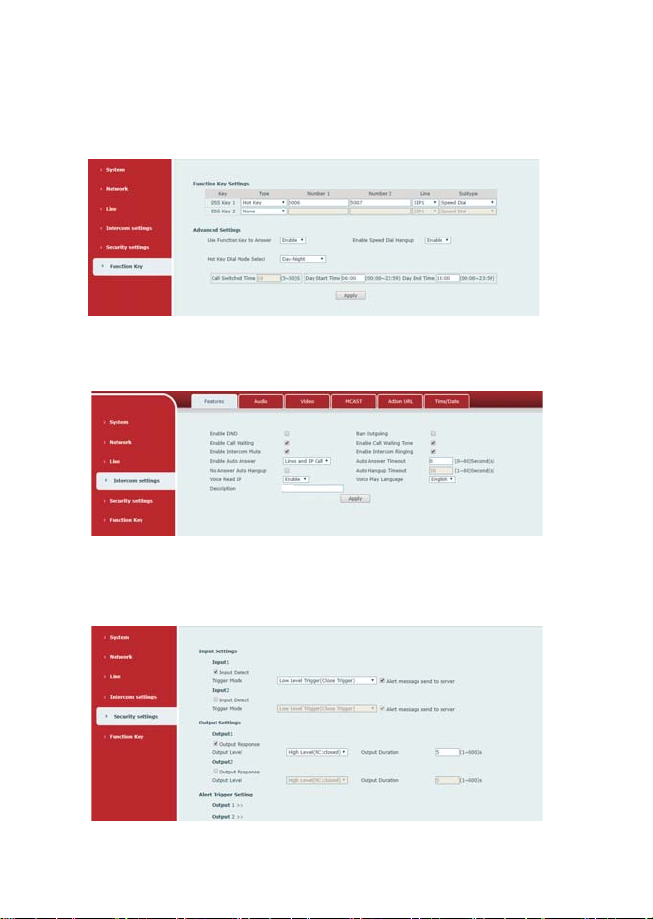

Step 3: Set DSS key

Set DSS key speed dial parameters, as shown below, click “Apply”to save this setting.

Type: Hot key.

Number 1: The DSS Key will dial to this Number 1.

Number 2: If number 1 is unavailable, it will be transferred to number 2.

Line: Working line.

Subtype: Speed Dial.

Step 4: Set the Intercom parameters

Step 5: Set the security function

Two short circuits input and output configuration,trigger ring,tamper detection configuration


