User’s Manual

Digital Video Transmitter and Receiver

68-1034-01 Rev. C

07 06

DVI 201 Tx/Rx

HDMI 201 Tx/Rx

DVI 201 and HDMI 201 Tx/Rx • Table of Contents

Table of Contents

Chapter One • Introduction.................................................... 1-1

About this Manual .................................................................... 1-2

About the DVI 201 Tx/Rx and HDMI 201 Tx/Rx............... 1-2

TP cable advantages .............................................................. 1-3

Serial communications........................................................... 1-3

Transmission distance............................................................ 1-3

Features ........................................................................................ 1-4

Chapter Two • Installation and Operation................... 2-1

Mounting the Tx/Rx.................................................................. 2-2

Tabletop placement ............................................................... 2-2

Rack mounting ....................................................................... 2-2

Under-furniture mounting .................................................... 2-4

Through-furniture mounting ................................................ 2-5

Projector mounting................................................................ 2-6

PMK 300 mounting.................................................................2-6

PMK 350 mounting.................................................................2-8

Connections............................................................................... 2-10

Transmitter connections ...................................................... 2-10

Receiver connections ........................................................... 2-12

Pin assignments and wiring................................................ 2-14

DVI connector pin assignments...........................................2-14

HDMI connector pin assignments .......................................2-15

TP cable termination ............................................................2-16

Power supply wiring ............................................................2-18

RS-232 connector wiring......................................................2-19

Operation ................................................................................... 2-20

Transmitter control and indicator....................................... 2-21

Receiver indicator ................................................................ 2-21

System operation................................................................. 2-21

Technical Points for Digital Video and

Content Protection Encryption............................................ 2-21

Troubleshooting....................................................................... 2-22

ii DVI 201 and HDMI 201 Tx/Rx • Table of Contents

Table of Contents, cont’d

DVI 201 and HDMI 201 Tx/Rx

Chapter One

Introduction

About this Manual

About the DVI 201 Tx/Rx and HDMI 201 Tx/Rx

Features

68-1034-01 Rev. C

07 06

All trademarks mentioned in this manual are the properties of their respective owners.

Appendix A • Reference Information..............................A-1

Speciﬁcations ..............................................................................A-2

DVI 201 Tx/Rx Speciﬁcations.................................................A-2

HDMI 201 Tx/Rx Speciﬁcations .............................................A-5

Part Numbers ..............................................................................A-8

Transmitter/receiver pair part numbers ...............................A-8

Included Parts.........................................................................A-8

Mounting accessories ............................................................A-9

Cables......................................................................................A-9

Adapters .................................................................................A-9

DVI 201 and HDMI 201 Tx/Rx • Introduction

Introduction

DVI 201 and HDMI 201 Tx/Rx • Introduction

1-2 1-3

Each pair ships with a single external desktop 12 V power

supply that accepts 100 to 240 VAC, 50 Hz or 60 Hz input. A

single power supply connected to either the transmitter or the

receiver can power both units through one of the TP cables that

link the units.

TP cable advantages

Twisted pair cable is much smaller, lighter, more ﬂexible, and

less expensive than coaxial or DVI or HDMI cable. These

transmitter and receiver twisted pair (TP) products make cable

runs simpler and less cumbersome. Termination of the cable

with RJ-45 connectors is simple, quick, and economical.

NThe transmitter and receiver pair works with unshielded

twisted pair (UTP) or shielded twisted pair (STP) cables;

but, to ensure FCC Class A and CE compliance, STP

cables are recommended.

NDo not use Extron’s UTP23SF-4 Enhanced Skew-Free™

A/V UTP cable to link the transmitter and receiver.

Skew-free A/V cable was designed for most Extron TP

transmitter/receiver applications, but the Tx/Rx will not

work properly with this cable.

Serial communications

The RS-232 and/or Consumer Electronics Control (CEC)

communications are via a passive pass-through only; the

transmitter and receiver do not generate or respond to these

signals.

Transmission distance

The maximum distance is determined by the resolution of the

signal and the UTP cable that is used.

With CAT 5/5e/6 UTP cable, the Tx/Rx pair can transmit and

receive 720p and 1080i HDTV or XGA video signals up to 200'

(60 m) and 1080p HDTV or UXGA video up to 100' (30 m).

With CAT 7 UTP cable, the Tx/Rx pair can transmit and receive

720p and 1080i HDTV or XGA video signals up to 200' (60 m)

and 1080p HDTV or UXGA video up to 125' (38 m).

About this Manual

This manual contains information about the Extron

DVI 201 Tx/Rx and HDMI 201 Tx/Rx transmitter and receiver

pairs, including how to install, operate, and conﬁgure them.

NIn this manual, the term "Tx/Rx" refers to either

product.

About the DVI 201 Tx/Rx and HDMI 201 Tx/Rx

The Extron DVI 201 Tx/Rx is a Digital Visual Interface (DVI)

transmitter/receiver set. The HDMI 201 Tx/Rx is a High

Deﬁnition Multimedia Interface (HDMI™) transmitter/receiver

set. The transmitter/receiver sets extend the usable distance of

DVI or HDMI digital video, and RS-232 control signals over two

Category (CAT) 5/5e/6/7 twisted pair (TP) cables. The video

and control signals can be transmitted up to 200' (60 m).

DVI200TX SERIES

LOCALOUTPUT

DVINPUT

Multimedia

Projector

Extron

DVI 201 Tx

Trans mit ter Extron

DVI 201 Rx

Receiver

DVI Cable

DVI 200

RS-232

PASSTHRU

TxRx

RS-232

Control

CAT 5/5e/6/7 UTP up to 200’

RS-232

Figure 1-1 — Typical transmitter and receiver application

The transmitter and receiver pairs consists of a Tx transmitter

and an Rx receiver that can handle a single link of

DVI-D or HDMI digital video, depending on the model.

NThe Tx/Rx is comprised of the transmitter-receiver

pair. The transmitter and receiver cannot be purchased

separately.

DVI 201 and HDMI 201 Tx/Rx • Introduction

Introduction, cont’d

1-4

DVI 201 and HDMI 201 Tx/Rx

Features

Transmits single link DVI-D or HDMI signals over two

CAT 5/5e/6/7 cables — Standard twisted pair cables

provide an economical, easily installed cable solution.

Long distance transmission —

CAT 5/5e/6 UTP cable — Accommodates 720p and 1080i

HDTV or XGA video over 200' (60 m), and 1080p HDTV

or UXGA (1600 x 1200) over 100' (30 m).

CAT 7 UTP cable — Accommodates 720p and 1080i HDTV or

XGA video over 200' (60 m), and 1080p HDTV or UXGA

(1600 x 1200) over 125' (38 m).

Local monitor output (DVI 201 Tx/Rx only) — The DVI 201 Tx

transmitter features a DVI-D output for connection to

local monitor.

Supports DDC and HDCP copy protection transmission —

The Tx/Rx pairs fully support long distance transmission

of the DDC and HDCP signals.

DDC routing to local or remote display (DVI 201 Tx/Rx only) —

At the DVI 201 Tx, the DDC or HDCP signal is directed to

either the local display or the remote display, depending

on which is more critical in receiving the signal.

Remote powering of transmitter or receiver — Only one power

supply is necessary to power both devices.

RS-232 pass-through — Bidirectional RS-232 control signals can

be transmitted alongside the DVI or HDMI signal, so that

the remote display can be controlled without the need for

additional cabling.

Supports CEC signal transmission

1"high, quarter rack width, metal enclosures — With low

proﬁle enclosures, both transmitter models and both

receiver models can be discreetly installed in locations,

such as behind a plasma or LCD ﬂat-panel display.

External 100 VAC to 240 VAC, 50/60 Hz, international power

supply (part #70-055-01) included

Chapter Two

Installation and Operation

Mounting the Tx/Rx

Connections

Operation

Technical Points for Digital Video and Content Protection Encryption

Troubleshooting

DVI 201 and HDMI 201 Tx/Rx • Installation

Installation

DVI 201 and HDMI 201 Tx/Rx • Installation

2-2 2-3

Mounting the Tx/Rx

CInstallation and service must be performed by

authorized personnel only.

The 1" high, quarter-rack width transmitters and receivers can

be placed on a tabletop, mounted on a rack shelf, mounted

under a desk or tabletop, or mounted on a projector bracket.

Tabletop placement

Afﬁx the four included rubber feet to the bottom of the

transmitter or receiver unit and place it in any convenient

location.

Rack mounting

For optional rack mounting, mount the transmitter or receiver

on any of the following rack shelves:

• RSF 123 3" deep VersaTools®rack shelf kit (part #60-190-

20) (ﬁgure 2-1)

• RSB 123 3" deep VersaTools rack shelf (part #60-604-20)

• RSU 126 6" deep universal rack shelf kit (part #60-190-10)

• RSB 126 6" deep basic rack shelf (part #60-604-10)

• RSU 129 9" deep 1U universal rack shelf kit

(part #60-190-01) (ﬁgure 2-2)

• RSB 129 9" deep 1U basic rack shelf (part #60-604-01)

On the non-VersaTools rack shelves, the transmitter or receiver

unit can be mounted in the front or the rear of the rack.

1. Remove the feet from the bottom of the transmitter or

receiver unit, if they are installed.

2. Mount the transmitter or receiver unit using two

4-40 x 3/16" screws in opposite (diagonal) corners to

secure the transmitter or receiver to the shelf.

3. Install false faceplate(s) or other unit(s) to the rack shelf.

(2) 4-40 x 3/16"

Screws

Use 2 mounting holes on

opposite corners.

VersaTools Rack Shelf

1/4 Rack Width Front

False Faceplate

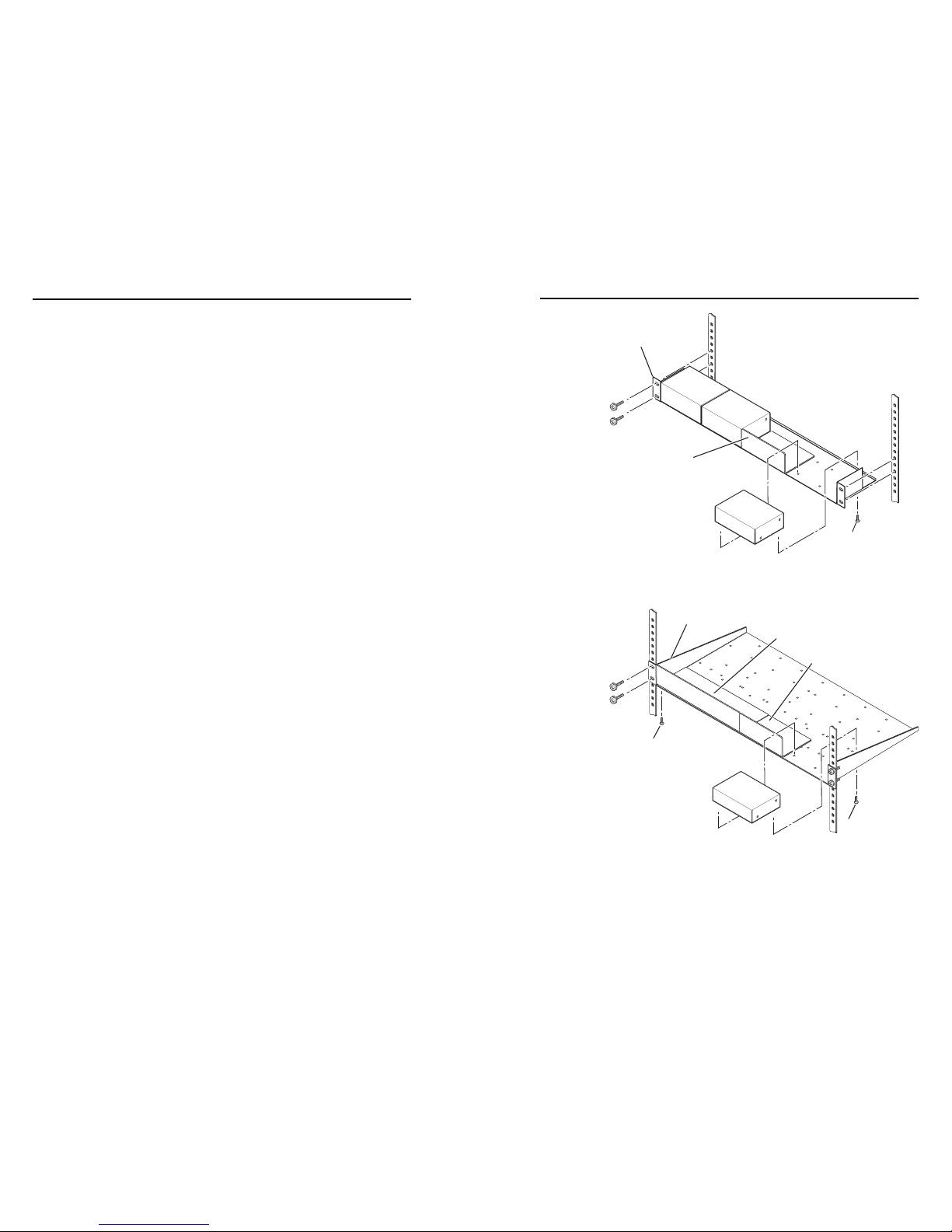

Figure 2-1 — Mounting the transmitter or receiver

unit on a VersaTools rack shelf

Use 2 mounting holes on

opposite corners.

(2) 4-40 x 3/16"

Screws

1U Universal Rack Shelf

Both front false faceplates

use 2 screws.

1/4 Rack Width Front False

Faceplate

1/2 Rack Width Front False

Faceplate

Figure 2-2 — Mounting the transmitter or receiver

unit on a standard rack shelf

DVI 201 and HDMI 201 Tx/Rx • Installation and Operation

Installation and Operation, cont’d

2-4 DVI 201 and HDMI 201 Tx/Rx • Installation and Operation

2-5

Under-furniture mounting

The transmitter or receiver can be mounted under a table or

other horizontal surface using an optional Extron MBU 125

under-desk mounting kit (part #70-077-01). Mount the

transmitter or receiver under a desk or table as follows:

1. Secure the under-desk mounting brackets to the

transmitter or receiver with the four machine screws

provided in the mounting kit (ﬁgure 2-3).

Figure 2-3 — Under-desk mounting

2. Hold the transmitter or receiver with attached brackets

against the underside of the desk or other furniture. Mark

the location of holes for screws on the desk.

3. Drill 1/4" (6.4 mm) deep, 3/32" (2 mm) diameter pilot

holes in the table or desk at the marked screw locations

from the underside or inside (the concealed side) of the

furniture, where the transmitter or receiver will be located.

4. Insert the four wood screws into the pilot holes. Fasten

each screw into the installation surface until just less than

1/4" of the screw head protrudes.

5. Align the installed screws with the slots in the mounting

brackets, and place the transmitter or receiver against the

surface, with the screws through the bracket slots.

6. Slide the transmitter or receiver slightly forward or back,

then tighten all four screws to fasten it in place.

Through-furniture mounting

The transmitter or receiver can be mounted through a desk or

other furniture using an optional Extron MBD 129 through-desk

mounting kit, part #70-077-02. Mount the transmitter or receiver

through a desk or table as follows (ﬁgure 2-4):

Figure 2-4 — Through-desk mounting

1. Loosely attach the mounting brackets to the transmitter

or receiver using the four machine screws and washers

supplied with the mounting kit.

2. Hold the transmitter or receiver against the inside of the

surface through which it will be mounted. Mark the four

screw holes on the inside of the surface to which you are

mounting the device.

3. Drill four pilot holes, each 3/32" in diameter by 1/4" deep,

where you made marks.

4. Using the four wood screws provided, secure the brackets

to the mounting surface.

DVI 201 and HDMI 201 Tx/Rx • Installation and Operation

Installation and Operation, cont’d

2-6 DVI 201 and HDMI 201 Tx/Rx • Installation and Operation

2-7

5. Slide the transmitter or receiver up and down in the

mounting brackets until the face of the transmitter or

receiver is at the desired height. Tighten the screws that

secure the brackets in place.

If the screws are inaccessible to a screwdriver:

a. Mark the location of the brackets relative to the screws.

b. Remove the transmitter or receiver from inside the

furniture.

c. Tighten the screws.

d. Replace the unit inside the surface (step 4).

Projector mounting

The receiver can be mounted on a projector bracket using either

of the following optional Extron projector mounting kits:

• PMK 300 projector mounting kit (part #70-374-01)

• PMK 350 low proﬁle projector mounting kit

(part #70-563-02 [black] or part #70-563-03 [white])

PMK 300 mounting

Mount the receiver to a PMK 300 bracket as follows:

1. If necessary, remove the feet from the bottom of the

receiver.

2. Mount the receiver to one of the bracket’s three mounting

plates using two of the supplied 4-40 x 3/16" screws in

opposite (diagonal) corners to secure the device to the

bracket. It can be vertically mounted facing either up or

down (ﬁgure 2-5).

NOn the side mounting plates, the device is typically

mounted on the outside of the bracket.

On the front mounting plate, the device is typically

mounted on the inside of the bracket.

3. If power supply is connected to the receiver, use the two

included tie wraps to strap the power supply to one of the

brackets.

NThe PMK 300 has a hole in the bottom plate that

allows the projector pole to be inserted through the

center of the plate (ﬁgure 2-6), rather than outside of

the plate (ﬁgure 2-5). To install the PMK 300 in this

conﬁguration, slide the bracket up from the bottom of the

pole before the projector is installed on the pole.

4. Place the contoured bracket base against the pole and

opposite the back plate. The pole should ﬁt snugly into the

depression in the center of the bracket base.

Extron

PMK 300

Multi-product Projector Mount Kit

U-Bolt

Front Mounting

PLate

Side Mounting

PLate

Extron

DVI 201 or HDMI 201

Receiver

Power Supply

Countoured

Bracket

Brace

Figure 2-5 — PMK 300 projector mounting a receiver

U-Bolt

Extron

PMK 300

Multi-product Projector

Mount Kit

Contoured

Bracket

Brace

Extron

DVI 201 or HDMI 201

Receiver

Power Supply

Figure 2-6 — Projector pole on the inside

DVI 201 and HDMI 201 Tx/Rx • Installation and Operation

Installation and Operation, cont’d

2-8 DVI 201 and HDMI 201 Tx/Rx • Installation and Operation

2-9

5. Place the U-bolt around the ceiling pole and insert the

two legs of the U-bolt through the round holes on the

contoured bracket base and then through the slotted holes

on the bracket’s mounting plate.

NThe supplied U-bolt ﬁts a typical (1.5" to 2.0" diameter)

ceiling pole.

6. Secure the bracket to the U-bolt with the included hex

nuts, washers, and lock washers. Tighten the hex nuts just

enough that they can be loosened by hand.

PMK 350 mounting

Mount the receiver to a PMK 350 bracket as follows:

1. Remove the front and back plates from the PMK 350

(ﬁgure 2-7), using an Extron Tweeker or a #2 Philips

screwdriver. Retain the screws to reattach the plates when

you are ﬁnished.

Extron

PMK 350

Multi-product Projector

Mounting Kit

Cover Sheet

Front Plate

Rear Plate

U-bolt

L-shaped

Bracket

Contoured

Base

Extron

Power Supply

Extron

Quarter-rack

Sized Product

Figure 2-7 — PMK 350 projector mounting a receiver

2. If necessary, remove the feet from the bottom of the

receiver.

3. Secure the receiver to one side of the mounting tray,

using two of the supplied 4-40 x 3/16" screws in opposite

(diagonal) corners.

4. If power supply is connected to the receiver, use the

two included tie wraps to strap the power supply to the

bracket.

5. Place the PMK 350 around the projector ceiling mounting

pole (ﬁgure 2-7).

6. Assemble the U-bolt and the following parts in the

following order (ﬁgure 2-8):

a. Pass the legs of the U-bolt through the slotted holes on

the mount plate ﬂange.

b. Place the legs around the projector pole.

c. Pass the legs through the holes in the contour base.

NThe pole ﬁts snugly into the depression in the

center of the contoured base.

d. Pass the legs through the holes in the L-shaped bracket.

NThe supplied U-bolt ﬁts a typical (1.5" to 2.0"

diameter) ceiling pole.

U-bolt

Slotted Hole

in PMK Tray

L-shaped

Bracket

L-shaped

Bracket Screws

Contoured

Base

Ceiling

Pole

Mount Plate

Flange

Figure 2-8 — Hanging the tray on the pole

7. Align the two slotted holes in the bottom of the L-shaped

bracket with the two slotted holes in the base of the tray,.

Secure the L-bracket to the base by inserting two provided

6-32 x 5/16" screws through the aligned slots.

8. Move the PMK 350 up to the desired location on the ceiling

pole, as close to the ceiling as desired.

9. Secure the L-shaped bracket to the U-bolt using the

included hex nuts, washers, and lock washers. Tighten the

hex nuts securely.

NBe sure to tighten the hex nuts securely enough that the

PMK 350 does not slide down the ceiling pole. A socket

wrench is recommended to tighten the hex nuts.

10. Secure the front panel to the mounting tray with four of

the included #6 screws.

11. If desired, choose one of the provided four sizes of self-

adhesive cover sheets, and apply it to the underside of the

mounting tray.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Extron electronics Émetteur

Extron electronics

Extron electronics A/V Receiver MTP 4T 15HD RS Manuel utilisateur

Extron electronics

Extron electronics XTP T UWP 202 4K Manuel utilisateur

Extron electronics

Extron electronics DTP2 T 202 FB Manuel utilisateur

Extron electronics

Extron electronics DTP3 T 101 D Manuel utilisateur

Extron electronics

Extron electronics XTP T HWP 101 Manuel utilisateur

Extron electronics

Extron electronics FOX 500 Tx Manuel utilisateur

Extron electronics

Extron electronics DVI 201xi TX Manuel utilisateur

Extron electronics

Extron electronics FOXBOX T HD-SDI Manuel utilisateur

Extron electronics

Extron electronics FOX T UWP 302 Manuel utilisateur

Extron electronics

Extron electronics DTP2 T 201 D Series Manuel utilisateur

Extron electronics

Extron electronics DTP2 T 203 Manuel utilisateur

Extron electronics

Extron electronics XTP FT HD 4K Manuel utilisateur

Extron electronics

Extron electronics A/V Receiver MTP 4T 15HD RS Manuel utilisateur

Extron electronics

Extron electronics DTP T HD2 4K 230 Manuel utilisateur

Extron electronics

Extron electronics DTP T FB 232 Manuel utilisateur

Extron electronics

Extron electronics XTP T FB 202 Manuel utilisateur

Extron electronics

Extron electronics FOX II T DP 4K Manuel utilisateur

Extron electronics

Extron electronics DTP DVI 330 Manuel utilisateur

Extron electronics

Extron electronics MTP 15HD A Series Manuel utilisateur

Extron electronics

Extron electronics CAT 5 Manuel utilisateur

Extron electronics

Extron electronics DTP T USW 333 Manuel utilisateur

Extron electronics

Extron electronics DTP T HWP D Series Manuel utilisateur

Extron electronics

Extron electronics FOX3 T 301 Manuel utilisateur

Extron electronics

Extron electronics XTP T UWP 202 Manuel utilisateur

Manuels Émetteur populaires d'autres marques

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuel du propriétaire

Honeywell

Honeywell 5816WMBR Manuel utilisateur

Kamstrup

Kamstrup READy MTU Mode d'emploi

Omega

Omega ZW Series Manuel utilisateur

ABB

ABB Field 264H Mode d’emploi

Alinco

Alinco DJ-V17T Manuel utilisateur

Dejero

Dejero EnGo 3x Manuel utilisateur

Rosemount

Rosemount 4600 Manuel utilisateur

Speaka Professional

Speaka Professional 2342740 Manuel utilisateur

trubomat

trubomat GAB 1000 Manuel utilisateur

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuel utilisateur

Rondish

Rondish UT-11 Manuel utilisateur

MG 10JRE Manuel utilisateur

Burkert

Burkert 8177 Manuel utilisateur

Firetide

Firetide HotPort 3203 Manuel

Tele Radio

Tele Radio T9-02 Manuel utilisateur

Rotronic

Rotronic HygroFlex HF3 Series Manuel utilisateur

Jamara

Jamara FCX6 Pro Tel Manuel utilisateur
