Extech Instruments SL400 Manuel utilisateur

USERGUIDE



NoiseDoseMeter

ModelSL400



www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

2SL400‐en‐GB_V1.02/16

Introduction

ThankyouforselectingtheExtechInstrumentsModelSL400.Thisdeviceisshippedfullytested

andcalibratedand,withproperuse,willprovideyearsofreliableservice.Pleasevisitourwebsite

(www.extech.com)tocheckforthelatestversionofthisUserGuide,ProductUpdates,Software,

andCustomerSupport.



Safety

CAUTION:Avoidtakingmeasurementsinhumidorwetenvironments.

WARNING:Ensurethattheambienthumidityconditionsarewithinthosespecifiedandreferenced

intheEnvironmentalConditionssection.

WARNING:Avoidtakingmeasurementsinthepresenceof:

Explosivegases

Combustiblegases

Steam

Excessivedust

CAUTION:Donotoperatetheinstrumentinambienttemperatureandhumidityconditionsbeyond

thoserecommendedandreferencedintheEnvironmentalConditionssection.

ATTENTION:Keepthemicrophonedryandavoidseverevibration.

ATTENTION:Windblowingacrossthemicrophonecanaddextraneousnoise.Iftheinstrumentis

usedinwindyconditions,usethesuppliedmicrophonewindscreentopreventundesirablesignals.

Thefollowingsymbolsareused:



Caution:Incorrectusemaydamagetheinstrument.



TheinstrumentconformstotheCEstandard



SuppliedAccessories

User’smanual

Carryingcase

9Vbattery

Microphoneandwindscreen

PCSoftware

MINIUSBCable(MiniBtype)



www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

3SL400‐en‐GB_V1.02/16

Description

MeterDescription

1. MicrophoneConnector

2. USBInterface(Side)

3. LCDDisplay

4. PowerButton

5. Microphoneandwindscreen

6. NavigationButtons

7. Start/PauseButton

8. MicrophoneCable

9. REC/MEMButton

10. ENTERButton

11. SETButton

12. StopButton



DisplayDescription



  BatteryStatus

  AutoPowerOffEnabled

  Pause

  115dBindicator(SPL)

  Stop

 140dBindicator(Peak)

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

4SL400‐en‐GB_V1.02/16

  Start

 USBInterface

  SPLHighdBRange(70~140)

  SPLmiddledBRange(50~110)

  SPLlowdBRange(30~90)

  dBlevel

  Testingmode

 SoundLevelMetermode

  NoiseDose%

  SoundLeveldBunit

  Aweighting

  CWeighting

  ZWeighting

Fastresponse

SlowResponse

 ImpulseWeighting

 OverRange

 UnderRange

 Solid:Autorecordstandby;Flashing:Recording

 Starttesttime(begin)

 Viewrecordeddata

 Stoptesttime

 SETmode

 Testduration

www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

5SL400‐en‐GB_V1.02/16

SetMode

Pressthebuttontoentersetmode.Thereareatotalofsevenfunctionsinsetmode:Test

Mode,PowerOff,SamplingTime&AutoRecord,RealTimeClock,94dBOffsetAdjust,Noise

Standard,andSLMfunction.

PresstheSETbuttontomovetothenextparameterorPressentertoexitsetupmode.



TestModeSet



Pressthe or buttontochangethetestmodebetweenNDM(NoiseDoseMeter)andSLM

(SoundLevelMeter).

PresstheSETbuttontomovetothenextparameterorPressenter toexitsetupmode.



AutoPowerOffSet



Presstheor buttontoenableordisableAutoPowerOffFunction.

AutoPowerOffwillturnoffthemeterin15minutesifthemeterisnotrecordingdata.

PresstheSETbuttontomovetothenextparameterorPressentertoexitsetupmode.



www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

6SL400‐en‐GB_V1.02/16

SamplingTime&AutoRecordSet

Use the or buttontoselecteitherAutoRecordingsetorSamplingtime.

Usetheor buttontoenableordisableAutorecord(OnorOff)ortoadjustthesampling

time.Theminimumsamplingtime(intervalrate)is1readingpersecond.Themaximumsampling

timeis23hours,59minutes,and59seconds.

PresstheSETbuttontomovetothenextparameterorPressenter toexitsetupmode.



RealTimeClockSet



Pressthe or buttontoselecttheoptiontoadjusttheRealtimeclock(24hour).

Usetheor buttontoadjustthetimedigits.

PresstheSETbuttontomovetothenextparameterorPressenter toexitsetupmode.



www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

7SL400‐en‐GB_V1.02/16

94dBOffsetAdjust(Calibration)



Seesectiononmetercalibrationbeforeproceedingwiththisparameter.

PresstheSETbuttontomovetothenextparameterorPressentertoexitsetupmode.



NoiseStandardSet



Presstheor buttontoselectaNDMtestingregulatorybodyabbreviation:OSHA,MSHS,

DOD,ACGIH,ISO85,ISO90,andUSER.

PresstheSETbuttontomovetothenextparameterorPressenter toexitsetupmode.



www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

8SL400‐en‐GB_V1.02/16

SLMFunctionSet



Presstheor buttontochangeatestfunction.Theseinclude:

, , and 

PeakCandPeakZ

Presstheor buttontoselectthenexttestparameter:

Timeweighting  (Fast,Slow,orImpulse),

Frequencyweighting (A,CorZ),

Peakfrequencymeasurement(CorZ).

Soundlevelrange  (high,medium,orlow)

High–70to140dB

Medium–50to110dB

Low‐ 30to90dB

PresstheSETbuttontomovetothenextparameterorPressentertoexitsetupmode.



www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

9SL400‐en‐GB_V1.02/16

Calibration



AutomaticModeCalibration

SetthemetertoSLMmode,Aweighting,Highrange,andSlow.

Attacha94.0dB(1000Hz)soundcalibratortothemicrophone.

EnterSETmodeandgototheparameter94ADJ.



PresstheRun keytostarttheautomaticoffsetroutineandwaitfortheflashingdBnumber

toappear.



PresstheEnter keytosavetheentryandtogetbacktothemeasurewindow.

Themetershouldnowread94.0dB(+/‐0.1dB).



Ifthemeasuredvaluedoesnotequal94.0(+/‐0.1dB),runthe94ADJroutineagain.

PresstheEnterkeytosavetheentryandtogetbacktothemeasurewindow.



www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com

10SL400‐en‐GB_V1.02/16

ManualModeCalibration

SetthemetertoSLMmode,Aweighting,Highrange,andSlow.



Attacha94.0dB(1000Hz)soundcalibratortothemicrophoneandwaitforabout1minuteand

notethesoundvalueonthedisplay.Writedownthevalue.



Calculatethevalueoftheoffsetfromthedisplayedvaluetothesourcednoiselevel.

Inthisexamplethevalueis+1.3(94.0dBsourced,and92.7dBdisplayed)



EnterSetmodeandgototheparameter94ADJ.

UsingtheUpanddownarrowssettheoffsetaccordingtotheoffsetcalculated.

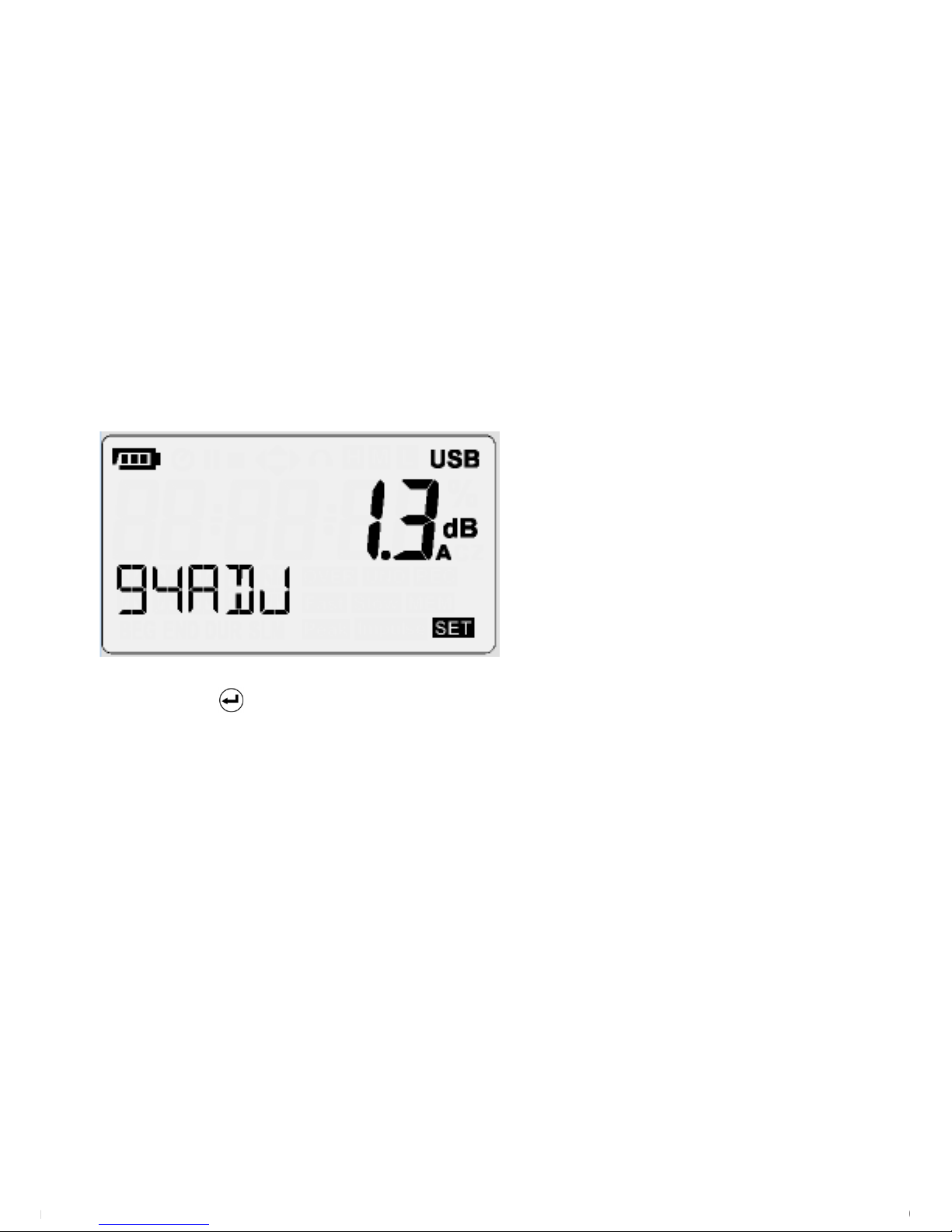

Inthisexample–set94ADJto1.3



PresstheEnterkeytosavetheentryandtogetbacktothemeasurewindow.

Themetershouldnowread94.0dB(+/‐0.1dB).



www.GlobalTestSupply.com

Find Quality Products Online at: sales@GlobalTestSupply.com
