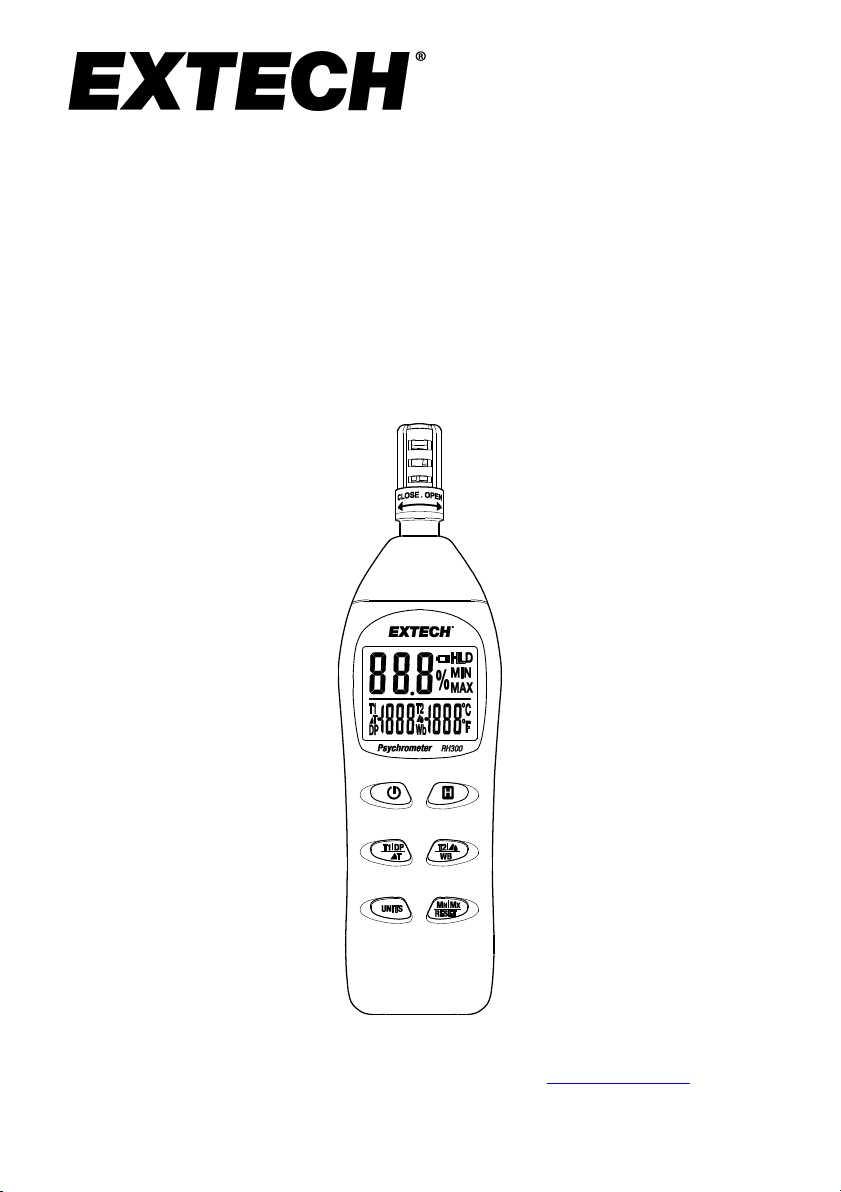

USER MANUAL

Digital Psychrometer

Models RH300 and RH305 kit

Additional User Manual Translations available at www.extech.com

RH300-en-GB_v2.0 10/18

Introduction

Thank you for selecting the Extech RH300 Digital Psychrometer. This device measures Relative

Humidity, Air Temperature from the internal sensor (T1), and Temperature from the TP890

optional external probe (T2).

The RH300 calculates Dew Point and Wet Bulb temperature based on T1 air temperature

measurements and relative humidity measurements. The meter also calculates T1 minus T2

temperature and T2 minus Dew Point temperature.

Product features include Data Hold, adjustable automatic power-off (APO) and MIN/MAX

recording. Careful use of this meter will provide years of reliable service.

Visit our website to check for the latest version of this user manual: www.extech.com.

Meter Description

1. Relative humidity and T1* air temperature sensors

2. Triple-reading LCD

3. Power ON/OFF button

4. Button for T1 temperature / T1 minus T2* temperature (ΔT) /

Dew Point temperature (DP)

5. °F/°C temperature unit select button

6. MIN/MAX recording control button

7. Button for T2 external probe temperature / T2 temperature

minus Dew Point temperature ( ) / Wet Bulb temperature

(Wb)

8. Data Hold button

9. Jack for optional TP890 temperature probe (T2)

Note: Battery compartment is located on back meter

*T1 represents the displayed air temperature measured by the internal sensor. T2 represents the

displayed temperature measured by the optional (external) temperature sensor (TP890). Dew

Point and Wet Bulb temperatures are calculations based on T1 air temperature and relative

humidity measurements.

RH300-en-GB_v2.0 10/18

Button Descriptions

Press for 1 second to power ON or OFF

Short press to freeze/unfreeze displayed readings

Short press to step through T1 internal sensor temperature, Dew Point

temperature, and T1 minus T2 (external probe) temperature

Short press to step through T2 external probe (TP890) temperature, T2

temperature minus Dew Point temperature, and Wet Bulb temperature

Short press to toggle temperature units (oC/oF)

Short presses to step through minimum reading, maximum reading, and

to exit. Long press to reset the MIN MAX memories.

Display Description

1. Relative Humidity %

2. T1* (air temperature, internal sensor)

3. T1 temperature minus T2* (optional

external probe TP890) temperature

4. Dew Point* temperature calculation

5. Wet Bulb* temperature calculation

6. T2 temperature minus Dew Point

temperature calculation

7. °C/°F temperature units

8. T2 temperature (optional probe)

9. Maximum reading

10. Minimum reading

11. Low Battery and Data Hold (HLD) icons

*T1 represents the displayed air temperature measured by the internal sensor. T2 represents the

displayed temperature measured by the optional (external) temperature sensor (TP890). Dew

Point and Wet Bulb temperatures are calculations based on T1 air temperature and relative

humidity. T1 minus T2 and T2 minus Dew Point temperature displays are only available when

you connect a TP890 optional temperature probe.

RH300-en-GB_v2.0 10/18

Operation

Sensor Protective Cap

Turn the protective cap (top of meter), in the direction

of the OPEN arrow to allow air into the sensor cavity.

Turn the cap in the direction of the CLOSE arrow to

protect the sensors. Always open the cap to take

measurements and close when storing.

Meter Power

Press the power button for one second to switch the meter ON/OFF. The meter will

perform a short self-test when switched ON.

Air Temperature and Relative Humidity Measurements

1. Turn the protective sensor cap (top) to the OPEN

position to expose the sensors.

2. Hold meter so that the sensors are in the test area.

3. Allow adequate time for readings to stabilize.

4. The Relative Humidity measurement (%) appears on

the top display.

5. Short press to toggle T1 temperature or Dew

Point temperature on the lower left display area.

6. The Wet Bulb temperature calculation (Wb) appears on the lower right.

Optional External Probe (TP890) Temperature Measurements

Connect the TP890 optional temperature probe to the jack on the right side of the

meter. The TP890 is a thermistor-type temperature probe.

Short press to step through three options that appear on the lower left display

area: T1 temperature, T1 minus T2 temperature (ΔT), and Dew Point (DP) temperature.

Short press to step through three options that appear on the lower right: T2

temperature (TP890 optional probe), T2 minus Dew Point temperature ( ), and Wet

Bulb (Wb) temperature.

Note: If the optional temperature sensor is not connected, , , and T2 values will

not be displayed.

Selecting Temperature Measurement Units

Long press the UNITS button to toggle the temperature measurement units (oC and oF).

RH300-en-GB_v2.0 10/18

Minimum (MIN) Maximum (MAX) Recording

Short press the MnMx/Reset button to view the minimum temperature and humidity

readings recorded (MIN is shown). Short press the MnMx/Reset button again to view

the maximum temperature and humidity readings recorded (MAX icon is shown). To

exit the MIN/MAX mode, press the MnMx/Reset button again (MIN and MAX icons

switch off).

To clear the MIN/MAX memory, long press the MnMx/Reset button until all display

characters switch on.

Data Hold

Short press the H(hold) button to freeze/unfreeze the displayed readings. The 'HLD'

icon will appear on the display when data hold is active.

Automatic Power-off (APO)

The meter automatically switches off after a programmed amount of time. The default

time is 10 minutes. To program the APO timer, long press the Hbutton while switching

the meter on. Continue to hold both the power and Hbuttons. The meter will cycle

through the selectable timer values: n, 2, 5, 10, 20, 40 or 60 minutes (‘n’ disables APO).

When the desired power-off time appears on the display, release both buttons to

confirm the time and to return to the normal operating mode.

Note that the ‘n’ (APO defeat setting) only appears the first time through the APO time

cycle in the programming process, so if you want to disable the APO you will have to

catch the ‘n’ on the first cycle. If you miss it the first time, switch the meter OFF and

retry.

RH300-en-GB_v2.0 10/18

Calibration

For the following verification and calibration procedures, you will need the 33% and 75% RH

reference bottles (supplied with the RH305 kit). To obtain reference bottles please contact Extech

(www.extech.com). If the salt in the reference bottles is overly dry, please replace the bottles

(RH300-CAL).

Accuracy Verification

Checking the 33% or 75% RH Calibration:

1. Insert the meter sensor into the 33% or 75% salt reference bottle.

2. Check the reading after 10 minutes.

3. Verify that the reading is within the accuracy specification.

Relative Humidity Calibration (33% and 75%)

Preparation

Install a fresh set of batteries.

Move the protective sensor cap to the Open position.

Switch the meter ON and set it to display Dew Point temperature (DP) and Wet Bulb

temperature (Wb).

Procedure

1. Follow the preparation steps above before continuing.

2. If the salt at the bottom of the reference bottles appears dry, replace the bottles.

3. Switch the meter OFF.

4. Insert the meter sensor into a 33% salt bottle.

5. Leave the meter OFF for one hour (to stabilize).

6. After the meter has stabilized for one hour:

Press and hold the UNITS button while switching the meter ON.

The meter will enter the calibration mode (32.8% flashes on the display).

The DP and Wb display fields show DP ---- Wb ----°C.

7. When the 33% calibration is complete, the display stops flashing and shows a constant

32.8%.

8. Keeping the meter switched ON, insert the sensor into the 75% salt bottle.

9. Allow the meter to remain for one hour in the 75% salt bottle to stabilize.

Important: Do NOT switch the meter OFF while in the Calibration mode!

While in the Calibration mode, APO is disabled.

10. After one hour, press and hold the MN/MX button until 75.3% begins flashing on the meter

display. The meter has now entered the 75.0% calibration stage.

11. After 30 minutes, the meter will exit the calibration and return to normal operating mode.

12. The Calibration is now complete; please switch the meter OFF.

RH300-en-GB_v2.0 10/18

Maintenance

Cleaning and storage

1. Clean the meter housing with the sensor cap closed, using a lightly damp cloth and mild

detergent when necessary. Do not use solvents or abrasives.

2. Store the meter -- with the protective cap closed -- in an area with moderate temperature

and humidity (refer to the operating/storage conditions specifications).

Battery Replacement

When the batteries need replacing, the symbol will appear on the LCD. Replace the two (2)

1.5 ‘AAA’ batteries in the rear battery compartment, observing correct polarity.

Never dispose of used batteries or rechargeable batteries in household waste.

As consumers, users are legally required to take used batteries to appropriate

collection sites, the retail store where the batteries were purchased, or wherever

batteries are sold.

Disposal: Do not dispose of this instrument in household waste. The user is obligated

to take end-of-life devices to a designated collection point for the disposal of electrical

and electronic equipment.

Other Battery Safety Reminders

Never dispose of batteries in a fire. Batteries may explode or leak.

Never mix battery types. Always install new batteries of the same type.

Error Message Displays

1. ER1: Relative Humidity measurement failure. Have the meter repaired or replaced.

2. ER2: Internal temperature circuit failure. Have the meter repaired or replaced.

3. ER3: Reference resistance failure. Have the meter repaired or replaced.

4. ER4: Internal temperature sensor measurement is out of range. Always measure within the

published specified range.

5. ER5: External temperature sensor measurement is out of range. Always measure within the

specified range of the optional TP890 external temperature sensor.

RH300-en-GB_v2.0 10/18

Specifications

Range and Resolution

Accuracy

Humidity

0.0 to 100.0% RH

±3% RH (10 to 90%) @ 23oC

Temperature (internal sensor)

-20 to 50oC (-4.0 to

122.0oF)

±1oC (±1.8oF)

Temperature (optional external

probe TP890)

-20 to 70oC (-4.0 to

158.0oF)

±1oC (±1.8oF)

Display Triple-reading LCD

Sensor Types Relative Humidity: Precision capacitance sensor

Temperature (internal): Thermistor

Optional TP890 Temperature probe: Thermistor

Response Time 60 seconds typical

Dew Point range -68 to 50oC (-90.4 to 122.0oF) (calculated from RH and air

temperature measurements)

Wet Bulb range -21.6 to 50oC (-6.88 to 122.0oF) (calculated from RH and air

temperature measurements)

Operating Conditions -20 to 50oC (-4 to 122oF); < 99% RH non-condensing

Storage Conditions -40 to 85oC (-40 to 185oF); <99% RH non-condensing

Power Supply 2 x 1.5V ‘AAA’ batteries

Battery Life Approx. 80 hours

Dimensions / Weight 178.5 x 48.8 x 25.2mm (7.0 x 1.9 x 1.0”); 140g (4.9 oz.)

www.extech.com

Autres manuels pour RH300

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Extech Instruments Instrument de mesure

Extech Instruments

Extech Instruments 461830 Manuel utilisateur

Extech Instruments

Extech Instruments 380460 Manuel utilisateur

Extech Instruments

Extech Instruments FM200 Manuel utilisateur

Extech Instruments

Extech Instruments 407730 Manuel utilisateur

Extech Instruments

Extech Instruments 38389 Manuel utilisateur

Extech Instruments

Extech Instruments FM100 Manuel utilisateur

Extech Instruments

Extech Instruments UM200-NIST Manuel utilisateur

Extech Instruments

Extech Instruments 407119-NIST Manuel utilisateur

Extech Instruments

Extech Instruments RH350 Manuel utilisateur

Extech Instruments

Extech Instruments ExStik PH100 Manuel utilisateur

Extech Instruments

Extech Instruments PQ3350 Manuel utilisateur

Extech Instruments

Extech Instruments ExStik PH100 Manuel utilisateur

Extech Instruments

Extech Instruments CO100 Manuel utilisateur

Extech Instruments

Extech Instruments 480846 Manuel utilisateur

Extech Instruments

Extech Instruments TM100-NIST Manuel utilisateur

Extech Instruments

Extech Instruments 341350A Manuel utilisateur

Extech Instruments

Extech Instruments 380940 Manuel utilisateur

Extech Instruments

Extech Instruments 700 Series Manuel utilisateur

Extech Instruments

Extech Instruments AUT10 Manuel utilisateur

Extech Instruments

Extech Instruments MO265 Manuel utilisateur

Extech Instruments

Extech Instruments CO250 Manuel utilisateur

Extech Instruments

Extech Instruments PQ3450-30 Manuel utilisateur

Extech Instruments

Extech Instruments HD350 Manuel utilisateur

Extech Instruments

Extech Instruments RH300 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
