User's Guide
Vane Thermo-Anemometer Datalogger
Model 451126
Introduction
Congratulations on your purchase of Extech's Thermo-Anemometer Datalogger. This
Vane-type Anemometer can indicate Air Velocity in five units of measure: Feet per minute,
Meters per second, Miles per hour, Kilometers per hour, and Knots with Temperature
displayed in oC or oF units. The meter can also display air flow in CFM or CMM. The built-in
datalogger can record up to 2000 readings and the RS-232 interface provides PC data
transfer capability.
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
FAX 781.665.0780 - TestEquipmentDepot.com
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
Back to the Extech 451126 Product Page
Model 451126 Version 1.6 February 2004
2
Specifications
General Specifications
Display Dual 4-digit (9999 count) Multi-function LCD
Data hold Locks latest reading on the LCD display
Sensor Structure Air velocity sensor: Conventional twisted vane arm with low friction
(sapphire) ball bearing. Temperature sensor: K-type thermocouple
built into vane. 1/4" mounting nut provided
Memory Recall Records Max/Min readings with push-key RECALL
Data Output RS-232 PC serial interface
Operating conditions
(Meter) Temperature: 32°F to 122°F (0°C to 50°C); Humidity: <80% RH;
Pressure: 500mB to 2 Bar
Operating conditions
(Vane) Temperature: 32°F to 140°F (0°C to 60°C); Humidity: <80% RH;
Pressure: 500mB to 2 Bar
Storage temperature Temperature: -40°F to 140°F (-40°C to 60°C)
Power Supply 9V battery; Battery life: 50 hours typical
Power Consumption Approx. 3 mA DC
Weight 0.77 lbs. (350g)
Dimensions Meter: 3.46 x 6.61 x 1.03" (88 x 168 x 26.2mm);
Vane: 2.6 x 5.22 x 1.15" (66 x 132 x 29.2mm)
Accessories 9V battery and carrying case
Range Specifications
Air Velocity
Measurement
Calibrated Range Display
Resolution
Accuracy
Feet per Minute (ft/min) 60.0 to 8800 0.1 ± (3% + 20 ft/min)
Meters per Second (m/s) 0.30 to 45.00 0.01 ± (3% + 0.1 m/s)
Kilometers per Hour (km/hr) 1.00 to 140.0 0.01 ± (3% + 0.4 km/hr)
Miles per Hour (mile/hr) 0.70 to 100.0 0.01 ± (3% + 0.2 mile/hr)
Knots 0.60 - 88.0 0.01 ± (3% + 0.2 knots)
Temperature
Units Range Converter Resolution Accuracy
oC 0.0oC to 45.0oC 0.2oC ±1.0oC
oF 32.0oF to 113.0oF 0.4oF ±1.8oF
Air Flow and Area
(CMM: 0 to 45.00 m/s; CFM: 0 to 8800 ft/min)
Range Resolution Area
CFM (ft3/min) 0 to 999900 0.001 to 100 0.001 to 9999
CMM (m3/min) 0 to 999900 0.001 to 100 0.001 to 9999
Model 451126 Version 1.6 February 2004
3
Meter Description
1. LCD Display
2. Vane Sensor
3. ON/OFF Key
4. RS-232 Connector
5. Function/Numeric Keypad
LCD Display Icon Definitions
AVE Average reading mode
is selected
oC Temperature is displayed in degrees
centigrade
MIN Minimum reading mode
is selected
oF Temperature is displayed in degrees
Fahrenheit
2/3V 2/3V Maximum mode is
selected CFM Cubic feet per minute (ft3/min)
MAX Maximum reading
mode is selected CMM Cubic meters per minute (m3/min)
VEL Air Velocity
measurement x100 Multiply reading by one hundred
READ Recalling stored
measurements X10 Multiply reading by ten
REC Appears when
recording readings m/s Meters per second
RS-232 PC Interface is
activated ft/min Feet per minute
ft2Square feet MPH Miles per hour
m2Square meters Km/h Kilometers per hour
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
FAX 781.665.0780 - TestEquipmentDepot.com
Model 451126 Version 1.6 February 2004
4
Operation
NOTE: For all air velocity or flow measurements, the air should pass through the vane
from back to front. The rear of the vane can be found by locating the mounting nut. The
front of the vane has the engraving "ANEMOMETER". For more accurate results, maintain
a 20oaxis of air direction with the rear of the vane (refer to Fig.2).
Air Velocity
1. Power the meter by pressing .
2. Select Air Velocity measurement
function by pressing . VEL will
appear on the LCD.
3. Press to select the desired unit
of measure (ft/min, mph, km/h, m/s or
knots)
4. Place the vane in the air flow with the
air direction matching the direction of
the arrows printed on the inner walls
of the vane. If the unit does not have the printed arrows, have the tripod mount side
of the vane facing the air flow (see Fig.2).
5. Air velocity will be displayed on the bottom line of the LCD.
Temperature
1. When the meter is measuring Air Velocity, Temperature is simultaneously being
measured by the vane's built-in type-K thermocouple.
2. Press to select °C or °F. Temperature is displayed on the upper line of the
LCD.
Air Flow
1. Power the meter by pressing .
2. Press to select airflow. FLOW will display.
3. Press to select the desired unit of measure. (CFM, CMM).
4. To enter the area value, press . The lower display line will blank waiting for
the user to program new data. Use the numeric keys to enter a new area value in
square feet. (REMINDER: if measurement is taken in inches, divide by 144 to
obtain square feet). Press when finished.
Airflow is based on the specific dimensions of the duct being measured. For the
meter to correctly measure CFM the user must input the area of the duct. Failing to
input the correct area dimensions will result in erroneous readings.
NOTE: If the AVE or the 2/3MAX display icons are displayed in the upper left hand
corner of the LCD, press until they extinguish.
5. Place the vane in the air flow (Fig.2).
6. Wait approximately 2 seconds for a stabilized Air Flow reading.
7. The equation below is used to calculate Air Flow:
AIR FLOW = (AIR VELOCITY) x (AREA)
20
20
o
o
Side view
of Vane
Tripod mount
Air directio
n
Figure 2
Model 451126 Version 1.6 February 2004
5
2/3Vmax Air Flow
1. Power the meter by pressing .
2. Press to select Air Flow. FLOW will display.
3. Press to select the desired units (CFM, CMM).
4. The previously stored area value will be displayed on the upper LCD display line.
To enter a new area value press . The lower display line will blank waiting for
the user to program new data. Use the numeric keys to enter a new area value in
square feet. Press when finished.
5. Press until the 2/3V MAX icon appears on the LCD.
6. Determine the direction of the air to be measured. Move the Vane around the
center of the area being measured to read the maximum air velocity. The meter will
use the maximum reading obtained to determine the 2/3MAX Air Flow.
Average Air Flow
1. Power the meter by pressing .
2. Press to select Air Flow. FLOW will display.
3. Press to select the desired units (CFM, CMM).
4. The previously stored area value will be displayed on the upper LCD display line.
To enter a new area value press . The lower display line will blank waiting for
the user to program new data. Use the numeric keys to enter a new area value.
Press when finished.
5. Press until AVE appears on the LCD display.
6. Press to clear the upper LCD.
7. Select a measurement location. Once a point is selected and a flow measurement
is displayed, press to average the flow reading.
8. Select the next measurement location and press again to average the
reading with previous readings. The value in the upper LCD line will increment for
each reading taken to show how many readings were averaged. The max is 12
readings.
Data Hold
Press to freeze the reading. The display will hold and an 'H' will appear on the LCD.
Press again to return to normal operation.
MAX and MIN Measurements
1. Press to enter MAX mode. The meter will only display the highest reading.
2. Press again to enter the MIN. The meter will only display the lowest reading.
3. Press to exit the MAX or the MIN mode.
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
FAX 781.665.0780 - TestEquipmentDepot.com
Model 451126 Version 1.6 February 2004
6
Datalogging
Instantaneous (One-Shot) Datalogging
To record one data point at any desired time, set the sampling rate = 0 by pressing
in the VEL mode. The previously stored reading will be displayed on the upper LCD line.
Enter a '0' sampling time and then press . Now, each time is pressed, the
present reading will be stored in non-volatile memory.
Automatic Datalogging
1. Set the Sampling rate for datalogging by pressing . The previous sample
rate will appear.
2. Enter a value from 1 to 240 seconds using the numeric keypad. Press when
done.
3. Press to begin storing readings in non-volatile memory every n seconds (n =
the value entered in step 2. above).
4. The REC icon will appear on the LCD indicating that the datalogging mode is
activated.
5. The maximum number of readings that can be stored is 2000.
6. To stop datalogging, press again. The datalogger will automatically stop
recording data when 2000 records have been stored.
See software section of this manual for instruction on viewing logged data.
IMPORTANT NOTE: If power is removed before datalogging is properly halted,
data will be lost.
Reading Stored Data Sequentially
Press , the RECORD NUMBER will briefly display on the upper LCD line before
the measurement data appears. Press to return to normal operation.
Reading Stored Data Randomly
1. Press to enter the READ mode.
2. Press and enter the number of the record in question.
3. Press again and the desired data will be displayed.
4. Press to return to normal operation.
Clearing Datalog Memory
Press and hold while powering up the meter to clear the meter's datalog
memory.
Model 451126 Version 1.6 February 2004
7
Software
The 451126 software lets the user:
•Download logged recordings from the meter’s memory
•Record to the PC
•Graphically display readings from the meter
System Requirements
Hardware Requirements: 486 PC or better with COM 1 and COM 2 Serial ports
Operating System Compatibility: WindowsTM 95/98/NT/2000/XP
Hardware Connection
The IR Thermometer connects to a PC with the supplied DB-9 to DB-9 interface cable.
Software Installation
The instructions on how to install the optional software are printed on the Software CD
label. After reading the label’s directions, load the software CD in the PC CD-ROM drive.
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
FAX 781.665.0780 - TestEquipmentDepot.com
Model 451126 Version 1.6 February 2004
8

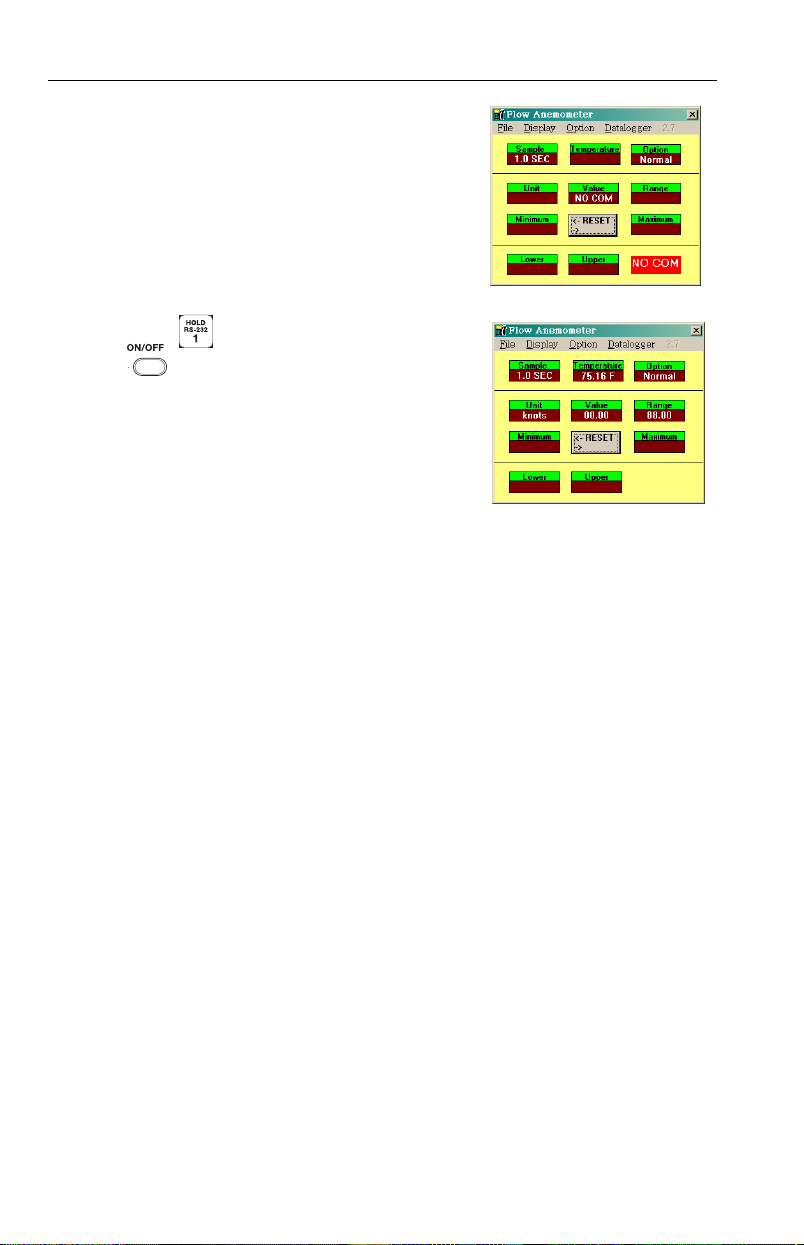

Starting the Software
1. Run the program by opening the program named “Flow
Anemometer”.
Flow Anemometer is in the programs folder of your
Windows software.
2. Wait for the program to initialize and select COM 1 or 2
as required.
The program will load and the main display will appear.
A red NO COM icon will flash on the bottom right hand
side of the display.
3. Press and hold then power on the meter by
pressing
The RS232 icon will appear on the upper right hand side
display of the meter.
The NO COM icon will disappear.
Communications has been established.
Values will appear in the diplay.
Model 451126 Version 1.6 February 2004
9
Operating the Software
Graphical Display Mode
The display command offers 5 different displays.
Click Display on menu bar to select.
Click Option to set Upper and Lower Limits. The software will then flag readings exceeding
the limits.

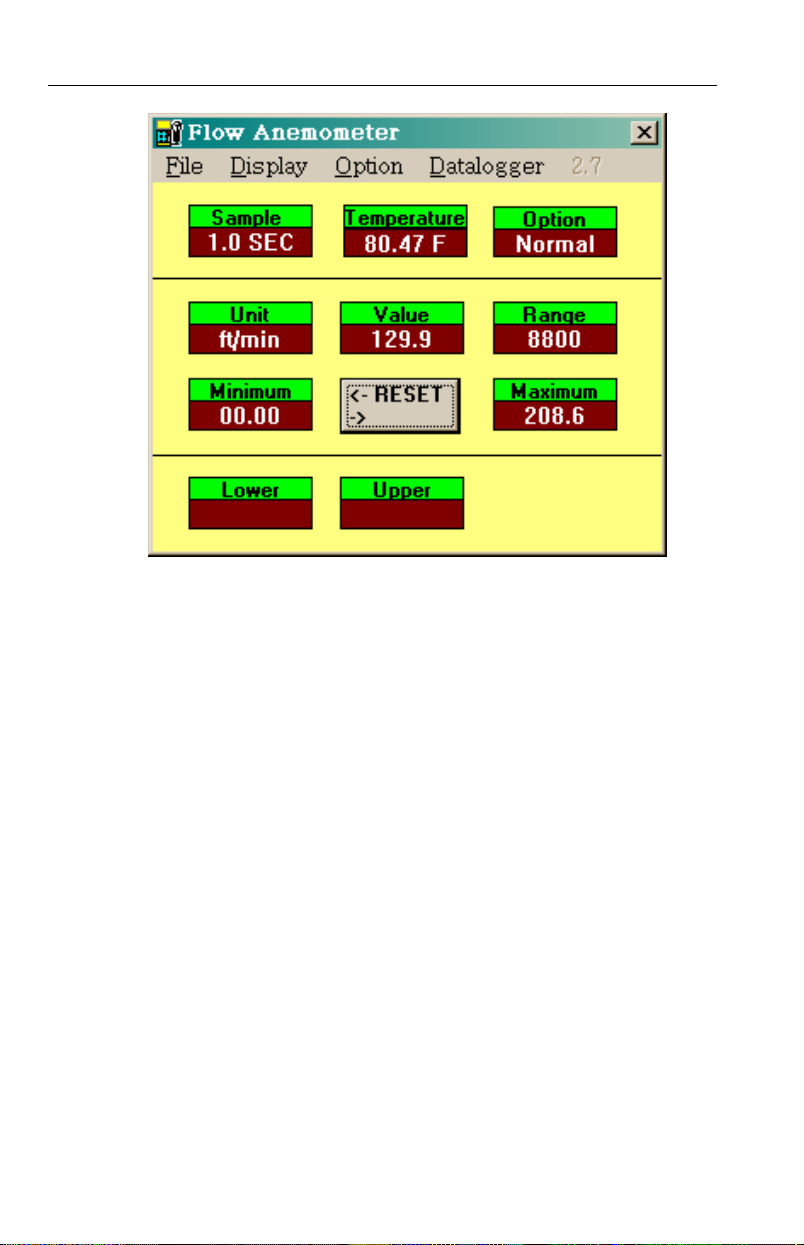

Main Display Digital Display
Click Reset button on main
display to clear Min/Max
Analog Display Graphical Display
Click Scale in Graphical Mode
to change x and y axis scale.
List Display
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
FAX 781.665.0780 - TestEquipmentDepot.com
Model 451126 Version 1.6 February 2004
10
Data Acquisition Mode
In data acquisition mode the meter is connected to a PC with the data being saved
directly to the PC’s memory.
1. In the Flow Anemometer
program, click File, and then
click Name. Enter a file name
and click OK
2. Click Option then Sample,
enter a sampling interval and
then click OK
3. Click File then Start
Recording.
4. To stop the meter click File
then click End Recording.
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Extech Instruments Instrument de mesure
Extech Instruments
Extech Instruments 407113 Manuel utilisateur
Extech Instruments
Extech Instruments HD755-NIST Manuel utilisateur
Extech Instruments
Extech Instruments HDV7C-55-HD-1 Manuel utilisateur
Extech Instruments
Extech Instruments FHT200 Manuel utilisateur
Extech Instruments
Extech Instruments CO220 Manuel utilisateur
Extech Instruments
Extech Instruments EX810 Manuel utilisateur
Extech Instruments
Extech Instruments ET38 Manuel utilisateur
Extech Instruments
Extech Instruments EX845 Manuel utilisateur
Extech Instruments
Extech Instruments RH401 Manuel utilisateur
Extech Instruments
Extech Instruments 382095 Manuel utilisateur
Extech Instruments
Extech Instruments MO297 Manuel utilisateur
Extech Instruments
Extech Instruments 461920 Manuel utilisateur
Extech Instruments
Extech Instruments 407113 Manuel utilisateur
Extech Instruments
Extech Instruments 407119 Manuel utilisateur
Extech Instruments
Extech Instruments AN310-NIST Manuel utilisateur
Extech Instruments
Extech Instruments CO100 Manuel utilisateur
Extech Instruments
Extech Instruments EA30 Manuel utilisateur
Extech Instruments
Extech Instruments MA140 Manuel utilisateur
Extech Instruments
Extech Instruments 475040 Manuel utilisateur
Extech Instruments
Extech Instruments PM200 Manuel utilisateur
Manuels Instrument de mesure populaires d'autres marques
Endress+Hauser
Endress+Hauser Proline Promag 50 Caractéristiques techniques
Siemens
Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces
KLINGER
KLINGER CMF V Series Manuel utilisateur
EXFO
EXFO FTB-2 Manuel d'exploitation et d'entretien
Keysight
Keysight M8290A Manuel utilisateur
ADTEK
ADTEK MW-5 Manuel utilisateur
