Introduction

Congratulations on your purchase of the Extech Model 382075 Auto Range Power

Clamp-On Meter. This meter is shipped fully tested and calibrated and, with proper use,

will provide years of reliable service.

Warranty

EXTECH INSTRUMENTS CORPORATION warrants this instrument to be free of defects in

parts and workmanship for one year from date of shipment (a six month limited warranty

applies to sensors and cables). If it should become necessary to return the instrument for

service during or beyond the warranty period, contact the Customer Service Department at

(781) 890-7440 ext. 210 for authorization or visit our website www.extech.com for contact

information. A Return Authorization (RA) number must be issued before any product is

returned to Extech. The sender is responsible for shipping charges, freight, insurance and

proper packaging to prevent damage in transit. This warranty does not apply to defects

resulting from action of the user such as misuse, improper wiring, operation outside of

specification, improper maintenance or repair, or unauthorized modification. Extech

specifically disclaims any implied warranties or merchantability or fitness for a specific

purpose and will not be liable for any direct, indirect, incidental or consequential damages.

Extech's total liability is limited to repair or replacement of the product. The warranty set forth

above is inclusive and no other warranty, whether written or oral, is expressed or implied.

Calibration and Repair Services

Extech offers repair and calibration services for the products we sell. Extech also

provides NIST certification for most products. Call the Customer Service Department for

information on calibration services available for this product. Extech recommends that

annual calibrations be performed to verify meter performance and accuracy.

www.ponpe.com

contact:

[email protected]

382075 V2.2V 9/10

Table of Contents

Safety 4

Meter Functional Description 5

Operating Instructions 6

AC/DC Voltage Measurements 6

AC/DC Current Measurements 7

AC/DC 1φ2W Power (W) and Power Factor (PF) measurements 7

AC/DC 1φ2W Apparent/Reactive Power Measurements (KVA+KVAR) 8

Phase Angle Measurements 8

3φBalanced Power Measurements 9

3φ3W Unbalanced Power Measurements 10

3φ4W Unbalanced Power Measurements 11

1φ3W Power Measurement 13

Calculation of 3φ4W Power Factor (PF) 14

Improving the Power Factor of a 3φ4W Power System 14

Improving the Power Factor of a 3φBalanced Power System 14

Improving Power Factor of a 1φ2W Power System 14

Phase Sequence Indication 15

Recording Data 15

Recalling Data from Memory 15

Specifications 16

Battery Replacement 18

www.ponpe.com

contact:

[email protected]

382075 V2.2V 9/10

Safety

International Safety Symbols

This symbol, adjacent to another symbol or terminal, indicates the user must refer

to the manual for further information.

This symbol, adjacent to a terminal, indicates that, under normal use, hazardous

voltages may be present

Double insulation

Safety Notes

•Do not exceed the maximum allowable input range of any function.

•Set the function switch OFF when the meter is not in use.

•Remove the battery if meter is to be stored for longer than 60 days.

Warnings

•Set function switch to the appropriate position before measuring.

•Do not measure current on a circuit whose voltage exceeds 600V.

•When changing ranges always disconnect the test leads from the circuit under test.

Cautions

•Improper use of this meter can cause damage, shock, injury or death. Read and

understand this user manual before operating the meter.

•Always remove the test leads before replacing the battery.

•Inspect the condition of the test leads and the meter itself for any damage before

operating the meter. Repair or replace any damage before use.

•Use great care when making measurements if the voltages are greater than 25VAC

rms or 35VDC. These voltages are considered a shock hazard.

•Voltage checks on electrical outlets can be difficult and misleading because of the

uncertainty of connection to the recessed electrical contacts. Other means should be

used to ensure that the terminals are not "live".

•If the equipment is used in a manner not specified by the manufacturer, the protection

provided by the equipment may be impaired.

Function Input Protection

A AC, A DC 3000A DC/AC

V AC 750V AC

V DC, 1000V DC

www.ponpe.com

contact:

[email protected]

382075 V2.2V 9/10

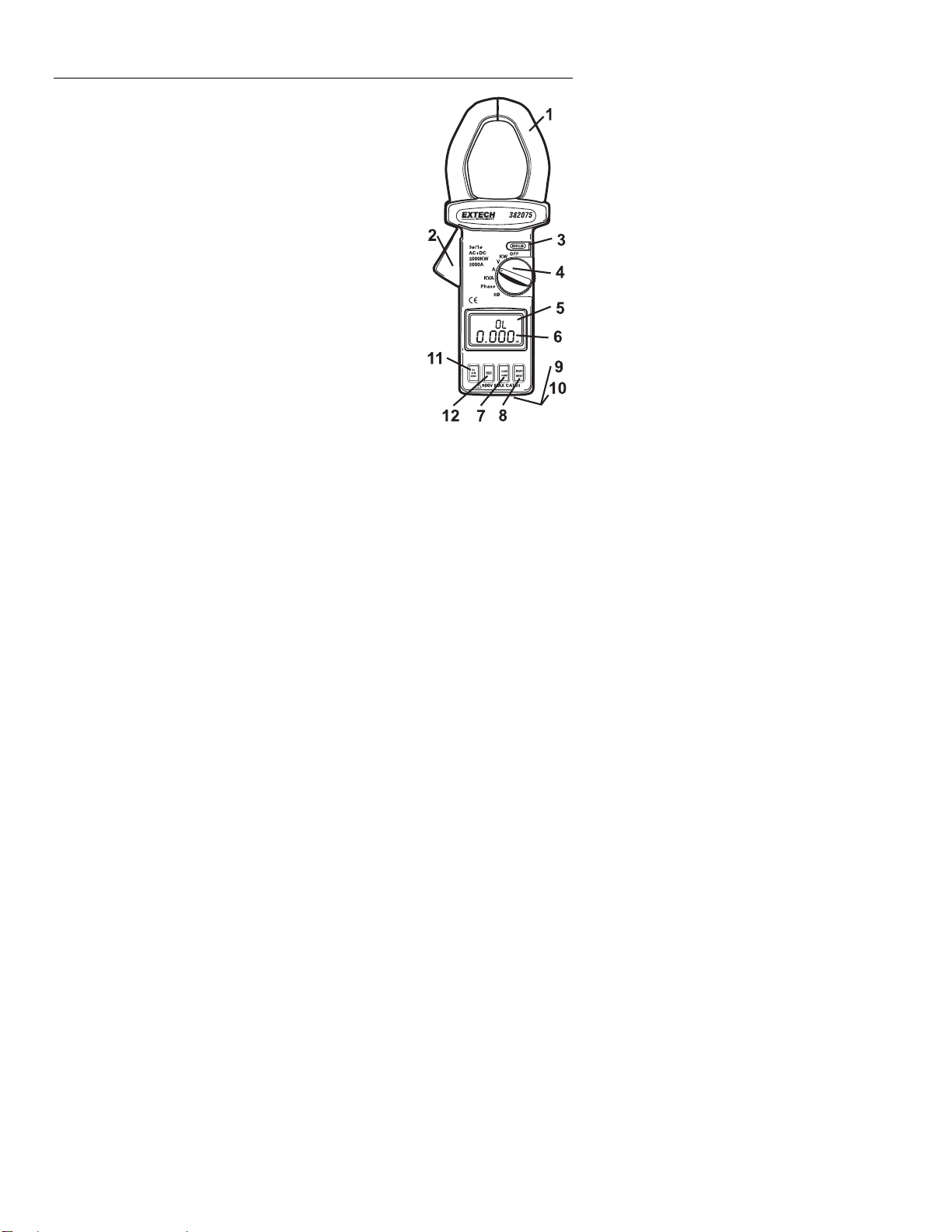

Meter Functional Description

1. Transformer Jaw

Used to sense current signal. To measure current or power,

the conductor under test must be fully enclosed by the jaw.

2. Transformer Trigger

Press to open the jaw.

3. Data Hold Button

Press to freeze most recent reading on the LCD. Press

again to release.

4. Function Select and On/Off Switch

Select desired function, such as KW, V, A, KVA, or 3φ.

5. LCD Display

4-digit (9999 count) display with function symbols, units,

decimal point, low battery icon, and zero indication.

6. Units Symbols

Once a function is selected, the corresponding unit (KW, V,

A, Phase, KVA, or 3φ) will be displayed.

7. 3φ3W and 3φ4W Select Button

If the 3φsystem is not a balanced system, users can press

this button to select 3φ3W, 3φ4W or a balanced system.

Once the button is pressed, the LCD displays 3φ3W or 3φ4W

depending on the function selected.

8. Read/Next Button

•When the rotary switch is set to the 3φfunction, the READ/NEXT button is used as a

NEXT button. In the 3φbalanced mode, pressing the NEXT button will display W+PF,

KVA+KVAR, or V+A data.

•In the 3φ3W mode, pressing the NEXT button stores the measured values WRS(L1L2)

and WTS(L3L2). After two values are measured and stored, the meter adds the two

values, displays the result with the symbol WRST to represent W3φ3W. To start another

W3φ3W measurement, press the NEXT button again.

•In the 3φ4W system mode, press the NEXT button to store the measured values

WR(L1), WS(L2) and WT(L3). After three values are measured and stored, the meter

adds the three values, displays the result with the symbol WRST to represent W3φ4W.

To start another W3φ4W measurement, press the NEXT button again.

•If the rotary switch is not set to the 3φfunction, the READ/NEXT button is used as a

READ button. Stored data in memory (saved by pressing the REC button) can be read

by pressing READ.

9. & 10. V and COM Input Terminals

Used as positive and negative (common) inputs for voltage measurements.

11. DC A/W ZERO button

Press this button once to zero the Amp or Watt display. While the meter is zeroing, the

word ZERO appears the LCD.

12. REC button

Press the REC button to store up to 4 data points in meter memory.

www.ponpe.com

contact:

[email protected]

382075 V2.2V 9/10

Operating Instructions

NOTE: Ensure that the jaws are clear of any conductors before applying power to the

meter. The meter performs an auto zero upon power-up to null any residual magnetism.

If this is done with a conductor inside the jaw area, the auto zero function will cause

subsequent measurements to be inaccurate.

AC/DC Voltage Measurements

Voltage (V) and Frequency (Hz) Dual Display

WARNING: Maximum input voltages: 1000VDC and

750VAC. Do not attempt to measure voltage that

exceeds these limits.

1. Set the rotary switch to the Voltage position (V).

2. Insert the test leads into the input terminals.

3. Connect the test leads in PARALLEL with the circuit to be

measured.

4. The power clamp will automatically select the proper range.

5. Read the voltage and Frequency values displayed on the LCD.

NOTE: The sensitivity for voltage/frequency measurements is 1V, and the

frequency range is 10 - 400Hz. If the frequency is < 10 Hz, the LCD will

indicate 0 Hz. If the frequency is > 400 Hz, LCD will show OL.

Voltage(V) / Current (A) Dual Display

Follow the instructions in the section entitled "3φBalanced Power Measurements" to

monitor V and A simultaneously.

www.ponpe.com

contact:

[email protected]

382075 V2.2V 9/10

AC/DC Current Measurements

Current (A) + Frequency (Hz) Dual Display

WARNING: Make sure that test leads are disconnected from the meter during current

measurements.

1. Set the rotary switch to the Amps position (A).

2. Push and hold the DCA/DCW ZERO button to zero the

reading.

3. Press the trigger to open the jaw and fully enclose the

conductor to be measured. The Jaws must be completely

closed to make a measurement.

4. Read the current/frequency values on the LCD.

NOTE: The sensitivity for current/frequency

measurement is 5A, and the frequency range is 10 -

400Hz. If the frequency is < 10 Hz, the LCD will display 0

Hz. If the frequency is > 400 Hz, LCD will display "OL".

Voltage (V) and Current (A) Dual Display

Follow the instructions in the section entitled "3φBalanced Power Measurements" to

monitor Voltage and Current simultaneously.

AC/DC 1φ2W Power (W) and Power Factor (PF) measurements

1. Apply power to the meter with the jaws

clear of any conductors.

2. Set the rotary switch to the Watts

function (KW).

3. If the watt reading is not zero, press the

DCA/DCW ZERO button once to zero it.

4. Insert the test leads into the input

terminals.

5. Connect the COM (black) terminal to the

neutral line.

6. Connect the V (red) terminal to the power

line.

7. Clamp on to the line where the V (red)

terminal is connected. The power clamp will automatically select the proper

measurement range. Read the Watt and PF (Power Factor) values displayed on

the LCD.

NOTE: The "+" sign printed on jaw must face the power source for accurate

measurements.

www.ponpe.com

contact:

[email protected]

382075 V2.2V 9/10

AC/DC 1φ2W Apparent/Reactive Power Measurements (KVA+KVAR)

NOTE: Before taking any measurements, zero the current (A) reading and

set the rotary switch to the KVA position.

Follow the steps listed in section entitled DC+AC 1φ2W Power (W) and Power Factor

(PF) measurement for these measurements. KVAR is a calculated value, and its

accuracy greatly depends on the accuracy of the V, A, and KW readings. To obtain a

more accurate KVAR value when PF is greater than 0.91 (φ< 25°), measure the phase

angle and obtain the KVAR from the following equation for a pure sine wave:

KVAR = KVA * sin φ

Phase Angle Measurements

1. Set the rotary switch to the A position. If the current reading is not zero, press the

DCA ZERO button.

2. Set the rotary switch to the Phase position.

3. Insert the test leads into the input jacks.

4. Connect the test lead inserted in the COM (black) terminal to the reference line.

5. Connect the test lead connected to the V (red) terminal to the voltage signal under

test.

6. Clamp on to the wire where the V (red) terminal is connected.

7. If current signal is detected from the jaws, the phase angle will be displayed in

degrees on the LCD together with the frequency of the voltage.

8. If current is not detected, only the frequency of the voltage will be displayed while

the phase angle display will be left blank.

INDUCTIVE LOAD: A negative phase angle indicates that the current signal lags the

voltage signal. A negative phase angle also indicates an inductive load.

CAPACITIVE LOAD: A positive phase angle indicates that the current signal leads

the voltage signal. A positive phase angle also indicates a capacitive load.

NOTE: The "+" sign printed on the clamp jaw must face the power source for correct

readings.

www.ponpe.com

contact:

[email protected]

382075 V2.2V 9/10

3φBalanced Power Measurements

Power (W) and Power Factor (PF) Dual Display

1. Apply power to the meter with the

jaw clear of any conductors.

2. Set the rotary switch to the 3φ

position.

3. The LCD will show 3φ3W, 3φ4W,

and BAL symbols to indicate

balanced mode.

4. If the watt reading is not zero, press

the DCA/DCW ZERO button once

to zero reading

5. Insert the test leads into the input

terminals.

6. Select one phase (R or L1) as COM and Connect the COM (black) terminal to the

same phase just selected (R or L1).

7. Connect another test lead to the second phase (S or L2).

8. Clamp on to the third phase (T or L3).

9. The power clamp will automatically select proper range.

10. Read the Watt and PF values displayed on the LCD.

11. To view the KVA and KVAR data, press the NEXT button.

12. To view V and A, press the NEXT button again.

13. To return to the W and PF display, press the NEXT button again.

KVA/KVAR Dual Display

Follow steps 1 through 10. in the above section and press the NEXT button. Wait

approx. 2 seconds for the LCD to display the KVA and KVAR.

Voltage (V) and Current (A) Dual Display

Follow steps 1 through 10 in the above section and press the NEXT button twice. Wait

approx. 2 seconds for the LCD to display Voltage (V) and Current (A).

NOTE: Specific selection of each phase is not required in 3φbalanced

power measurement mode. As long as each test lead and the jaws are

connected to different phases, the reading is always correct. The "+" sign

printed on jaw must face the power source for accurate measurement.

NOTE: To find out if a load is capacitive or inductive, refer to the section

entitled "Phase Angle Measurements".

www.ponpe.com

contact:

[email protected]

382075 V2.2V 9/10

3φ3W Unbalanced Power Measurements

W3φW= WRST = WRS(L1L2)+ WTS(L3L2)

Two measurements WRS (or WL1L2) and WTS (or WL3L2) are required.

1. Measure WRS (or WL1L2)

a. Apply power to the meter with the jaw clear of any conductors.

b. Set the rotary switch to the 3φposition.

c. Press the 3φbutton once, the 3φ3W symbol will display on the LCD. At this

moment, the WRS symbol flashes prompting the user to begin measurement of

WRS.

d. If the watt reading is not zero, press the DCA/DCW ZERO button once to zero

reading

e. Insert the test leads into the input terminals.

f. Select one phase (S or L2, for example) as COM and connect the COM (black)

terminal to that phase (S or L2).

g. Connect V (red) terminal to the second phase (R or L1).

h. Clamp on to the same phase as in step g. (R or L1).

The power clamp will automatically select the proper range.

i. Wait until the reading stabilizes, then press the NEXT button. The WRS (WL1L2)

symbol will disappear. At this moment, WRS is stored in memory, and the WT

(WL3L2) symbol appears flashing to prompt the user to take the WTS (WL3L2)

measurement.

2. Measure WTS (or WL3L2 ).

a. Disconnect the test leads and jaws from the lines in the previous measurement.

b. Connect the test leads to the third phase (T or L3).

c. Open and close the jaws, be sure that no conductor is in the jaws.

d. If the watt reading is not zero, press the DCA/DCW ZERO button once to zero the

reading.

e. Clamp on to the third phase where the test lead is connected (T or L3)

f. The power clamp will automatically select proper range.

g. Wait until the reading stabilizes, then press the NEXT button. The WT(or WL3L2)

symbol will disappear. At this moment, WTS (or WL3L2) data are stored in memory,

contact:

[email protected]

www.ponpe.com

Autres manuels pour 382075

Table des matières

Autres manuels Extech Instruments Instrument de mesure

Extech Instruments

Extech Instruments RH600 Manuel utilisateur

Extech Instruments

Extech Instruments AN100-NIST Manuel utilisateur

Extech Instruments

Extech Instruments 38394 Manuel utilisateur

Extech Instruments

Extech Instruments TM100-NIST Manuel utilisateur

Extech Instruments

Extech Instruments VB450 Manuel utilisateur

Extech Instruments

Extech Instruments GRT350 Manuel utilisateur

Extech Instruments

Extech Instruments MO230 Manuel utilisateur

Extech Instruments

Extech Instruments EX845 Manuel utilisateur

Extech Instruments

Extech Instruments MA145 Manuel utilisateur

Extech Instruments

Extech Instruments 406800 Manuel utilisateur

Extech Instruments

Extech Instruments 380942 Manuel utilisateur

Extech Instruments

Extech Instruments AN200 Manuel utilisateur

Extech Instruments

Extech Instruments 380652 Manuel utilisateur

Extech Instruments

Extech Instruments C015 Manuel utilisateur

Extech Instruments

Extech Instruments MO750 Manuel utilisateur

Extech Instruments

Extech Instruments 380580 Manuel utilisateur

Extech Instruments

Extech Instruments ExStik PH100 Manuel utilisateur

Extech Instruments

Extech Instruments CO10 Manuel utilisateur

Extech Instruments

Extech Instruments PH100 Manuel utilisateur

Extech Instruments

Extech Instruments RPM40 Manuel utilisateur

Extech Instruments

Extech Instruments 407790A Manuel utilisateur

Extech Instruments

Extech Instruments 380363 Manuel utilisateur

Extech Instruments

Extech Instruments SDL300-NIST Manuel utilisateur

Extech Instruments

Extech Instruments 382400 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
