EverFocus EHN3160 Plus Manuel utilisateur

EHN Plus Series

Outdoor Vandal Proof IP Dome Camera

Quick Installation Guide

Release Date: October, 2012

EHN Plus Series

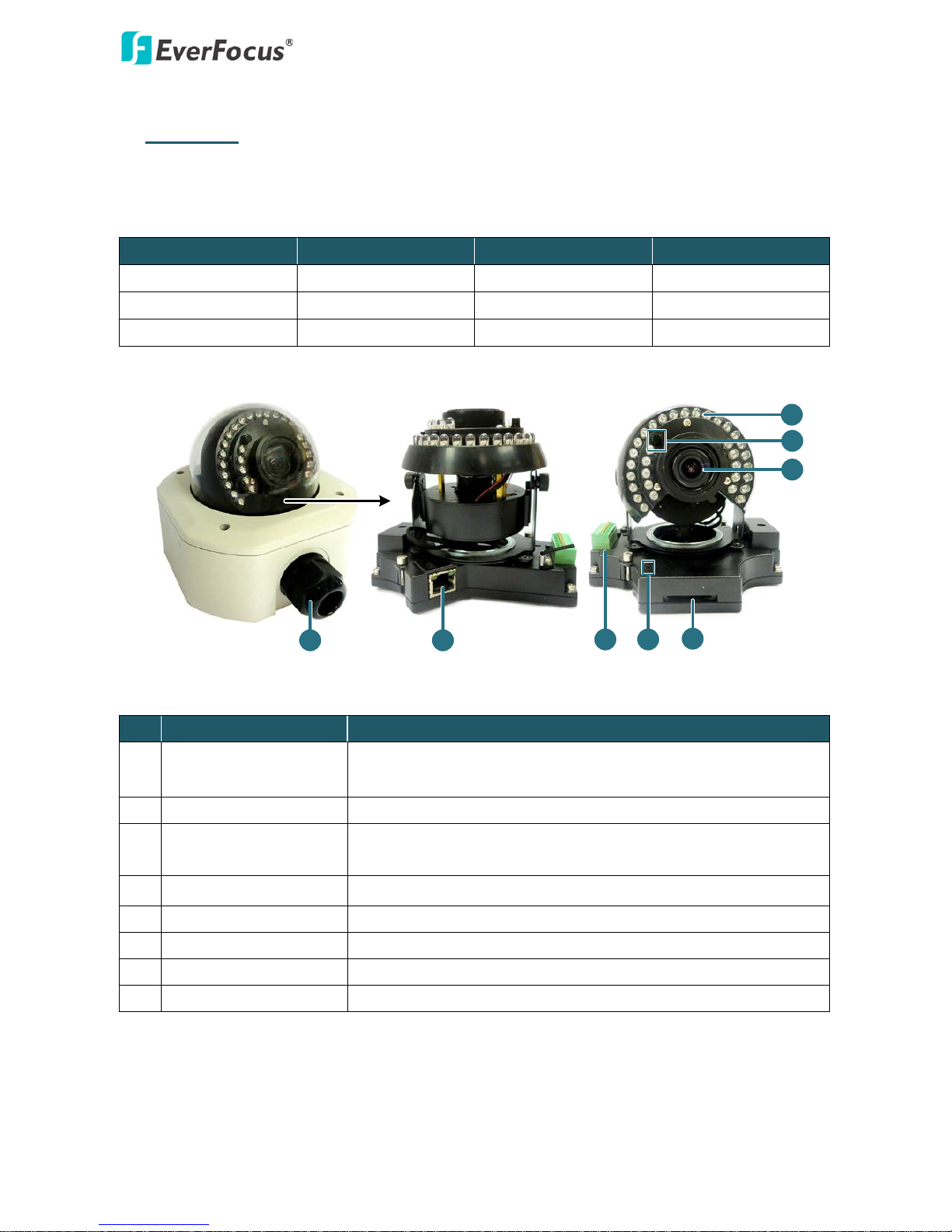

1. Overview

The EHN Plus series vandal proof IP dome Camera is designed for outdoor use. The series comes in

three models: EHN3160 Plus / 3260 Plus / 3340 Plus.

Model Name Megapixel P-Iris WDR

EHN3160 Plus 1.3 MP Yes Yes

EHN3260 Plus 2 MP Yes Yes

EHN3340 Plus 3 MP Yes No

Camera Module

No. Item Name Descriptions

1 Cable Gland Equipped with three plugs inserted in the cable conduits for

waterproofing.

2 LAN / PoE Connects to a 10/100 Ethernet or PoE.

3 Terminal Block A 12-pin terminal block. See Terminal Block later in this Quick

Installation guide.

4 Reset Button Resets all configurations to the factory default settings.

5 SD / SDHC Slot For inserting an SD / SDHC card

6 Lens Varifocal lens with P-Iris control.

7 Light Sensor Detects lights.

8 IR LEDs 33 IR LEDs for infrared illumination in night vision applications.

EHN Plus Series

System Requirement

Before installing, please check that your computer meets this system requirement.

•Operating System: Microsoft Windows XP / Vista (32-bit) / 7 (32-bit)

•Microsoft Internet Explorer 7 or above

Packing List

•EHN Series Camera x 1 •Desiccant Bag x 2

•Base Plate Screw x 4 •Inner Paper x 1

•Screw Anchor x 4 •Software CD x 1

•Hexagon Screwdriver x 1 •Quick Installation Guide x 1

Note: Contact the shipper if any items appear to have been damaged in the shipping process. If

any items are missing, notify your EverFocus Electronics Corp. Sales Representative or Customer

Service Branch. Please also keep the shipping carton for possible future use.

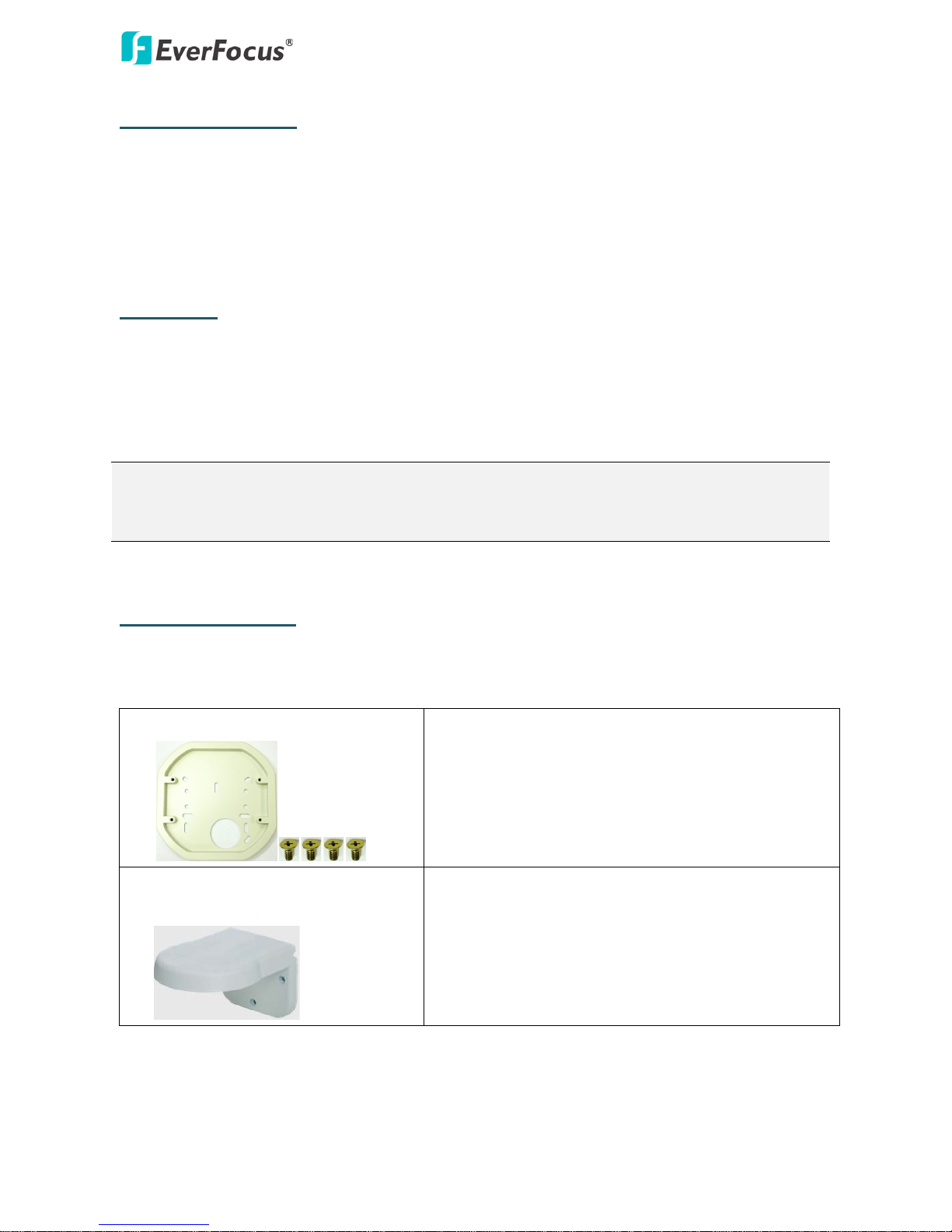

Optional Accessories

You can use the optional accessories to expand the capabilities and versatility of the camera. Please

contact your dealer for more information.

•One Adapter Plate with 4 Screws

The Adapter Plate is designed for wiring the cables

through the bottom of the camera case. For details on

how to wire the cables through the bottom of the

camera, please refer to the User’s Manual in the CD.

•L-Shaped Mounting Bracket

To prevent the camera from being damaged by direct

sunlight, it is strongly recommended to use the

L-Shaped Mounting Bracket to mount the camera to

the wall. For details on mounting the camera to the

wall using the L-Shaped Mounting Bracket, the User’s

Manual in the CD.

EHN Plus Series

2. Terminal Block

The I/O terminal block, located on the camera module, can be used to develop applications for

alarm input and output, two-way audio, TV-output or a variety of other functions.

Note:

1. You can unplug the terminal block from the camera module for easier wiring.

2. Microphones with external power supplies are required.

Camera Module

1 2 3 4 5 6 7 8 9 10 11 12

Pin Assignment

No. Functions No. Functions

1 12V DC Input 7 Line Input C

2 Digital GND 8 Audio GND

3 Alarm Output C 9 Audio Output

4 Alarm COM C 10 Audio GND

5 Alarm Input C 11 CVBS Output

6 Digital GND 12 Digital GND

EHN Plus Series

3. Installation

Important Notice for the Installation

If you want to mount the camera on the wall where direct sunlight may occur, it is strongly

recommended to mount the camera using the L-Shaped Mounting Bracket to prevent the camera

from being damaged by direct sunlight.

Basic Installation

This installation guide provides the basic instructions on installing an EHN Plus IP camera to the wall.

For details, please refer to the User’s Manual in the software CD.

To mount the camera to the wall and connect the cables to the camera:

1. Unscrew the four screws and remove the cover from the camera.

EHN Plus Series

2. Unscrew the four screws and remove the Base Plate from the Camera Case.

Camera Case

Base Plate

3. Unscrew the two screws and take out the camera module.

4. Screw the Base Plate to the Wiring Box using the supplied four screws.

Base Plate

Wiring Box

EHN Plus Series

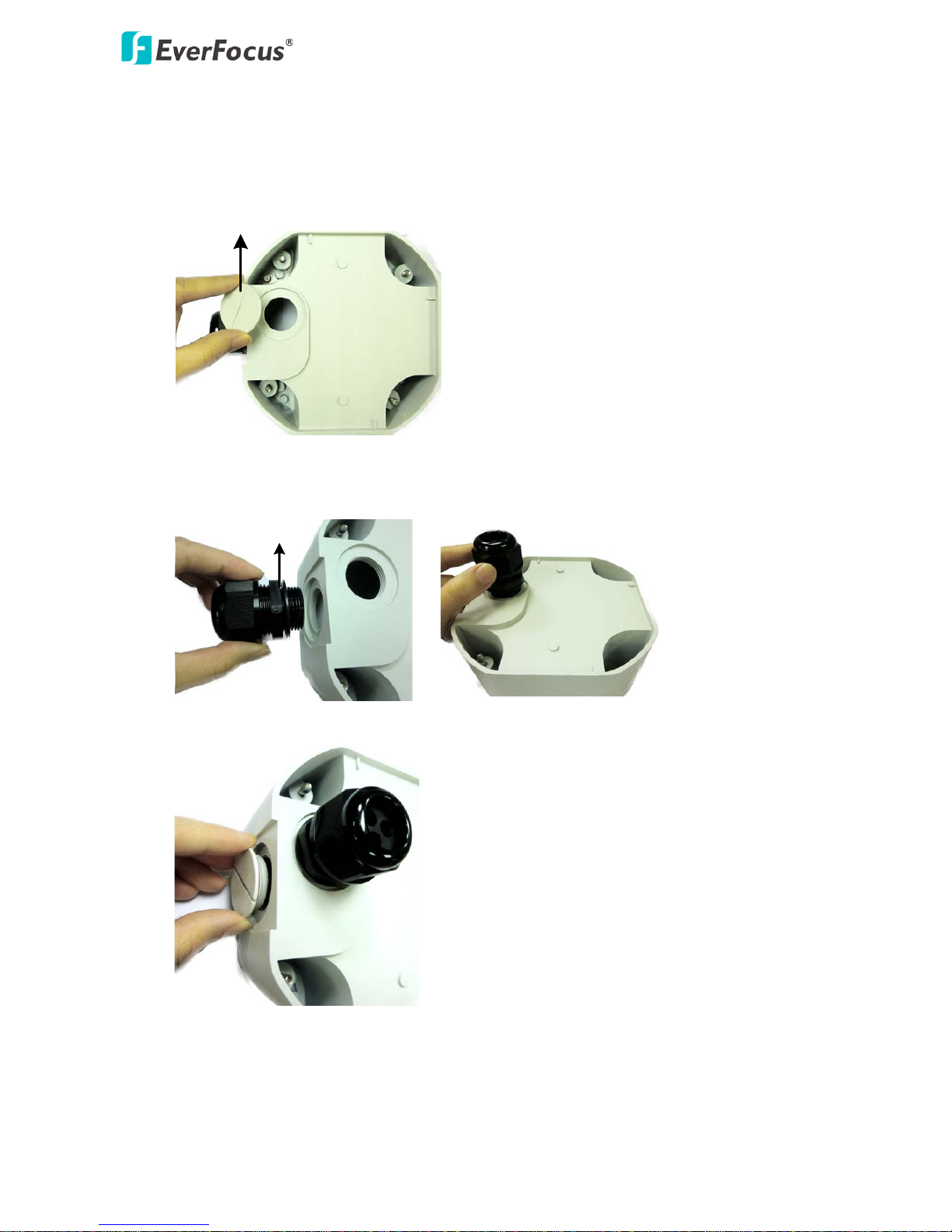

If you want to wire the cables through the bottom of the Camera Case, follow the steps below:

a. Remove the Circle Plate on the bottom of the Camera Case. You can simply loosen the Circle

Plate using a coin.

Circle Plate

Camera Case

b. Loosen and remove the Cable Gland from the Camera Case. Screw the Cable Gland to the

hole on the bottom of the Camera Case.

Cable Gland

Camera Case

c. Screw the Circle Plate to the side hole on the camera Case.

EHN Plus Series

d. Screw Adapter Plate between the Base Plate and Wiring Box.

Base Plate

Wiring Box

Adapter Plate

5. Screw the Camera Case back to the Base Plate.

Base Plate

Camera Case

6. Insert the network / PoE cable or the additional cables through the Cable Gland. Up to three

cables can be inserted. Note that except the network / PoE cable, additional wires have to be

bundled into a cable with diameter ranging from 5.3mm to 6.4mm (see Step d below).

Screw BodyScrew Cap

Stopper Claw

Plug

Stopper

Adjustment Ring(s)

Cable Gland Cable Gland

Screw Cap

a. Remove the black Adjustment Ring if you are using a Cat 5 network cable. Note that the four

Adjustment Rings, including one black and three transparent rings, are attached on the

Cable Gland. If you are using a Cat 6 network cable, you can ignore this step. For details on

the Adjustment Rings, please refer to 3.1 Adjustment Rings in the User’s Manual.

EHN Plus Series

•Transparent x 3 (1 mm thickness)

•Black x 1 (0.5 mm thickness)

b. Remove the Plug(s) from the Stopper (depends on the number of cables inserted). One

Cable Conduit can only be inserted with one cable.

Plug Stopper

Cable Conduit

c. Insert the network / PoE cable through the Cable Conduit, if your network / PoE cable

already has a RJ-45 connector, then you can use the Slitted Cable Conduit.

Slitted Cable Conduit

d. Optionally insert the additional wires, such as power (if you want to power the camera

through a 12V DC power source), alarm and audio cables, through the other Cable Conduit.

Note that one Cable Conduit can only be inserted with one cable. The Cable Conduit has

been tested to support cable diameter between 5.3mm and 6.4mm. Please refer to the

image below to bundle the lose wires before inserting to the Cable Conduit.

e. Tighten the Screw Cap all the way to the Adjustment Ring(s).

EHN Plus Series

f. Due to the variable cable diameters, for better waterproofing, it is strongly recommended

that you apply silicon sealants to the inner Screw Cap.

7. Connect the network / PoE cable to the LAN / PoE port on the camera module.

8. If you have inserted additional wires, connect the wires to the terminal block. Please refer to

2. Terminal Block for pin assignment.

9. Optionally insert an SD / SDHC card to the card slot.

SD Card Slot

10. Stick the supplied 2 desiccant bags inside the camera case.

Note: It is highly recommended to replace the desiccant bags every time when you open the

camera.

11. Place and screw the camera module back to the camera case.
