EverFocus NeVio EZN850 Manuel utilisateur

EZN850

Installation Guide

Release: Jan. 2009

EZN850

This installation guide provides instructions for installing the EZN850 IP Camera. For

all other aspects of using this product, please refer to EZN850 User’s Manual, which

is available on the CD included in this package.

Installation steps

1. Confirm that your PC meet minimum computer requirement listed below.

2. In order to configure IP cameras and Encoders, Internet Explorer is required for

setup. Please ensure your PC relative connections are correctly and affirmatively

linked. Please consult your ISP or network administrators for more detail of network

setting reference.

3. Mount the camera and connect Cables. Please see "3. Installation” on page 9.

4. Network Connection. 3 typical types of network connection. Please see “6.

Network Connection” on page 21.

5. Set up IP address and network setting by IP Utility. See “7. Assign IP address by

Utility” on page 23.

Package Contents

Network camera (x1)

Printed Installation Guide (x1)

Software APs including user’s manual CD (x1)

Mounting kit includes:

-Long Screws x 4 (for mounting bracket)

-Short Screws x 4 (for connecting camera body to bracket)

-Expanding Screws x 4

-Hex key x 1 (for adjusting bracket)

-Hexagon wrench x 1 (for adjusting sunshield)

Minimum Computer Requirements

-CPU: PC Pentium IV (2.0 GHz or higher) / AMD Athlon (or higher)

-VGA card: 32 MB min. 16.7 million colours, with DirectX9.0c support

-Memory: 512 MB RAM min., 1 GB HD space or above

Additional HD space depends on required local storage of video files,

100 Mbps network card

-Screen Resolution: 1024 x 768 pixels or higher, 32-bit pixel color resolution

-Operating system: Windows XP, service pack 3 or higher

-Software: DirectX9,0c, Internet Explorer 6.0 or higher

Note!! Please connect to Microsoft’s Web Site for downloading.

EZN850

For example: (This web site may change without notices.)

http://www.microsoft.com/downloads

Dimensions

Dimension of holes to holes

Dimension of Bracket

80mm/3.2”

112.7mm/4.5”

49mm/1.96”

88.5mm/3.54”

220.5mm/8.68

”

84mm/3.31

”

106.5mm/4.19

112.7mm/4.44

199mm/7.83

”

EZN850

Dimension of whole camera with bracket

377.3mm/15.09”

295mm/11.8”

243.5mm/9.74”

107.5mm/4.3”

EZN850

Table Of Contents

1. Camera Component Description..............................................................................6

2. Back Panel Layout....................................................................................................7

2.1 Terminal Connector...........................................................................................8

3. Installation ................................................................................................................9

3.1 Wiring and Mounting......................................................................................10

3.2 Adjusting Camera Position .............................................................................16

3.3Adjusting Vari-focal Lens................................................................................17

4. Lens Adjustment......................................................................................................18

4.1 Lens Setting ......................................................................................................18

5. OSD Configuration.................................................................................................19

6. Network Connection ...............................................................................................21

7. Assign IP address by Utility ....................................................................................23

7.1 Automatically assign an IP..............................................................................23

7.2 Manually assign an IP address and change network setting.......................25

EZN850

1. Camera Component Description

Bracket

Sun shield

Fixing screw for sunshield

SD card slot

Ethernet

Power connector

Terminal connector

Video output

Control key

selection switch

Control key

EZN850

2. Back Panel Layout

1. SD card slot: Slot to insert SD card

2. Reset: Loading factory default configuration by pressing the button, which is

inside this hole. Please insert the keen-edged device to the hole for 10 seconds.

3. Video output: Composite video BNC output socket. Connect Video output only

for installation usage.

4. Terminal Connector: The terminal connector provides the interface to alarm input

& output, RS-485, GND and IR illuminator power source. (please see “2.1

Terminal Connector”)

5. Control key selection switch

Switch to OSD to control OSD menu by using the control key or switch to LENS

to adjust zooming and focus by using the control key (please refer to “4.1 Lens

setting” and “5. OSD Configuration” for details).

6. Ethernet RJ-45 port: Connect to LAN via this standard RJ-45 connector.

Yellow indicator light: On means 100Mbps, Off means 10Mbps

Green indicator light: On means link, flicking means active, Off means link fail

7. Power Input Terminal

Connect the appropriate power to each model. N/L is used to connect to power

in. PE is a ground pin. Two models of 24VAC and 100-240VAC are available as

power source of EZN850 camera. N/L and PE apply to 100-240VAC model

only.

Note!! Please do NOT connect 100-240VAC power to 24VAC model. It will

damage the machine.

EZN850

2.1 Terminal Connector

-Alarm: Connect to Alarm In/Out device

-12VDC: Provide power source for IR illuminator (Max. load is = 1A; IR illuminator

is optional)

-GND: Ground pin for illuminator

-RS485 (+-): A half-duplex RS-485 interface for keyboard controlling

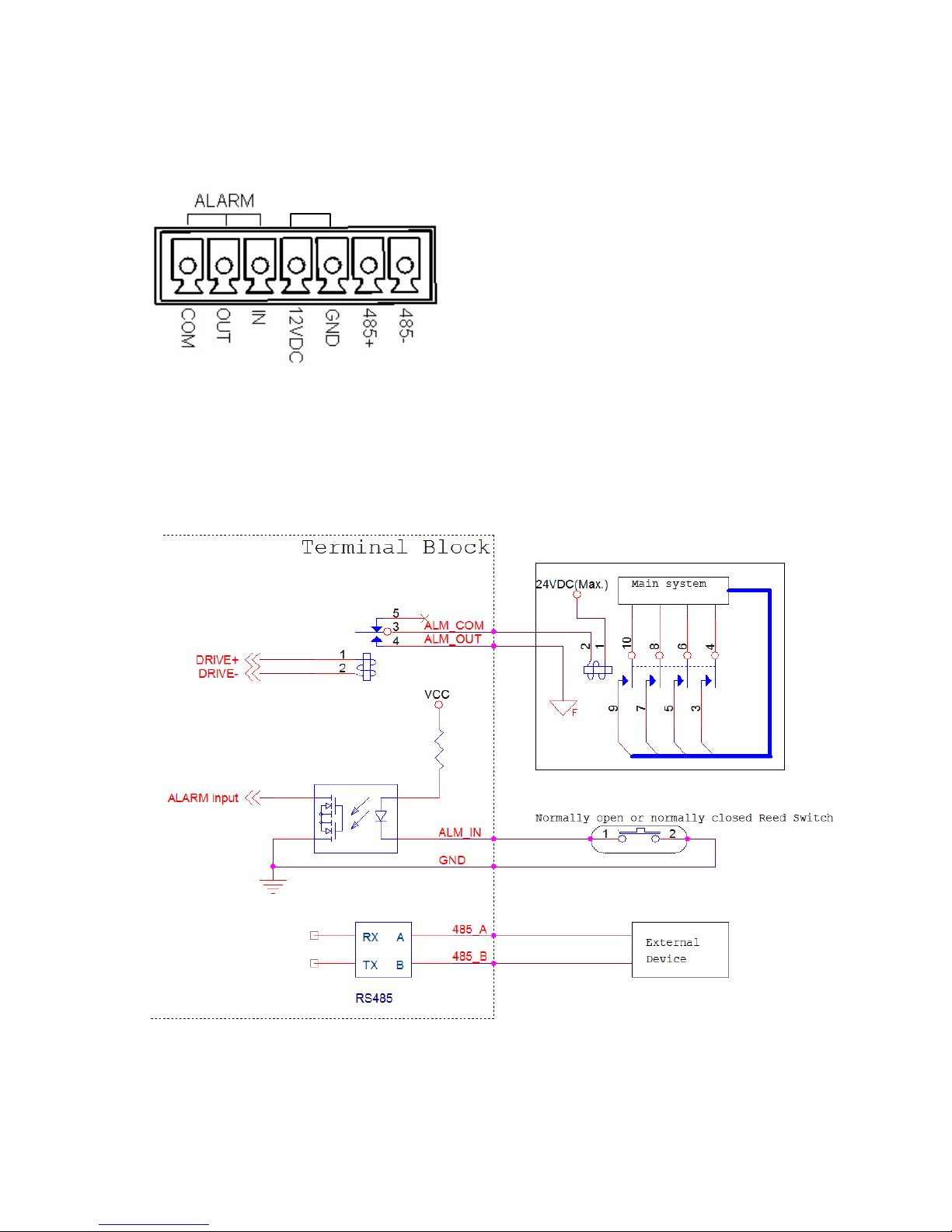

Terminal connector schematic diagram

DC OUT

EZN850

3. Installation

This section will describe, in general terms, how to install the EZN850 camera. Here are

the following processes:

-Wire and mount the camera. See “3.1 Wire and Mounting”.

-Adjust the camera position. See “3.2 Adjusting camera position”.

-Adjust the lens. See “3.3 Adjusting lens”.

*Warning*

•

To prevent electrical shock, turn off the electrical power before making

electrical connections.

•

Do not expose the appliance to water or moisture, nor try to operate it in wet

areas.

EZN850

3.1 Wiring and Mounting

1. Wire internet cable,power cable and Alarm/RS485 cable through the bracket.

Note!! Please use Internet cable without RJ45 connector otherwise you cannot

go through cable gland.

2. Fix the bracket to wall byusing 4 screws.

LAN cable

Power

cable

LAN cable

Power cable

Alarm/RS485 cable
