EverFocus ED350 Manuel utilisateur

EVERFOCUS

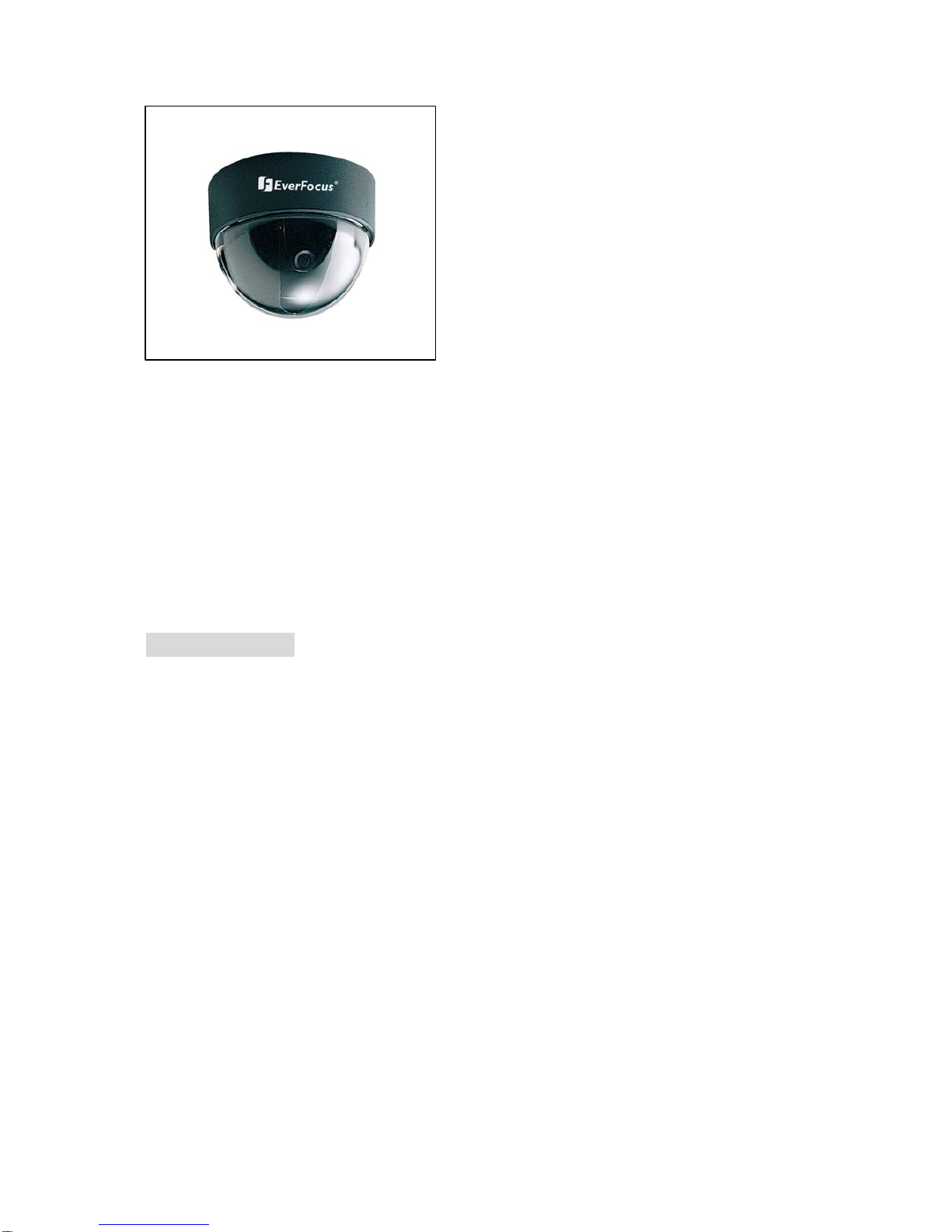

1/3” 560 TVL Color Mini Dome Camera

Operation Instructions

Model No. ED350

Please read this manual first for correct installation and operation. This manual should be retained

for future reference. The information in this manual was current when published. The

manufacturer reserves the right to revise and improve its products. All specifications are therefore

subject to change without notice.

PRECAUTIONS

1. Do not install the camera near electric or magnetic fields.

Install the camera away from TV, radio transmitter, magnet, electric motor, transformer,

audio speakers since the magnetic fields generate from above devices will distort the video

images.

2. Never disassemble the camera nor put impurities in it.

Disassembly or impurities may result in trouble or fire.

3. Never face the camera toward the sun.

Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.

4. Keep the power cord away from water and liquid.

Touching the wet power cord may result in electric shock.

5. Never install the camera in areas exposed to water, oil or gas.

Water, oil or gas may result in failure, electric shock or fire.

6. Cleaning

Do not touch the surface of sensor by hand directly. Use a soft cloth to remove the dirt from

the camera body. Use lens tissue or a cotton swab and ethanol to clean the sensor and the

camera lens.

7. Do not operate the camera beyond the specified temperature, humidity or

power source ratings.

Use the camera at temperatures within 0℃~ 40℃(32℉ to 104℉) and humidity between

20%~ 80%. The input power source is 12VDC/24VAC.

PREFACE

The High Resolution Dome Camera Series are compact, full functioned CCD Color Cameras.

Their stylish appearance can be applied as per installer's ideal locations on the ceiling. The

dome camera designed with advanced digital processing circuitry for high resolution 1/3" color

interline transfer CCD sensor, it has DIP switch for AGC on/off, BLC on/off. The dome camera

uses a vari focal auto iris lens for discreet surveillance or close-up viewing and it features with iris

LEVEL volume control for the best viewing quality.

FEATURES

z1/3” Sony super HAD CCD image sensor with approximately 410,000 pixels.

z560 TVL of horizontal resolution.

zRevolutionary integrated 10-bit Digital Signal Processor (DSP) delivers sharp color images

and excellent picture quality.

zLow light sensitivity 0.5 lux/F=1.2.

zWide-range automatic electronic shutter: up to 1/100,000.

zManual zoom lens with adjustable viewing range.

zPure Vision Technology.

PACKAGE CONTENTS

zCamera Unit x 1

zAV Cable x 1

zPower Cable x 1

zDesiccant x 1

zMount Screws (package) x 1

zManual x 1

SPECIFICATIONS

Pickup Device 1/3'' SONY Super HAD CCD

Video Format NTSC or PAL

Scanning System NTSC: 525 TV lines, 60 fields/sec

PAL: 625 TV lines, 50 fields/sec

Picture Elements 768 x 494(NTSC) ; 752 x 582(PAL)

Horizontal Resolution 560TVL

Sensitivity 0.5Lux/F=1.2

S/N Ratio Over 48dB(AGC off)

Electronic Shutter 1/50(1/60)~1/100,000

Lens Type

Vari-focal lens, Auto Iris

f=2.9~10mm, F=1.2

f=3.8~9.5mm, F=1.2

f=9~22mm. F=1.6

*Lens models and availability vary in different regions

Back Light Comp. ON/OFF Switch

Auto Gain Control ON/OFF Switch

Flickerless ON/OFF Switch

Auto White Balance Yes

Gamma Correction 0.45

Video Output

2 video outputs

BNC 1.0Vp-p, 75ohm

Additional testing video output 1.0Vp-p, 75ohm

Sync. Mode Internal Sync

Power Source 12VDC/24VAC

Power Consumption 24VAC: 5VA max

12VDC: 3.5W max

Dimensions 108(O.D.) x 80(H) mm ; 4.3"(O.D.) x 3.2"(H)

Weight 0.3 kg ; 0.7lbs

Operating Temperature 0°C~40°C ; 32°F~104°F (20%~80% Humidity)

Certifications FCC/CE

DIMENSIONS

MAJOR PARTS NAME & THEIR FUNCTIONS

(1) Camera Cover

This cover will protect the camera from dust and damage.

(2) Lens

This Vari-Focal Lens allows users to adjust the Zoom and Focus manually.

(3) Base

The camera unit is set in the dome base when it is shipped from the factory.

(4) Focus Ring

To set the focus, loosen the Focus ring knob first, then turn the ring toward <∞> or <N> as

necessary. When the focus is obtained as desired, tighten the focus ring knob.

(5) Zoom Ring

Loosen the zoom ring knob, then you can adjust the viewing range. Turn the ring towards <W>

for WIDE or <T> for TELE as necessary. When the setting is finished, tighten the zoom ring

knob.

(6) Power input

Use the connector to connect with 12VDC/24VAC power adaptor.

(7) Video Output BNC Connector

Use the connector to connect with the video in connector of a monitor.

LENS ADJUSTMENT

Zoom and focus adjustments

After the camera was installed, the zoom and focus of the

lens must be adjusted.

1. Loosen the zoom ring knob, and then turn the ring

towards <W>or <T>as necessary to obtain the

desired view range.

W side (Zoom out)

The viewing range will be wider and the subject is

smaller.

T side (Zoom in)

The viewing range will be smaller and the subject is larger.

2. Loosen the focus ring knob, then turn the ring towards <∞>or <N>as necessary to obtain

the clear video image.

3. Repeat steps 1 and 2 until the best image is obtained. Once the lens setting finished, tighten

the zoom ring and the focus ring knobs.

ADJUSTMENTS

(1) IRIS ALC Adjustment

To select light metering method:

Turn the IRIS ALC Adjustment VR counterclockwise for Average Metering.

Turn the IRIS ALC Adjustment VR clockwise for Peak Metering.

(2) IRIS Level Adjustment

Brightness Level can be adjusted from the IRIS level VR while using the direct drive lens.

Turn counterclockwise to L to get darker picture.

Turn clockwise to H to get brighter picture.

3 4

Audio

(Optional)

(3) Flickerless

When picture flicker fiercely, turn FL on, then the camera will stabilize the speed

of electronic shutter at 1/100(NTSC) or 1/120(PAL) automatically, and reduce the

flicker immediately.

The default setting is OFF.

(4) Auto Gain ControlAdjustment

AGC ON: The sensitivity increases automatically when the light is low.

AGC OFF: A low-noise picture is obtained under a low light condition.

(5) Back Light Compensation Adjustment

When the background of the subject is very bright and the subject itself is dark, set

the BLC (Back Light Compensation) ON. The BLC will measure the light of the

image center and the lens iris will automatically set for optimum image quality.

(6) Ground Pin

For monitor use. When setting up the camera, connect a monitor to this video output pin

and to the GROUND pin using alligator clip cables, then use the image displayed on the

monitor, set the surveillance angle.

INSTALLATION

1. Remove the plastic dome cover.

2. Lossen the two screws of the supporting bracket to remove the camera body.

3. Use four screws to fix the camera base on the ceiling.

4. Put the camera body back to the supporting bracket, then tighten the two screws to

fix the camera.

5. Connect the BNC connector of the camera to a color monitor, or other video

device through a 75 ohm type coaxial cable with BNC female connector at cable

extension.

6. Connect the 12VDC/24VAC regulated power source of the camera.

7. Connect the audio output connector of the camera (model High Resolution Dome

A) to the audio in connector of the monitor.

NOTE: Be very careful not to scratch or damage the lens while making any kind of setting.

EverFocus Electronics Corp.

Head Office:

12F, No.79 Sec. 1 Shin-Tai Wu Road,

Hsi-Chih, Taipei, Taiwan

TEL: +886-2-26982334

FAX: +886-2-26982380

www.everfocus.com.tw

USA L.A. Office:

1801 Highland Ave. Unit A

Duarte, CA 91010, U.S.A.

TEL: +1-626-844-8888

FAX: +1-626-844-8838

www.everfocus.com

USA N.Y. Office:

415 Oser Avenue Unit S

Hauppauge, NY 11788

TEL: 631-436-5070

FAX: 631-436-5027

www.everfocus.com

Europe Office:

Albert-Einstein-Strasse 1

D-46446 Emmerich, Germany

TEL: 49-2822-9394-0

www.everfocus.de

China Office:

Room B-05D-1, KESHI PLAZA , Shangdi

Information Industry Base,

Haidian District, Beijing China

100085

TEL: +86-10-62973336/37/38/39

FAX: +86-10-62971423

www.everfocus.com.cn

Japan Office:

1809 WBG MARIBU East 18F,

2-6 Nakase.Mihama-ku.

Chiba city 261-7118, Japan

TEL: +81-43-212-8188

FAX: +81-43-297-0081

www.everfocus.com

our EverFocus product is desi

ned and

manufactured with high quality materials and

components which can be recycled and

reused.

This symbol means that electrical and

electronic equipment, at their end-of-life,

should be disposed of separately from your

household waste.

Please, dispose of this equipment at your

local community waste collection/recycling

centre.

In the European Union there are separate

collection systems for used electrical and

electronic product.

Please, help us to conserve the environment

we live in!

Ihr EverFocus Produkt wurde entwickelt und

hergestellt mit qualitativ hochwertigen

Materialien und Komponenten, die recycelt

und wieder verwendet werden können.

Dieses Symbol bedeutet, dass elektrische und

elektronische Geräte am Ende ihrer

Nutzungsdauer vom Hausmüll getrennt

entsorgt werden sollen.

Bitte entsorgen Sie dieses Gerät bei Ihrer

örtlichen kommunalen Sammelstelle oder im

Recycling Centre.

Helfen Sie uns bitte, die Umwelt zu erhalten, in

der wir leben!

P/N: MED3G03000_Ver.B
