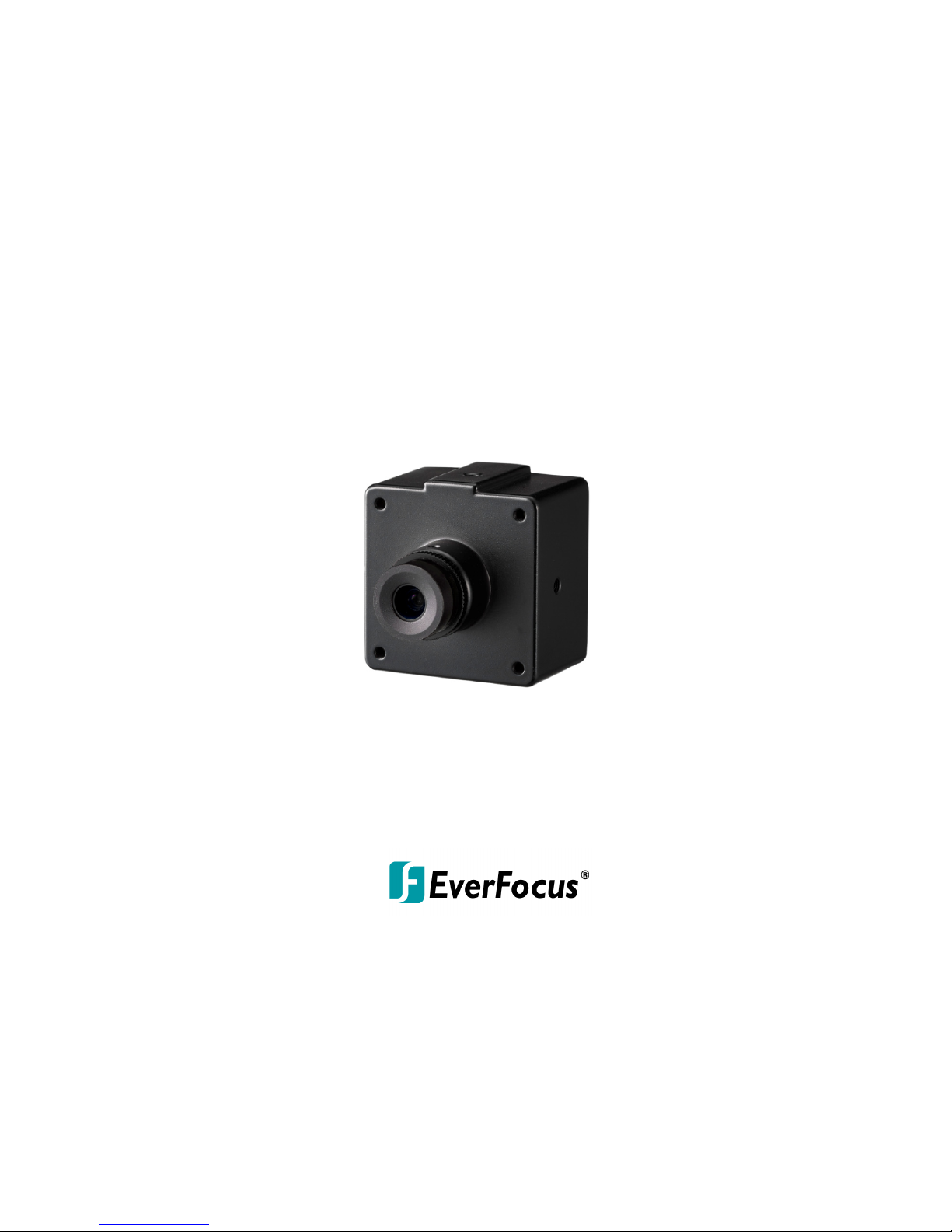

EQN100 Mini Cube IP Camera

Auto White Balance, 3DNR

Quick Installation Guide

Release Date: August, 2015

Introduction

The EQN100 Mini Cube IP Camera is designed for indoor use. The camera comes with

1.3MP, providing up to 30fps at 1280 x 1024 viewing resolution.

Physical Description

1 2

Front View Rear View

3 4

Cable

No. Item Name Descriptions

1 Lens Fix focal lens 6mm (optional:2.8mm, 3.6mm, 8mm)

2 Reset Button

Use a paper click to press and hold the Reset Button for 2

seconds and then release the button for 2 seconds. Repeat

doing this 3 times to reset all configurations to factory default.

3 LAN Cable Connects to a router.

4 Power Cable Connects to a 12VDC power source.

Dimensions

Packing List

•Camera x 1 •Quick Installation Guide x 1

Note: Equipment configurations and supplied accessories vary by country. Please consult

your local EverFocus office or agents for more information. Please also keep the shipping

carton for possible future use. Contact the shipper if any items appear to have been

damaged in the shipping process.

Optional Accessory

You can use the optional accessories to expand the capabilities and versatility of the camera.

Please contact your dealer for more information.

•IP Sidekick - ESK1000

Using it for installation, you do not need to pre-configure the

IP address or to use an additional monitor to check and

adjust all the IP cameras. The product can assign an IP

address to the camera, and then you can connect and check

the camera live view using our mobile app EF Sidekick. For

details about IP Sidekick, please refer to the IP Sidekick –

ESK1000 User’s Manual.

•Bracket - BA-EQN

You can use the bracket to install EQN100

onto the desired surface.

*Two M3*5 screws and two washers are

included for screwing the camera to bracket.

Installation

To install this IP camera, you have to prepare 4 screws (M3 with max length of 2mm) and

then screw the camera to the installation surface. The four screw holes on the camera are

illustrated below (top / bottom / left / right). Please be noted the Top screw hole should

face up in order to display correct camera view position.

Top

Accessing the Camera

You can look up the IP address and access the Web interface of the camera using the IP

Utility (IPU) software, which can be downloaded from the EverFocus’ Website

(http://www.everfocus.com.tw/HQ/Support/DownloadCenter_p1.aspx). You can also

download the User’s Manual from EverFocus’ Website. Please connect the IP camera on the

same LAN of your computer. Please check that your computer supports Microsoft Windows

XP/2003/Win7/Vista.

1. Extract the files after downloading the IP Utility to your computer. Double click the IP

Utility Setup.exe and follow the on-screen instructions to install the IP Utility.

2. Click the Finish button, the IP Utility will be automatically launched to search the IP

devices connected on the same LAN.

3. To access the Live View window, double click the IP address of the device, the login

window appears.

4. Download and install the ActiveX file by clicking File on the login window. Click Run and

follow the instructions to install the program. Click Finish to complete the process.

5. On the login window, type the user ID and password to log in. By default, the user ID is

user1 and the password is 11111111. Click Login, the Live View window appears.

Note: Before start operating the IP camera, please make sure the camera date and

time are correct. To configure the camera date/time, go to Config > System > System

Time on the Web UI.

Connecting to the Network

You can use one of the methods below to connect the camera to the network.

One-to-One Connection (Directly from PC to IP camera)

You can connect directly without using a switch, router or modem. However, only the PC

connected to the camera will be able to view the IP camera. You will also have to manually

assign a compatible IP address to both the computer and the IP camera. Unless the PC has

another network connection, the IP camera will be the only network device visible to the PC.

See the diagram below:

Cat 5

Right: Pinout of a crossed-over cable.

Network Cable Crossed-Over

Pin No. Wire Color Wire Becomes

Pin 1 – Orange/White

Pin 2 – Orange

Pin 3 – Green/White

Pin 4 – Blue

Pin 5 – Blue/White

Pin 6 – Green

Pin 7 – Brown/White

Pin 8 – Brown

6 2

Direct High-Speed Connection

In a Direct High-Speed Connection, the camera connects directly to a modem without the

need for a router. You need to set the static or dynamic WAN IP address assigned by your

ISP (Internet Service Provider) in the camera’s configuration web pages. To access the

camera, just type “http://xxx.xxx.xxx.xxx”, where xxx.xxx.xxx.xxx is the IP address given by

your ISP. If you have a dynamic IP address, this connection may require that you use DDNS

for a reliable connection. Please refer to 7.3.7 DDNS Settingsin the User’s Manual.

Cat 5

Straight Through Cable

High-speed modem

Internet

Router or LAN Connection

This is the most common connection in which the IP camera is connected to a router and

allows multiple users on and off site to see the IP camera on a LAN/WAN (Internet). The

camera must be assigned an IP address that is compatible with its LAN. By setting up port

forwarding on the router, you can remotely access the cameras from outside of the LAN via

the Internet. To remotely access the Web interface of the IP camera, please refer to 7.3.7

DDNS Settings in the User’s Manual. To set up port forwarding, please consult the manual of

the router.

High-speed modem

Internet

Straight-through LAN patch cable

Router

Cat 5 Straight Through Cable

Network Cable Straight-Through

Pin No. Wire Color Wire Becomes

Pin 1 – Orange/White

Pin 2 – Orange

Pin 3 – Green/White

Pin 4 – Blue

Pin 5 – Blue/White

Pin 6 – Green

Pin 7 – Brown/White

Pin 8 – Brown

1 1

2 2

3 3

6 6

Above: Pinout of a straight-through cable.

Upgrading Firmware

You can upgrade camera’s firmware through the Web UI of the IP camera.

On the Web UI, click Config > System > Upgrade to enter the Upgrade setting page.

Click the Browse button to find a previously prepared firmware upgrade file. Click the

Upgrade button to install the new firmware. The upgrading status will be displayed.

When the upgrade process is complete, the IP camera will restart automatically.

Note: Do not disconnect power and the network to the IP camera during the upgrade

sequence. The IP camera will reboot automatically after the upgrade has completed.

EverFocus Electronics Corp.

EverFocus Taiwan HQ:

12F-1, No.79, Sec. 1, Shin-Tai Wu Road, Hsi-Chih, New Taipei City, Taiwan

TEL: +886 2 2698 2334 FAX: +886 2 2698 3943

www.everfocus.com.tw marketing@everfocus.com.tw

P/N: 4605PQ0100B022C
