EDN850H

Installation Guide

Release: Jun. 2009 Ver. A

EDN850H

This installation guide provides instructions for installing the EDN850H IP Camera.

For all other aspects of using this product, please refer to EDN850H User’s Manual,

which is available on the CD included in this package.

Installation steps

1. Confirm that all of the accessories have been supplied with the network camera

from the list below.

2. Confirm that your PC answers to the minimum computer requirements listed

below.

3. Mount the camera to ceiling or wall. Please see “1. Installation” on page 5.

4. Connect the cables. Please see “2. Connecting the Cables” on page 10.

5. Network Connection. 3 typical types of network connection. Please see “3.

Network Connection” on page 12.

6. Set an IP address. Please see “4. Assign IP address” on page 14.

Package Contents

- Network camera (x1)

- Mounting kit includes:

-Long Screws x 3 (for mounting base)

-Expanding Screws x 3

-Washer x 3

- Circle Installation Sticker x 1

- Desiccant Pack x 1

- Power adaptor (x1)

- Printed Installation Guide (x1)

- Software APs including user’s manual CD (x1)

EDN850H

Minimum Computer Requirements

-CPU: PC Pentium IV (2.0 GHz or higher) / AMD Athlon (or higher)

-VGA card: 32 MB min. 16.7 million colours, with DirectX9.0c support

-Memory: 512 MB RAM min., 1 GB HD space or above

Additional HD space depends on required local storage of video files,

100 Mbps network card

-Screen Resolution: 1024 x 768 pixels or higher, 32-bit pixel color resolution

-Operating system: Windows XP, service pack 3 or higher

-Software: DirectX9,0c, Internet Explorer 6.0 or higher

Note: Please connect to Microsoft’s Web Site for downloading.

For example: (This web site may change without notices.)

http://www.microsoft.com/downloads

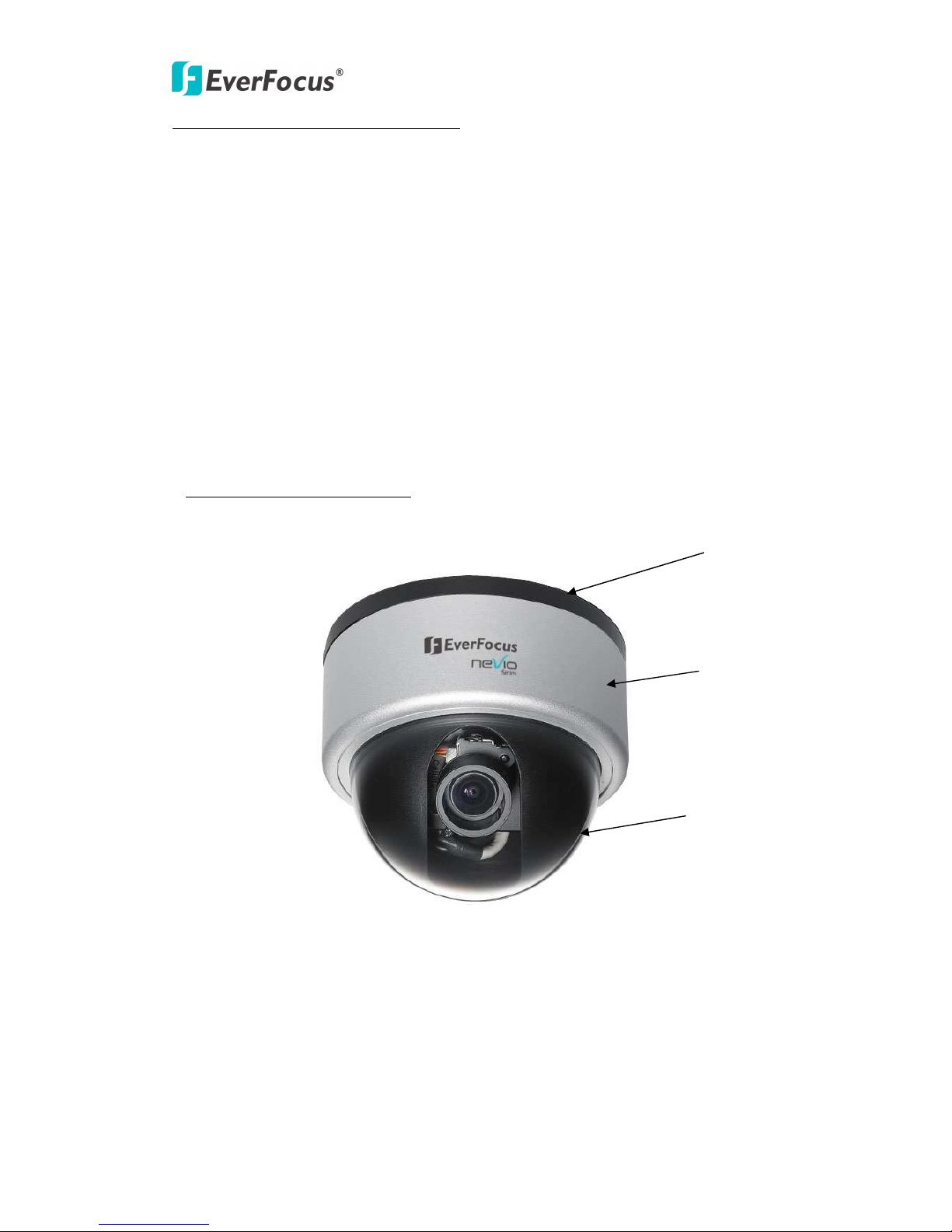

Interior View of EDN850H

Rotatable cover

Outer Cover ring

Base

EDN850H

Reset button

SD card slot

Focus lever

Zoom lever

EDN850H

1. Installation

1.1 Mounting Camera

1.1.1 Drill the Holes

1. Paste the drilling template on the ceiling or wall

2. Use the tool to drill 4 holes, 3 for screw A, B and C,

1 for power/video cable.

Installation sticker

Screw hole A

Screw hole B

Screw hole C

Power/Video/Alarm/Audio Cable

Camera base Screw

A,B,C

Outlet hole

Network Cable

EDN850H

1.1.2 Mounting

1. Take off camera’s cover.

Loose outer cover ring first

Take off camera’s cover.

EDN850H

2. Fix the camera base to ceiling or wall by using 3 screws.

Ceiling Mount:

Wall Mount:

EDN850H

1.2 Adjusting Camera

1.2.1 Adjusting Camera Position

Adjust the camera to any angle that you wish. Pan and tilt to aim the camera at what

you need to watch until the best angle of image is obtained.

Adjust the camera to best angle for viewing.

Tilt

Pan

EDN850H

NOTE:

1. If necessary, you can put desiccant pack in bracket side. Use cable to fix it before

placing the cover back to camera.

2. To close camera cover, please push the inner cover until it completely covers the

whole red gasket and line up with camera base parallel (The inner cover need to be

aligned with camera base otherwise it cannot be closed). Then close the outer cover

ring tightly to the camera base.

Module can be adjusted up and down

When you install on the ceiling, Change angle of view

by turning this joint

EDN850H

2. Connecting the Cables

○

1Network cable: Connect to LAN via this standard RJ-45 connector.

Optional: This socket can also be used to power via PoE (Power over Ethernet)

○

Audio cable: For connecting to Audio In/Out device.

Green: Audio Out- it can be connected to an active speaker with a built-in

amplifier or a pair of headphones. A 3.5mm audio connector must be used for the

audio out.

Red: Audio In- 3.5mm stereo socket for line-in signal

○

Power 12VDC: Connect with power adaptor.

○

Video cable: Loop through connection to the video signal from the Video In

connector. It is terminated with a coaxial/BNC connector.

○

Alarm I/O cable: For connecting to Alarm In/Out device.

Purple:Alarm Out+

White:Alarm Out-

Gray:Alarm In

Pink:Alarm GND

○
