EverFocus EHN3261 Manuel utilisateur

EHN Series Vandal Proof IP Dome Camera

10x Optical Zoom, Auto Focus, True Day/Night, WDR, IP68, IK10

Quick Installation Guide

Release Date: March, 2014

EHN3261/3361

1. Physical Description

The EHN series vandal proof IP dome Camera features 10x optical zoom lens and is designed for

outdoor use. The series comes in two models: EHN3261 / 3361.

Model Name Megapixel 10x Optical Zoom Auto Focus WDR

EHN3261 2 MP Yes Yes Yes

EHN3361 3 MP Yes Yes Yes

Camera Module

No. Item Name Descriptions

1 Cable Gland Equipped with three plugs inserted in the cable conduits for

waterproofing.

2 LAN / PoE Connects to a 10/100 Ethernet or PoE.

3 Terminal Block A 12-pin terminal block. See Terminal Block later in this Quick

Installation guide.

4 Reset Button Resets all configurations to the factory default settings. Press and

hold the Reset Button for 10 seconds by using a pen or a paper click.

5 SD / SDHC Slot For inserting an SD / SDHC card

6 IR LEDs 10 IR LEDs for infrared illumination in night vision applications.

7 Lens 10x optical zoom, auto focus, DC Iris, F1.8-360C.

8 Light Sensor Detects lights.

EHN3261/3361

System Requirement

Before installing, please check that your computer meets these system requirements.

•Operating System: Microsoft Windows XP / Vista (32-bit) / 7 (32-bit)

•Microsoft Internet Explorer 7 or above

Packing List

•

EHN Series Camera x 1 •

Desiccant Bag x 2

•

Base Plate Screw x 4 •

Inner Paper x 1

•

Screw Anchor x 4 •

Software CD x 1

•

Hexagon Screwdriver x 1 •

Quick Installation Guide x 1

Note:

1. Equipment configurations and supplied accessories vary by country. Please consult your local

EverFocus office or agents for more information. Please also keep the shipping carton for

possible future use.

2. Contact the shipper if any items appear to have been damaged in the shipping process.

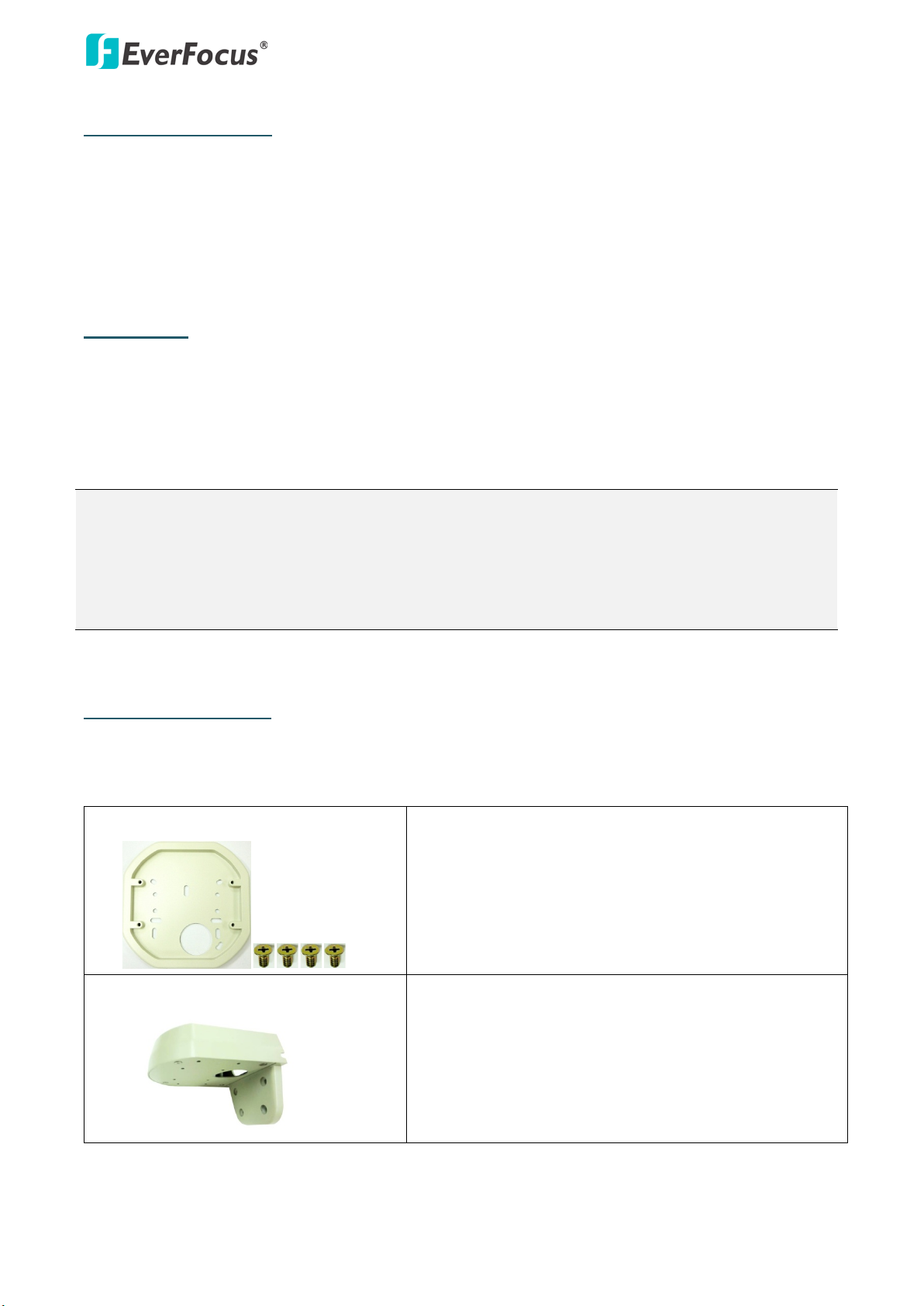

Optional Accessories

You can use the optional accessories to expand the capabilities and versatility of the camera. Please

contact your dealer for more information.

•One Adapter Plate with 4 Screws

The Adapter Plate is designed for wiring the cables

through the bottom of the camera case. For details on

how to wire the cables through the bottom of the

camera, please refer to the User’s Manual in the CD.

•L-Shaped Mounting Bracket

To prevent the camera from being damaged by direct

sunlight, it is strongly recommended to use the

L-Shaped Mounting Bracket to mount the camera to

the wall. For details on mounting the camera to the

wall using the L-Shaped Mounting Bracket, please refer

to the User’s Manual in the CD.

EHN3261/3361

2. Terminal Block

The I/O terminal block, located on the camera module, can be used to develop applications for

alarm input and output, two-way audio, TV-output or a variety of other functions.

Note:

1. You can unplug the terminal block from the camera module for easier wiring.

2. Be sure to prepare microphones with TRS connector (see TRS Connector image below). Also,

microphones with a (built-in) amplifier and external power supply are required.

Camera Module

1 2 3 4 5 6 7 8 9 10 11 12

Pin Assignment

No. Functions No. Functions

1 12 VDC Input 7 Audio Input C (TRS Line-in)

2 Digital GND 8 Audio GND

3 Alarm Out Alarm Output C (+) 9 Audio Output

4 Alarm COM C (-) 10 Audio GND

5 Alarm In Alarm Input C (+) 11 CVBS Output

6 Digital GND (-) 12 Digital GND

TRS Connector

Left Channel (Tip)

Right Channel (Ring)

Ground (Sleeve)

To activate the Audio function, the Enable Audio must be

checked. See Audio Settings in 7.2.1 Streaming and Audio in

the User’s Manual.

EHN3261/3361

3. Installation

Important Notice for the Installation

If you want to mount the camera on the wall where direct sunlight may occur, it is strongly

recommended to mount the camera using the L-Shaped Mounting Bracket to prevent the camera

from being damaged by direct sunlight. Please refer to the Quick Installation Guide of L-Shaped

Mounting Bracket for more details.

Basic Installation

This installation guide provides the basic instructions on installing an EHN IP camera to the wall. For

details, please refer to the User’s Manual in the software CD.

To mount the camera to the wall and connect the cables to the camera:

1. Unscrew the four screws and remove the cover from the camera.

EHN3261/3361

2. Unscrew the four screws and remove the Base Plate from the Camera Case.

Camera Case

Base Plate

3. Unscrew the two screws and take out the camera module.

4. Screw the Base Plate to the Wiring Box using the supplied four screws.

Base Plate Wiring Box

If you want to wire the cables through the bottom of the Camera Case, follow the steps below:

a. Remove the Circle Plate on the bottom of the Camera Case. You can simply loosen the Circle

Plate using a coin.

Circle Plate

Camera Case

EHN3261/3361

b. Loosen and remove the Cable Gland from the Camera Case. Screw the Cable Gland to the

hole on the bottom of the Camera Case.

Cable Gland

Camera Case

c. Screw the Circle Plate to the side hole on the camera Case.

d. Screw an Adapter Plate between the Base Plate and Wiring Box.

Base Plate

Wiring Box

Adapter Plate

5. Screw the Camera Case back to the Base Plate.

Base Plate

Camera Case

EHN3261/3361

6. Insert the network / PoE cable or the additional cables through the Cable Gland. Up to three

cables can be inserted. Note that except the network / PoE cable, additional wires have to be

bundled into a cable with diameter ranging from 5.3mm to 6.4mm (see Step d below).

Screw Body

Screw Cap

Stopper Claw

Plug

Stopper

Adjustment Ring(s)

Cable Gland Cable Gland

Screw Cap

a. Keep the supplied 6 Adjustment Rings for waterproofing.

•Transparent x 5 (1 mm thickness)

•Black x 1 (0.5 mm thickness)

b. Remove the Plug(s) from the Stopper (depends on the number of cables inserted). One

Cable Conduit can only be inserted with one cable.

Plug Stopper

Cable Conduit

c. Insert the network / PoE cable through the Cable Conduit, if your network / PoE cable

already has a RJ-45 connector, then you can use the Slitted Cable Conduit.

Slitted Cable Conduit

d. Optionally insert the additional wires, such as power (if you want to power the camera

through a 12 VDC power source), alarm and audio cables, through the other Cable Conduit.

Note that one Cable Conduit can only be inserted with one cable. The Cable Conduit has

been tested to support cable diameter between 5.3mm and 6.4mm. Please refer to the

image below to bundle the lose wires before inserting to the Cable Conduit.

EHN3261/3361

e. Tighten the Screw Cap all the way to the Adjustment Ring(s).

f. Due to the variable cable diameters, for better waterproofing, it is strongly recommended

that you apply silicon sealants to the inner Screw Cap.

7. Connect the network / PoE cable to the LAN / PoE port on the camera module.

8. If you have inserted additional wires, connect the wires to the terminal block. Please refer to

2. Terminal Block for pin assignment.

9. Optionally insert an SD / SDHC card to the card slot.

SD Card Slot

10. Stick the supplied 2 desiccant bags inside the camera case.

Note: It is highly recommended to replace the desiccant bags every time when you open the

camera.

11. Place and screw the camera module back to the camera case.

12. Access the camera live view for adjusting camera angles. Please see 4. Accessing the Camera.

To adjust the camera to a desired angle:

EHN3261/3361

Pan Adjustment: Simply turn left / right for the top camera module.

360°

Tilt Adjustment: Using the two tilt screws.

64°

Rotational Adjustment: Using the rotate screw.

180°

13. Screw the cover back to the camera case.
