EtherWAN EX93000 Manuel utilisateur
Hardened Ethernet Switch
1
Quick Start Guide
This quick start guide describes how to install and use the
hardened Ethernet Switch. This is the switch of choice for
harsh environments constrained by space.
Physical Description
The Terminal Block and Power inputs
The Terminal Block
PWR1 Power Input 1 (12 to 30VDC)
GND Power Ground
PWR2 Power Input 2 (12 to 30VDC)
GND Power Ground
Earth Ground
FAULT The relay opens if PWR1 or PWR2 fails (1A)
The DC Power Inputs
12VDC DC JACK
FAULT The relay opens if PWR1 or PWR2 fails (1A)
Hardened Ethernet Switch
2
DC Terminal Block Power Inputs: There are two pairs of
power inputs can be used to power up this media converter.
Redundant power supplies function is supported. You only
need to have one power input connected to run the Switch.
The 10/100Base-TX and 100Base-FX Connectors
1. The 10/100Base-TX Connections
The following lists the pinouts of 10/100Base-TX ports.
Pin Regular Ports Uplink port
1 Input Receive Data + Output Transmit Data +
2 Input Receive Data - Output Transmit Data -
3 Output Transmit Data + Input Receive Data +
4 NC NC
5 NC NC
6 Output Transmit Data - Input Receive Data -
7 NC NC
8 NC NC
2. The 100Base-FX Connections
The fiber port pinouts: The Tx (transmit) port of device I is
connected to the Rx (receive) port of device II, and the Rx
(receive) port of device I to the Tx (transmit) port of device II.
Hardened Ethernet Switch
3
The Port Status LEDs
LED State Indication
10/100TX or 100FX
Steady A valid network connection established.
LNK stands for LINK.
LNK/ACT
(Green)
Flashing Transmitting or receiving data.
ACT stands for ACTIVITY.
Steady Light solid yellow for a port transferring
at 100Mbps.
100
(Yellow) Off The port is transferring at 10Mbps If this
LED is dark.
Hardened Ethernet Switch
4
Functional Description
•Meets NEMA TS1/TS2 Environmental requirements
such as temperature, shock, and vibration for traffic
control equipment.
•Meets IEC61000-6-2 EMC Generic Standard Immunity
for industrial environment.
•Support 802.3/802.3u/802.3x. Auto-negotiation:
10/100Mbps, Full/half-duplex; Auto MDI/MDIX.
•100Base-FX: Multi mode SC or ST type; Single mode
SC or ST type; WDM Single mode SC type.
•Support 2048 MAC addresses. Provides 768K bits
memory buffer.
•Alarms for power failure by relay output.
•Operating voltage and Max. current consumption: 1.1A
@ 12VDC, 0.55A @ 24VDC. Power consumption:
13.2W Max.
•Power Supply: Redundant DC Terminal Block power
inputs or 12VDC DC JACK with 100-240VAC external
power supply.
•-40℃to 75℃(-40℉to 167℉) operating temperature
range. Tested for functional operation @ -40℃to 85℃
(-40℉to 185℉).
•Supports DIN-Rail, Panel, or Rack Mounting
installation.
Assembly, Startup, and Dismantling
•Assembly: Place the switch on the DIN rail from above
using the slot. Push the front of the switch toward the
mounting surface until it audibly snaps into place.
•Startup: Connect the supply voltage to start up the
switch via the terminal block (or DC JACK).
Hardened Ethernet Switch
5
•Dismantling: Pull out the lower edge and then remove
the switch from the DIN rail.
Hardened Ethernet Switch
6
Preface
A member of the growing family of rugged switches, this
switch addresses a need for a smaller switch. This switch
provides an affordable solution for rugged and outdoor
environment, transportation road-side cabinet, industrial
floor shop, multitenant dwellings or Fiber To The Home
(FTTH) applications. Capable of operating at temperature
extremes of -40°C to +75°C, this is the switch of choice for
harsh environments constrained by space.
Plug-and-Play Solution:
The switch is a plug-and-play Fast Ethernet Switch in
compact size. It doesn't have any complicated software to
set up.
This manual describes how to install and use the hardened
Ethernet Switch. This switch integrates full wire speed
switching technology. This switch brings the answer to
complicated hardened networking environments.
To get the most out of this manual, you should have an
understanding of Ethernet networking concepts.
In this manual, you will find:
yFeatures on the switch
yIllustrative LED functions
yInstallation instructions
ySpecifications
Hardened Ethernet Switch
7
Table of Contents
QUICK START GUIDE 1
PHYSICAL DESCRIPTION 1
The Terminal Block and Power inputs 1
The 10/100Base-TX and 100Base-FX Connectors 2
The Port Status LEDs 3
FUNCTIONAL DESCRIPTION 4
ASSEMBLY,STARTUP,AND DISMANTLING 4
PREFACE 6
TABLE OF CONTENTS 7
PRODUCT OVERVIEW 8
HARDENED ETHERNET SWITCH 8
PACKAGE CONTENTS 8
PRODUCT HIGHLIGHTS 9
Basic Features 9
FRONT PANEL DISPLAY 10
PHYSICAL PORTS 11
INSTALLATION 12
SELECTING A SITE FOR THE SWITCH 12
DIN RAIL MOUNTING 13
CONNECTING TO POWER 14
12VDC DC Jack 14
Redundant DC Terminal Block Power Inputs 14
Alarms for Power Failure 15
CONNECTING TO YOUR NETWORK 16
Cable Type & Length 16
Cabling 17
SPECIFICATIONS 18
APPENDIX A–CONNECTOR PINOUTS 20
Hardened Ethernet Switch
8
Product Overview
Hardened Ethernet Switch
Package Contents
When you unpack the product package, you shall find the
items listed below. Please inspect the contents, and report
any apparent damage or missing items immediately to your
authorized reseller.
3This Switch
3User’s Manual
3External power adapter & Power Cord
(Optional)
Hardened Ethernet Switch
9
Product Highlights
Basic Features
•Meets NEMA TS1 & TS2 Environmental requirements
such as temperature, shock, and vibration for traffic
control equipment.
•Meets IEC61000-6-2 EMC Generic Standard Immunity
for industrial environment.
•Support 802.3/802.3u/802.3X.
•Auto-negotiation: 10/100Mbps, Full/half-duplex; Auto
MDI/MDIX.
•Support 2048 MAC addresses.
•Provides 768K bits memory buffer.
•Alarms for power failure by relay output.
•Operating voltage and Max. current consumption: 1.1A
@ 12VDC, 0.55A @ 24VDC.
•Power consumption: 13.2W Max.
•Power Supply: Redundant DC Terminal Block power
inputs or 12VDC DC JACK with 100-240VAC external
power supply.
•-40℃to 75℃(-40℉to 167℉) operating temperature
range. Tested for functional operation @ -40℃to 85℃
(-40℉to 185℉).
•Supports DIN-Rail, Panel, Rack Mounting installation.
Hardened Ethernet Switch
10

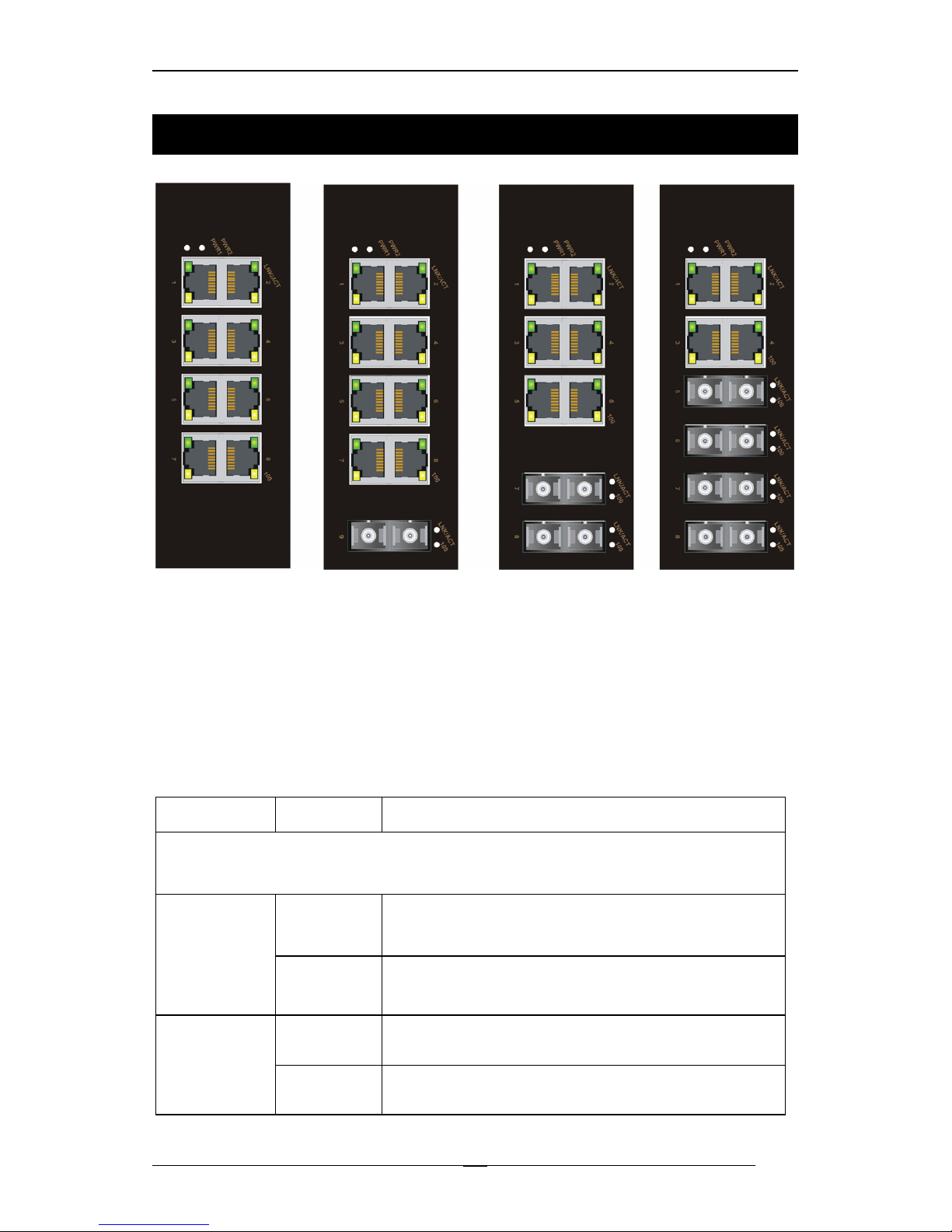

Front Panel Display
cPower Status (PWR1, PWR2)
These LEDs come on when the switch is properly connected to power and
turned on.
dPort Status LEDs
The LEDs display status for each respective port.
LED State Indication
10/100TX or 100FX
Steady A valid network connection established.
LNK stands for LINK.
LNK/ACT
(Green) Flashing Transmitting or receiving data.
ACT stands for ACTIVITY.
Steady Light solid yellow for a port transferring
at 100Mbps.
100
(Yellow) Off The port is transferring at 10Mbps If this
LED is dark.
