Overview

Echo preset stations are used to

activate built-in presets in

compatible power control products.

Stations mount using a standard

single-gang back box (RACO 690 or

equivalent), or an optional surface

mount backbox (ETC part number

7081A2004-1).

Station faceplates and buttons are available in cream, ivory, grey, black and

signal white. Preset stations are provided with station electronics, buttons,

faceplate, a termination kit, and installation hardware.

Custom Configuration Option

This document guides through the installation and local setup of the Echo

Preset Station. Advanced functionality is available using EchoAccess. For more

information, reference the EchoAccess Mobile App integrated help system.

Note:

To use the configuration settings applied using EchoAccess, DIP

switch 2 (Custom Config) must be enabled.

ETC Installation Guide

Echo Preset Station

Echo Preset Station Page 2 of 8 Electronic Theatre Controls, Inc.

Prepare for Installation

Preset stations connect to the EchoConnect station communication bus.

EchoConnect is a bidirectional protocol that uses one pair of wires (data+ and

data-) for both data and power. ETC recommends using Belden 8471 (or

approved equal) Class II wire. The total combined length of an EchoConnect

wire run (using Belden 8471, or equal) may not exceed 1,640 feet (500m).

Environmental

For indoor installation only - 0-50°C, 5-95% non-condensing humidity.

Rotary and Dip Switches

Rotary and DIP switch settings are accessible

on the rear of the station.

Rotary Switch

Assignments

Two rotary switches on the rear panel of the

station provide for space assignment and

station address assignment. Each station

must be set to a unique station address for

the assigned space. By default, these switches are set to Space 1, Station

Address 1. Station commands are shared by all devices within an assigned

space.

Note:

All control wiring should be installed and terminated by a

qualified installer and should follow standard wiring installation

practices.

Leave approximately 10 inches (254mm) of wiring in the back box

for connection and to allow slack for future service needs.

Note:

ETC requires that all stations be grounded. Pull an additional 14

AWG (1.5mm2) wire for grounding when control wires are not

installed in grounded metal conduit.

CAUTION:

Each station must have its station address set to a unique number

(1-16) for the space it controls. If two or more stations use the

same address for the same space, the system will not function

properly.

Address

Space

DIP

switches

ETC Installation Guide

Echo Preset Station

Echo Preset Station Page 3 of 8 Electronic Theatre Controls, Inc.

DIP Switch Settings

Functionality is set using DIP switches located just beneath the rotary and DIP

switches. The label on the rear of the station identifies these components and

functions.

Installation

Installation should follow all local codes and standard electrical practices.

The back box should be installed plum and square for best results. Ensure that

the back box is clean and free of obstructions and that all wiring is installed

correctly.

Echo Preset Stations ship with a termination kit for use with Belden 8471 (or

equivalent wire) and contains a power pigtail a ground wire pigtail, spacers,

and all required wire termination connectors for installation.

Switch # Use

1Use Off - When this is set to Off, the “Off” function of the station

is not provided.

2Custom Config - Must be set to On to use configuration settings

applied using EchoAccess. The default position is Off.

3Disable IR Input - When On, the infrared input for this station will

be disabled.

Fade Time Disable - Applies a 0 second fade time to all station

actions for non-dim switched mode behavior (when dimming

features are not wanted).

5 Future development

6 Future development

7 Future development

Restore to Defaults at Boot - Setting this DIP switch On, then

cycling power to the station restores the station to factory defaults.

Reset the switch Off after power cycle.

Note:

NEC Class 2 product to be wired in accordance with NEC Article

725 and local jurisdiction requirements.

ETC Installation Guide

Echo Preset Station Page 4 of 8 Electronic Theatre Controls, Inc.

Connect the Wiring

Step 1: Pull all required wiring (data+,

data -) into the back box. As

needed, pull an additional ESD

ground wire (required only

when the station is not

installed in grounded metal

conduit).

Step 2: Connect station ESD ground

wire pigtail.

a: Strip 3/8” (9-10mm) of insulation from the ends of the

station ground wire pigtail, provided in the termination

kit, and the incoming ground wire.

b: Use one WAGO connector, provided in the termination

kit, to connect the station ESD ground pigtail and the

incoming ground. For stations using grounded metal

conduit, connect the ground pigtail to the metal backbox

ground location.

c: Install the ESD ground wire pigtail Faston connector to

the spade terminal on the station electronics.

Step 3: Terminate and connect EchoConnect wires. EchoConnect is

topology free, you may install the wires in any combination of

bus, star, loop, or home-run.

a: Strip 3/8” (9-10mm) from the ends of each power pigtail

wire, provided in the termination kit, and the installed

control wires.

b: Use one WAGO connector, provided in the termination

kit, to connect the power pigtail and the installed control

wires. Open the terminal levers on the WAGO connector

and insert the installed (typically black) Belden 8471 wire

Note:

A ground connection (14 AWG) is required for any station not

installed with grounded metal conduit.

Ground

spade

Data

connector

ETC Installation Guide

Echo Preset Station

Echo Preset Station Page 5 of 8 Electronic Theatre Controls, Inc.

and the black lead from the power pigtail into the

terminals. Then close the levers.

c: Repeat for the installed (typically white) Belden 8471

power wires and the remaining white wire from the

power pigtail using a new WAGO connector.

d: Install the two pin connector from the power pigtail to

the mating receptacle on the station electronics.

Installing the Station in the Backbox

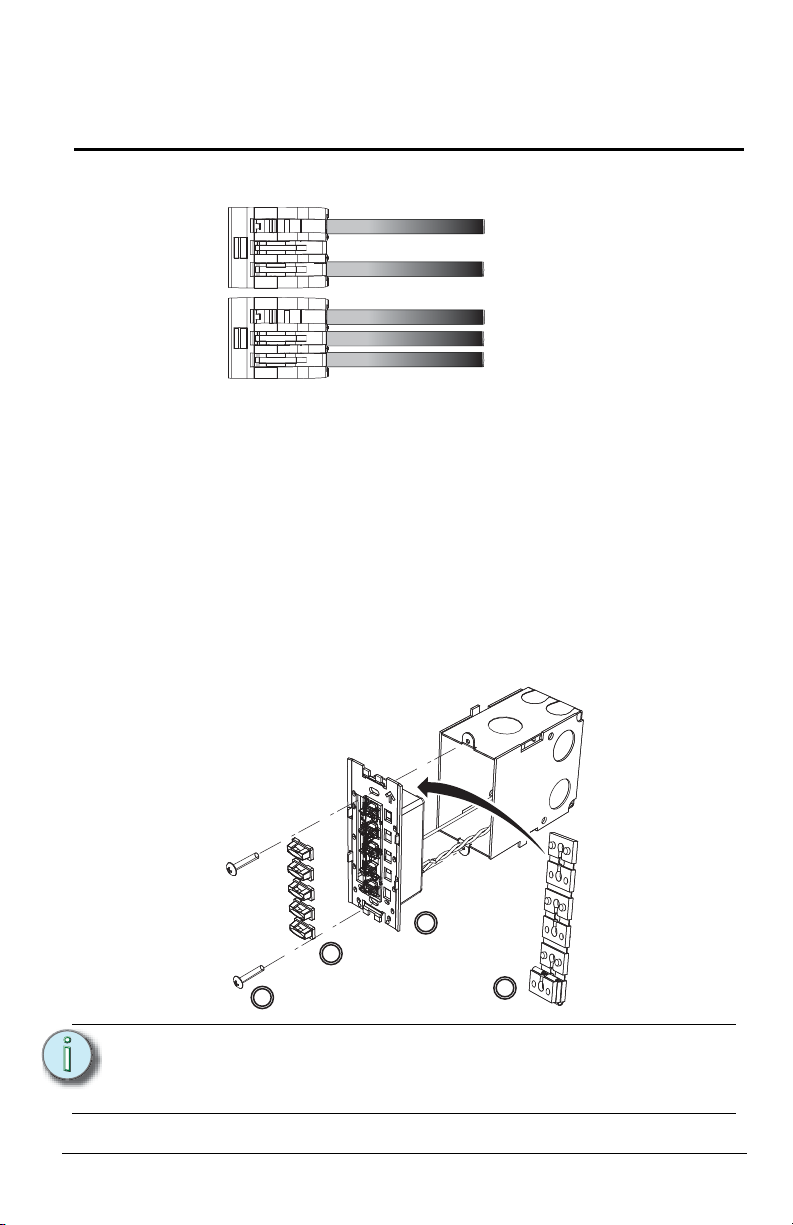

Spacers are provided to help position the station and cover flush with the wall

in flush mount applications. The spacers are not used with surface mount back

boxes.

Step 1: Insert the station electronics and wiring into the backbox. The

arrow on the mounting plate must point up.

Note:

For some flush mount applications with certain trim rings it may

be necessary to remove the station’s back cover for insertion into

the backbox.

Topology of a

single station

installation

Topology of

multiple stations

installed in series

Installed control wire

Pigtail wire

Installed control wire

Installed wire to next station

Pigtail wire

ETC Installation Guide

Echo Preset Station

Echo Preset Station Page 6 of 8 Electronic Theatre Controls, Inc.

Step 2: If needed, fold sections of the spacer over each other and

press them together to achieve the required thickness to fill

the gap between the station and backbox. Cut off any excess

spacers and place the spacer between the station and

backbox.

Step 3: Secure the station with two screws. If using spacers, make

sure the screws pass through them.

Step 4: Install the button caps (included with the faceplate kit) so that

the clear light tunnels protrude through the caps.

Installing the Faceplate

The faceplate is secured to the station with two magnets that are located on

the bottom edge of the faceplate.

Step 1: Align the top of the faceplate approximately 20 degrees to the

station.

Step 2: Hook the top of the faceplate on the tabs located on the top

of the station electronics assembly. To ensure the faceplate is

hooked properly on the top hook, wiggle it slightly side to side

while the bottom is angled 20 degrees from the wall.

Step 3: Swing the bottom of the faceplate down until the magnets

engage.

Step 4: If the faceplate does not fully attach, wiggle the bottom of the

plate until the magnets are seated properly to the station and

the faceplate is secure.

CAUTION:

Overtightening of the mounting screws may result in poor button

activation.

ETC Installation Guide

Echo Preset Station

Echo Preset Station Page 7 of 8 Electronic Theatre Controls, Inc.

Settings

Settings for Basic config mode (DIP switch 2 set to Off) can be modified locally

including changing which presets are assigned to the station, changing the

button LED color, and preset recording at the station.

Assigning Presets

Stations default to controlling presets 1-5. Any station can be set to control

any consecutively numbered block of presets. For example: a 5-button station

can control presets 1-5, 3-7, 14-18, and so on.

Power must be connected to the station to assign the presets. To set the

consecutively numbered presets for any station:

Step 1: Press and hold the

“MODE” button for three

seconds. “MODE” is

found on the front of the

station electronics near

the middle preset

button.The LED beneath

the MODE button will

illuminate.

Step 2: Press the first preset

button on the station a

number of times equal to

the first preset you want

the station to control. For

example: press 6 times to

associate the station with

presets 6-10 on a 5-button station (6-15 on a 10-button

station). The first preset button will flash to indicate the first

preset number. The number of flashes equals the station’s

starting preset number.

a: After 90 seconds of inactivity, the “MODE” status will

time out and any changes will be aborted.

b: Button presses are cumulative. If you need to increase the

desired number, press the first preset button additional

times.

c: If you have added too many, wait for the 90 second time-

out to abort the changes and then repeat this procedure.

Step 3: Press and release the “MODE” button to save the setting.

MODE Button

on 5-button

MODE Button

on 10-button

ETC Installation Guide

Echo Preset Station

Echo Preset Station Page 8 of 8 Electronic Theatre Controls, Inc.

Changing Button LED Color

Stations default to illuminating preset buttons in green. To change the color of

the LEDs for any station:

Step 1: Press and hold the “MODE” button for five seconds. “MODE”

is found on the front of the station electronics near the middle

preset button.The LED beneath the MODE button will

illuminate and all of the preset buttons will display in their

current color.

Step 2: Press the first preset button to cycle through the available

colors until you find the desired one. After 90 seconds of

inactivity, the “MODE” status will time out and any changes

will be aborted.

Step 3: Press and release the “Mode” button. The selected color of

the preset buttons for that station will display.

Preset Record

To record a preset to a button on the Echo Preset Station:

Step 1: Set the desired lighting look in the space.

Step 2: Press and hold the preset button for three seconds. The preset

is recorded to the selected button. The button LED flashes four

times to confirm the record action.

Service

If you have any difficulties installing your system or with system startup please

contact ETC Technical Services at the office nearest you. ETC contact

information is located at the bottom of page 1.

Table des matières

Autres manuels ETC Unité de contrôle

ETC

ETC Unison Echo Inspire Manuel utilisateur

ETC

ETC EM264 Manuel utilisateur

ETC

ETC SmartModule 2 Manuel utilisateur

ETC

ETC ETCpad Manuel utilisateur

ETC

ETC Eos Remote Processor Unit 3 Manuel utilisateur

ETC

ETC ColorSource ThruPower Series Manuel utilisateur

ETC

ETC UHCI-4 Manuel utilisateur

ETC

ETC EchoTouch Manuel utilisateur

ETC

ETC P-TS18 Manuel

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
