Escea ST900 Manuel utilisateur
ST900
GAS FIRE USER GUIDE
www.escea.com
630289_0_Manual_User_ST900_AUS_NZ_R-emotion
NZ / AU
DO NOT PLACE ARTICLES OR FURNISHINGS ON OR AGAINST THIS
APPLIANCE.
DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR THIS APPLIANCE.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT
IS IN OPERATION.
PRIMARILY A DECORATIVE APPLIANCE - NOT CERTIFIED AS A SPACE
HEATER.
DO NOT MODIFY THIS APPLIANCE
DO NOT OPERATE THE FIRE IF THE GLASS HAS BEEN BROKEN, DAMAGED
OR IT IS NOT PROPERLY POSITIONED/HOOKED ONTO THE FIRE
DO NOT OPERATE THE FIRE WITH THE FASCIA PANELS REMOVED.
THIS APPLIANCE IS NOT INTENDED FOR USE BY YOUNG CHILDREN OR
INFIRM PERSONS UNLESS THEY HAVE BEEN ADEQUATELY SUPERVISED
BY A RESPONSIBLE PERSON TO ENSURE THAT THEY CAN USE THE
APPLIANCE SAFELY.
THIS APPLIANCE MUST BE INSTALLED IN ACCORDANCE WITH THE
MANUFACTURERS WRITTEN INSTRUCTIONS.
The data plate for this appliance, containing technical information and
specifications, can be found to the right of the control tray, near the
base of the fire. To access this, the fascia must be removed.
Any installation or service work carried out on this appliance must only
be done by a recognised and qualified gas fitter.
Escea recommends the ST900 is inspected and serviced by a
qualified Gas Fitter once every twelve (12) months.
NZ LTD
17 Carnforth St, PO Box 5277
Dunedin, New Zealand
E-mail: [email protected]
Web: www.escea.com
Phone: +64 3 478 8220 Fax: +64 3 478 8221
IF APPLIANCE DOES NOT LIGHT AFTER 6 ATTEMPTS - PLEASE WAIT FOR 10
MINUTES BEFORE ATTEMPTING TO RELIGHT
THE GLASS SURFACE ON THE FRONT OF THE FIREPLACE IS CONSIDERED
A WORKING SURFACE, AND AS SUCH IS HOT AND CARE MUST BE TAKEN
NOT TO TOUCH THIS SURFACE. IT IS RECOMMENDED A SECONDARY
GUARD IS FITTED IN PLACES WHERE THERE ARE YOUNG CHILDREN OR
AGED OR INFIRM PERSONS.
CURTAINS SHOULD NOT BE POSITIONED ABOVE THE FIREPLACE AND ANY
PROTRUDING LEDGES MUST NOT COME WITHIN THE MINIMUM
DISTANCES SPECIFIED IN SECTION 5.1 OF THE INSTALLATION MANUAL
SUPPLIED WITH THIS APPLIANCE.
IF A GUARD IS FITTED TO THIS APPLIANCE TO REDUCE THE RISK OF FIRE
OR INJURY FROM BURNS AND NO PART OF IT SHOULD BE PERMANENTLY
REMOVED.
FOR PROTECTION OF YOUNG CHILDREN OR THE INFIRM, A SECONDARY
GUARD IS REQUIRED.
Basic Operation
Turning the ST900 on
Setting the Control Mode
Locking the Remote Control
Contents
>
1
2
5
Operation from the touch pad 5
Cleaning and Maintenance
>
8
Normal operating Sounds and Smells
>
11
Clearances
>
6
The ST900 electronic control system is designed to work within the
temperature range of 0°C to 70°C, with a humidity level that is non
condensing. This is to ensure safe operation of the electronic and
gas control system.
If the fireplace is subjected to an environment with temperatures
very close to or exceeding these temperature limits (irrespective of if
the fireplace is on or off at the time) the fireplace may not start up
until the temperature returns back to within the operating range.
To remedy this the environmental temperature should be addressed
and the fireplace control system given time to adjust accordingly.
The fireplace should then function correctly.
Basic Operation
The ST900 remote control allows you to turn ON and OFF the fire, control the
flame height in the Manual mode, or control the room temperature in the
Thermostat mode. The remote has a maximum range of 10 metres, and
because the remote works by radio frequency, it does not need to be aimed at
the for it to operate.ST900
When first powered the remote starts at the OFF screen (it is possible that the
remote is locked in the OFF screen: to unlock it just press the button below
Unlock, and then OK).
Switching on the ST900
Switching on: Once the remote is unlocked, press On (left button) and OK
(middle button). A beep from the control unit will be heard, and the ignition
process starts (the pilot will start sparking and gas will start flowing to the pilot,
which should then be lit within a few seconds
).
, after which the main burner will
ignite in HIGH flame mode
1
If the pilot flame fails to ignite, you must turn OFF the from the remote
and start the process of turning it ON again. BLOCKED ERROR will occur
after 5 ignitions within a 15 min period. This requires the control unit’s power
supply to be turned off for 15 seconds or you can wait out 15 minutes.
ST900
Wait until the current flame status displays HIGH
other action.
before performing any
Basic Operation 2
To turn off the fire, push the OFF button, to shut down the gas flow to the fire
and switch it off. The OFF display will now appear in the display.
Switching off the ST900
There are three different modes for controlling the appliance:
Setting the control mode for the fireplace:
Automatic mode allows you to set a temperature, while in manual mode the
flame level may be set to HIGH, MEDIUM, LOW & PILOT. Program mode
offers automatic temperature control for specific times of the day.
In the initial screen when the remote is turned on, three options are available:
AUTO, MANUAL and MENU.
Auto and Manual are two of the three different modes for controlling the
appliance with the remote.
If Manual is pressed, HIGH appears as the selected
setting. In the bottom row, ↓and ↑ appear,
indicating that the flame level can by changed by
just pressing the left or middle button. There are four
possible flame positions: Pilot flame, Low flame,
Medium flame and High flame. Pressing Back (right
button), returns to the initial screen. Note that a
Safety temperature can be previously set in the
configuration menu. This specifies the maximum
the maximum permitted room temperature. This
temperature can never be set higher than 40ºC
(104 ºF).
> Manual
> Automatic
> Program
Manual mode:
Basic Operation
3

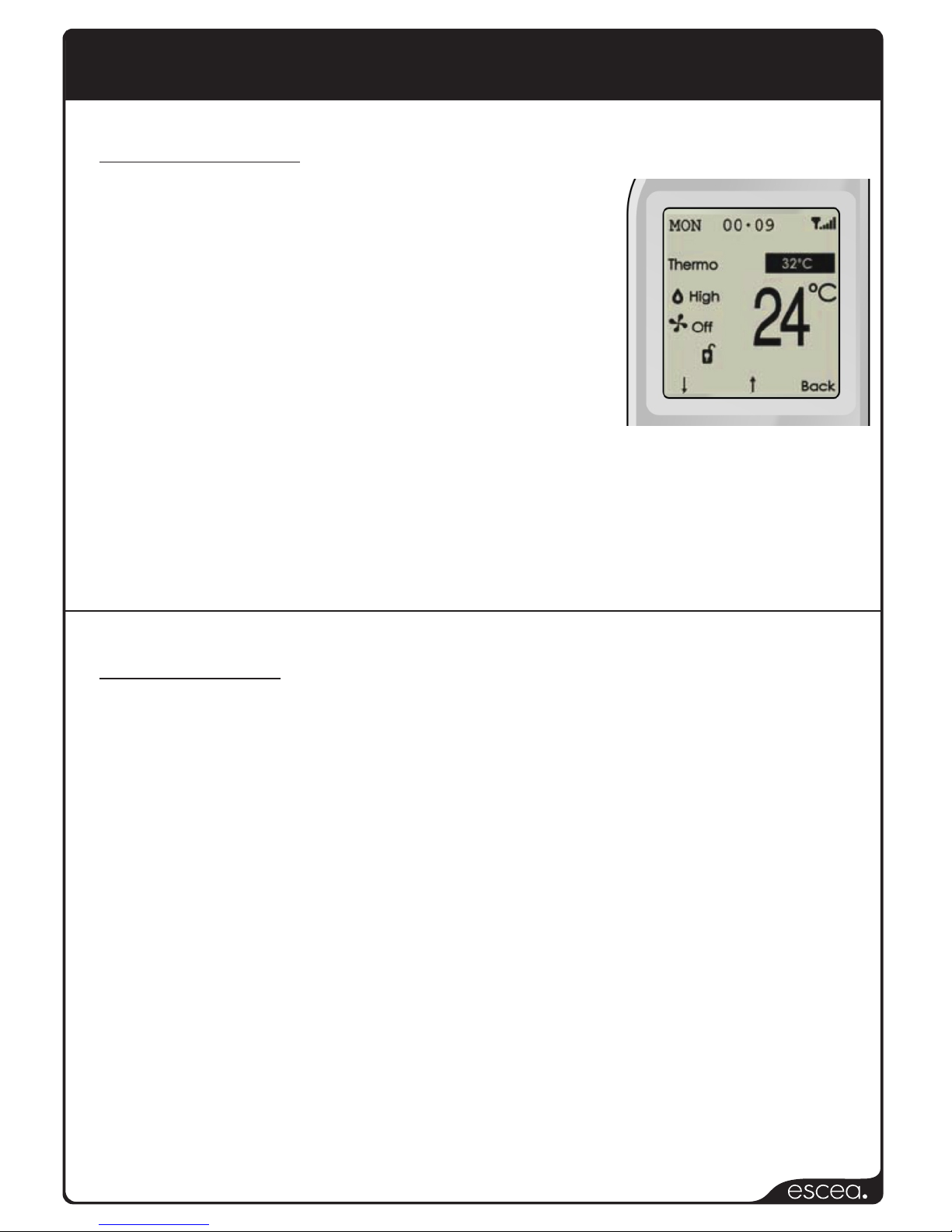

If Auto is pressed in the initial screen, 25ºC (77 º F)
appears as the desired temperature in the selected
setting. In the bottom row, ↓ and ↑appear,
indicating that we can change the desired
temperature value by just pressing the left or middle
button. In auto mode the appliance heats until this
temperature is reached. Limits are 0-37ºC (32-
99ºF).
Pressing Back (right button), returns to the initial
screen.
Automatic mode:
In this mode the main burner can be switched on and off.
By default the program mode is not enabled. To enable program mode, enter
configuration mode by pressing and holding the OFF button for 40 seconds,
selecting “Programming” and selecting “yes” (For more information on
configuration mode see the installation manual, section 19.9).
There are two types of program mode: a Daily mode and a Weekly mode. In
the daily mode, every day uses the same program. In the weekly mode, every
day has its own program, so it is possible have a different program for each
day of the week.
In this mode the main burner can be switched on and off (pilot still burning).
Day programming menu: (Menu → Adjust Menu → Change Program)
Program mode:
There are 8 menus like this. One for Daily, and the others for each separate
day (Monday, Tuesday, Wednesday, Thursday, Friday, Saturday and
Sunday).
(Continued next page)
Basic Operation 4

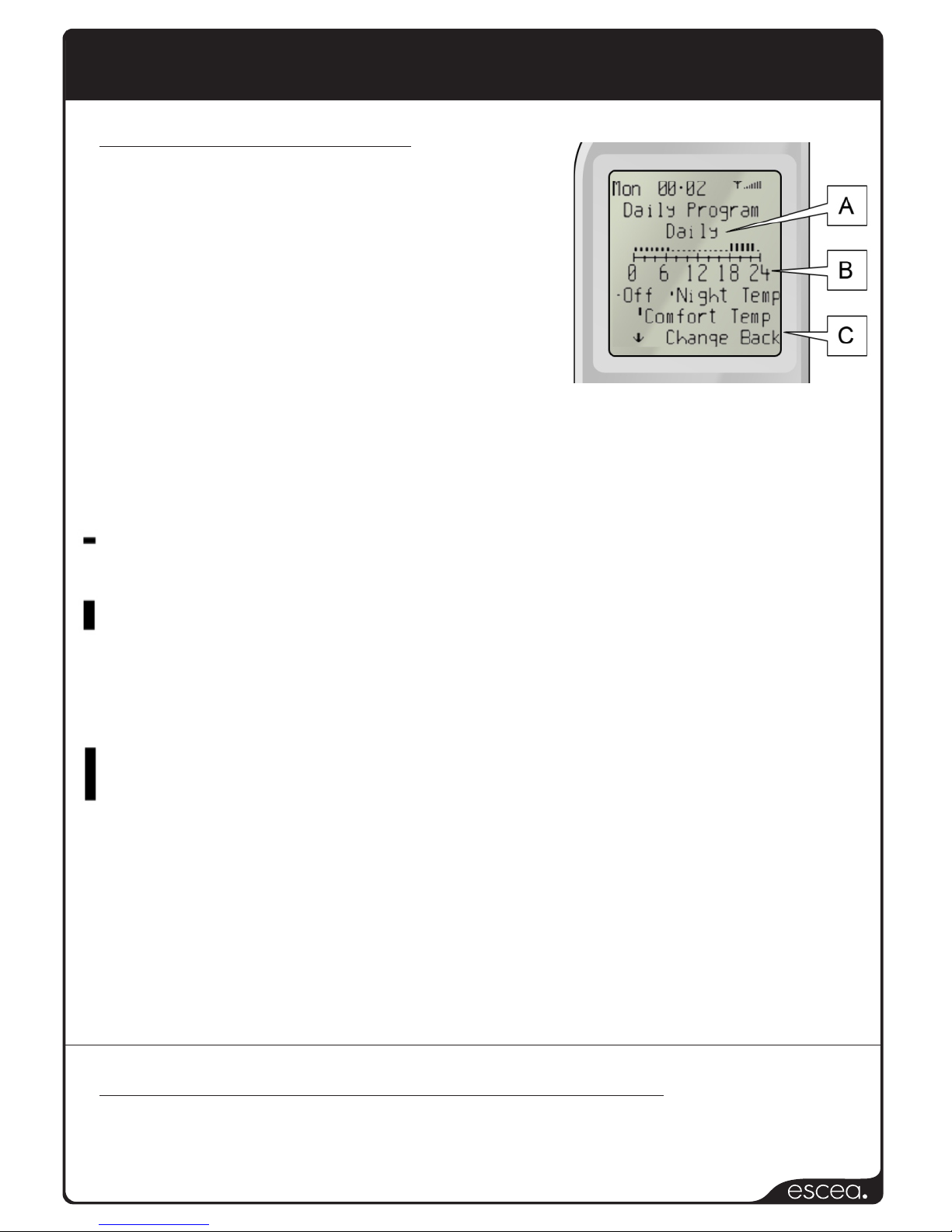

The daily program screen consists of:
A: Selected (including “Daily”). The selected
day can be changed by pressing Change
(middle button).
B: Day schedule graphic. This bar displays
the program for the whole day by showing
the temperature setting for each hour of the
day. To access the day schedule graphic,
press ↓ (left button). To change the desired temperature, go to the hour you
want to change by pressing → (left button) and then press change (middle
button).
There are 3 temperature settings (bars):
Program mode (continued)
[Small bar] No temperature control (the appliance is in pilot
mode).
[Medium bar] The night temperature is set as the desired
temperature and the appliance will heat until this
temperature is reached. To adjust the night temperature
press “Menu → Adjust menu → Night” and set the desired
temperature.
[Large bar] The comfort temperature is set as the desired
temperature and the appliance will heat until this
temperature is reached. (High bar). To adjust the comfort
temperature pres Menu → Adjust menu → Comfort and set the
desired temperature.
Finally, to launch the program mode, in the main menu, set Program to On,
and select the desired Program Type (Daily or weekly). When activated, the
screen will show which of the above temperature settings is currently active,
Off, Night, or Comfort. The pilot must remain lit in order for the program to
remain running.
Go into Menu → Adjust menu → Unit. Press middle button and then left button
for changing units.
Changing the display from Celsius to Fahrenheit:
Off
Night Temp
Comfort Temp
Basic Operation
5

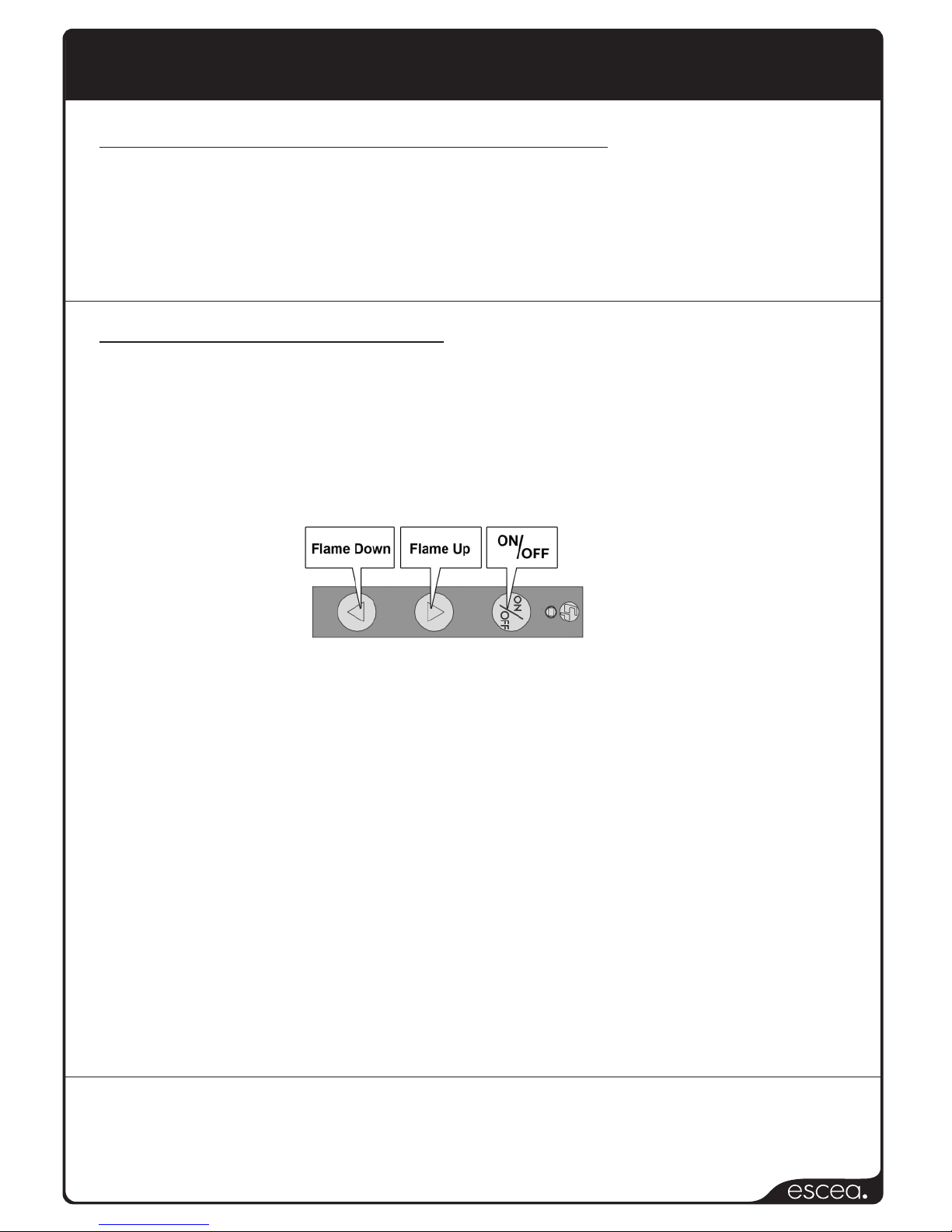

Operation from the Touch Pad
The touch pad is intended to be used for service/diagnostic purposes and to
operate the fire in the event that the remote handset becomes lost or inoperative.
If you remove the fascia you will find an electronic touch pad in the lower centre of
the fire. The touch pad features the basic operations of the fire: On, off, and
manual adjustment of the flame height.
DO NOT DROP THE REMOTE.
Dropping the remote may result in a cracked LCD screen or malfunctioning components.
The warranty does not cover damage to the remote sustained by dropping, however
replacement remote controls are available.
To Lock / Unlock the remote control buttons:
Go into Menu → Lock. Press middle button and then left button for locking the
remote.
To unlock pres left button and then middle button.
To turn on the ST900, push the ON/OFF button on the touch pad. The system will
emit a beep and begin the ignition process, which can take about 10 seconds.
Once the start up process is complete, the fire will be running in HIGH mode. The
ST900 is now in the 'Manual' mode and ready to be used.
While the fire is running, press the 'Flame Up' or 'Flame Down' button to alter the
flame height. The LED will flash once and the unit will beep to confirm the flame
height has been adjusted. The ST900 has 4 flame positions: Pilot only, Low,
Medium, and High flame height.
If the 'Flame Up' button is pressed while the unit is in the 'high' flame position, the
unit will emit 2 beeps. Similarly, if 'Flame Down' is pressed while the unit is in the
'pilot' flame position, .
To shut down the gas flow to the ST900, press the On/Off button and the LED will
blink and the unit will emit a beep.
the unit will emit 2 beeps
Clearances
Cabinet Clearances
There must be a minimum of 100mm from the sides of the fascia to any
protruding side walls or cabinetry.
Television Positioning Considerations
It is becoming common practice for consumers to mount flat screen TV's
above their gas fireplace.
Most TV manufacturers have specified in their instructions that the
TV should not be installed on, near or above a heat source. For this
reason TV location decisions rest solely with the householder and
the manufacturer / distributor will not be held liable for any adverse
affects on a TV located near to the ST900 fireplace that may be
caused by heat.

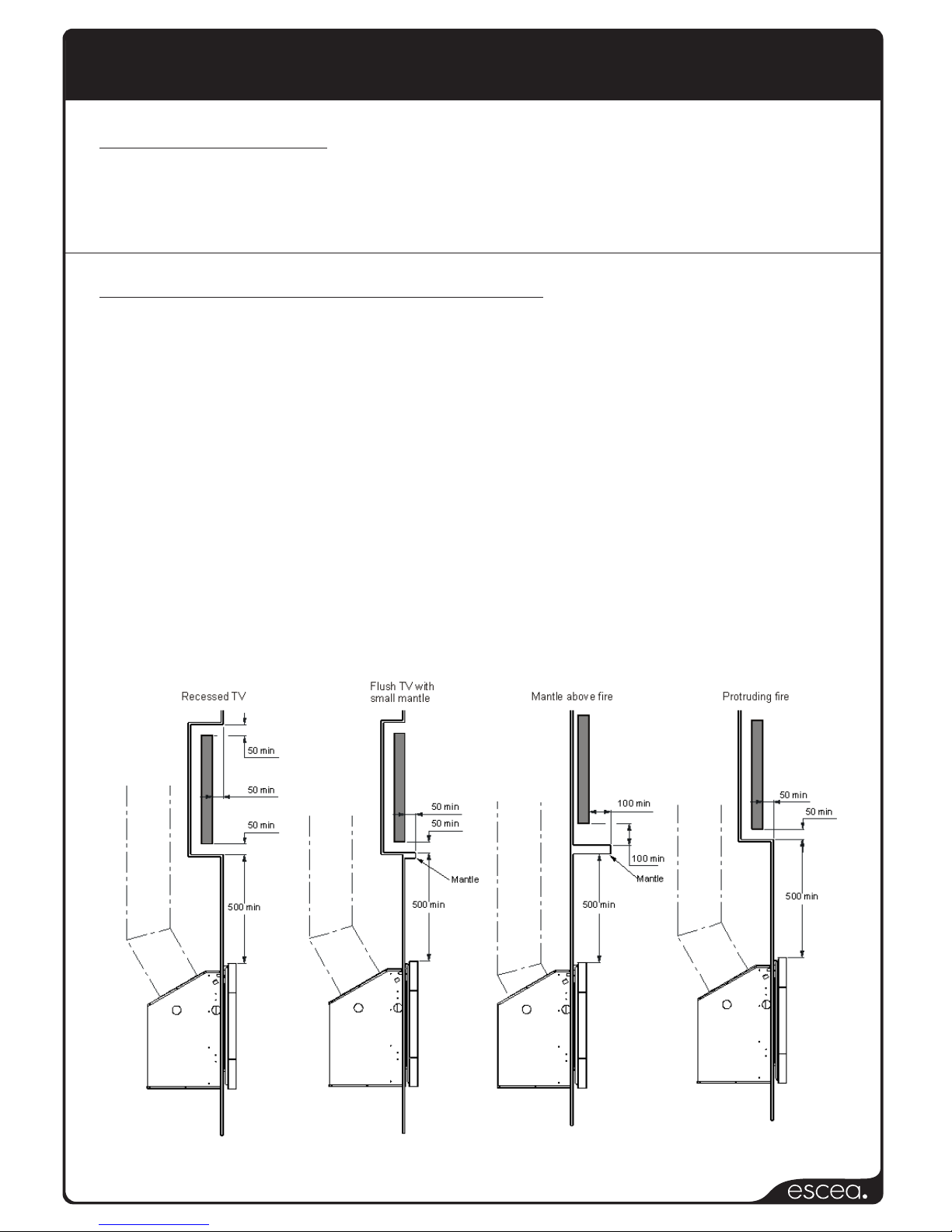

The drawings below are suggestions that may be used as a GUIDE
for those consumers who do decide to locate their TV above an
ST900 gas fire. These drawings show ways to reduce the amount of
warm air rising off the fireplace and onto the TV.
6
Autres manuels pour ST900
10
Table des matières
Autres manuels Escea Cheminée intérieure
Escea
Escea ST900 Manuel utilisateur
Escea
Escea ST900 Manuel utilisateur
Escea
Escea AF series Guide rapide
Escea
Escea NBS5525 Instructions de montage
Escea
Escea ST900 Manuel utilisateur
Escea
Escea EK950 Manuel utilisateur
Escea
Escea ST900 Manuel utilisateur
Escea
Escea DX1000 Manuel utilisateur
Escea
Escea IB850 Manuel utilisateur
Escea
Escea IB850 Manuel utilisateur
Escea
Escea EF5000 Manuel utilisateur
Escea
Escea AF700 Manuel utilisateur
Escea
Escea DS 1900 Instructions d'installation et d'entretien
Escea
Escea IB850 Manuel utilisateur
Escea
Escea EF5000 Manuel utilisateur
Escea
Escea DX1000 Manuel utilisateur
Escea
Escea IB1100 Manuel utilisateur
Escea
Escea ST500 Manuel utilisateur
Escea
Escea DF Series Instructions d'installation et d'entretien
Escea
Escea EK1250 Instructions de montage
