Escea IB850 Manuel utilisateur

630099_4 Square Fascia Installation Manual AUS.docx

Square (Quadrato) Fascia - IB850, IB1100

Installation Manual

AUSTRALIAN EDITION

Important:

The appliance shall be installed in accordance with;

•This installation instruction booklet.

•Must be installed by a qualified person

•This Manual replaces section 23.0 of the IB Series Installation Manual

This appliance is not intended for use by young children or infirm persons unless they have been

adequately supervised by a responsible person to ensure that they can use the appliance safely.

Young children should be supervised to ensure that they do not play with the appliance.

Manufactured by: Escea Ltd, PO Box 5277 Dunedin NZ, Ph: +64 3 479 0302, email: i[email protected].au

For contact details of your local escea distributor or dealer please visit www.escea.com.au

630099_4 Square Fascia Installation Manual AUS.docx

Fitting the Square Fascia Panels:

To avoid scratches or knocks to the fascia panels of this gas fireplace they must be fitted at

the complete conclusion of the installation process. It may be necessary to use the Outer

Fascia to initially locate the gas fireplace but then remove it again so that there is no chance

of damage.

Note: Never Ever Rub the Fascia Panels.

Step 1:

The fascia is to be held in place by two fascia brackets. The right hand fascia bracket needs

to be bent into shape as shown in the figure above. Bend the bracket 90deg along the

perforated line. Fit the enclosed male attachment to the bracket as shown and tighten the

nut on the back.

Step 2:

On the right hand outer side of the fire there are four existing mounting holes. These are

located at the front bottom corner. To fit the right hand fascia mounting bracket, align the

part with the screw holes then screw in the four pozi-drive screws until tight. This added part

will hold one of the male attachments for the fascia.

630099_4 Square Fascia Installation Manual AUS.docx

Step 3:

The next step in attaching the square fascia mounts, is to remove the existing left hand

fascia bracket attached to the control box on the front left hand side of the firebox. Using a

screwdriver, carefully screw out the two screws holding the left hand bracket in place.

Remove this bracket. Replace with the new left hand fascia mounting bracket using the

screws for the previous bracket, these holes will line up with the previous screw holes.

Notice that the hole for the enclosed male attachment is not centre in the bracket, and

therefore the side with the longest flange must be pointing to the right when you fit

the male attachment to the bracket, as shown in the picture.

Step 4:

For the Outer Fascia to fit correctly, the two existing lower magnets and fixings must be

removed. The fascia mounting flanges must also be modified. To do this, bend the flange

towards the center of the fire, making sure it is clear from the outer fascia when fitted.

Remove magnets and bolt

Bend flange inwards or remove.

Remove Existing Bracket

630099_4 Square Fascia Installation Manual AUS.docx

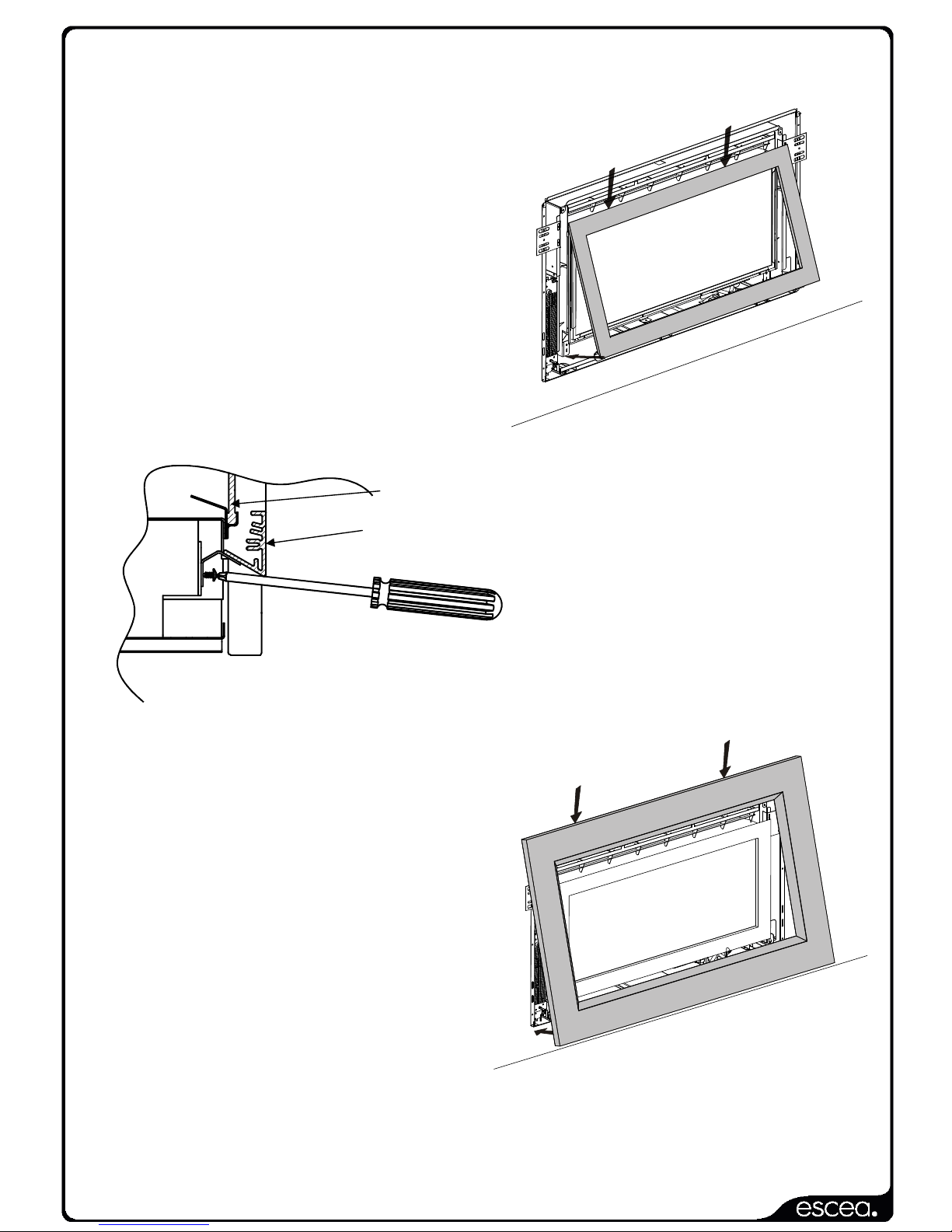

Step 5: Attach the Inner

Fascia Brackets to the bottom

of the Inner Fascia (smaller

one) as per the diagram

supplied with the Inner Fascia.

Hang the top edge of the Inner

Fascia from the lip that extends

at 45 degrees from the top of

the firebox. Be very careful not

to damage the powdercoating

on the Inner Fascia. This fascia

is fixed at its base by two

screws. Leave the screws loose

enough to be able to adjust the

Inner Fascia.

Step 6: Check that the Inner

Fascia is centered. If this panel is not

centered, adjust the Inner Fascia side to

side until the spaces on either side are

even. Tighten the screws to fix the Inner

Fascia in place.

Step 7: The Outer Fascia is now

fitted over the top of the Inner

Fascia. Hang the Outer

Fascia (larger one) from the

degree flange at the top of

the fireplace, being very

careful not to damage either

the Inner or Outer Fascias as

there is not a lot of room to fit

the Outer over the Inner.

Once the Fascia is hung on

this flange and clear of the

Inner Fascia it will swing

down and clip into place.

Once it has clipped onto the

fireplace check that the Fascia is parallel with the wall. The fascia installation is

now complete.

Inn

er Fascia

Glass

Diagram illustrates a cut

through section of fire
